KY-TB-A Panel Mount Metal Touchpad Mouse

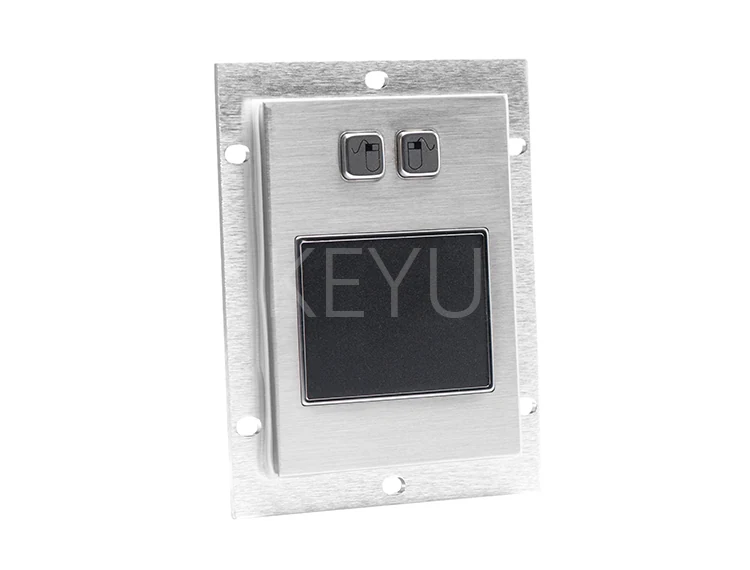

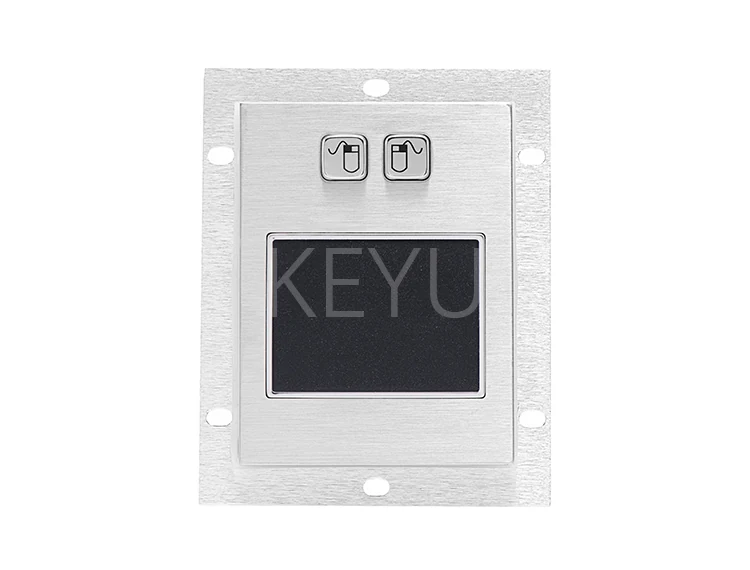

KY-TB-A is a patented panel mount touchpad mouse with a high flexibility touch panel on a 304 stainless steel face measuring 83 * 110 mm.
Product Overview
KY-TB-A is a patented panel mount touchpad mouse with a high flexibility touch panel on a 304 stainless steel face measuring 83 * 110 mm. It resists dirt dust and liquids and draws under 60mA which makes it easy to add to a crowded USB budget. It is chosen where a trackball would collect debris but a pointing device is still needed.
- Touch panel has no moving ball to jam with dust or debris
- Compact 83 * 110 mm front panel with a 107 * 134mm body
- Resistance to dirt dust and liquids with a robust vandal resistant design
- Working current under 60mA is low for a panel pointing device
- 304 stainless steel front panel and keys over an aluminum rear panel
- Optional installation kit and desktop kit for bench use
Application Scenarios
- Console panels where debris would jam a trackball
- Self service terminals in dusty locations
- Industrial equipment operator stations
- Public information terminals
- Bench test stations using the desktop kit
- Retrofits replacing a failed trackball module
Who It Is For
- Terminal and kiosk manufacturers
- Industrial equipment builders
- System integrators retrofitting pointing devices
- Public sector equipment suppliers
Problems It Solves
- Trackball mechanisms collect grit in dirty environments
- Pointing devices add too much current on loaded USB buses
- Loose mice cannot be secured to a public console
- Liquids reach the electronics of open pointing devices
Technical Features
- High flexibility touch panel with patented construction
- Front panel 83 * 110 mm with overall 107 * 134mm
- Voltage 5.0VDC plus or minus 5 percent with working current under 60mA
- Key size 14mm*14mm with 1.5mm key trip and 2N plus or minus 10 percent force
- Durability above 2 Million operations
- EMC radiation EN55022 (B)
- Rear mounting with PS/2 or USB output
Specifications
| Front panel | 83 * 110 mm |
|---|---|
| Overall | 107 * 134mm |
| Power supply | 5V±5% |
| Working Current | <60mA |
| Durability | >2 Million |
| Interface | PS/2 or USB |
| Key Size | 14mm*14mm |
| Key trip | 1.5mm |
| Operation Force | 2N ± 10% |
| Mounting Way | Rear mounting |
| EMC radiation | EN55022 (B) |
| Operating Temperature | -10℃~50℃ |
Materials
- 304 stainless steel front panel
- 304 stainless steel keys
- Aluminum rear panel
Manufacturing Process
- Stainless panel forming to the 83 * 110 mm face
- CNC machining of the touch panel window and key apertures
- Aluminum rear panel preparation
- Touch panel bonding and sealing
- Sensitivity calibration of the touch surface
- PS/2 and USB functional test
Quality Control
- Touch response uniformity check across the panel
- Key force verified at 2N plus or minus 10 percent
- Liquid and dust resistance testing
- Emission check to EN55022 (B)
- Life sampling above 2 Million operations
Customisation Options
- Installation kit or desktop kit supplied as required
- PS/2 or USB interface build
- Key legend on the 304 stainless keys
- Cable length and exit position
- Panel cutout matched to the host fascia
How It Compares
| Trackball modules | A touch panel has no ball seat to collect grit in dirty environments |
|---|---|
| KY-TB-38 | Under 60mA draw against the trackball version for tight power budgets |
| Plastic touchpads | A 304 stainless front panel and keys over an aluminum rear panel resist vandalism |
Use Guide
- Cut the fascia for the 83 * 110 mm front panel
- Allow 107 * 134mm overall clearance
- Mount from the rear or add the desktop kit
- Operate between -10 and 50 degrees C
- Wipe the touch surface clean rather than scraping it
Related Products
Stainless Steel External Trackpad for PC KY-PC-TB-A-R
View Specification
KY-TB-A160 Stainless Steel External Trackpad With 2 Function Keys
View Specification
KY-TB-38-BL Rugged Medical Trackball in Stainless Steel
View Specification
KY-TB-A-B Panel Mounting Metal Touchpad for Industrial Equipment
View SpecificationQuestions About This Model
Is KY-TB-A a trackball or a touchpad?
It is a touchpad mouse with a high flexibility touch panel.
What are the dimensions?
Front panel 83 * 110 mm and overall 107 * 134mm.
How much current does it draw?
Under 60mA.
What interfaces are supported?
PS/2 or USB.
How is it mounted?
Rear mounting.
What EMC data is available?
EMC radiation is rated EN55022 (B).
Request A Quote On KY-TB-A
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
