KY-TB-A160 External Metal Trackpad

Product Overview

KY-TB-A160 is an external metal trackpad that replaces a conventional mouse on unattended terminals. Cursor movement is read from the touch surface and the two function keys use metal spring contacts to switch, so there are no soft rubber parts to tear or wear open. It suits integrators who need pointer input on a machine that is used by the public and cleaned often.

SUS304 brushed stainless steel panel resists corrosion and forced impact in public locations
Two metal spring contact function keys replace a mouse without adding a loose peripheral
Durability of more than 2 million operations supports terminals in continuous daily use
PS/2 or USB output drops into existing controller wiring without a driver change
Operation temperature of -20 degrees C to 60 degrees C covers unheated indoor and sheltered outdoor cabinets
Bottom up mounting with a fixed bottom plate keeps the fixings behind the enclosure face

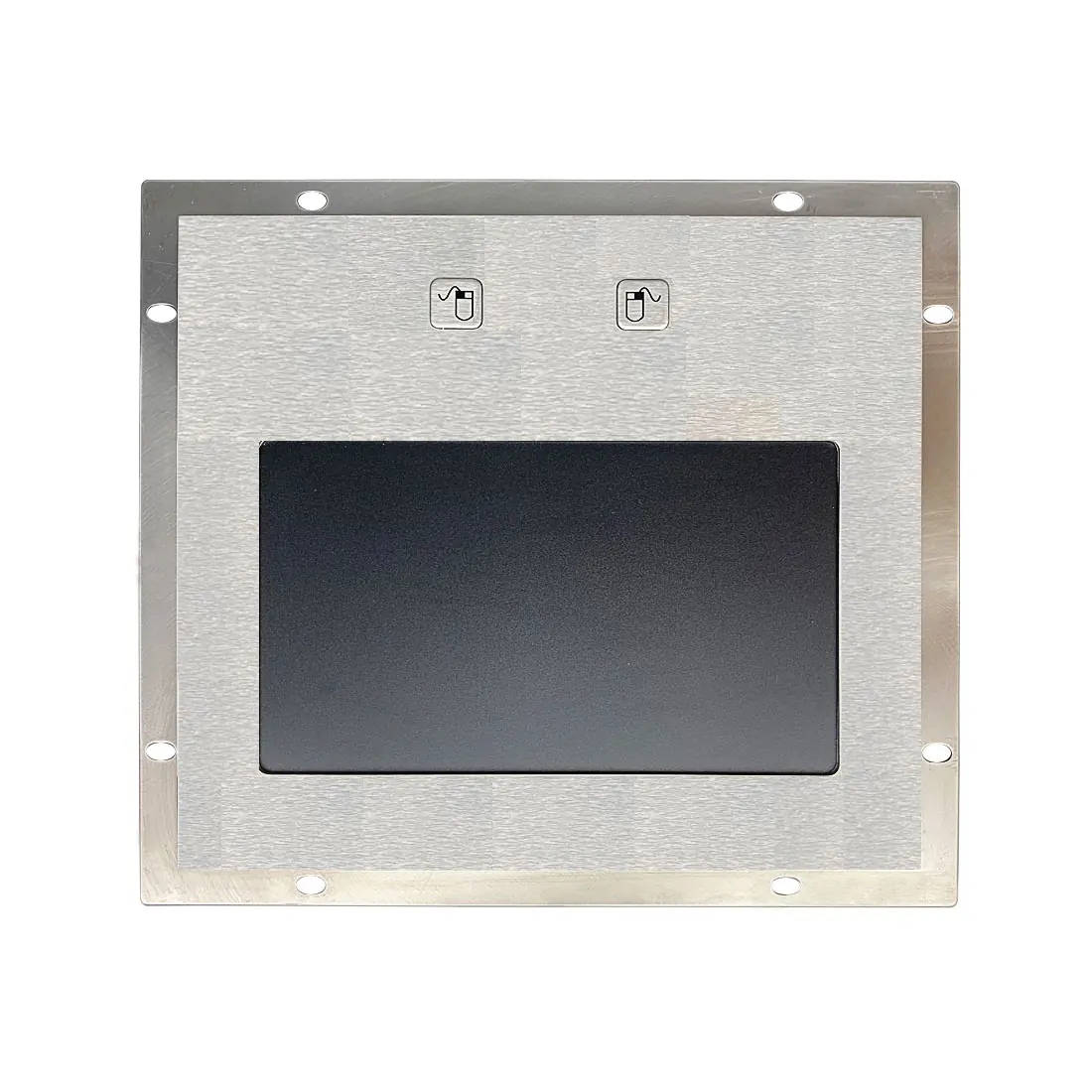

KY-TB-A160 external metal trackpad with SUS304 brushed stainless steel panel and 2 function keys

Application Scenarios

Self-service vending machines where a loose mouse cannot be used
Self-service information kiosks in lobbies and transport halls
Intelligent storage express lockers operated by couriers and the public
Industrial control equipment cabinets needing sealed pointer input
Military equipment consoles requiring a metal pointing surface

Who It Is For

Kiosk and vending machine OEMs specifying pointer input
Express locker and parcel terminal builders
Industrial control panel integrators
Defence equipment contractors sourcing metal input devices

Problems It Solves

Plastic mice and rubber pads fail quickly under public use and cleaning chemicals
Separate pointing devices can be pulled off or stolen from an unattended machine
Sealed enclosures need a pointer that mounts through the panel rather than sitting on it
Mixed legacy and current controllers need one device that speaks PS/2 or USB

Technical Features

Metal spring conduction for the function key contacts
Touch movement cursor positioning for flexible and quick placement
Power supply 5V plus or minus 5 percent with working current under 100mA
Key size 14mm*14mm*2mm with 0.45mm key trip
Operation force 3N plus or minus 10 percent for a defined tactile action
Driver level support for Window XP, Window 7, Window 8, Window 10, Linux, Ubuntu and Android
Storage temperature -30 degrees C to 85 degrees C for shipping and warehousing

Specifications

Durable IP65 trackpad external KY-TB-A160 specification
Function keys	2
Power supply	5V±5%
Working current	<100mA
Durability	>2 million
Interface	PS/2 Or USB
Key size	14mm14mm2mm
Key trip	0.45mm
Operation force	3N ± 10%
Mounting way	From the bottom up, the bottom plate is fixed
Net weight	1.1Kg
Gross weight	1.3Kg
Operation temperature	-20℃~60℃ (Relative humidity 20%~85%)

Materials

SUS304 brushed stainless steel panel
SUS304 brushed stainless steel keys
Metal spring conductive contacts

Manufacturing Process

Sheet metal blanking and panel forming of the SUS304 face
Brushing of the panel and key surfaces for a uniform matt finish
Laser etching of black characters on the stainless steel keys
Spring contact assembly and cursor module alignment
Bottom plate fitting and cable termination for PS/2 or USB

Quality Control

Cursor tracking and function key response checked on a live host before packing
Key travel and operation force sampled against the 0.45mm and 3N ± 10% figures
Durability sampling against the stated 2 million operation life
Panel finish inspected for brush direction, burrs and etching legibility

Customisation Options

Laser etched key characters in black to your artwork
Function key legends changed to match your terminal software
Cable length and exit direction set for your cabinet layout
PS/2 or USB selected at order
Panel cut-out and bottom plate fixing pattern matched to your enclosure

How It Compares

Plastic desktop mouse	The mouse sits loose on the terminal and can be removed, while KY-TB-A160 mounts from the bottom up into the panel.
Silicone membrane pointer pad	Membrane surfaces split and discolour with cleaning agents, whereas the SUS304 brushed panel is anti-corrosive and explosion-proof.
Trackball module	The touch surface has no rotating ball to collect grit, so the face stays flat and easy to wipe.

Use Guide

Cut the panel aperture and fix the bottom plate from the bottom up as specified
Connect to the host by PS/2 or USB and confirm the cursor moves before closing the cabinet
Keep supply within 5V ± 5% so the spring contacts switch reliably
Wipe the stainless face with a damp cloth rather than abrasive pads
Site the unit so ambient stays inside -20℃~60℃

Industries

Industrial Automation

Solutions

Custom development

Related Products

KY-PC-TB-A-R external trackpad for PC in SUS304 brushed stainless steel

Touchpad

Questions About This Model

How many function keys does KY-TB-A160 have?

It has a total of 2 function keys alongside the touch surface used for cursor positioning.

Which interface does it use?

It is supplied with PS/2 or USB output, selected at order.

What operating systems are supported?

Window XP, Window 7, Window 8, Window 10, Linux, Ubuntu and Android.

How is it fitted into a kiosk?

Mounting is from the bottom up with the bottom plate fixed, so no fasteners show on the front face.

What is the rated life?

Durability is rated at more than 2 million operations.

Can the key characters be changed?

Yes. Laser etching can be done when the characters are black, and the etched content follows your requirement.
