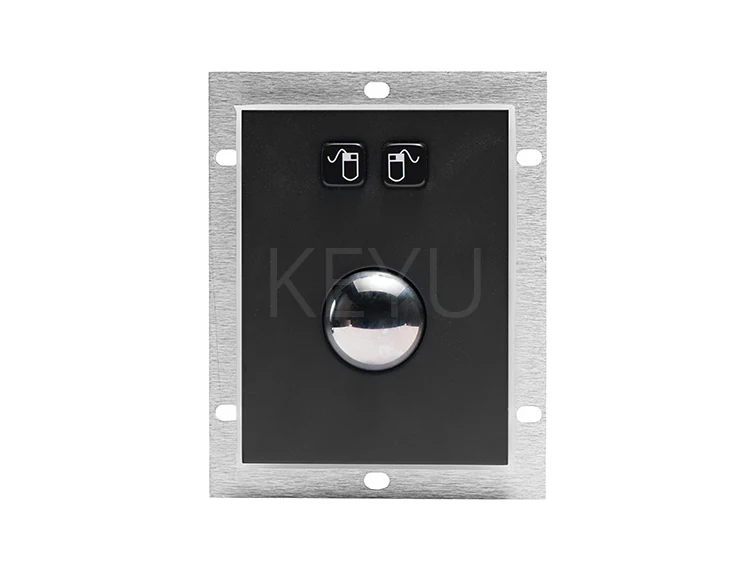

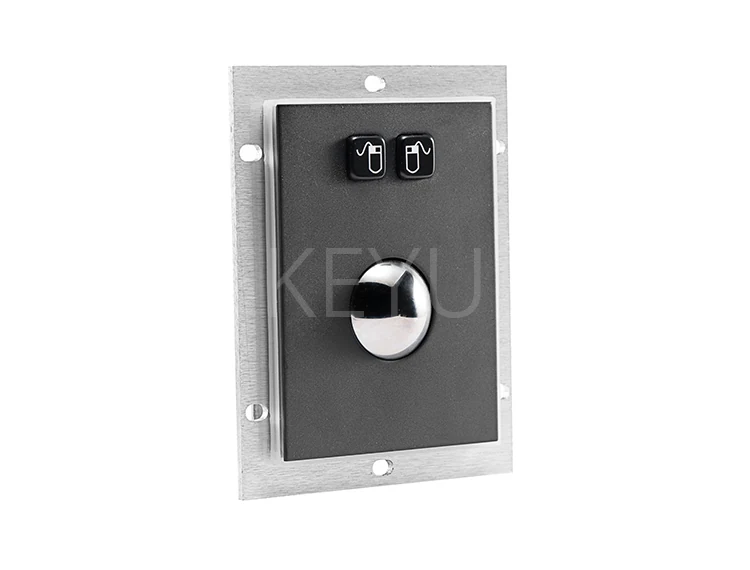

KY-TB-38-BL Rugged Medical Trackball in Stainless Steel
KY-TB-38-BL is a rugged trackball module with a 304 stainless steel trackball and keys on an 83*110 mm front panel with an aluminium back panel.
Product Overview
KY-TB-38-BL is a rugged trackball module with a 304 stainless steel trackball and keys on an 83*110 mm front panel with an aluminium back panel. Resolution is above 10000dpi and the unit resists dirt, dust and liquid, which is why it is specified for medical and public terminals. It is a patent product and approvals listed are ROHS, IP65, FCC and CE.
- Resolution above 10000dpi for precise cursor placement on detailed screens
- Resistant to dirt, dust and liquid in clinical and public settings
- 304 stainless steel trackball and keys with an aluminium back panel
- IP65 approval supports cleaning routines around the device
- EMC emission to EN55022(B) for use beside sensitive equipment
- Mounting kit and desktop kit are both optional, so one part covers two builds
Application Scenarios
- Medical imaging and clinical workstation input
- Kiosks requiring precise cursor control
- Vending machines and self-service terminals
- Industrial equipment operator stations
- Library catalogue and public search terminals
Who It Is For
- Medical device and clinical workstation OEMs
- Kiosk and self-service terminal builders
- Industrial equipment manufacturers
- Library and public access system suppliers
Problems It Solves
- Optical mice stop working on reflective or cluttered clinical surfaces
- Dust and spilled fluid jam low cost trackballs
- Emission limits restrict what can be placed near sensitive instruments
- One project needs a panel mount unit and another a desktop unit
Technical Features
- High resolution trackball with resolution above 10000dpi
- Front panel 83*110 mm with overall 107*134 mm
- Front panel and trackball in 304 stainless steel, back panel in aluminium
- Voltage 5.0VDC plus or minus 5 percent with working current under 150mA
- EMC emission EN55022(B)
- Operation force under 2N with durability of 2 million or more
- Rear mounting or front mounting with optional desktop kit
Specifications
| Front panel | 83*110 mm |
|---|---|
| Overall | 107*134 mm |
| Resolution | above 10000dpi |
| Voltage | 5.0VDC+_5% |
| Working current | <150mA |
| Interface | USB, PS/2 |
| Operation force | <2N |
| Durability | ≥ 2Million |
| EMC emission | EN55022(B) |
| Mounting way | Rear mounting or Front mounting |
| Storage temperature | -30℃~85℃ |
| Approvals | ROHS, IP65, FCC, CE |
Materials
- 304 stainless steel front panel
- 304 stainless steel trackball and keys
- Aluminium back panel
Manufacturing Process
- Blanking of the 83*110 mm stainless front panel
- CNC machining of the trackball seat and key apertures
- Aluminium back panel machining
- Trackball and sensor assembly to the high resolution specification
- Sealing and EMC verification before packing
Quality Control
- Cursor tracking checked against the above 10000dpi resolution claim
- Sealing verified against the IP65 approval
- EMC emission checked to EN55022(B)
- Key operation force sampled below 2N
Approvals And Test Documentation
- ROHS
- IP65
- FCC
- CE
- EN55022(B) EMC emission
Customisation Options
- Mounting kit or desktop kit selected at order
- Rear or front mounting configuration
- USB or PS/2 interface
- Panel outline and fixing pattern for your enclosure
- Cable length and exit direction
How It Compares
| Touchpad modules | The trackball gives resolution above 10000dpi for fine cursor work that a pad cannot match. |
|---|---|
| Plastic trackballs | The 304 stainless steel ball and keys with an aluminium back panel form a very rugged vandal proof assembly. |
| Standard medical mice | KY-TB-38-BL is IP65 approved and resistant to dirt, dust and liquid, so it stays in place during cleaning. |
Use Guide
- Choose the mounting kit for panel installation or the desktop kit for bench use
- Machine the fascia to the 83*110 mm front panel with 107*134 mm overall
- Connect USB or PS/2 and verify cursor motion in all directions
- Keep the supply at 5.0VDC ± 5%
- Wipe the ball and panel regularly rather than using solvents
