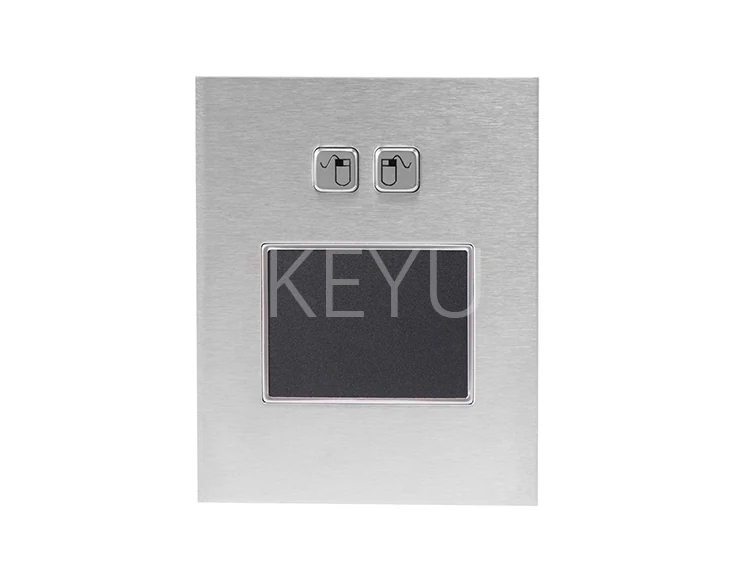

KY-TB-A-B Panel Mounting Metal Touchpad for Industrial Equipment
KY-TB-A-B is a 107*134 mm panel mounting pointing device for industrial equipment, supplied as a patent product with a high resolution trackball.
Product Overview
KY-TB-A-B is a 107*134 mm panel mounting pointing device for industrial equipment, supplied as a patent product with a high resolution trackball. Front panel, trackball and keys are all 304 stainless steel over an aluminum back panel, so the exposed surface resists dirt, dust and liquid. Mounting kit and desktop kit are optional, which lets the same unit serve a panel build and a bench build.
- 107*134 mm square footprint drops into a compact fascia beside an existing keyboard
- Resolution above 800dpi gives usable cursor control on high resolution screens
- 304 stainless steel front panel, trackball and keys resist dirt, dust and liquid
- RoHS, IP65, FCC and CE approvals cover common procurement checklists
- Mounting kit and desktop kit are optional so one part number serves two install types
- EMC emission tested to EN55022(B) for installation near sensitive equipment
Application Scenarios
- Kiosks needing a pointing device separate from the keyboard
- Vending machines with a graphical selection interface
- Self-service terminals in public halls
- Industrial equipment operator panels
- Library catalogue terminals
Who It Is For
- Kiosk and vending OEMs
- Industrial equipment panel designers
- Public terminal integrators
- Retrofit teams adding a pointing device to an existing fascia
Problems It Solves
- Mice that are removed or damaged on unattended terminals
- Optical mice that fail on dirty or reflective counters
- Pointing devices that fail EMC checks near industrial drives
- Needing separate parts for panel and desktop versions
Technical Features
- Patent product with high resolution trackball, resolution above 800dpi
- Front Panel 304 stainless steel, trackball and keys 304 stainless steel, back panel aluminum
- Voltage 5.0VDC+_5% with working current <150mA
- EMC Emission EN55022(B)
- Operation force <2N with durability ≥ 2Million
- Rear mounting or front mounting with USB and PS/2 interfaces
Specifications
| Front Panel | 107*134 mm |
|---|---|
| Overall | 107*134 mm |
| Resolution | above 800dpi |
| Voltage | 5.0VDC+_5% |
| Working Current | <150mA |
| Interface | USB, PS/2 |
| Operation Force | <2N |
| Durability | ≥ 2Million |
| EMC Emission | EN55022(B) |
| Mounting Way | Rear mounting or Front mounting |
| Storage Temperature | -30℃~85℃ |
| Approvals | ROHS, IP65, FCC, CE |
Materials
- 304 stainless steel front panel
- 304 stainless steel trackball and keys
- Aluminum back panel
Manufacturing Process
- Sheet metal forming of the 107*134 mm stainless face
- CNC machining of the trackball seat and key apertures
- Aluminum back panel machining
- Trackball sensor alignment and sealing
- EMC shielding fitting and final harness termination
Quality Control
- Resolution verification above 800dpi
- IP65 ingress testing on the assembled unit
- EMC emission check to EN55022(B)
- Operation force sampling below 2N
Approvals And Test Documentation
- ROHS
- IP65
- FCC
- CE
Customisation Options
- Mounting kit or desktop kit selection
- Key count and key position around the trackball
- Panel finish and customer logo etching
- USB or PS/2 harness configuration
- Cutout dimensions matched to an existing fascia
How It Compares
| Optical mouse on a counter | A sealed panel trackball cannot be removed and keeps working on dirty or reflective surfaces |
|---|---|
| Touchpad only module | The trackball gives precise control with wet or gloved hands, where a capacitive pad can misread |
Use Guide
- Cut a 107*134 mm aperture; front panel and overall size are the same
- Order the mounting kit for a panel build or the desktop kit for bench use
- Confirm the supply is 5.0VDC+_5%
- Wipe the stainless face regularly; the unit resists dirt, dust and liquid
Related Products
Stainless Steel External Trackpad for PC KY-PC-TB-A-R
View Specification
KY-TB-A160 Stainless Steel External Trackpad With 2 Function Keys
View Specification
KY-TB-38-BL Rugged Medical Trackball in Stainless Steel
View Specification
KY-TB-A-DESK Metal Waterproof Desktop Touchpad With High Resolution Trackball
View SpecificationQuestions About This Model
What resolution does KY-TB-A-B provide?
Above 800dpi.
What are the panel dimensions?
107*134 mm for both front panel and overall size.
Which materials are used?
304 stainless steel front panel, trackball and keys, with an aluminum back panel.
Can it be used on a desk?
Yes, a desktop kit is optional alongside the mounting kit.
Which approvals does it hold?
ROHS, IP65, FCC and CE.
Is EMC data available?
EMC emission is EN55022(B).
Request A Quote On KY-TB-A-B
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
