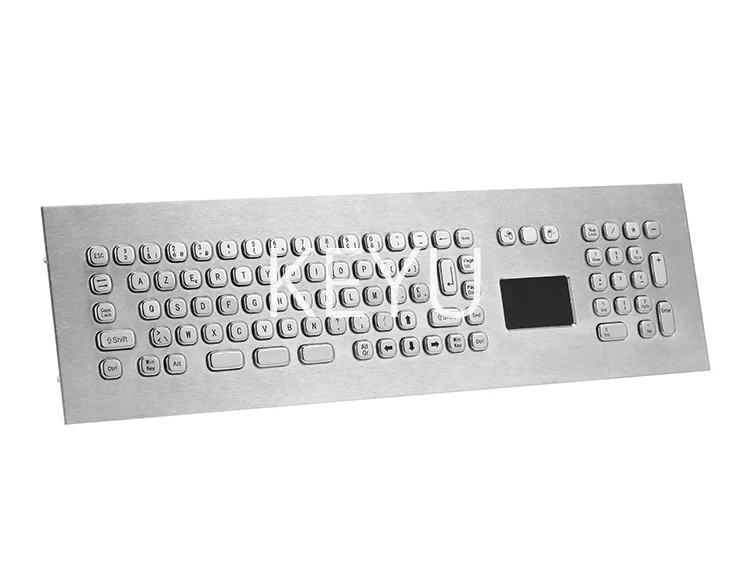

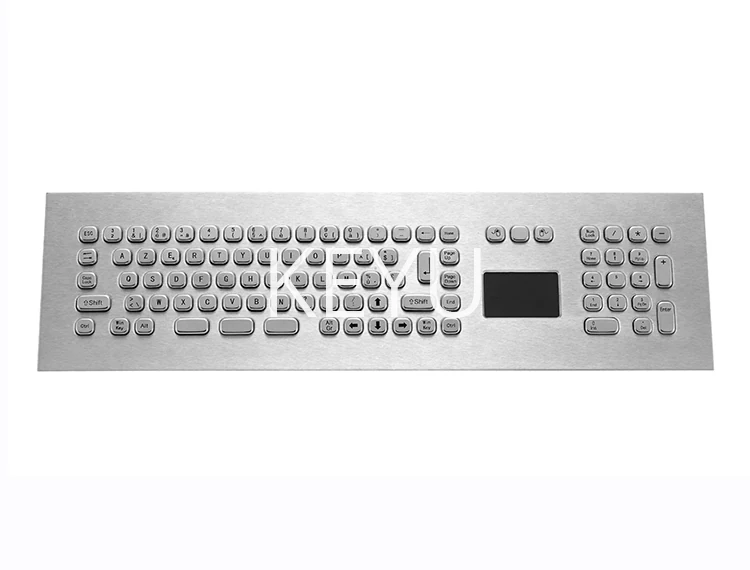

KY-PC-MINI4 Slim Panel Mount Metal Keyboard
KY-PC-MINI4 is a slim stainless steel keyboard whose panel and overall dimensions are both 392*110 mm, so the unit fits its cutout without an overhanging flange.
Product Overview
KY-PC-MINI4 is a slim stainless steel keyboard whose panel and overall dimensions are both 392*110 mm, so the unit fits its cutout without an overhanging flange. Key trip of 1.5mm and operation force under 2N give a light action for high traffic terminals. It is fitted to kiosks, ticket machines and petrol station equipment.
- Flush 392*110 mm outline with no hidden flange to design around
- Short 1.5mm key trip for fast repeated entry
- Operation force under 2N keeps typing light over long sessions
- IP65 sealed stainless construction against weather and abuse
- Rear or front mounting from the same part number
Application Scenarios
- Kiosk fascias with a wide shallow key band
- Ticket vending machines
- Petrol station forecourt terminals
- Parking venue payment points
- Unattended service terminals
Who It Is For
- Kiosk manufacturers
- Ticketing and parking equipment suppliers
- Forecourt terminal integrators
Problems It Solves
- Hidden mounting flanges colliding with adjacent fascia hardware
- Deep key travel slowing entry at busy terminals
- Plastic keyboards damaged by weather and public handling
Technical Features
- Mini stainless steel keyboard with water and vandal proof design
- Stainless steel buttons in a compact layout
- Key trip 1.5mm and operation force under 2N
- Power supply DC5V±5%
- USB or PS/2 interface
- Durability of 2Million
- Operation temperature -20℃~55℃
Specifications
| Front Panel | 392*110 mm |
|---|---|
| Overall Dimension | 392*110 mm |
| Key Trip | 1.5mm |
| Operation Force | <2N |
| Power Supply | DC5V±5% |
| Interface | USB or PS/2 |
| Durability | ≥2Million |
| Mounting Way | Rear Mounting or Front mounting |
| Operation Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~85℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel panel
- Stainless steel buttons
Manufacturing Process
- Blanking of the 392*110 mm flush panel
- CNC key aperture machining
- Key legend marking
- Sealing to IP65
- Brushing and final function test
Quality Control
- Key trip measured against the 1.5mm figure
- Force sampling below 2N
- IP65 ingress test
- Full key scan before packing
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout change within the 392*110 mm panel
- Key legends and language set
- USB or PS/2 termination
- Front or rear mounting studs
How It Compares
| KY-PC-MINI2 | Wider at 392 mm and flush, where the 300*103 mm model sits inside a 324*128 mm flange |
|---|---|
| Desktop metal keyboard | Panel mounting integrates the keys into the fascia instead of leaving a loose unit |
Use Guide
- Prepare the cutout to the 392*110 mm outline
- Select rear mounting for a flush outer face
- Connect by USB or PS/2 at DC5V±5%
- Keep the terminal interior within -20℃~55℃
Related Products
IP65 Mini Keyboard With Trackpad KY-PC-VG160T
View Specification
KY-PC-MINI-T Mini Stainless Steel Keyboard for Kiosks
View Specification
KY-PC-MINI3 Mini Metal Keyboard for Terminals and Fuel Stations
View Specification
KY-PC-MINI-D3 Wireless Metal Keyboard With Touchpad and 64 Keys
View SpecificationQuestions About This Model
Is there an overhanging flange?
No. Panel and overall dimensions are both 392*110 mm.
How far do the keys move?
Key trip is 1.5mm with operation force under 2N.
Which interfaces are available?
USB or PS/2.
What approvals are listed?
RoHS, IP65, FCC and CE.
Can the layout be changed?
Yes, the compact layout is customised free of charge.
Request A Quote On KY-PC-MINI4
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
