Mini Keyboard

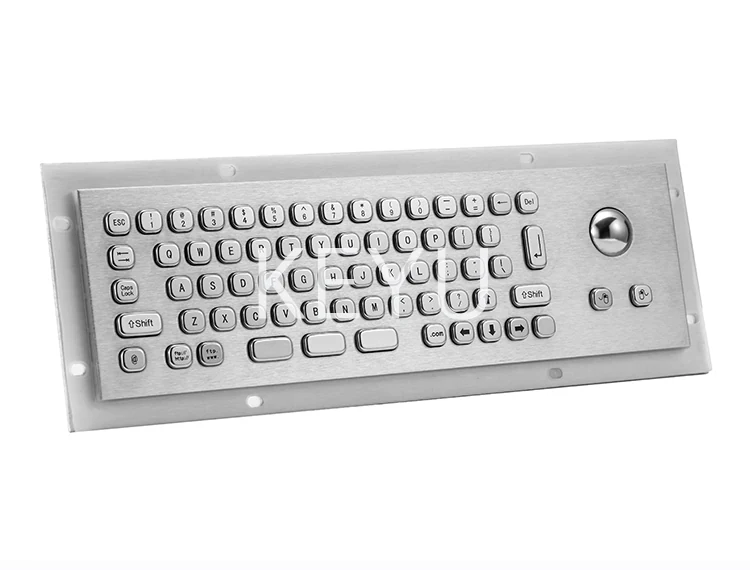

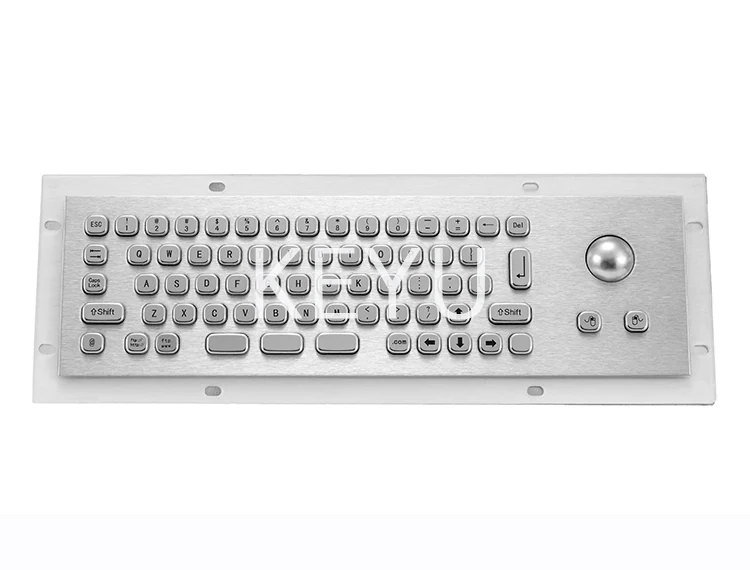

KY-PC-MINI-T Mini Stainless Steel Keyboard for Kiosks
KY-PC-MINI-T is a mini stainless steel keyboard with a 293*87 mm front panel, built for kiosk and ticketing fascias where space is tight. The water and vandal proof design carries RoHS, IP65, FCC and CE approvals.
Product Overview
KY-PC-MINI-T is a mini stainless steel keyboard with a 293*87 mm front panel, built for kiosk and ticketing fascias where space is tight. The water and vandal proof design carries RoHS, IP65, FCC and CE approvals. Layout is customized at no extra charge and the interface is USB or PS/2.
- Narrow 293*87 mm front panel fits fascias that cannot take a full keyboard
- IP65 rated water and vandal proof design for outdoor machines
- Stainless steel buttons stay intact where plastic keys are snapped off
- Compact layout customized free of charge to match your application
- 1.5mm key trip gives usable feel despite the compact size
- Rear or front mounting to fit an existing enclosure
Application Scenarios
- Kiosk terminals with limited fascia width
- Petrol station payment and control points
- Parking venues and other unattended terminals
- Ticket vending machines
- Public information points needing a small key field
Who It Is For
- Kiosk manufacturers with narrow fascia designs
- Ticketing and transport equipment suppliers
- Fuel and parking terminal integrators
- Retrofit projects replacing failed plastic keyboards
Problems It Solves
- Full width keyboards will not fit a compact terminal front
- Unsealed keyboards fail in rain exposed kiosk positions
- Off the shelf compact layouts rarely match the application keys needed
- Plastic mini keyboards are easily levered out or broken
Technical Features
- Mini stainless steel keyboard with water and vandal proof design
- Front panel 293*87 mm with overall 317*111 mm
- Power supply DC5V plus or minus 5 percent
- Key trip 1.5mm with operation force under 2N
- Durability of 2 million operations or more
- Interface USB or PS/2
- Rear mounting or front mounting
Specifications
| Front panel | 293*87 mm |
|---|---|
| Overall | 317*111 mm |
| Power supply | DC5V±5% |
| Key trip | 1.5mm |
| Operation force | <2N |
| Durability | ≥2Million |
| Interface | USB or PS/2 |
| Mounting way | Rear Mounting or Front mounting |
| Operation temperature | -10℃~55℃ (Relative humidity 20%~85%) |
| Storage temperature | -30℃~85℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel front panel
- Stainless steel buttons
Manufacturing Process
- Blanking of the 293*87 mm stainless front panel
- CNC machining of the compact key aperture field
- Panel forming and edge finishing
- Key labelling by laser or etching
- Sealing and assembly to the IP65 requirement
Quality Control
- Ingress sealing checked against the IP65 approval
- Every key tested for output on a host before packing
- Key trip verified against the 1.5mm figure
- Panel dimensions checked to 293*87 mm and 317*111 mm
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Compact layout customized for free
- Key labelling produced to your artwork
- USB or PS/2 interface at order
- Rear or front mounting configuration
- Fixing pattern matched to an existing cut-out
How It Compares
| KY-PC-MINI3 | KY-PC-MINI-T has a smaller 293*87 mm front panel where MINI3 measures 370*103mm. |
|---|---|
| Full size metal keyboards | The mini format releases fascia width for card readers and printers. |
| Plastic compact keyboards | Stainless steel buttons and an IP65 rated build survive weather and forced contact. |
Use Guide
- Cut the fascia to suit a 293*87 mm front panel and 317*111 mm overall
- Select rear or front mounting for your enclosure wall thickness
- Connect USB or PS/2 and test all keys before sealing the cabinet
- Keep gasket compression even to hold the IP65 rating
- Operate within -10℃~55℃
Related Products
Questions About This Model
How large is KY-PC-MINI-T?
The front panel is 293*87 mm and the overall size is 317*111 mm.
Is the layout fixed?
No. The compact layout is customized for free to suit your application.
What approvals does it hold?
RoHS, IP65, FCC and CE.
What interface options exist?
USB or PS/2.
What is the key travel and force?
Key trip is 1.5mm with an operation force below 2N.
Where is it used?
Kiosks, parking venues and other terminals, petrol stations and ticket vending machines.
Request A Quote On KY-PC-MINI-T
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
