KY-PC-MINI3 Mini Metal Keyboard for Terminals and Fuel Stations

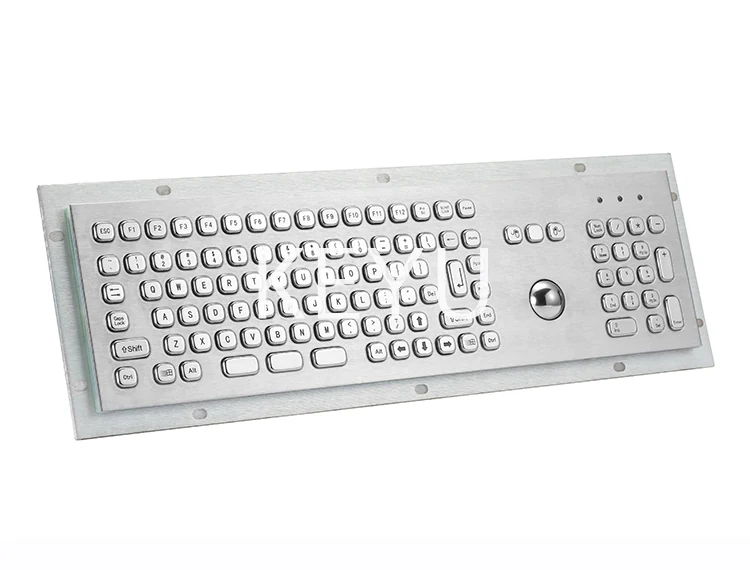

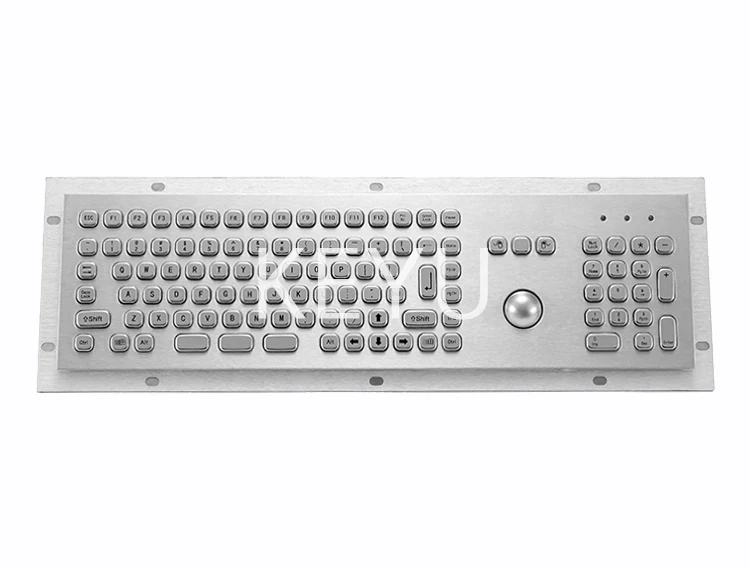

KY-PC-MINI3 is a mini stainless steel keyboard on a 370*103mm front panel, sized for terminals that need a fuller key field than the smallest models but still cannot take a full width keyboard.
Product Overview
KY-PC-MINI3 is a mini stainless steel keyboard on a 370*103mm front panel, sized for terminals that need a fuller key field than the smallest models but still cannot take a full width keyboard. The water and vandal proof build is approved to RoHS, IP65, FCC and CE. Layout is customized free of charge.
- 370*103mm front panel gives a wider key field than the smallest mini models
- IP65 approved water and vandal proof design for forecourts and street terminals
- Stainless steel buttons survive numerical control workshop conditions
- Free layout customization to match the machine or terminal software
- 1.5mm key trip with under 2N force for quick repeated entry
- Rear or front mounting for both new builds and retrofits
Application Scenarios
- Kiosk solutions in public areas
- Petrol station payment and control terminals
- Numerical control equipment operator panels
- Parking venues and other unattended terminals
- Ticket vending machines
Who It Is For
- Kiosk and terminal manufacturers
- Machine tool and numerical control equipment builders
- Fuel and parking operators
- Ticketing equipment suppliers
Problems It Solves
- The smallest mini keyboards leave too few keys for machine control
- Full width keyboards do not fit the available fascia
- Weather and wash water disable unsealed keyboards
- Workshop coolant and swarf destroy plastic keys
Technical Features
- Mini stainless steel keyboard with water and vandal proof design
- Front panel 370*103mm with overall 394*128 mm
- Power supply DC5V plus or minus 5 percent
- Key trip 1.5mm with operation force under 2N
- Durability of 2 million operations or more
- Interface USB or PS/2
- Operation temperature -10 degrees C to 55 degrees C
Specifications
| Front panel | 370*103mm |
|---|---|
| Overall | 394*128 mm |
| Power supply | DC5V±5% |
| Key trip | 1.5mm |
| Operation force | <2N |
| Durability | ≥2Million |
| Interface | USB or PS/2 |
| Mounting way | Rear Mounting or Front mounting |
| Operation temperature | -10℃~55℃ (Relative humidity 20%~85%) |
| Storage temperature | -30℃~85℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel front panel
- Stainless steel buttons
Manufacturing Process
- Blanking of the 370*103mm stainless front panel
- CNC machining of the compact key field
- Panel forming and edge finishing
- Key labelling to customer artwork
- Sealed assembly to the IP65 requirement
Quality Control
- Sealing confirmed against the IP65 approval
- Full key sweep on a host before packing
- Key trip verified at 1.5mm
- Front panel and overall sizes checked to 370*103mm and 394*128 mm
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Compact layout customized for free
- Key labelling to your artwork
- USB or PS/2 interface at order
- Rear or front mounting configuration
- Fixing pattern matched to an existing panel
How It Compares
| KY-PC-MINI-T | KY-PC-MINI3 is wider at 370*103mm against 293*87 mm, giving more keys where fascia width allows. |
|---|---|
| Full size industrial keyboards | The mini footprint frees fascia space for readers, printers and displays. |
| Plastic compact keyboards | Stainless steel buttons and an IP65 approved panel hold up in forecourt and workshop air. |
Use Guide
- Machine the fascia for a 370*103mm front panel and 394*128 mm overall
- Choose rear or front mounting for the enclosure wall
- Connect USB or PS/2 and test all keys before sealing
- Keep gasket compression even to maintain IP65
- Operate within -10℃~55℃
Related Products
Questions About This Model
What size is KY-PC-MINI3?
Front panel is 370*103mm with an overall size of 394*128 mm.
Is the layout fixed?
No, the compact layout is customized for free.
What approvals does it carry?
RoHS, IP65, FCC and CE.
What interfaces are available?
USB or PS/2.
What is the key travel?
Key trip is 1.5mm with an operation force below 2N.
Which applications suit it?
Kiosk solutions, petrol stations, numerical control equipment, parking venues and ticket vending machines.
Request A Quote On KY-PC-MINI3
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
