KY-PC-MINI2 Compact Metal Panel Keyboard

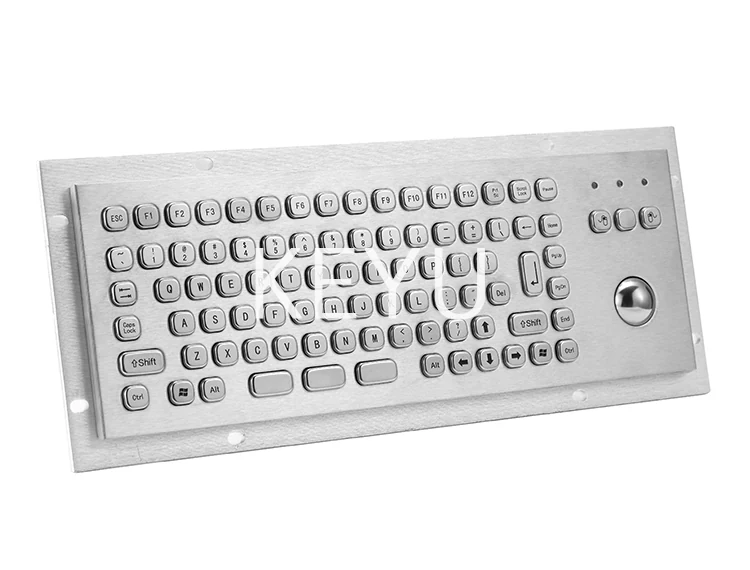

KY-PC-MINI2 is a compact stainless steel panel keyboard with a 300*103 mm visible face on a 324*128 mm body, so the flange hides the cutout edge. Key trip of 1.5mm keeps the action quick at ticket and parking machines.
Product Overview
KY-PC-MINI2 is a compact stainless steel panel keyboard with a 300*103 mm visible face on a 324*128 mm body, so the flange hides the cutout edge. Key trip of 1.5mm keeps the action quick at ticket and parking machines. Operating from -10℃~55℃, it suits sheltered outdoor and indoor terminals.
- 324*128 mm flange covers a rough cutout edge for a clean finish
- 300*103 mm key face fits mid size terminal fascias
- 1.5mm key trip and under 2N force for rapid public use
- IP65 sealed stainless steel body
- USB or PS/2 to suit existing terminal controllers
Application Scenarios
- Ticket vending machines
- Parking venue terminals
- Kiosk solutions in shopping centres
- Petrol station indoor payment points
- Self-service counters
Who It Is For
- Ticketing machine manufacturers
- Parking systems suppliers
- Kiosk integrators refitting existing fascias
Problems It Solves
- Untidy or oversize cutouts left by an earlier keyboard
- Key mechanisms failing under continuous public use
- Terminals still running PS/2 controllers
Technical Features
- Mini stainless steel keyboard with water and vandal proof design
- Stainless steel buttons in a compact layout
- Key trip 1.5mm and operation force under 2N
- DC5V±5% power supply
- USB or PS/2 interface
- Durability of 2Million
- Operation temperature -10℃~55℃
Specifications
| Front Panel | 300*103 mm |
|---|---|
| Overall Dimension | 324*128 mm |
| Key Trip | 1.5mm |
| Operation Force | <2N |
| Power Supply | DC5V±5% |
| Interface | USB or PS/2 |
| Durability | ≥2Million |
| Mounting Way | Rear Mounting or Front mounting |
| Operation Temperature | -10℃~55℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel panel and buttons
Manufacturing Process
- Panel forming with the 324*128 mm flange
- CNC machining of the 300*103 mm key field
- Legend marking
- IP65 sealing
- Brushing, assembly and test
Quality Control
- Flange flatness check for gasket seating
- Key trip and force sampling
- Water ingress test
- Key mapping verification
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout change within the key field
- Legend language and symbols
- USB or PS/2 cable
- Fixing stud pattern to the customer drawing
How It Compares
| KY-PC-MINI1 | A wider 300*103 mm face for layouts that will not fit 244*103 mm |
|---|---|
| KY-PC-MINI4 | Carries a covering flange rather than a flush edge to hide the cutout |
Use Guide
- Cut to suit the 300*103 mm face and seat the 324*128 mm flange
- Choose front mounting where the flange should hide the cutout edge
- Power over USB or PS/2 at DC5V±5%
- Operate within -10℃~55℃
Related Products
IP65 Mini Keyboard With Trackpad KY-PC-VG160T
View Specification
KY-PC-MINI-T Mini Stainless Steel Keyboard for Kiosks
View Specification
KY-PC-MINI3 Mini Metal Keyboard for Terminals and Fuel Stations
View Specification
KY-PC-MINI-D3 Wireless Metal Keyboard With Touchpad and 64 Keys
View SpecificationQuestions About This Model
Does the flange cover the cutout?
The 324*128 mm body is larger than the 300*103 mm face, so front mounting covers the cutout edge.
What is the key trip?
1.5mm.
How cold can it run?
Operation temperature is -10℃~55℃.
Which interfaces are offered?
USB or PS/2.
What is the cycle rating?
2Million actuations.
