Mini Keyboard
KY-PC-MINI1 Small Format Metal Keyboard

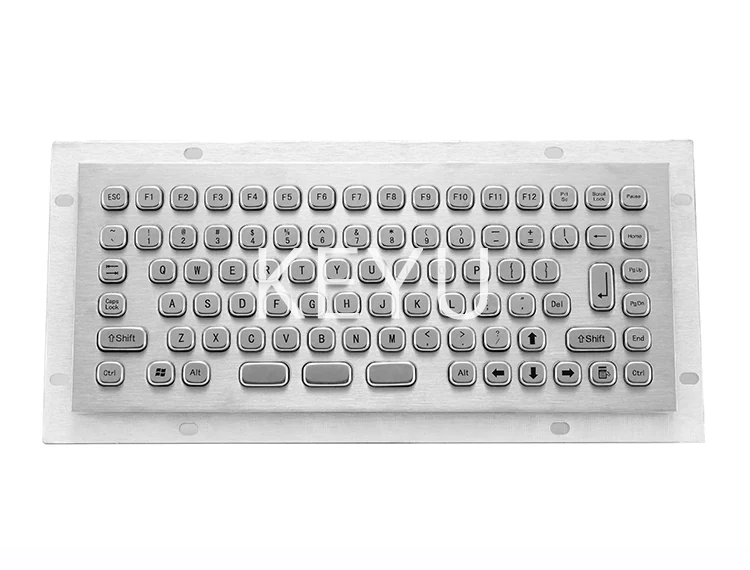

KY-PC-MINI1 is the short member of the mini panel family, with a 244*103 mm key face inside a 268*128 mm flanged body.
Product Overview
KY-PC-MINI1 is the short member of the mini panel family, with a 244*103 mm key face inside a 268*128 mm flanged body. It keeps the stainless steel buttons and 1.5mm key trip of the wider models in a footprint that suits narrow columns. The -20℃~55℃ operating range covers unheated kiosk and forecourt enclosures.
- Short 244*103 mm face fits columns and narrow doors
- Operating range from -20℃ for unheated outdoor cabinets
- 1.5mm key trip and under 2N force for quick entry
- IP65 sealed stainless steel panel and buttons

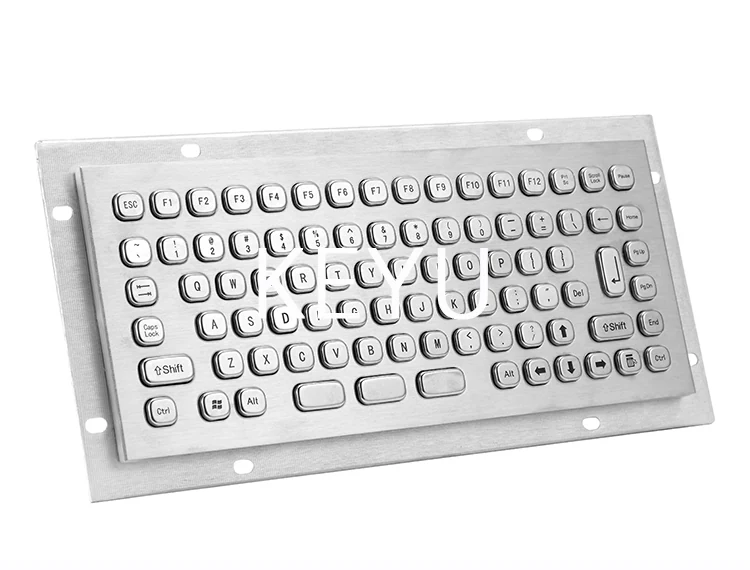

- Rear or front mounting with a covering 268*128 mm flange
Application Scenarios
- Kiosk solutions with narrow fascias
- Petrol station column terminals
- Ticket vending machines in cold locations
- Parking venue entry posts
- Compact unattended service terminals
Who It Is For
- Outdoor terminal manufacturers
- Parking and ticketing integrators
- Kiosk builders working in tight fascias
Problems It Solves
- Wider keyboards will not fit a narrow column door
- Cold morning starts freeze consumer grade keyboards
- Public handling destroys plastic key caps
Technical Features
- Mini stainless steel keyboard with water and vandal proof design
- Key trip 1.5mm with operation force under 2N
- DC5V±5% power supply
- USB or PS/2 interface
- Durability of 2Million
- Operation temperature -20℃~55℃ and storage -30℃~85℃
Specifications
| Front Panel | 244*103 mm |
|---|---|
| Overall Dimension | 268*128 mm |
| Key Trip | 1.5mm |
| Operation Force | <2N |
| Power Supply | DC5V±5% |
| Interface | USB or PS/2 |
| Durability | ≥2Million |
| Mounting Way | Rear Mounting or Front mounting |
| Operation Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~85℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel panel
- Stainless steel key buttons
Manufacturing Process
- Forming of the 268*128 mm flanged body
- CNC machining of the 244*103 mm key field
- Legend marking on the stainless face
- Sealing to IP65
- Surface brushing and electrical test
Quality Control
- Cold soak sampling at the -20℃ limit
- Key trip and force measurement
- Water ingress test of the sealed face
- Key mapping verification against the drawing
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout change within the short key field
- Language specific legends
- USB or PS/2 lead
- Mounting studs to the customer pattern
How It Compares
| KY-PC-MINI2 | Shorter at 244 mm where the 300 mm face is too wide for the door |
|---|---|
| KY-PC-MINI | Taller key field at 103 mm compared with the 87 mm face |
Use Guide
- Match the cutout to the 244*103 mm face and seat the 268*128 mm flange
- Select the mounting direction to suit the door finish
- Connect by USB or PS/2 at DC5V±5%
- Run within -20℃~55℃
Related Products
IP65 Mini Keyboard With Trackpad KY-PC-VG160T
View Specification
KY-PC-MINI-T Mini Stainless Steel Keyboard for Kiosks
View Specification
KY-PC-MINI3 Mini Metal Keyboard for Terminals and Fuel Stations
View Specification
KY-PC-MINI-D3 Wireless Metal Keyboard With Touchpad and 64 Keys
View SpecificationQuestions About This Model
How small is the key face?
The front panel is 244*103 mm on a 268*128 mm body.
Will it start in freezing weather?
Operation temperature is specified as -20℃~55℃.
What key action does it have?
1.5mm key trip with operation force under 2N.
Which interfaces are available?
USB or PS/2.
What approvals are listed?
RoHS, IP65, FCC and CE.
Request A Quote On KY-PC-MINI1
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
