Mini Keyboard

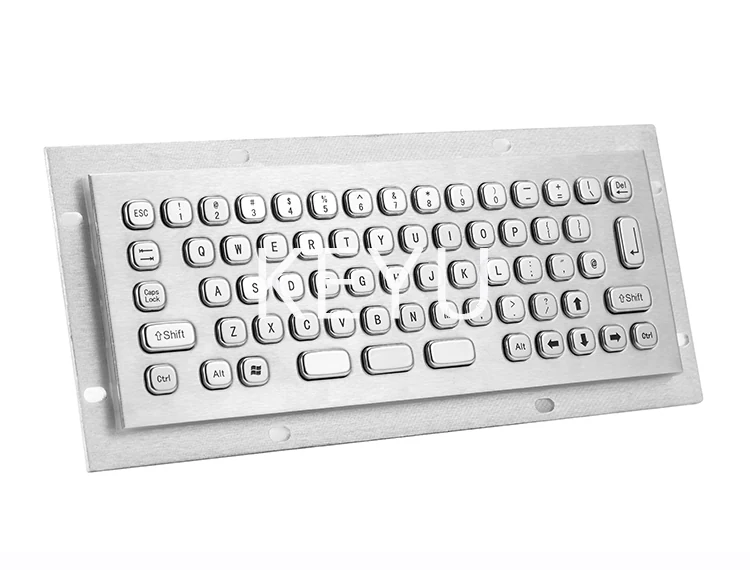

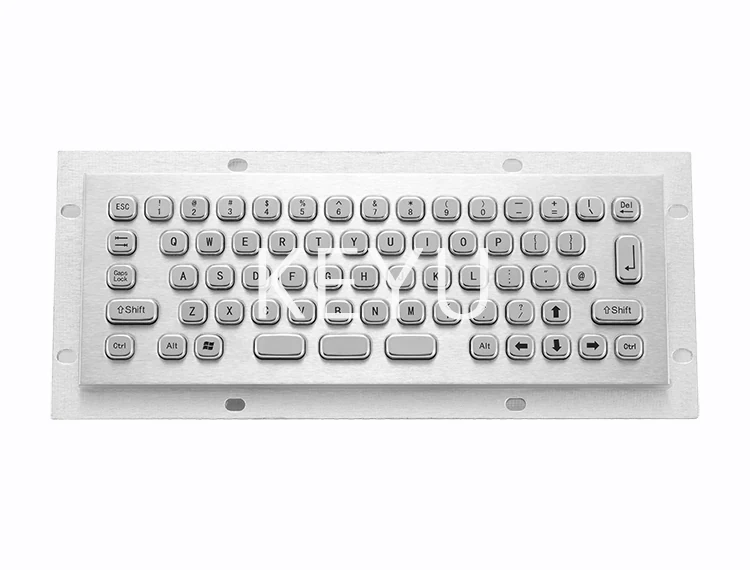

KY-PC-MINI Miniature Stainless Steel Keyboard
KY-PC-MINI is the smallest panel keyboard in the mini family, with a 230*87 mm key face on a 254*111 mm body. It is used on numerical control equipment and compact kiosks where the door offers only a shallow band for keys.
Product Overview
KY-PC-MINI is the smallest panel keyboard in the mini family, with a 230*87 mm key face on a 254*111 mm body. It is used on numerical control equipment and compact kiosks where the door offers only a shallow band for keys. Stainless steel buttons and IP65 sealing keep it working around coolant mist and dust.
- Shallow 230*87 mm face fits the narrowest key bands
- Suited to numerical control equipment doors with limited panel area
- 1.5mm key trip with under 2N force for precise short presses
- IP65 sealing against coolant mist and airborne dust
- Operating range from -20℃~55℃
Application Scenarios
- Numerical control equipment operator doors
- Compact kiosk solutions
- Petrol station payment columns
- Ticket vending machines with shallow fascias
- Parking venue posts
Who It Is For
- Machine tool builders fitting operator panels
- Kiosk and column terminal manufacturers
- Parking and fuel retail equipment suppliers
Problems It Solves
- Machine doors with only a shallow strip free for keys
- Coolant and swarf destroying plastic keyboards on the shop floor
- Larger panels forcing redesign of the door layout
Technical Features
- Mini stainless steel keyboard with water and vandal proof design
- Stainless steel buttons, compact layout
- Key trip 1.5mm and operation force under 2N
- Power supply DC5V±5%
- USB or PS/2 interface
- Durability of 2Million
Specifications
| Front Panel | 230*87 mm |
|---|---|
| Overall Dimension | 254*111 mm |
| Key Trip | 1.5mm |
| Operation Force | <2N |
| Power Supply | DC5V±5% |
| Interface | USB or PS/2 |
| Durability | ≥2Million |
| Mounting Way | Rear Mounting or Front mounting |
| Operation Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~85℃ |
| Approval | RoHS, IP65, FCC, CE |
Materials
- Stainless steel panel and buttons
Manufacturing Process
- Blanking of the 254*111 mm body
- CNC machining of the 230*87 mm key field
- Legend marking
- IP65 sealing of the key layer
- Brushing and function test
Quality Control
- Dimensional check of the shallow key field
- Key trip verification at 1.5mm
- Ingress test against coolant spray
- Full key scan before packing
Approvals And Test Documentation
- RoHS
- IP65
- FCC
- CE
Customisation Options
- Free layout change within the 230*87 mm field
- Machine specific function legends
- USB or PS/2 cable termination
- Front or rear mounting preparation
How It Compares
| KY-PC-MINI1 | Shallower at 87 mm for doors that cannot take a 103 mm key field |
|---|---|
| Membrane strip keypad | Stainless buttons give tactile feedback that a flat strip does not |
Use Guide
- Confirm the door band accepts the 230*87 mm face
- Allow for the 254*111 mm body behind the cutout
- Supply DC5V±5% over USB or PS/2
- Keep operation within -20℃~55℃
Related Products
IP65 Mini Keyboard With Trackpad KY-PC-VG160T
View Specification
KY-PC-MINI-T Mini Stainless Steel Keyboard for Kiosks
View Specification
KY-PC-MINI3 Mini Metal Keyboard for Terminals and Fuel Stations
View Specification
KY-PC-MINI-D3 Wireless Metal Keyboard With Touchpad and 64 Keys
View SpecificationQuestions About This Model
Is this the smallest mini panel keyboard?
It has the shallowest face in this group at 230*87 mm.
Is it suitable for machine tools?
Numerical control equipment is one of the listed applications.
What key trip does it have?
1.5mm with operation force under 2N.
Which approvals are listed?
RoHS, IP65, FCC and CE.
Can the legends be machine specific?
Yes, the layout is customised free of charge.
Request A Quote On KY-PC-MINI
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
