Capsulated Slip Rings
Slip Rings and Rotary Joints for 360° Continuous Power Signal and Data Transfer
INGIANT builds the rotating connection that lets your machine turn without winding a cable — power, Ethernet, fibre, HD-SDI, RF, air and liquid across one axis, from a 728 model catalogue or designed around your drawing.
728models published with full specifications
2014manufacturing in Jiujiang since
58slip ring and rotary joint patents
7–15 dayslead time on standard models
What We Make
Thirteen Families of Rotating Connection One Engineering Problem
Every product on this site answers the same question: how do you get power, data or fluid onto a part that never stops turning? The format changes with the machine — a hollow bore for a shaft, a sealed capsule for a camera head, a separate rotor for a four metre turntable — but the job is the same.
141 models

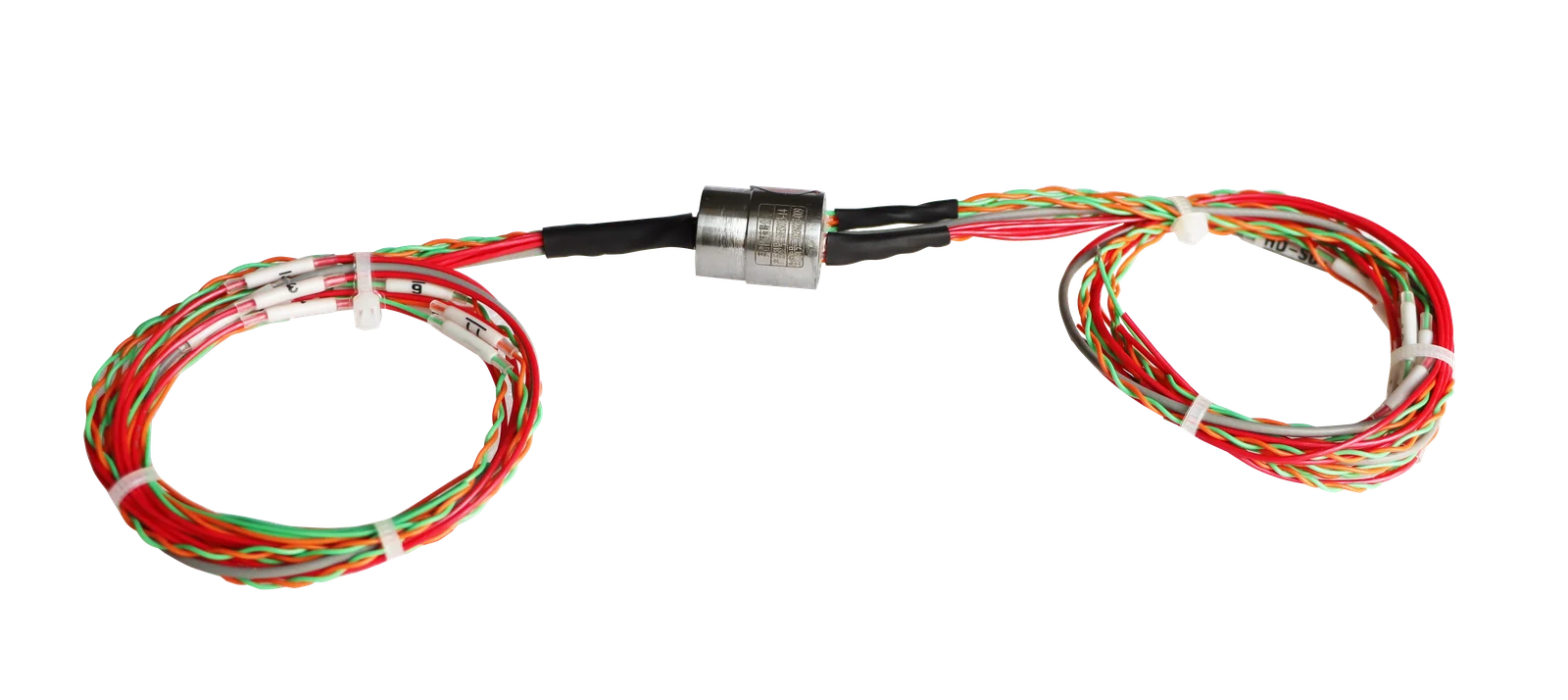

Capsulated Slip Rings
A capsulated slip ring is a sealed cylinder with a solid shaft: the rotor turns, the stator stays still, and both ends leave the…
139 models
Customized Slip Rings
When the envelope, the channel mix or the environment does not match a catalogue model, INGIANT designs the slip ring around the…
62 models

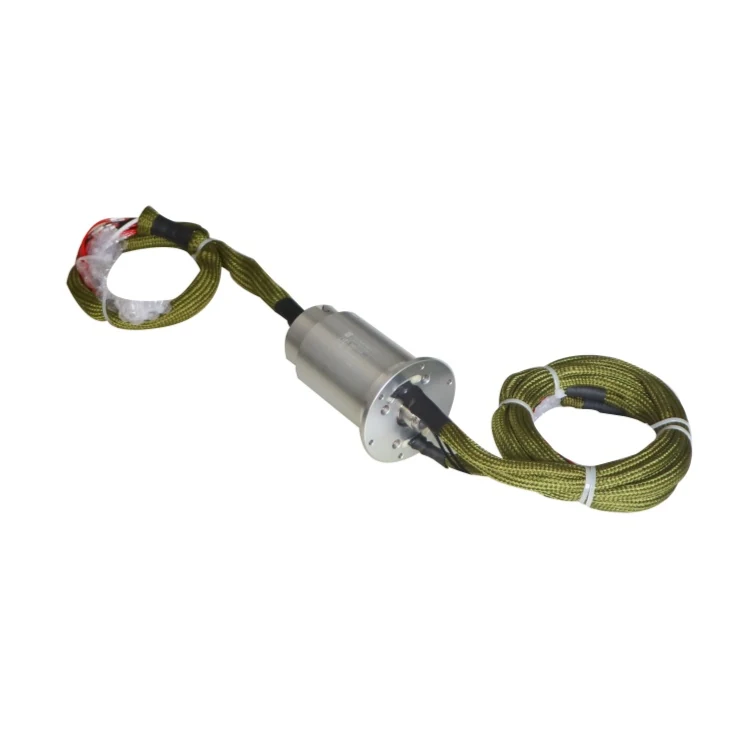

Fiber Optic Rotary Joints
A fibre optic rotary joint passes light across a rotating interface, so bandwidth, isolation and immunity to electrical noise…
15 models

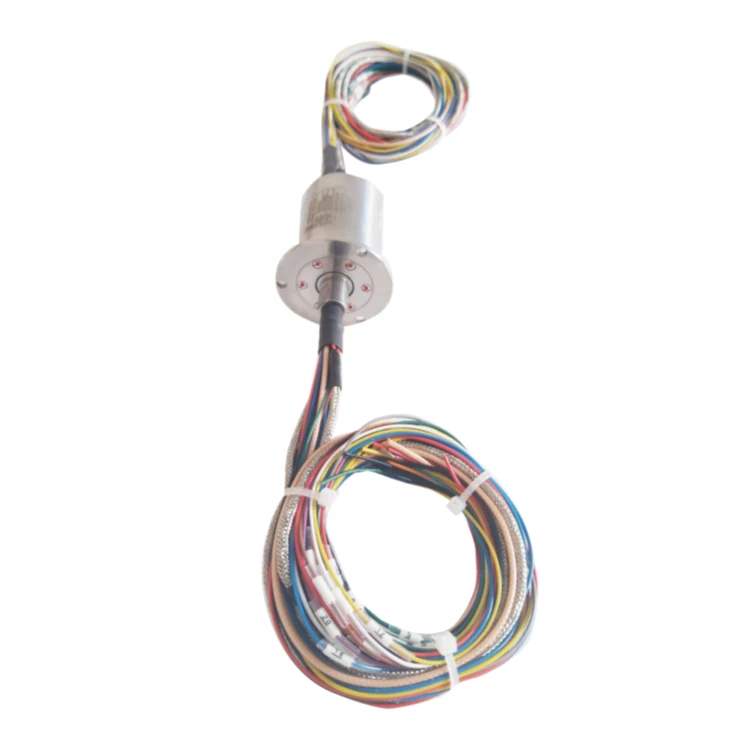

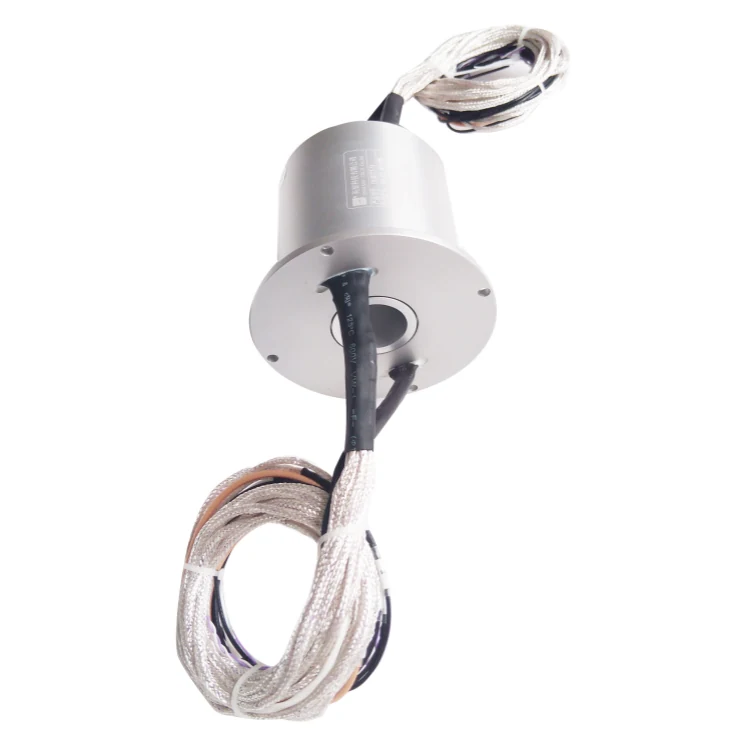

HD-SDI Slip Rings
An HD-SDI slip ring carries uncompressed high definition video from a camera on a continuously rotating platform to the fixed…
106 models

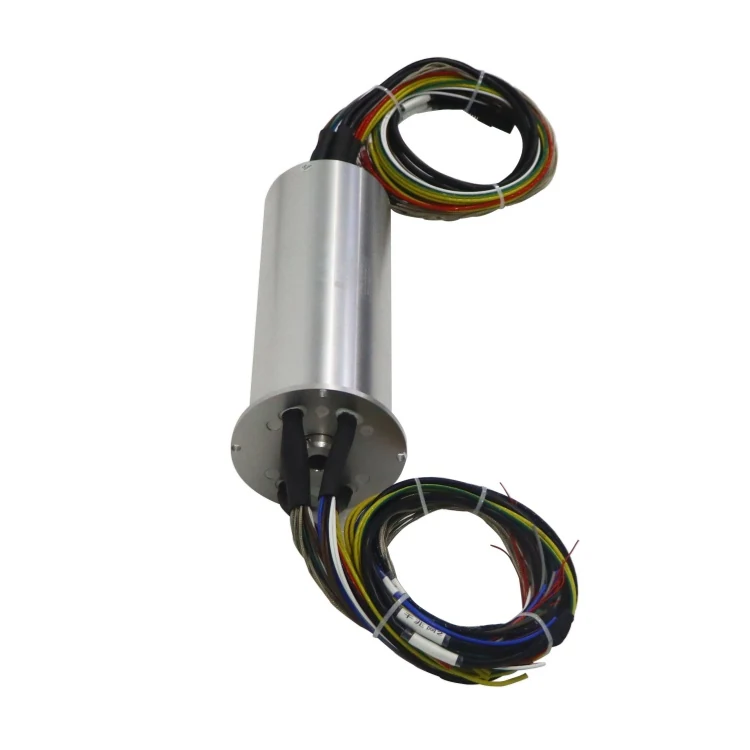

Hybrid Slip Rings
A hybrid slip ring puts more than one kind of transfer into a single rotating body — power rings plus optical fibre, pneumatic…
77 models

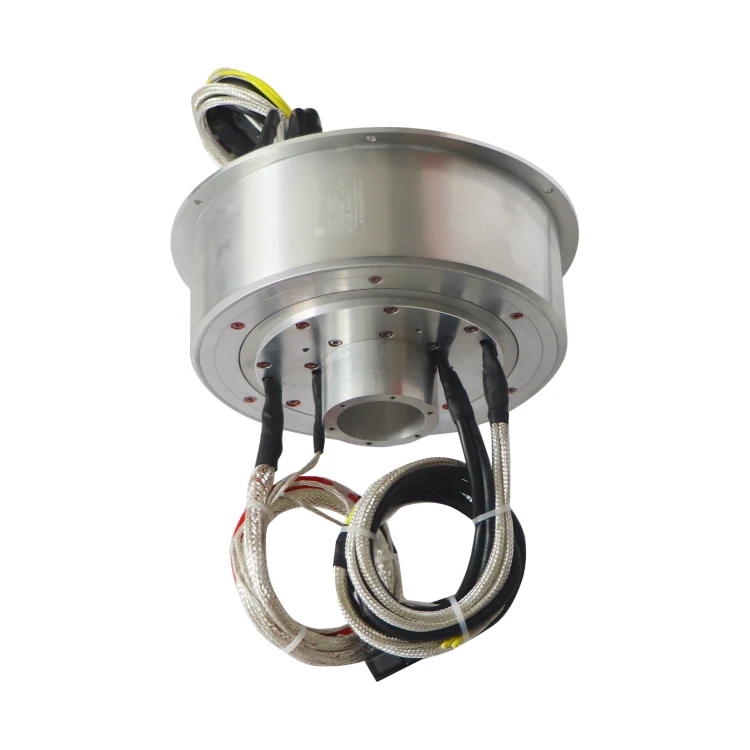

Ethernet Slip Rings
An Ethernet slip ring — also called a network slip ring or RJ45 slip ring — carries 10/100/1000 Base-T traffic through a rotating…
1 models
Optical Transceivers
Optical transceivers convert between electrical and optical signals at each end of a fibre link, and are supplied with INGIANT…
24 models
Pneumatic and Liquid Slip Rings
A pneumatic or liquid slip ring — a rotary union — carries compressed air, gas, water, oil, grease or emulsion across a rotating…
27 models
RF Rotary Joints and Coax Slip Rings
An RF rotary joint carries microwave and coaxial signals through a rotating interface while holding VSWR and insertion loss steady…
11 models

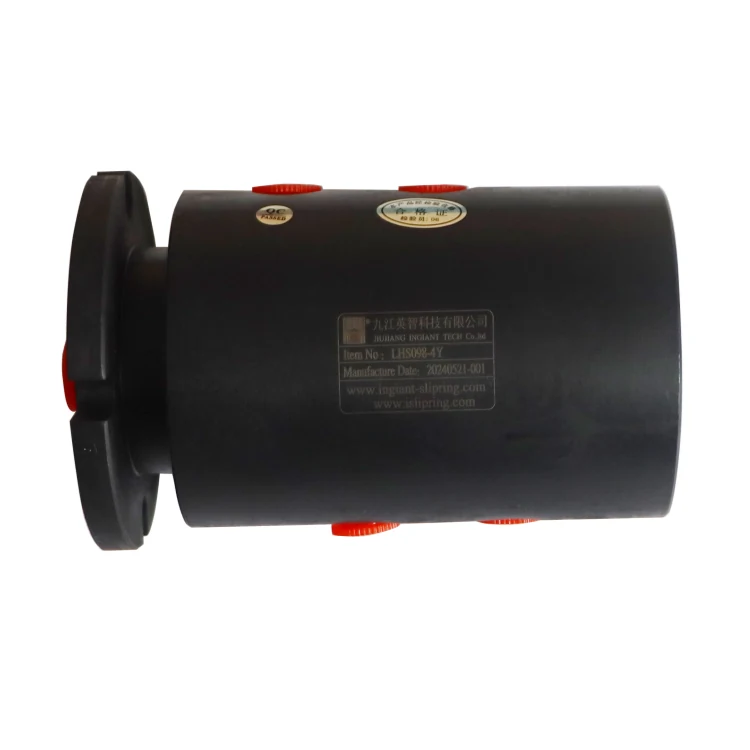

Rotary Joints
Rotary joints transfer a medium — fluid, gas, light or microwave energy — between a fixed and a rotating part, and are the…
4 models

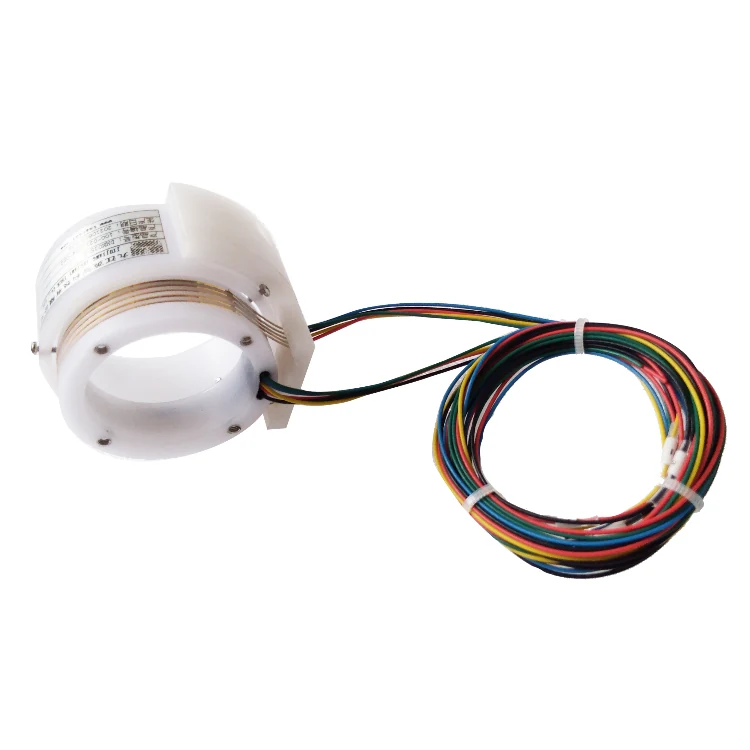

Separate Slip Rings
A separate slip ring supplies the ring stack and the brush block as two independent parts, so the machine builder mounts each one…
201 models

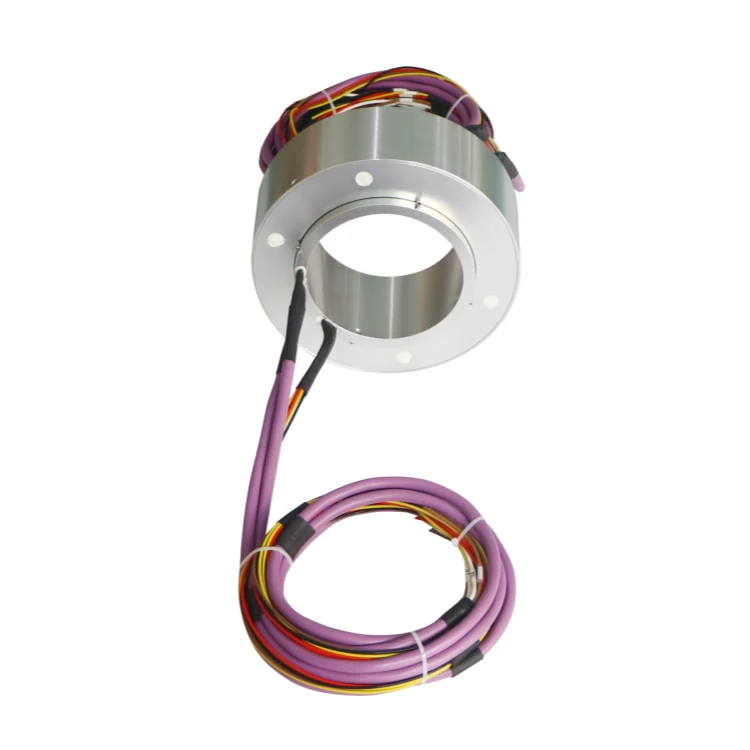

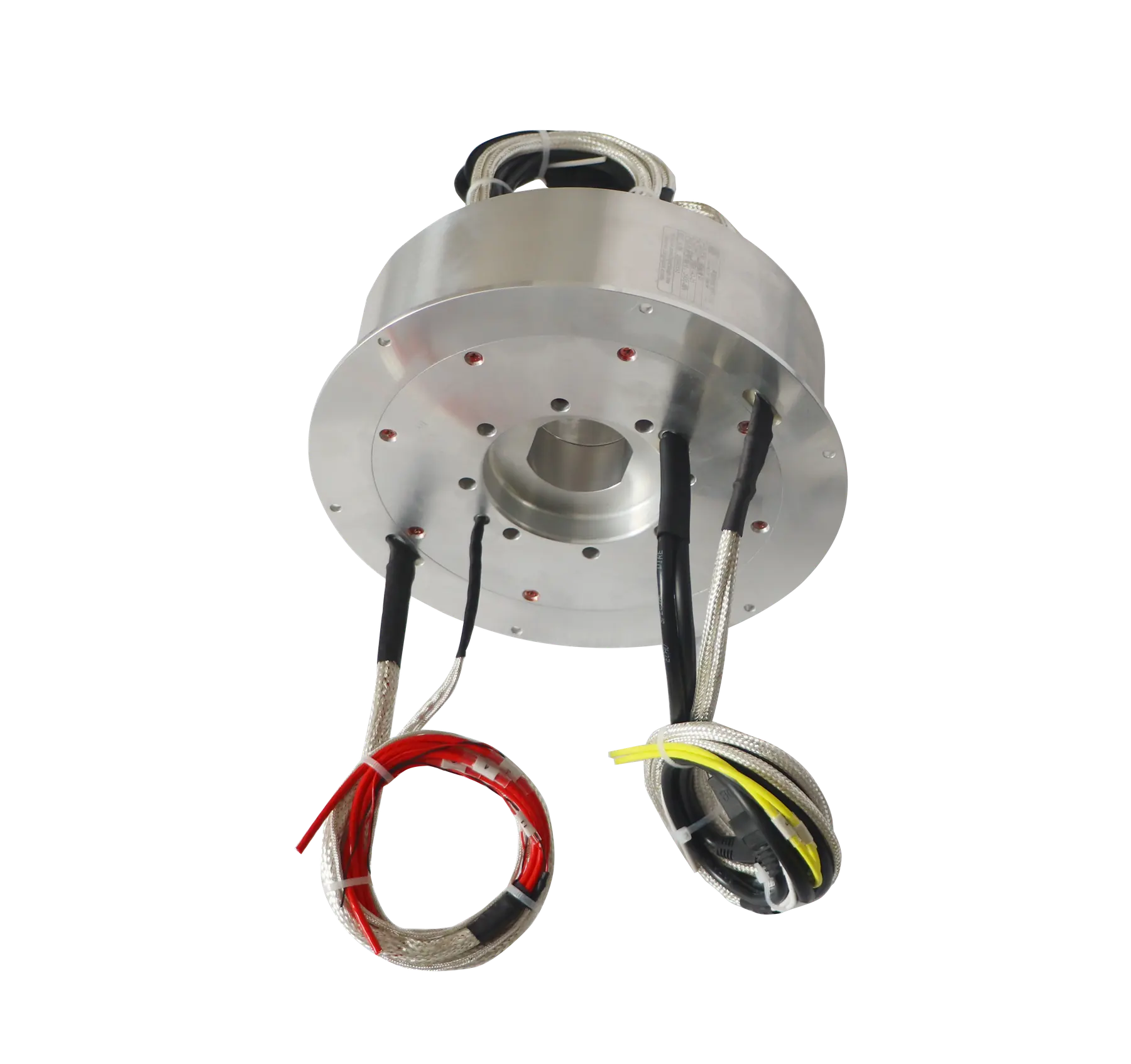

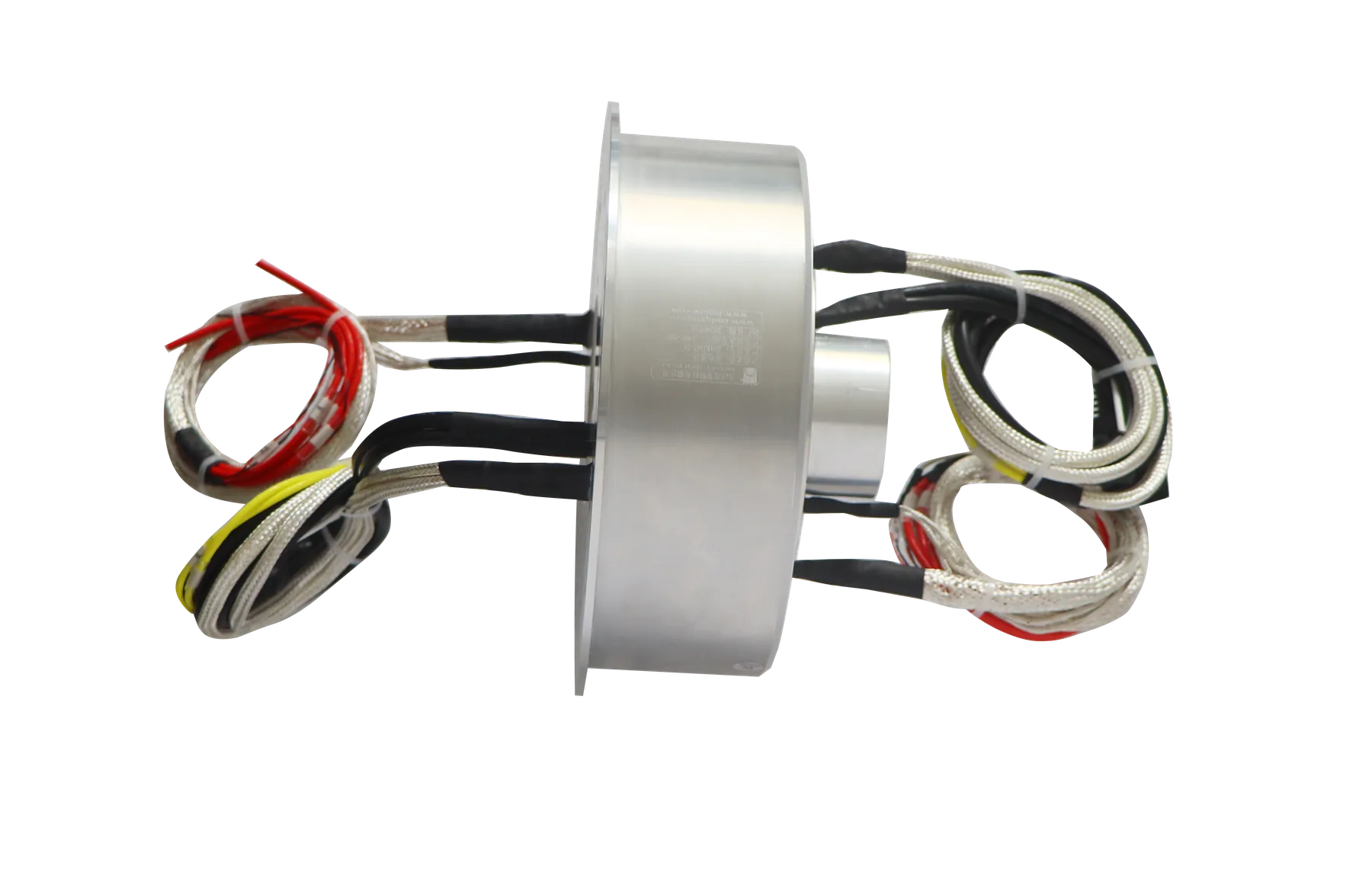

Through Bore Slip Rings
A through bore slip ring carries power and signals around a hollow centre, so a drive shaft, a hydraulic line, an optical cable or…
8 models
USB Slip Rings
A USB slip ring keeps a USB device on a rotating platform enumerated and streaming while the platform turns without limit.
Catalogue
Models Shipping From Stock Design and Custom Builds
A sample of the catalogue. Every model page carries the full parameter table — circuits, voltage, current, speed, protection level, insulation values, housing and contact material.
Capsulated Slip Rings
DHS045-95 DHS045-95 Ingiant OD 45mm rotor flange slip ring transmits 81…
Customized Slip Rings

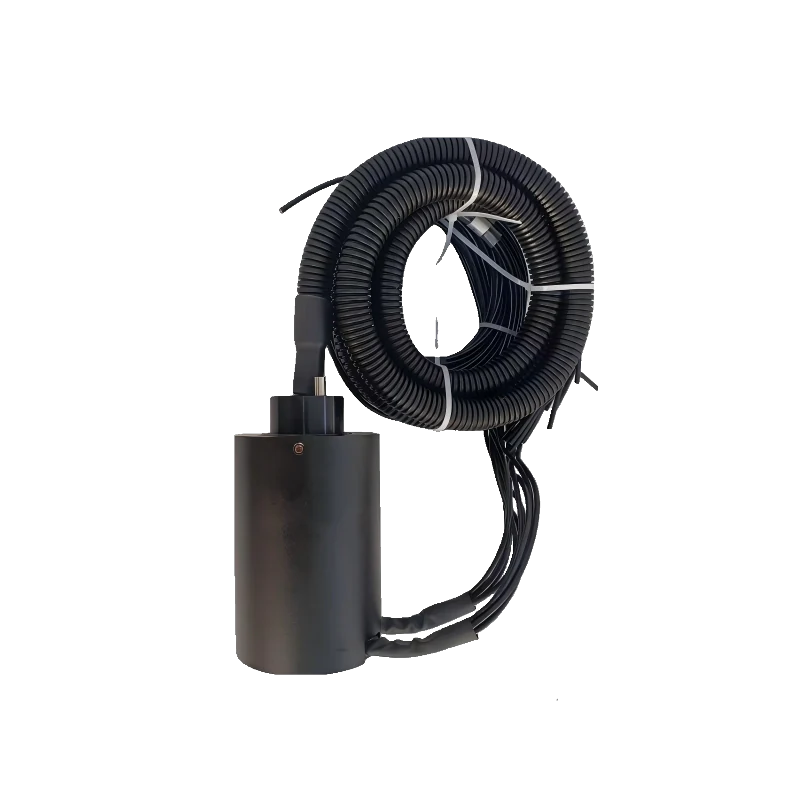

Waterproof Slip Ring Ø78mm OD IP65/IP68 – Custom Sealed Rotary Joint for…
Customized Slip Rings

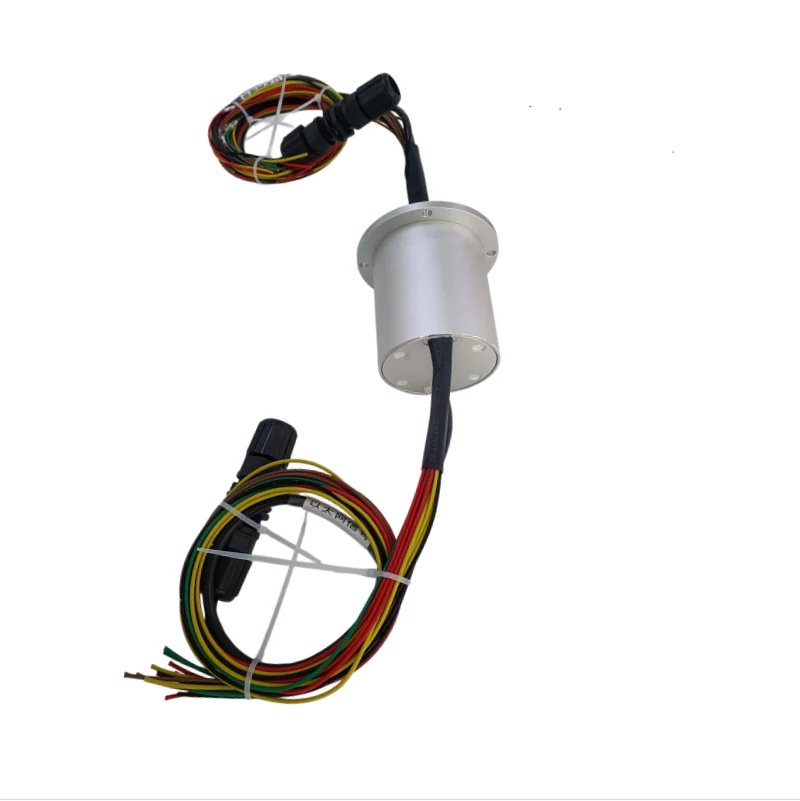

Ingiant DHS078 Solid Shaft Ethernet Slip Ring 78mm OD Gigabit Data & Power…
Fiber Optic Rotary Joints
DHS055-11-2F Ingiant Photoelectric Slip Ring OD 55mm with 2 channels optical…
Fiber Optic Rotary Joints

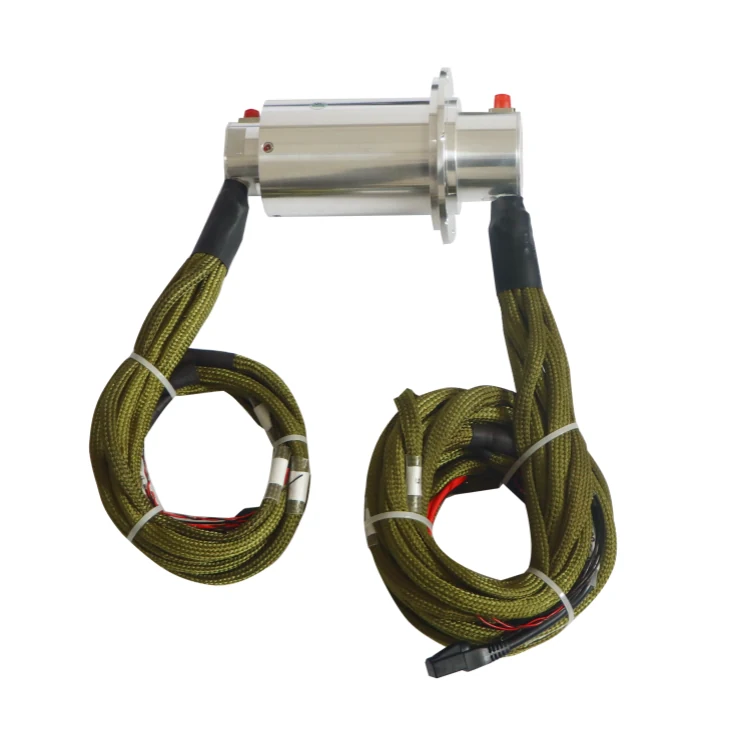

DHS066-39-1F Ingiant Optoelectronic slip ring OD 66mm with 1 single mode…
Ethernet Slip Rings
DHK015-55-002 Ingiant through hole Gigabit Ethernet slip ring hole diameter…
Optical Transceivers

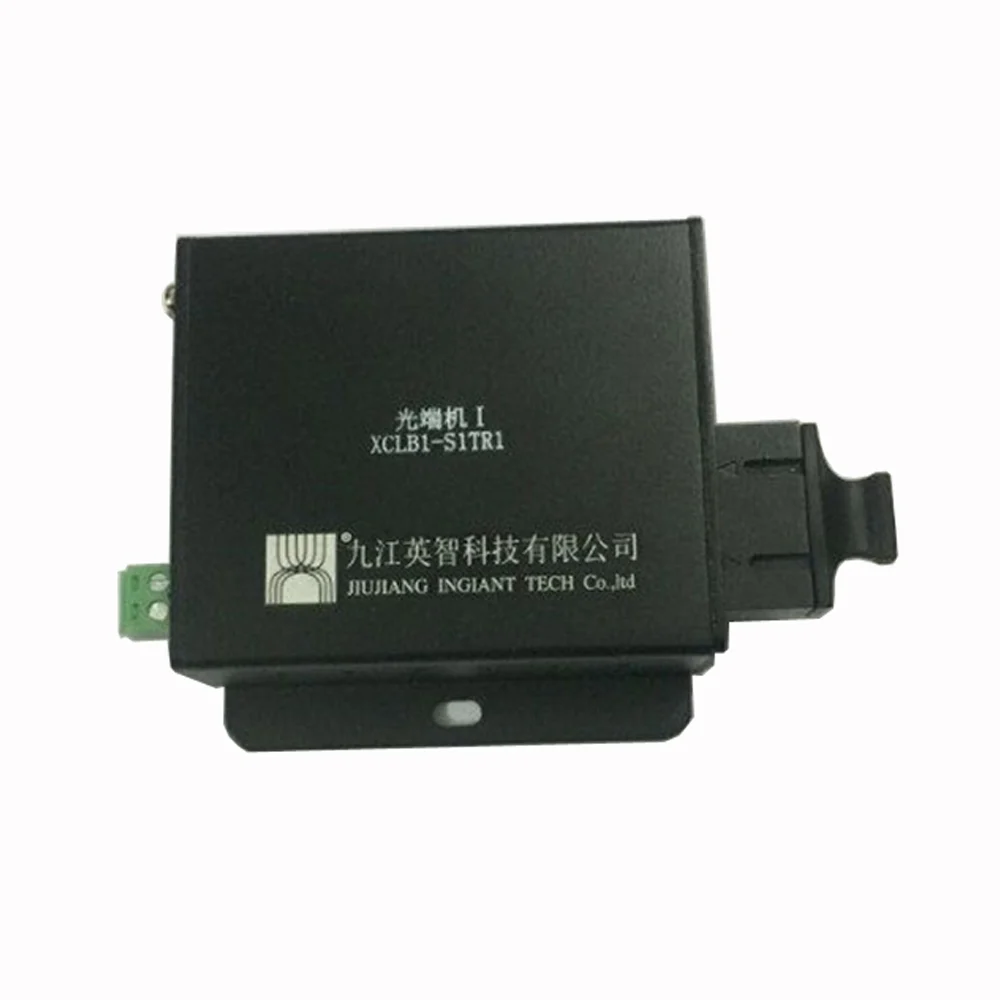

Ingiant customized Gigabit Ethernet optical transceiver
Pneumatic and Liquid Slip Rings

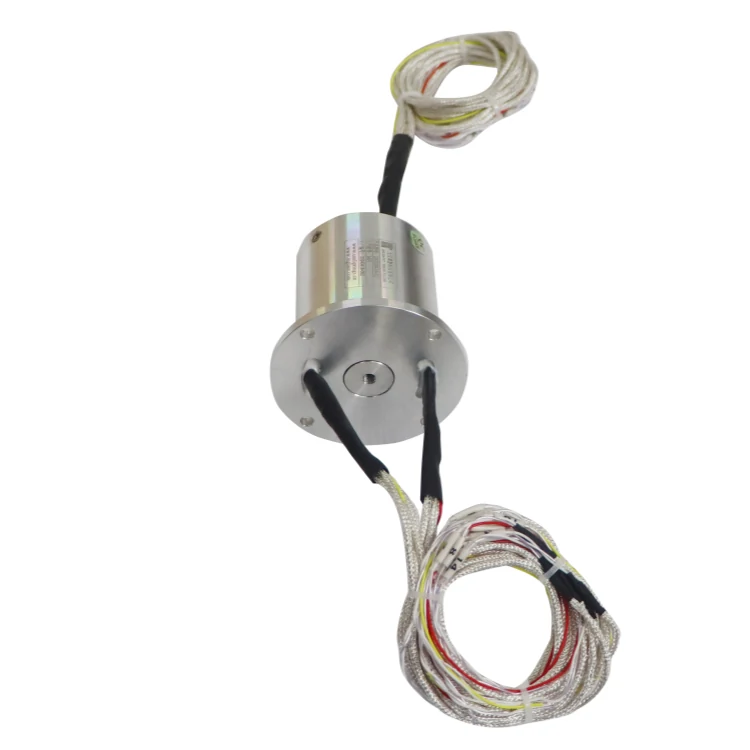

DHS050-16-1Q Ingiant gas-electric slip ring out diameter 50mm with1 channel…
Pneumatic and Liquid Slip Rings
DHS078-12-1Q Ingiant Gas electric slip ring 78mm with 1channel pneumatic…
RF Rotary Joints and Coax Slip Rings

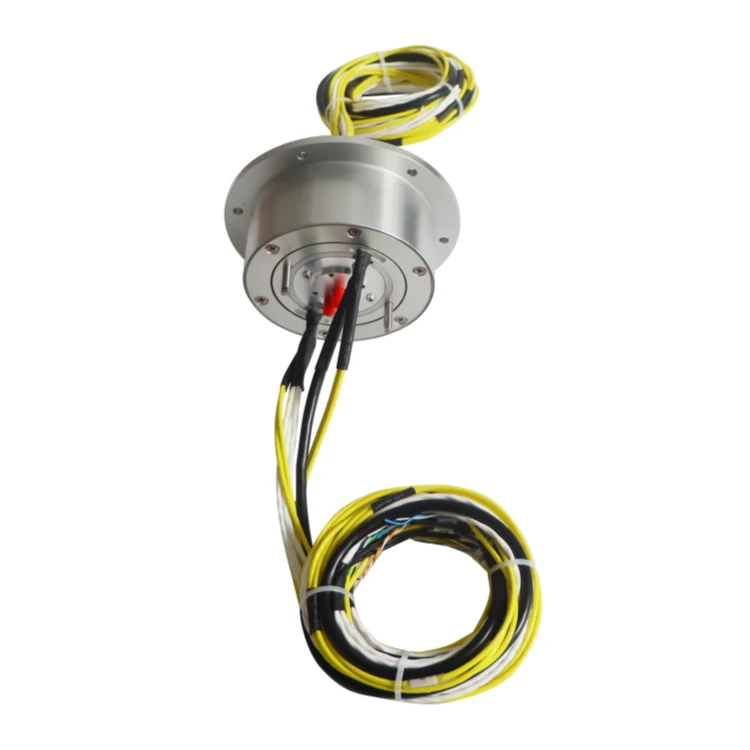

DHS110-22-2S Ingiant RF Slip Ring 110mm solid shaft with 2 channels RF…
RF Rotary Joints and Coax Slip Rings

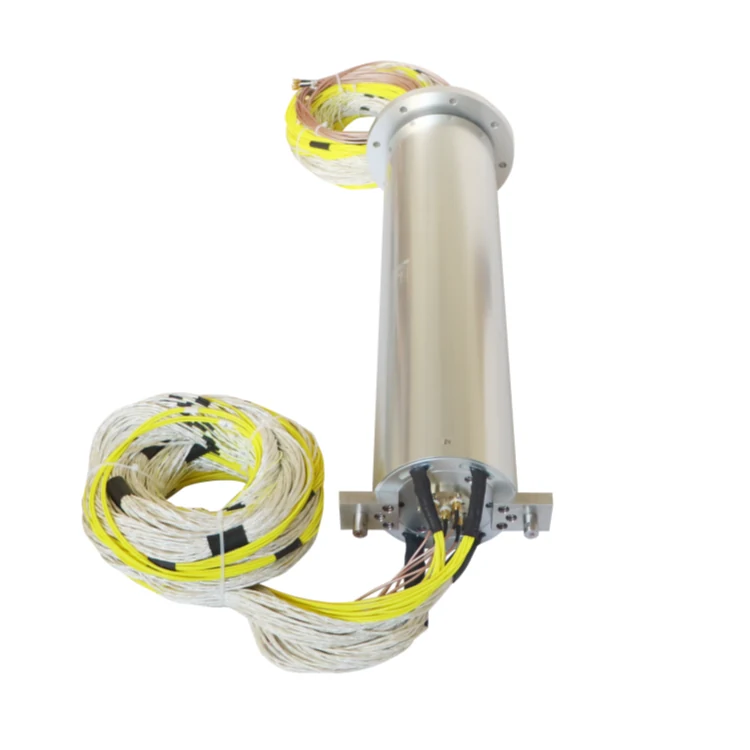

DHS120-120-5S Ingiant RF slip ring out diameter 120mm 5 channels RF rotary…
Who We Serve
Industries Where the Axis Cannot Stop Turning
Nine industries with the same constraint and very different environments — vacuum and temperature extremes in orbit, washdown chemistry on a filling line, salt and shock on a harbour crane.
Aerospace and Defence
Aircraft pods, satellite solar arrays, seeker heads and radar platforms all rotate continuously, and the rotating connector on those axes is one of…
Industrial Robotics
Multi-axis robots move material to defined positions all day. Every axis that turns without limit needs its drive power, its sensor lines and its…
Packaging and Filling
Rotary fillers, cartoners and wrapping machines turn continuously at high rate, and every rotating station needs power, control signals and often…
Cranes and Material Handling
Crane superstructures, jibs, grabs and cable reels rotate under heavy load, indoors and outdoors, and everything hanging over people and machines…
Wind and New Energy
Wind turbines transfer the power generated at the rotating blades to the stationary generator and control systems, and pitch control adds a second…
Medical Equipment
CT gantries, surgical lighting heads and medical robots turn continuously around the patient, and the rotating joint has to carry power, high rate…
Surveillance and Broadcast
Pan-tilt heads, dome cameras and rotating stage rigs need continuous 360° panning with video, control and power all crossing the rotating joint.
Amusement and Exhibition
Carousels, Ferris wheels, VR platforms and rotating exhibition displays all need power, light, sound and signal delivered to a part that never stops…
Test and Measurement
Endurance rigs, rotating test stands, antenna measurement turntables and inspection equipment need instrumentation signals to survive thousands of…
What Problem We Solve
Four Failures That Start at the Rotating Joint
Cable wind-up
A harness that follows a rotating part fails at the flex point, and it fails in production rather than on the test bench. The slip ring removes the flex entirely.
Rotation limits
A ±180° limit forces an unwind move into every cycle. Continuous rotation removes that move and the cycle time that goes with it.
Contact noise
Signal drift and dropped packets usually trace back to resistance variation in the rotating contact. Precious metal pairs hold dynamic resistance variation under 10 mΩ.
Stacked joints
Three rotary joints on one shaft means three sets of tolerances. A hybrid body puts power, data, fibre and fluid on one axis with one mounting interface.
Why INGIANT
A Factory That Designs the Part Not Just Builds It
INGIANT designs and manufactures slip rings and rotary joints that carry power, signals, data, fibre, RF, air and liquid across a continuously rotating interface — so machine builders can turn a joint through 360° without winding or breaking a cable.
2014Established in Jiujiang, Jiangxi
6000 m²Research and production space
150+Design and manufacturing staff
58Patents — 46 utility model, 12 invention
In-house machining
Complete mechanical processing equipment including a CNC machining centre, with in-house inspection and test standards
Quality system
ISO 9001, GJB9001C and GB/T 19001-2008 / ISO 9001:2008, with test equipment and procedures that verify performance and durability before despatch.
OEM and ODM
OEM and ODM for domestic and overseas brands; long-term qualified supplier to military units and research institutes
Three life grades
Quality S Standard, I Industrial and P Premium, agreed against the revolutions your machine will accumulate. Up to one billion revolutions is achievable.
12 month warranty
12 months from date of sale; free repair or replacement for quality problems not caused by human damage
Technical support
Technical information and training support are provided on a regular basis, and engineers answer specification questions directly on WhatsApp or email.
Solutions
How a Requirement Becomes a Delivered Unit
Custom Slip Ring Engineering
Most INGIANT work is not a catalogue pick. This is the route a custom rotating connector takes from your first enquiry to the unit on your…
Slip Ring Selection Guide
The three mechanical formats solve three different installation problems. Choosing the format first makes every other decision easier.
High Speed Data Transmission
Passing data through a rotating interface is a transmission line problem, not a wiring problem. Insertion loss, return loss and crosstalk…
Sealing and Harsh Environments
Sealing is chosen against the real exposure: splash, washdown, dust, weather or full immersion. Each grade changes the seal design, the…
Quality and Reliability
A slip ring is a wear part on a machine that is expected not to wear. Contact material, test procedure and the chosen quality grade are…
Ordering and Delivery
What happens between your purchase order and the unit arriving at your plant, with the real lead times and the real port.
Knowledge Centre
Latest From the INGIANT Engineering Notes
135 articles on slip ring selection, application and troubleshooting, written for the engineers who have to specify the part.
2026-06-24
Deepening Global Rotary Connection Market Layout | Jiujiang Ingiant Technology Concludes 2026 Moscow International Packaging & Printing Exhibition, Upcoming Attendance at Top South African Mining Equipment Expo
1. Review of Moscow Packaging & Printing Exhibition From June 16 to 19, 2026, the international packaging and printing industry exhibition…
2025-11-06
Primary Applications of Slip Rings in Karting
Primary Applications of Slip Rings in Karting The fundamental role of a slip ring is to transmit signals, data, and power between…
2025-09-16
“Ascend Celestial Peak · Unite Hearts and Minds · Forge Top Talents” — 2025 Jiujiang Ingiant Technology Autumn Outing Chronicles
“Ascend Celestial Peak · Unite Hearts and Minds · Forge Top Talents” — 2025 Jiujiang Ingiant Technology Autumn Outing Chronicles Under a…
FAQ
Slip Ring Questions Buyers Ask First
What is a slip ring and when do I need one?
A slip ring transmits electric power, signals and data between a stationary part and a rotating part. You need one when two parts of a machine rotate through 360° without limit and a cable would otherwise wind up and break.
What technical data do you need to quote a custom slip ring?
Operating speed in rpm, the type of installation, the installation size, the number of circuits counted as single wires beside the cable, rated voltage and current for the power and signal rings, the signal type and its parameters, the operating temperature and the IP requirement.
How long is your production lead time?
7–15 days for standard products, 10–20 days for simple customised products and 15–40 days for complex customised products.
What can be transmitted through a slip ring?
Electrical power and low frequency signals, Gigabit Ethernet, USB, HD-SDI video, optical fibre, RF coaxial signals, and — through the matching rotary unions — compressed air, gas, water, oil and emulsion.
What service life do slip rings have?
Service life is matched to the application through three quality grades — S Standard, I Industrial and P Premium. In general a service life of up to one billion revolutions is possible.
What is your delivery port and how do you ship?
The delivery port is Jiujiang, China Mainland. Small orders are usually delivered by air and large orders by sea, negotiated before despatch.
Send Us the Axis and We Will Send You the Drawing
Rotating speed, installation size, circuit count, voltage and current, signal types, temperature and IP grade. That is everything we need to come back with a design.
