Ultrasonic Material Recognition Sensor 2
The same reflection-type sensing element supplied on a twisted, colour-coded harness with a pitch connector already fitted, so it drops straight onto a board-level mating header.
- High sensitivity
- Good performance consistency
- High reliability
The problem it solves. A sensor that arrives with bare wires still has to be terminated, tested and documented on your line before it can be built into a product.
Ask for: operating frequency, dimensions, supply voltage, lead length and connector. These are confirmed per order against the current drawing.
Specifications
| Sensing principle | Reflection of ultrasonic waves; frequency and amplitude of the reflected wave change with the material |
|---|---|
| Detection mode | Non-contact |
| Housing | Cylindrical, black, with exposed ceramic emitting face |
| Lead | Twisted four-colour harness, pre-terminated with a pitch connector |
| Operating frequency | TBC - confirm with the engineering team |
| Dimensions | TBC - confirm with the engineering team |
| Supply voltage | TBC - confirm with the engineering team |
Application scenarios
- Material recognition of sweeping robots
- Distinction between single and double sheets of paper
Why this configuration
- Pre-terminated harness removes a wiring and inspection step from your own assembly line.
- Colour-coded twisted pairs keep the drive and receive lines identifiable during service.
- Same sensing element as the rest of the material recognition family, so a change of harness does not change the echo behaviour.
Questions engineers ask about this sensor
Can the connector be changed to match my board?
Yes. The connector type, pitch, pin order and lead length are all specified per order. Send the mating part number with your enquiry.
Why a twisted harness?
Twisting the drive and return lines keeps coupled noise common-mode, which matters when the transducer sits close to motors or a switching supply, as it does inside a floor-cleaning robot.

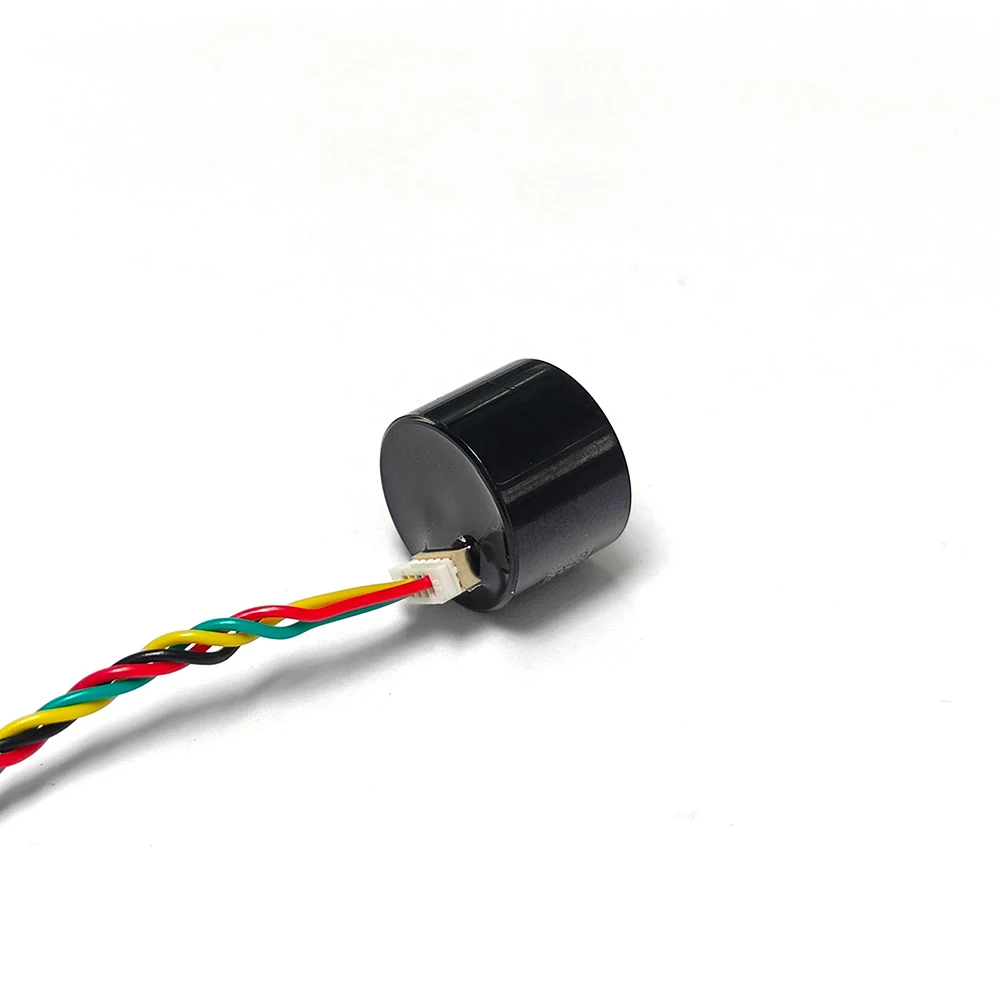

Is the housing sealed at the back?
The rear face is closed, with the harness exiting from the side. Ingress rating for your specific mounting is confirmed case by case.
Can you supply it without the connector?
Yes - that configuration is Ultrasonic Material Recognition Sensor 1, which ships with an unterminated lead.
