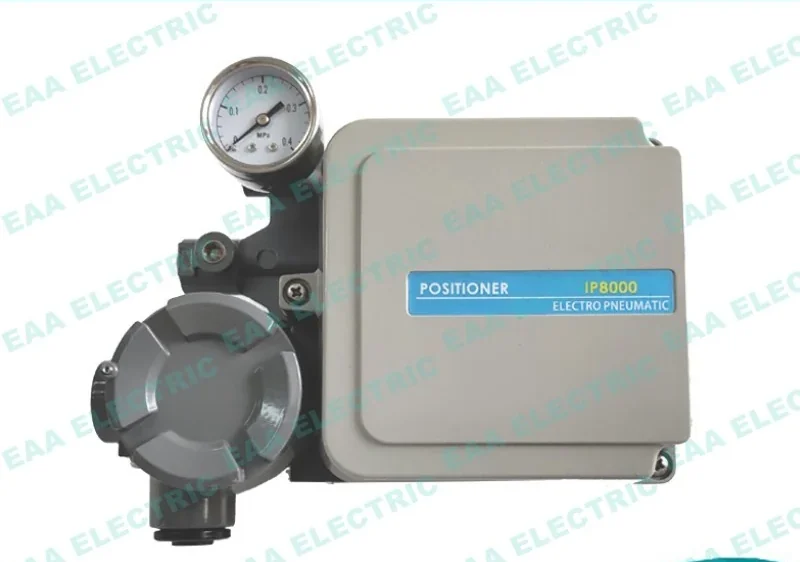

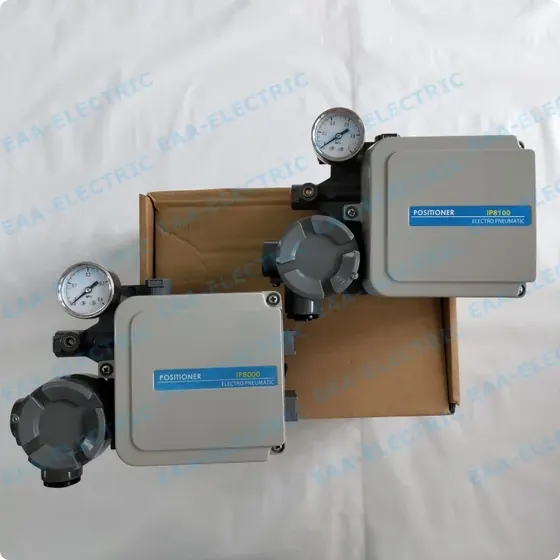

IP8000 Electro Pneumatic Valve Positioner
The IP8000 is an electro pneumatic valve positioner built as an interchangeable replacement for the SMC pattern positioner...
What This Model Does
The IP8000 is an electro pneumatic valve positioner built as an interchangeable replacement for the SMC pattern positioner on process control valves. It takes a controller output setting signal and compares it directly against stem displacement feedback, adjusting air output to the actuator whenever a deviation occurs. The unit is more compact than the IP6000 design, incorporates an improved visibility pressure indicator, and provides an IP65 rated enclosure. A half split range is available through simple span adjustment, and rotary versions support remote position detection via a DC 4 to 20 mA output current signal.
| Model | IP8000 |
|---|---|
| Product type | Electro pneumatic valve positioner |
| Pattern | SMC type |
| Enclosure rating | JIS F8007 IP65 |
| Vibration resistance | No resonances 5 to 200 Hz |
| Split range | 1/2 split range available via span adjustment |
| Remote position detection | 4 to 20 mA DC output current (rotary type) |
| Action reversal | Cam flip mechanism |
| Included accessories | Output restriction with pilot valve, fork lever joint, compensation spring, external scale plate |
| Housing colours | Black, blue, yellow, or painted to order |
| Warranty | 18 months |
Why Buyers Specify This Model
- Closes the feedback loop directly at the valve to maintain exact stem position against controller demand
- More compact housing footprint than the IP6000 model with improved visibility of the pressure indicator
- Enclosure protection conforms to JIS F8007 IP65 for reliable operation in dusty and outdoor environments
- Vibration resistance with no resonances from 5 to 200 Hz protects mechanical balance under line vibration
- Simple span adjustment enables half split range operation to sequence multiple control valves from one signal
- Interchangeable mounting footprint drops onto existing brackets without modifying actuator yoke connections
- Remote position detection available on rotary units via an optional DC 4 to 20 mA output current signal
Problems It Solves
- Valve stem displacement drifting away from the controller setting due to packing drag or line pressure fluctuations
- Positioner failure caused by pipework vibration resonance within the 5 to 200 Hz frequency band
- Difficult gauge reading in low light or tight spaces resolved by an improved visibility pressure indicator
- Complex multi-valve sequencing simplified by straightforward span adjustment for half split range setups
- Lengthy supplier lead times for replacement positioners delaying valve assembly or plant maintenance schedules
Application Scenarios
- Replacing worn or damaged SMC pattern IP8000 positioners on process control valves during scheduled turnarounds
- Control valve installations subject to mechanical line vibration between 5 and 200 Hz where feedback linkage stability is critical
- Split range control valve loops requiring two actuators to sequence across a single controller output signal
- Outdoor and dusty processing units requiring an IP65 rated enclosure protection standard
- Actuator and valve packaging where compact dimensions are required to clear tight pipe rack envelopes
Who It Is For
- Plant instrument technicians replacing worn or failed SMC pattern positioners on existing control valves
- Valve and actuator manufacturers needing factory installed positioners supplied under their own OEM brand
- EPC contractors sourcing instrument accessories and valve positioners for capital project builds
- Process instrumentation distributors maintaining stock of form fit and function replacement units
- Maintenance teams seeking interchangeable positioners to shorten turnaround downtime
Technical Features
- Feedback control system comparing controller setting signal directly against valve stem displacement
- Enclosure dust and water ingress protection conforming to JIS F8007 IP65
- Vibration resistance with zero resonances across the 5 to 200 Hz frequency range
- Simple span adjustment mechanism providing half split range capability
- Compact body profile compared to IP6000 with high visibility pressure indicator dial
- Available accessories including output restriction with pilot valve, fork lever joint, compensation spring, and external scale plate
- Reversible action mode accomplished by flipping the internal feedback cam
- Optional DC 4 to 20 mA output current on rotary configurations for remote position feedback
Materials and Construction
- Cast metal housing with protective painted coating
- Internal pilot valve and mechanical balance lever components
- Full material specifications are detailed in the product engineering datasheet
Dimensions and Connection Detail

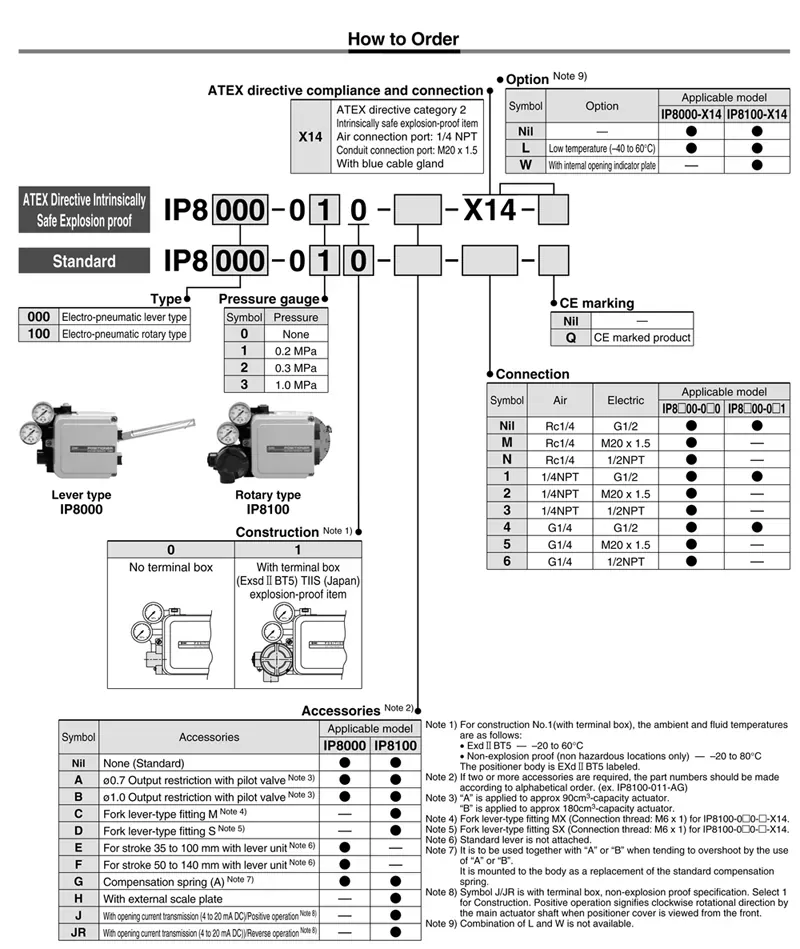

Reference image published with this model on the original catalogue. Confirm critical dimensions against the datasheet before machining a bracket.
Manufacturing and Quality Control
Every unit is calibrated and stroke tested before it is packed. We can film or photograph your units in the sample room or warehouse before they ship.
Manufacturing Steps
Machining and finishing of the compact positioner housing
Assembly of internal torque motor, nozzle pilot valve, and balance lever mechanisms
Integration of the high visibility pressure indicator and feedback components
Air calibration bench testing for zero, span, and half split range tracking
Vibration sweep testing across the 5 to 200 Hz frequency range
Housing painting in specified colour and OEM nameplate application
Packaging in standard cartons or custom branded boxes
Quality Control
- Every positioner undergoes pressure calibration and stroke verification prior to shipment
- Inspection of pressure indicator clarity and IP65 enclosure sealing surfaces
- Warehouse photos and test videos can be provided on request before dispatch
- Defective units under the 18 month warranty are replaced on photo or video verification
- Emergency replacement units are dispatched via express freight when urgent site issues occur
Customisation Options
- Customer logo marking and custom nameplates for OEM and distributor orders
- Housing painted in custom colours including standard black, blue, yellow, or project specific shades
- Newly designed shape modules engineered to client technical drawings
- Customised packaging boxes and master carton labelling
- Factory fitting of accessories including output restriction with pilot valve, fork lever joint, or external scale plate
How It Compares With the Alternatives
| IP6000 series positioner | The IP8000 offers a more compact enclosure profile and improved visibility of the pressure indicator |
|---|---|
| Standard pneumatic positioner | The IP8000 accepts electrical controller signals directly without requiring an upstream I/P transducer |
| Positioner without split range adjustment | The IP8000 allows half split range operation through simple span adjustment without changing internal components |
Fitting and Setting Up This Model
General field procedure. Always follow the datasheet for the exact calibration sequence and any hazardous area requirements.
Mount the IP8000 to the actuator bracket using the interchangeable mounting pattern and fork lever joint
Connect clean dry instrument supply air and output air tubing to the actuator ports
Wire the electrical control signal into the positioner terminal block observing correct polarity
Adjust zero and span settings to align stem displacement with the controller input signal
To configure half split range operation adjust the span mechanism to the required half signal band
To reverse action direction flip the internal feedback cam to alternate direction mode
Verify that the pressure indicator is clearly visible and that the external scale plate aligns with travel
IP8000 Electro Pneumatic Valve Positioner FAQ
Is the mounting pattern interchangeable with original SMC IP8000 positioners?
Yes. The unit uses an interchangeable mounting pattern and fork lever joint designed to fit standard SMC brackets without yoke modifications.
What is the delivery lead time for regular orders?
Standard quantities normally ship within 2 to 3 days from stock. Large project orders generally ship in 7 to 10 days.
Can the IP8000 handle severe line vibration?
Yes. The positioner features vibration resistance with no resonances between 5 and 200 Hz, maintaining stability on vibrating process lines.
How is the positioner configured for split range service?
A half split range is set directly via simple span adjustment on the unit, allowing two valves to be sequenced from one controller signal.
Can we purchase these positioners under our own OEM brand?
Yes. We provide OEM and ODM services including custom nameplates with your logo, custom housing paint colours, and branded cartons.
What warranty is provided on this positioner?
We provide an 18 month warranty. Faulty units are replaced rather than repaired based on photo or video evidence, usually shipping with your next order.
Applications Cases and Guides
Where It Is Used
Related Case Photos
Related Products
Get A Price on This Model
Tell us the quantity, the actuator it goes on and the destination port. We come back with price, lead time and confirmation that the model matches your valve.
