ABS Plastic Solar Panel Mounts
Bonded, no-drill mounting hardware for framed panels on caravan, motorhome and boat roofs.
ABS Plastic Solar Panel Mounts Range
The ABS range exists for one reason: on a vehicle or a boat, every hole you drill in the roof is a leak waiting to happen. These mounts are moulded from UV-resistant ABS and bond to the surface with adhesive sealant, so a framed panel can be fixed to a caravan, motorhome or deck without a single fastener passing through the skin. They also work as a wind deflector and hold the correct air gap under the panel.
BS09009-BSolar Panel Corner Mount 150 mm Black
A four-piece ABS corner set that bonds any 150 mm-lateral aluminium-framed panel to a roof or deck without drilling.
View details →
BS09009-WSolar Panel Corner Mount 150 mm White
The white version of the BS09009 corner set — the usual choice on white caravan and motorhome roofs.
View details →
BS090017-BSolar Panel Side Mount 180 mm Black
A two-piece 180 mm ABS spoiler set that carries the side of a framed panel and can be painted to match any roof.
View details →
BS090017-WSolar Panel Side Mount 180 mm White
The white 180 mm spoiler pair — the side bracket that goes into the white caravan mounting kits.
View details →
BS090018-BSolar Panel Long Side Mount 530 mm Black
A 530 mm ABS spoiler pair that carries the long edges of a framed panel and doubles as a wind deflector.
View details →
BS090018-WSolar Panel Long Side Mount 530 mm White
The white 530 mm spoiler pair — 2.1 kg for the set and the long-edge bracket used in the BS090018 kit.
View details →
BS090028-BSolar Cable Entry Single Hole Black
A bonded waterproof gland housing that takes one 6–12 mm solar cable through a roof or deck without a leak path.
View details →
BS090028-WSolar Cable Entry Single Hole White
The white single-gland roof feed-through — recyclable ABS, UV resistant, and half the weight of a metal equivalent.
View details →
BS090025-BSolar Cable Entry Double Hole Black
Two IP65 glands in one bonded box — one roof penetration for both legs of an array.
View details →
BS090025-WSolar Cable Entry Double Hole White
The white twin-gland roof box for caravan, motorhome and RV solar roofs.
View details →
BS09009-KitsCaravan RV Solar Mount Kit with Short Side Brackets
Four white corner brackets plus a short white side bracket set — everything for bonding one panel to a caravan roof.
View details →
BS090018-KitsCaravan RV Solar Kit with 530 mm Side Brackets
Four white corner brackets plus 530 mm long white side brackets for larger framed panels.
View details →BS090033-KitsCaravan Solar Panel Mounting Kit 510 mm
The 510 mm variant of the caravan kit, for panels whose long edge does not suit the 530 mm profile.
View details →BS090034-KitsCaravan Solar Panel Mounting Kit 550 mm
The longest kit in the family — 550 mm side brackets plus four white corner brackets.
View details →Sub categories
Narrow It Down

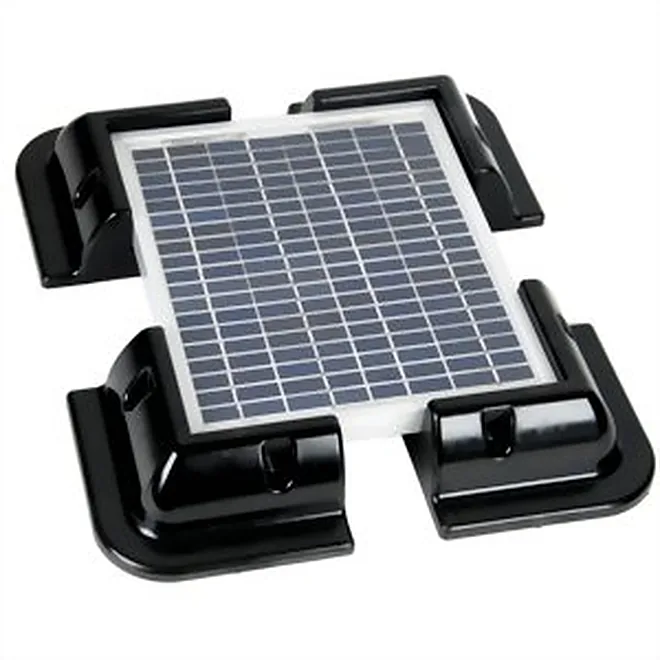

Solar Panel Corner Mounts (150 mm)
Four-piece ABS corner set for any aluminium-framed panel with a 150 mm lateral length.
Solar Panel Short Side Mounts (180 mm)
Two-piece 180 mm ABS spoiler set that adds support along the short side of a panel.
Solar Panel Long Side Mounts (530 mm)
Two-piece 530 mm ABS spoiler set for the long edges of a framed panel.
Single-Hole Solar Cable Entry Glands
One-gland waterproof roof feed-through for 6–12 mm solar cable.
Double-Hole Solar Cable Entry Glands
Two IP65-rated glands in one housing for positive and negative runs.
Caravan & RV Solar Mounting Kits
Corner mounts and side brackets boxed together as a one-panel fitting kit.
What it solves
Why This Range Exists
The problem on site
- A caravan or motorhome roof is a sealed membrane, and every fastener through it is a leak with a delay fuse
- Metal feet sit the module hard against the roof, so heat has nowhere to go
- Bare panel corners chip and dent during fit-out and stay damaged for the life of the module
- Removing a drilled array at resale leaves holes that have to be made good
How this range answers it
- Bonded fixing — nothing passes through the roof, so there is nothing to seal and nothing to re-seal
- The profile holds an air gap under the module so it can shed heat on a hot roof
- Corner moulds take the impact that would otherwise land on the panel frame
- Roughly 50 % lighter than an equivalent metal fixing, and 100 % recyclable
Solutions
Related Solutions
Adhesive Bonded Panel Mounting
Fix a framed panel to a vehicle or boat roof with no hole through the structure.
Waterproof Roof Cable Entry
Get the array cable inside without creating the leak the rest of the install avoided.
Complete Panel and Mount Supply
Modules, mounting hardware and cable entry quoted and shipped from one factory.
Application Notes
Related Application Notes
Two Panels on a Caravan Roof Without Drilling
A caravan owner planned to DIY-install two 80 watt polycrystalline panels on the roof of a 21 ft 6 in van. The question raised on the forum…
Waterproof Roof Cable Entry on a Camper
When the cable assembly of solar panels on the roof of a camper is run, the practical route is to bring the cable through the roof…
Questions
Frequently Asked Questions
Which part numbers are in ABS Plastic Solar Panel Mounts?
14: BS09009-B, BS09009-W, BS090017-B, BS090017-W, BS090018-B, BS090018-W, BS090028-B, BS090028-W, BS090025-B, BS090025-W, BS09009-Kits, BS090018-Kits, BS090033-Kits and BS090034-Kits. Each has its own page with dimensions, materials and packing.
What are the export carton quantities?
Published per product — in this group that means 100 pcs per outer carton; 2 pcs per set, 16 sets per outer carton; 2 pcs per set, 20 sets per outer carton. Tell us your volume and we will quote against the carton.
Is every item here available in both colours?
In this group we list black and white. Where you need a colour we have not listed against a part number, ask — it depends on the moulding run and the quantity.
Is there a datasheet?
Yes — the ABS Plastic Solar Mounting Systems Catalogue and the 150 mm Corner Mount BS09009 Datasheet are on our download page as the original factory PDF. For anything not covered, email us the part number.
Get a Price on ABS Plastic Mounts
Bonded fixing — nothing passes through the roof, so there is nothing to seal and nothing to re-seal — that is what this group is for. Send us the quantity you need and the panel or surface it is going on, and we will come back with part numbers and a price.
