Solar Panel Short Side Mounts (180 mm)
Solar Panel Side Mount 180 mm Black
A two-piece 180 mm ABS spoiler set that carries the side of a framed panel and can be painted to match any roof.
- No roof penetration — the mount is bonded to the surface, so there is nothing to seal and nothing to leak
- Acts as a wind deflector and keeps the correct air gap under the module for aeration
- UV-resistant ABS that will not chalk or crack in service
- 100 % recyclable and roughly 50 % lighter than an equivalent metal fixing
Product overview
What It Is and What It Does

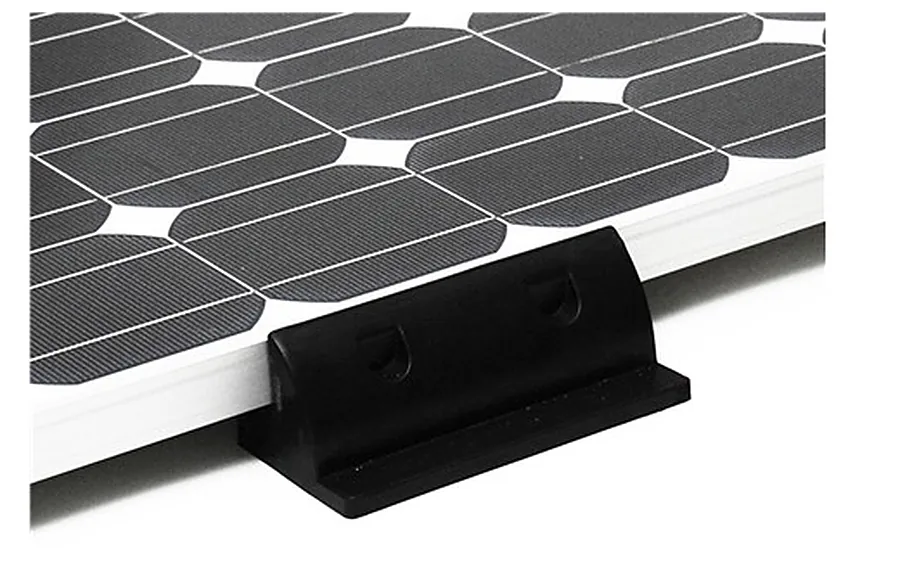

This set of two universal solar panel side spoiler mounts can be used with any aluminium framed solar panel that has a lateral length of 180 mm. Where the corner moulds hold the panel at four points, the spoiler profile spreads the load along a whole edge — which is what you want once the module gets large enough that point loads start working the frame.
The profiles are extremely weather-resistant and ventilate the module from underneath. They are supplied in black but are suitable for painting any other colour to match the mounting surface, and every fixing position is already marked on the bracket if you do decide to drill rather than bond.
Who it is for
- Converters fitting 80 W to 150 W panels to caravan and motorhome roofs
- Marine fitters bonding panels to a deck or wheelhouse roof
- Camping and overlanding outfitters building roof arrays on vans
- Anyone combining corner moulds with edge support on a larger module
Problems it solves
- Four-point corner fixing alone flexes the frame on a large panel at highway speed
- A black bracket is wrong on a coloured or wrapped roof and cannot normally be changed
- Bonding brackets without marked fixing points makes a drilled backup fixing guesswork
- Water sitting between panel and roof has nowhere to drain on a flat-bonded module
Key benefits and features
Why Buyers Choose BS090017-B
Benefits
- No roof penetration — the mount is bonded to the surface, so there is nothing to seal and nothing to leak
- Acts as a wind deflector and keeps the correct air gap under the module for aeration
- UV-resistant ABS that will not chalk or crack in service
- 100 % recyclable and roughly 50 % lighter than an equivalent metal fixing
- Supplied in black but ready to paint any colour to match the mounting surface
- All fixing positions are pre-marked on the bracket if you choose to drill
Technical features
- Material: ABS plastic, black, UV resistant
- Set of 2 side spoiler mounts
- For aluminium-framed panels with a 180 mm lateral length
- Use with corner moulds and the 530 mm mount on 80 W, 120 W and 150 W panels
- Rated IP66 in the source technical data
- Approximately 1,200 g per set
| Product number | BS090017 |
|---|---|
| Colour | Black — paintable |
| Material | ABS plastic |
| Set contents | 2 pcs per set |
| Lateral length | 180 mm |
| Ingress protection | IP66 |
| Set weight | 1,200 g per set |
| Packing | 2 pcs per set, 20 sets per outer carton |
| Used with | 80 W, 120 W and 150 W panels alongside corner moulds and the 530 mm mount |
| Fixing method | Adhesive bonded; fixing positions marked for optional drilling |
| UV resistance | UV resistant |
Materials and manufacture
What It Is Made From
UV-resistant ABS to a German technical specification that the source range describes as extremely weather-resistant, waterproof to IP66 and fully recyclable. At 1,200 g per set the pair adds very little to a roof load.
Quality and certification
Everything in the BS090017-B table above is taken from our own product documentation — 2 pcs per set and a 180 mm lateral length. Nothing on this page is estimated or rounded up to make a better headline. If a tender needs a written certification or test statement, tell us which standard it names and we will say what we can supply.
Customisation
BS090017-B is the black version, and BS090017-W is the same part in white. The standard export pack is 2 pcs per set, 20 sets per outer carton. For a different pack quantity, a printed carton, or short side mounts under your own label, tell us the annual volume you are planning and we will come back on what is possible and what it changes on price.
Comparison
How It Compares
Against the 530 mm long side mount

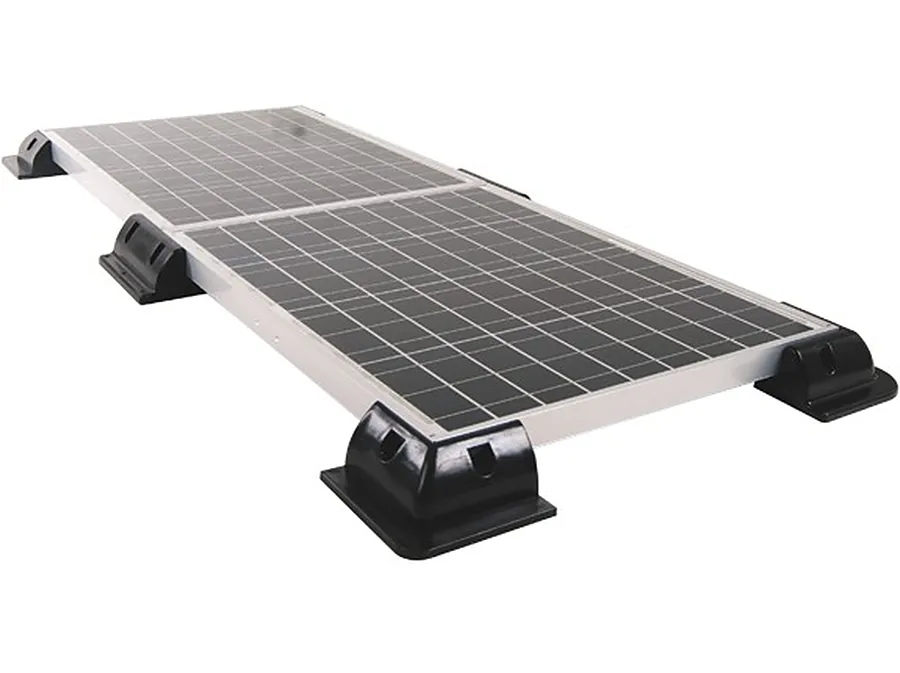

180 mm carries the short edge, 530 mm the long edge. On a larger module the two are used together with the corner moulds for a full four-side fixing.
Against corner mounts alone
Corner mounts are enough for many installs. Add this spoiler set when the module is large, heavy, or fitted to a vehicle that is driven at speed.
Against the white BS090017-W
Same profile in white. Black is the one to choose if you intend to paint, since the marked fixing points and moulded finish take paint the same way.
Use guide
How to Fit It
Step 1
Offer the panel up and mark the bracket positions along the short edges.
Step 2
If you intend to paint, paint the profiles and let them cure before fitting.
Step 3
Degrease the bracket base and the roof.
Step 4
Bond with an adhesive sealant, or drill at the marked fixing positions if the surface allows.
Step 5
Fit the panel into the profiles and leave the adhesive to cure fully.
Questions
Frequently Asked Questions
Can these be painted?
Yes. The brackets are finished in black but are suitable for painting any other colour to match the mounting surface.
Do I have to bond them, or can I screw them down?
Either. Bonding is the point of the range, but if you drill, all fixing positions are already marked on the brackets.
What does a set weigh?
About 1,200 g per set of two.
Which panels is the 180 mm set normally used with?
It is used in conjunction with the corner moulds and the 530 mm panel mount on 80 W, 120 W and 150 W panels.
