Caravan & RV Solar Mounting Kits

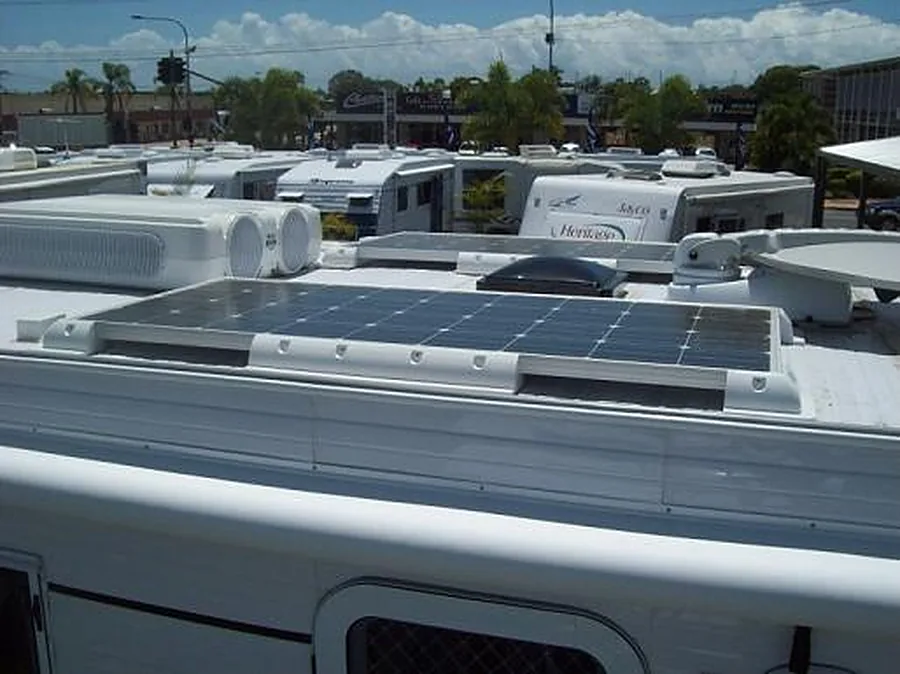

Caravan RV Solar Kit with 530 mm Side Brackets
Four white corner brackets plus 530 mm long white side brackets for larger framed panels.
- Full four-side bonded fixing for a larger panel in one part number
- 530 mm side profile spreads wind and vibration load along the whole edge
- No drilling and no fasteners through the roof
- Correct air gap and wind-deflector geometry built into the profile
Product overview
What It Is and What It Does
The 530 mm kit is the one to reach for when the module is big enough that its long edges have to be carried. It contains one set of four white corner brackets and one set of 530 mm long white side brackets, which together give a bonded fixing on all four sides of a framed panel.
Like the rest of the kits it is an adhesive installation: the mounts bond safely to the surface, removing the need to drill holes, and they act as a wind deflector while maintaining the correct air gap between the solar panel and the roof top or deck.
Who it is for
- Motorhome and caravan owners fitting a large-format panel
- Fitters working on modules in the 80 W to 150 W class
- Boat owners bonding a panel to a coachroof without through-fixings
- Dealers offering a single-part-number solar fitting kit for larger panels
Problems it solves
- Corner brackets alone leave a long module unsupported along its worst-loaded edges
- Mixing bracket lengths from different orders gives an uneven, unprofessional result
- Roof penetrations on a large install multiply the number of potential leaks
- Panels mounted hard down on a roof overheat and lose yield
Key benefits and features
Why Buyers Choose BS090018-Kits
Benefits
- Full four-side bonded fixing for a larger panel in one part number
- 530 mm side profile spreads wind and vibration load along the whole edge
- No drilling and no fasteners through the roof
- Correct air gap and wind-deflector geometry built into the profile
Technical features
- 1 set of 4 white corner brackets
- 1 set of 530 mm long white side brackets
- ABS plastic, UV resistant, white
- Bonded fixing, no roof penetration
- For RV, motor home, caravan and marine installations
- Side profile pair weighs 2.1 kg
| Product number | BS090018-Kits |
|---|---|
| Manufacturer | Bright Solar Power |
| Kit contents | 1 set of 4 white corner brackets, 1 set of 530 mm long white side brackets |
| Side bracket length | 530 mm |
| Colour | White |
| Material | ABS plastic |
| Side bracket set weight | 2.1 kg |
| Fixing method | Adhesive bonded, no drilling |
| Applications | RV, motor home, caravan, boat |
| Adhesive | Not included |
Materials and manufacture
What It Is Made From
White UV-resistant ABS throughout. The 530 mm profile is the heaviest single part in the kit at 2.1 kg for the pair, which is still a fraction of an equivalent aluminium rail set.
Quality and certification
Everything in the BS090018-Kits table above is taken from our own product documentation — a 530 mm side bracket. Nothing on this page is estimated or rounded up to make a better headline. If a tender needs a written certification or test statement, tell us which standard it names and we will say what we can supply.
Customisation
BS090018-Kits is the white version, and BS090018-B is the same part in black. For a different pack quantity, a printed carton, or mounting kits under your own label, tell us the annual volume you are planning and we will come back on what is possible and what it changes on price.
Comparison
How It Compares
Against the BS09009 kit
Short side bracket versus 530 mm long side bracket. Choose by the edge length your module actually needs supporting.
Against BS090033-Kits and BS090034-Kits
Same idea with 510 mm and 550 mm side brackets. Three lengths exist so the profile matches the panel rather than nearly matching it.
Against a rail-and-clamp system
A rail system is stronger and heavier and needs the roof drilled. This is the bonded route, sized for vehicles.
Use guide
How to Fit It
Step 1
Check the long edge of your module against the 530 mm profile length before ordering.
Step 2
Dry-fit and mark all bracket positions on the roof.
Step 3
Degrease both bonding faces.
Step 4
Bond corners and side profiles with ABS adhesive sealant.
Step 5
Cure fully before the vehicle is driven or the roof is loaded.
Questions
Frequently Asked Questions
How is this different from the BS09009 kit?
The side brackets. This kit has 530 mm long white side brackets; the BS09009 kit has short side brackets.
How do I know which side bracket length I need?
Measure the lateral length of your panel frame and match it to the 510 mm, 530 mm or 550 mm kit. Send us the panel dimensions and we will confirm the right kit.
Does the kit include the panel?
No. The kits are mounting hardware only. We also supply 5 W to 45 W modules if you need both.
Can I order these in black?
The kits are supplied in white. The individual corner and side mounts are available in black if you need a black installation — tell us the quantity and we will quote.
Related products
Often Ordered With This
BS09009-KitsCaravan RV Solar Mount Kit with Short Side Brackets
Four white corner brackets plus a short white side bracket set — everything for bonding one panel to a caravan roof.
View details →BS090033-KitsCaravan Solar Panel Mounting Kit 510 mm
The 510 mm variant of the caravan kit, for panels whose long edge does not suit the 530 mm profile.
View details →
BS090018-WSolar Panel Long Side Mount 530 mm White
The white 530 mm spoiler pair — 2.1 kg for the set and the long-edge bracket used in the BS090018 kit.
View details →
BS090025-WSolar Cable Entry Double Hole White
The white twin-gland roof box for caravan, motorhome and RV solar roofs.
View details →Further reading
Notes and Guides for This Product
Two Panels on a Caravan Roof Without Drilling
A caravan owner planned to DIY-install two 80 watt polycrystalline panels on the roof of a 21 ft 6 in van. The question raised on…
Waterproof Roof Cable Entry on a Camper
When the cable assembly of solar panels on the roof of a camper is run, the practical route is to bring the cable through the…
Sizing a Solar Panel for an RV
Count the loads first, then pick the module — not the other way round.
No Drill Adhesive Mounting for Caravan Roofs
The reasoning behind the ABS range, and what changed when white was added.
ABS Plastic Versus Aluminium Solar Mounts
Two mounting families, one decision: can this surface take a fastener or not?
Ready to Order BS090018-Kits
Tell us how many BS090018-Kits you need and which port they are going to. We will confirm the pack quantity for the Caravan RV Solar Kit with 530 mm Side Brackets, quote freight and give you a lead time.
