PVDF · 15–20yr Warranty
PVDF Coated ACP
KYNAR500-based fluorocarbon coating baked 2–3 times for a 25 μm+ film. The standard choice for exterior wall cladding.
Aluminum Composite Panel Range
One factory, full-line ACP production. Standard widths from 1220 mm to 2000 mm, total thickness 2 to 6 mm, unlimited custom colours.
Series 01 · Exterior
ACP for Cladding
Coated aluminum composite panels built for permanent exposure — fluorocarbon and polyester systems, 2 to 6 mm total thickness, in widths up to 2000 mm.
PVDF · 15–20yr Warranty
PVDF · Self-cleaning
Nano PVDF Coated ACP
Nano-treated surface adds self-cleaning behaviour to PVDF durability — dirt washes away with rain.
PE · 10yr Warranty
PE Coated ACP
Polyester coated panels for interior and short-term exterior use. Cost-effective with good formability.
Series 02 · Fire Safety
Fire-Rated ACP
Class A2 mineral-core and Class B1 flame-retardant composite panels, supplied with EN 13501-1, GB 8624-2012 and ASTM E84 test reports.
A2 · EN 13501-1
FR A2 ACP
Class A2 fire-rated panel with a high mineral content core for high-rise facades and public buildings under the strictest fire regulations.
B1 · GB 8624
FR B1 ACP
Class B1 fireproof panel balancing fire performance, flatness and cost — the workhorse for regulated cladding projects.
Series 03 · Innovation
New Generation ACP
Ultra-wide 2000 mm panels, aluminium lattice-core panels and metal-skin composites — formats that change what an elevation can do.
Ultra-wide · 2000mm
2M Width ACP
2000 mm ultra-wide panels mean fewer joints, faster installation and a cleaner facade — also ideal for large signage.
Lattice Core
Lattice Composite Panel
Aluminium lattice core delivers high rigidity at low weight — the strength of honeycomb construction with ACP economics.
Stainless / Copper
Metal Composite Panel
Stainless, copper and other metal skins laminated in-house for premium architectural expressions.
Series 04 · Decorative
Special Finishes ACP
Decorative coating and lamination systems that keep the fabrication behaviour of ordinary ACP while changing what the surface does with light.
Brushed · Directional
Brushed ACP
Directional brushed texture for premium interiors, lift cars and feature walls.
Mirror · High Gloss
Mirror ACP
High-gloss mirror surfaces for feature walls, ceilings and display work.
B1 · Decorative
Wooden Finish ACP
Realistic wood grains with ACP durability — for decoration, furniture and warm architectural accents.
Spectra · Colour Shift
Spectra ACP
Colour-shifting coatings that change character with viewing angle and light.
Nacreous · Pearl
Nacreous ACP
Pearlescent coatings with a soft depth that changes with light rather than with angle.
Series 05 · Signage
ACP for Sign
Matt and gloss polyester surfaces engineered for ink adhesion, plus FEVE-coated panels where a sign has to survive outdoors for decades.
Matt · UV Print
Polyester Coated Matt ACP
Matt surface optimized for UV printing with excellent ink adhesion and an anti-glare finish.
Gloss · Digital Print
Polyester Coated Gloss ACP
High-gloss surface engineered for digital printing — vivid colour reproduction and a smooth finish.
FEVE · Premium
FEVE Coated ACP
FEVE resin coating combines gloss retention with formability — a step up for demanding sign and facade applications.
Reference Data
PVDF ACP Standard Specifications
Test sample: PVDF ACM 4 × 0.30 mm — all 18 test items passed. Key results below.
| Standard widths | 1220 / 1250 / 1500 / 1550 / 2000 mm |
|---|---|
| Standard lengths | 2440 / 3050 / 4880 mm |
| Total thickness | 2 – 6 mm |
| Aluminum skin thickness | from 0.30 mm (customizable) |
| Coating thickness | ≥ 25 μm (measured 27–30 μm) |
| 180° peel strength | ≥ 7.0 N/mm (measured 11.2 N/mm) |
| Bending strength | ≥ 100 MPa (measured 121 MPa) |
|---|---|
| Salt spray resistance | 3000 h, grade 1 |
| Artificial weathering | 4000 h, color difference ≤ 4.0 (measured 1.24) |
| MOQ | 500 m² per color |
| Colors | 36+ standard colors, unlimited custom matching |
| Packing | Strong wooden pallet or nude packing |
Colour Reference
Standard Colour Library
Stocked colours ship in 7 days. Custom colour matching from any physical sample or Pantone code — typically 15 days from approval.

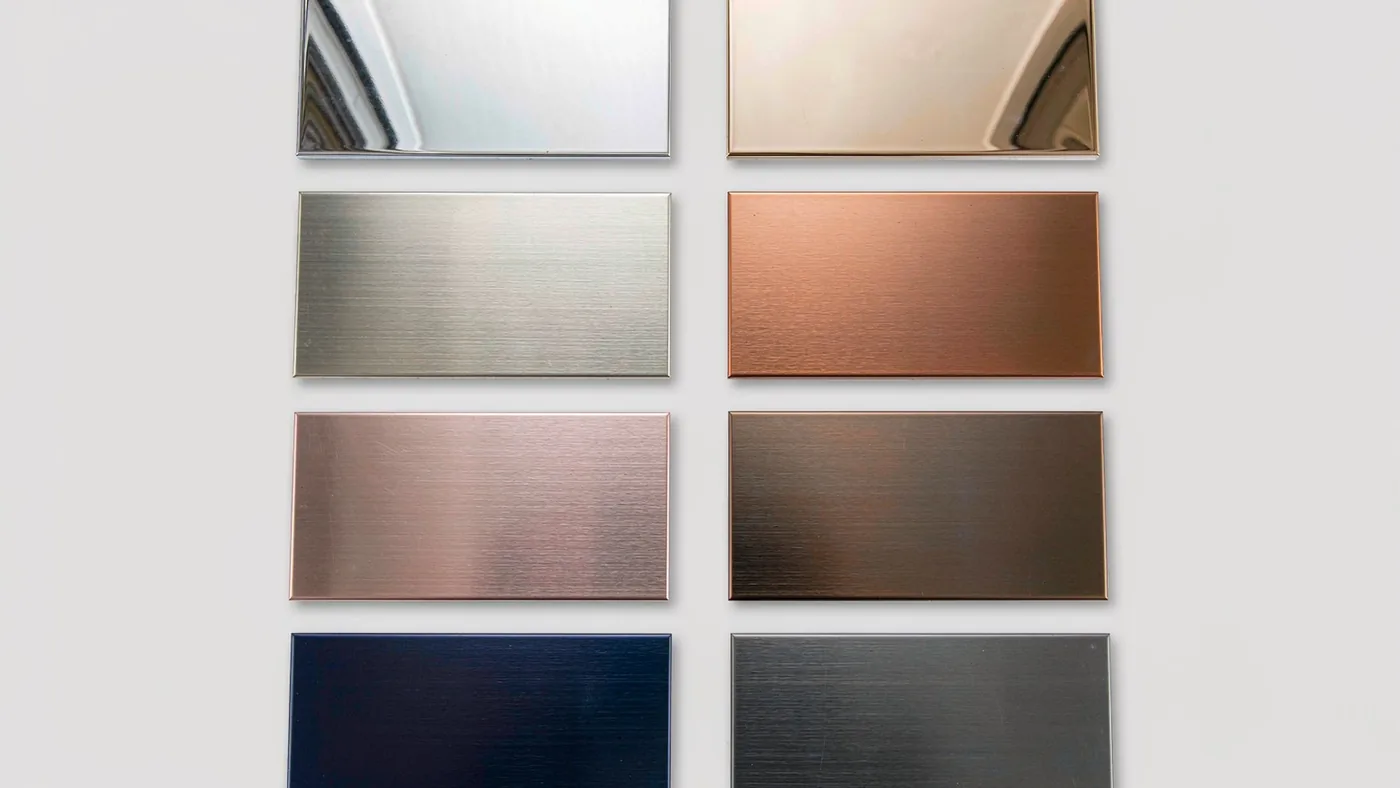

A2 Fire-Rated Metal Series
Eight core metallic finishes stocked in 1220 × 2440 mm, available in 3 / 4 / 5 / 6 mm thickness. All compatible with the full fire-rated ACP product line.
- Silver · RAL 9006 equivalent
- Brushed · directional grain
- Champagne · RAL 1035 equivalent
- Copper · warm metallic
- Rose Gold · contemporary accent
- Bronze · RAL 1036 equivalent
- Navy · deep architectural
- Charcoal · RAL 7016 equivalent
Wood-Grain Series
Six natural wood tones printed via high-resolution roller transfer — the warmth of wood with the durability of ACP. Realistic grain, fade-resistant color.
- Light Oak · pale, neutral
- Walnut · medium, classic
- Ash · grey-tinted, modern
- Teak · rich, warm
- Charcoal-burnt · smoked accent
- Whitewash · coastal, soft
Solid And Custom Colors
Beyond the stocked series, our color library covers glossy and matte solids, brushed metals and pearlescent effects — and any custom color matched from a physical sample or a Pantone code.
- Solids · pure, uniform, masking-friendly
- Metallics · brushed, mirrored, sparkled
- Pearlescent · angle-shifting effects
- Custom match · sample or RAL / Pantone, about 15 days
FAQ
Product Range Questions
How many products are in the range?
Sixteen products across five series: cladding, fire-rated, new generation, special finishes and sign. Every one is produced on our own lines in Jiangyin.
What sizes and thicknesses do you produce?
Standard widths 1220, 1250, 1500, 1550 and 2000 mm; standard lengths 2440, 3050 and 4880 mm; total thickness 2 to 6 mm with skins from 0.30 mm.
Can any coating go on any core?
Yes. Coating and core are specified separately, so a PVDF, nano PVDF, FEVE or polyester surface can be supplied on standard, B1 or A2 core.
Do you supply cut-to-size panels?
Yes. Send an elevation, cutting list or CAD drawing and we produce to your panel schedule. For complex shapes we can pre-fabricate in the factory.
