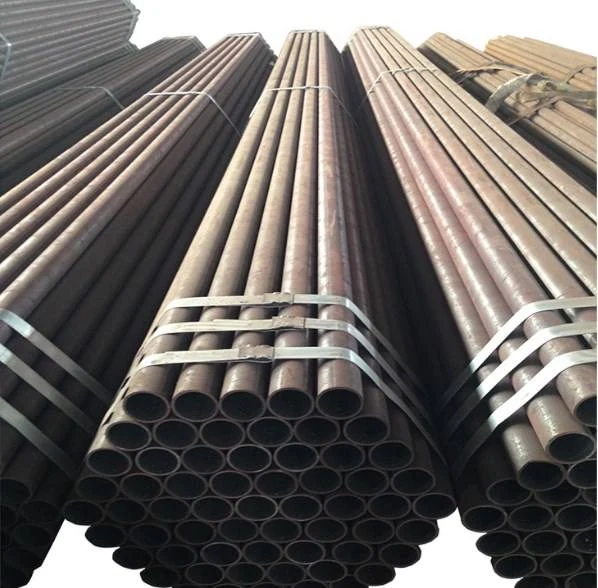

High Pressure Boiler Tube Seamless Boiler Steel Pipes

According to the use temperature, it is divided into two types: general boiler tube and high pressure boiler tube .

General boiler tubing are mainly used to manufacture water wall tubes, boiling water tubes, superheated steam tubes, superheated steam tubes for locomotive boilers, large and small smoke tubes and arch brick tubes, etc.

High-pressure boiler tubes are mainly used to manufacture superheater tubes, reheater tubes, air guide tubes, main steam tubes, etc. of high-pressure and ultra-high pressure boilers.

In addition to ensuring the chemical composition and mechanical properties of boiler steel pipes , hydrostatic tests, flaring and flattening tests are required one by one.

Steel tubes are delivered in a heat-treated state.

• The manufacturing method is the same as that of seamless steel pipes , but there are strict requirements on the steel types used in the manufacture of steel pipes .
• OR Steel Grade Standard Application GB(China) ASME USA DIN/EN(Euro) Carbon steel 10 20 20G 20MnG 25MnG SA-106B SA-192 SA-210A1 SA106C SA-210C PH265GH P195GH P235GH St35.8 St45.8 Economizer tube Water wall tube Mo steel 15MoG 20MoG SA-209 T1 SA-209 T1a SA-209 T1b 15Mo3 16Mo3 Water wall tube Superheater tube Reheater tube Cr-Mo Steel 12CrMoG 12Cr2MoG 12Cr1MoVG 15CrMoG 10Cr9MoVNb SA-213 T11 SA-213 T22 SA-213 T24 SA-213 T91 A335 P1 A335 P2 A335 P5 A335P9 A335 P11 12Cr1MoV 14MoV63 10CrMo910 X10CrMoVNb91 10CrMo5-5, 13CrMo4-5 Superheater tube Reheater tube Cr-Mo-W steel 12Cr2MoWVTiB SA-213 T23 SA-214 T911 SA-213 T92 SA-213 T122 A 335 P23 A335 P911 A335 P92 A335 P122 — Superheater tube Reheater tube Austentic Stainless steel — AP304 TP304H TP321 TP321H TP347 TP347H TP316 TP316H S30432 TP310HCbN — Superheater tube Reheater tube ​​ PRODUCT DESCRIPTION ​ OR Product Seamless Steel Pipe Seamless Pipe China GB/T8162/T8163 GB5310/6579/9948 U.S.A.
