ASTM A333 Gr.6 Seamless Steel Tube

Name: ASTM A333 Gr.6 Seamless Steel Tube
Brand: YYT Wood

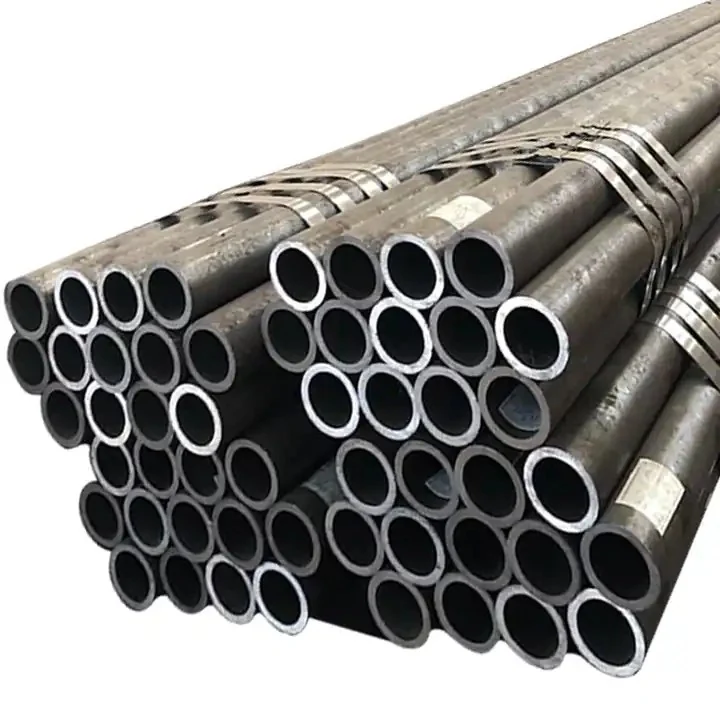

ASTM A333 Gr.6 Seamless Steel Tube supplied by YYT Wood

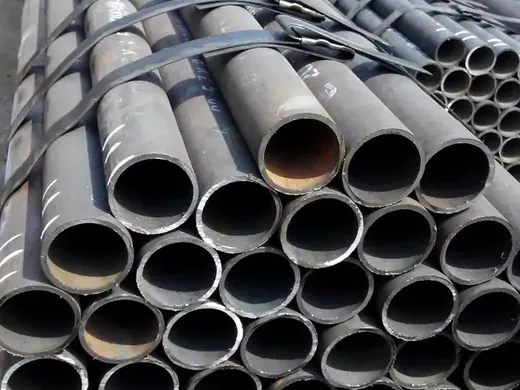

ASTM A333 Gr.6 Seamless Steel Tube - boiler steel pipe detail view 2

ASTM A333 Gr.6 Seamless Steel Tube - boiler steel pipe detail view 3

ASTM A333 Gr.6 Seamless Steel Tube - boiler steel pipe detail view 4

Why Buyers Choose It

Key Benefits

When the carbon content is lower than

How It Is Built

Technical Detail

When the carbon content is lower than 0.30%, for every 0.01% decrease, the manganese content can be increased by 0.05% above 1.06% until the maximum allowed manganese content is 1.35%.

Based on the protocol, niobium content can be increased to 0.05% for melt analysis and 0.06% for finished product analysis.

Data From The Product Record

Specification

Product material	ASTM A333-Grade1, Grade3, Grade4, Grade6, Grade7, Grade8, Grade9, Grade10, Grade11
Implementation standard	ASTM A333//ASMESA333 Chemical composition of GR.6 seamless steel tube
Carbon	≤0.3
Manganese	0.2~1.06
Phosphorus	≤0.025
Sulfur	≤0.025
Silicon	≥0.10, Nickel ≤ 0.40
Chromium	≤0.30
Copper	≤0.40
Vanadium	≤0.08

Where It Is Used

Applications

It is suitable for -45℃~-195℃ low-temperature pressure vessel pipes and seamless steel pipes for low-temperature heat exchanger pipes.
OR Steel Grade Standard Application GB(China) ASME USA DIN/EN(Euro) Carbon steel 10 20 20G 20MnG 25MnG SA-106B SA-192 SA-210A1 SA106C SA-210C PH265GH P195GH P235GH St35.8 St45.8 Economizer tube Water wall tube Mo steel 15MoG 20MoG SA-209 T1 SA-209 T1a SA-209 T1b 15Mo3 16Mo3 Water wall tube Superheater tube Reheater tube Cr-Mo Steel 12CrMoG 12Cr2MoG 12Cr1MoVG 15CrMoG 10Cr9MoVNb SA-213 T11 SA-213 T22 SA-213 T24 SA-213 T91 A335 P1 A335 P2 A335 P5 A335P9 A335 P11 12Cr1MoV 14MoV63 10CrMo910 X10CrMoVNb91 10CrMo5-5, 13CrMo4-5 Superheater tube Reheater tube Cr-Mo-W steel 12Cr2MoWVTiB SA-213 T23 SA-214 T911 SA-213 T92 SA-213 T122 A 335 P23 A335 P911 A335 P92 A335 P122 — Superheater tube Reheater tube Austentic Stainless steel — AP304 TP304H TP321 TP321H TP347 TP347H TP316 TP316H S30432 TP310HCbN — Superheater tube Reheater tube PRODUCT DESCRIPTION OR Product Seamless Steel Pipe Seamless Pipe China GB/T8162/T8163 GB5310/6579/9948 U.S.A.

Where This Product Fits

Industries

Energy and Heavy Industry

Services

Quality Inspection and Certification

Also Listed Under

ASTM A333 Gr.6 Seamless Steel Tube FAQ

Which grade or standard does this meet for ASTM A333 Gr.6 Seamless Steel Tube?

For ASTM A333 Gr.6 Seamless Steel Tube: supplied against ASTM A333//ASMESA333 Chemical composition of GR.6 seamless steel tube. Name the standard your inspector works to in the enquiry and it will be quoted against that specification.

Can I get a sample of ASTM A333 Gr.6 Seamless Steel Tube first?

For ASTM A333 Gr.6 Seamless Steel Tube: yes. Samples are usually free and we can also produce to your own sample or technical drawing before the main run.

What do you need in order to quote for ASTM A333 Gr.6 Seamless Steel Tube?

For ASTM A333 Gr.6 Seamless Steel Tube: the product name, the size and the quantity you intend to buy. For steel items add the governing standard and grade.
