LED Grille Lights for Linear and Multi-Head Ceiling Layouts
Square and rectangular grille modules from 5 W single heads up to 24-30 W triple-head bars.
LED Grille Lamp Range
Grille lights let one ceiling opening carry more than one beam. The range covers single square apertures at 55 to 95 mm, twin modules and triple bars up to 325 mm long, with bordered and borderless trims so the fitting can sit proud of the ceiling or disappear into it.
Double-Headed Style 5 models
Open seriesFive trimless square heads with cutouts 55 x 55 mm to 95 x 95 mm and bodies 78 mm to 108 mm square.
Square With Border 5 models
Open seriesFive bordered square heads from 7 W to 30 W with cutouts 55 x 55 mm to 95 x 95 mm.
Square Without Border 3 models
Open seriesThree twin-head trimless modules from 5-7 W x 2 up to 24-30 W x 2, bodies 131 mm to 217 mm long.

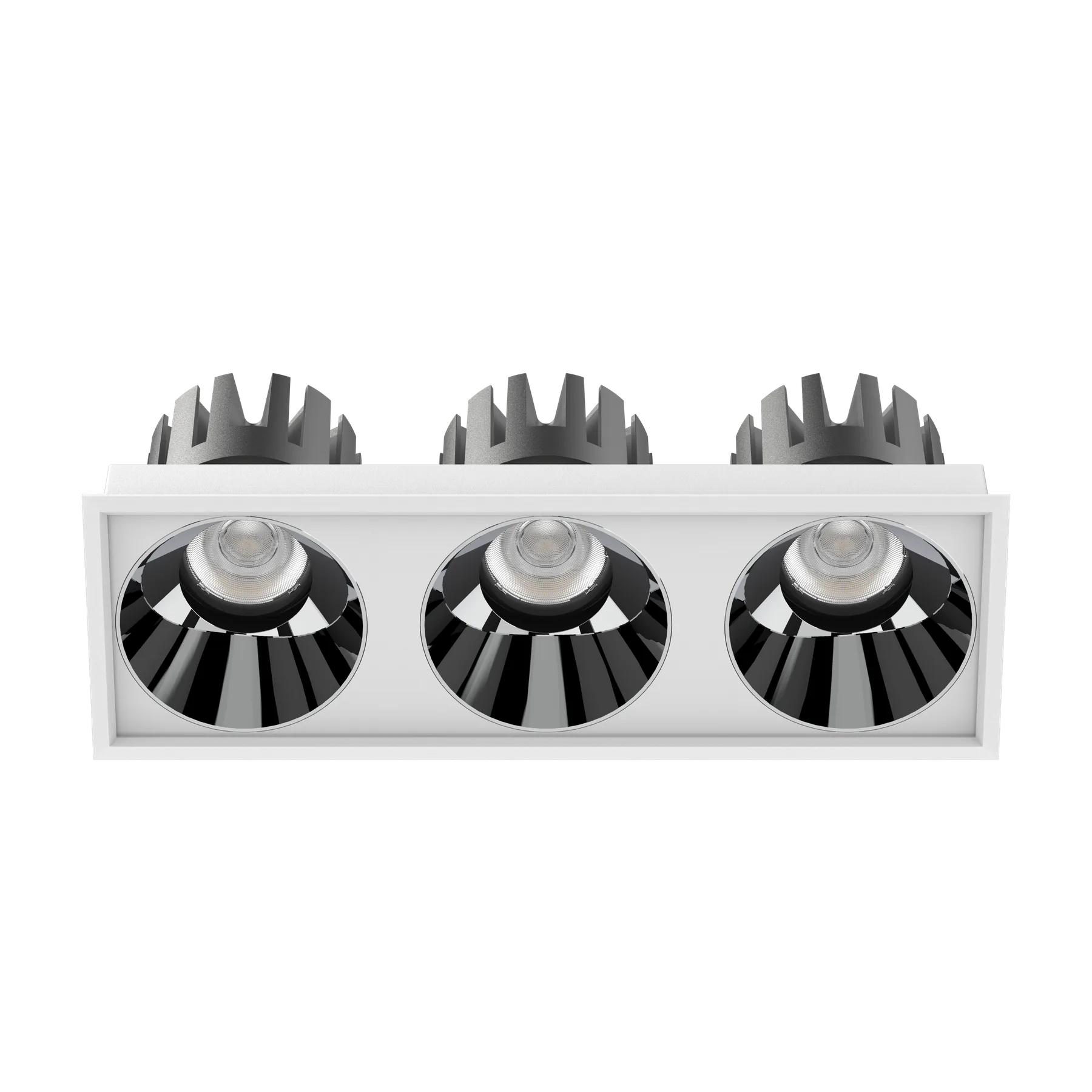

Triple-Headed Style 3 models
Open seriesThree linear bars carrying three heads each, 5-7 W x 3 up to 24-30 W x 3, 194 mm to 325 mm long.
What This Range Is For
- Too many separate openings cut into a narrow ceiling run
- Uneven light between adjacent shop bays
- Visible trims breaking up a minimal ceiling line
- Fittings that cannot aim light onto a wall display
Who Specifies It
- Retail fit-out contractors working with narrow bulkheads
- Designers specifying linear ceiling detailing
- Hotel and restaurant projects needing grouped accent light
- Distributors serving mid to high-end commercial interiors
What Sets This Range Apart
Single, twin and triple head formats on one design language
Single, twin and triple head formats on one design language
Bordered and borderless versions of the same aperture
Bordered and borderless versions of the same aperture
15°, 24°, 36° and 50° beam options across the range
15°, 24°, 36° and 50° beam options across the range
COB chip holders in 1313-08 and 1616-11 sizes
COB chip holders in 1313-08 and 1616-11 sizes
Where It Gets Installed
Shop window bays
Restaurant table lighting
Corridor and lift lobby runs
Display wall washing
Other Ranges In This Family
Industries We Serve
LED Grille Lamp Questions
What cutout sizes does the LED Grille Lamp cover?
55 x 55 mm, 65 x 65 mm, 75 x 75 mm, 85 x 85 mm, 95 x 95 mm, 125 x 60 mm, 162 x 81 mm, 178 x 61 mm, 210 x 102 mm, 241 x 81 mm, 317 x 102 mm. Keeping a project inside one ladder of cutout sizes means the ceiling contractor cuts fewer hole sizes.
What power range is available?
From 7 W to 30 W across 16 models in this range.
Which beam angles can I order?
15°, 24°, 36°, 50°, depending on the model. The angle is fixed per order line.
Can these be produced under our own brand?
Yes. YiYo Lighting is the original manufacturer of its own designed products and runs ODM and OEM programmes, including branded cartons and labels.
How do I get a quotation?
Send the model references, beam angles, finishes and quantities by WhatsApp or email. We will confirm what is available and quote against it.
Get A Quotation On The LED Grille Lamp
Send the model references, beam angles, finishes and quantities. We will confirm availability and quote.
