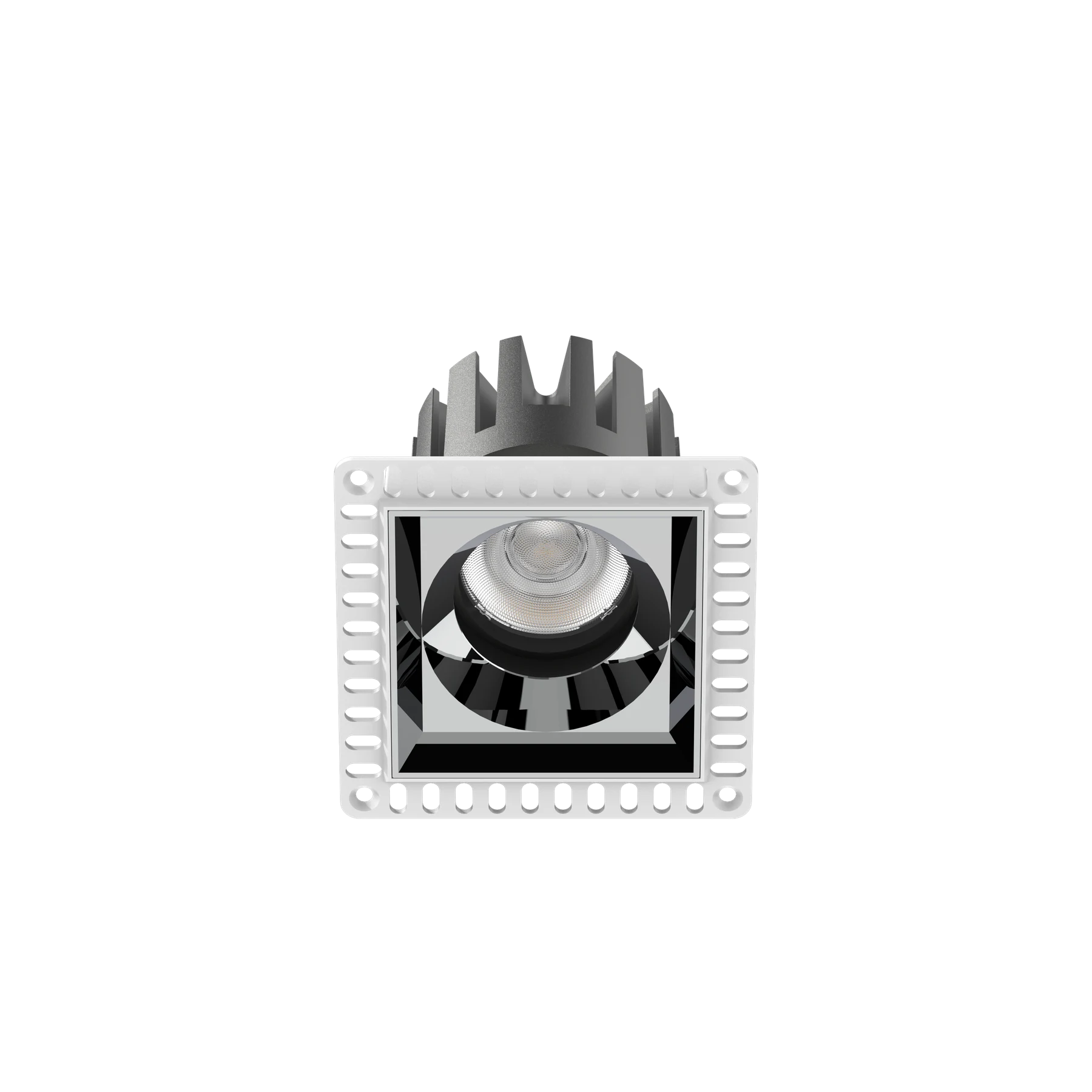

WA01-85-1-N Trimless Square LED Grille Light 24 W
The WA01-85-1-N is the 24 W grille light in the Double-Headed Style. Its 107 x 107 x 103 mm body sits in a 85 x 85 mm cutout and the optic is chosen at order stage from 15°, 24°, 36° and 50°. The aluminium body doubles as the heat path, which is why it is cast in house rather than bought in.
Contact Jenny directly on WhatsApp +86 139 2490 7974 or by email at [email protected].
Why Specifiers Choose The WA01-85-1-N
- 4 beam options on one body: 15°, 24°, 36° and 50°
- Fixed 85 x 85 mm ceiling cutout shared with other models in the range
- 24 W rating suited to display lighting and taller retail ceilings
- 1616-11 light engine matched to the housing
- Overall size 107 x 107 x 103 mm
What It Fixes On Site
- Ceilings with tight service zones above
- Minimal ceilings that cannot take a visible square trim
- Mixed schemes where public areas go trimless
- Cutouts that must match existing bordered fittings
Published Figures For The WA01-85-1-N
Every figure below is the manufacturer's published specification for this model. Values we do not publish are not listed rather than estimated.
| Power | 24 W |
|---|---|
| Beam Angle | 15°, 24°, 36° and 50° |
| Dimensions (mm) | 107 x 107 x 103 |
| Ceiling Cutout (mm) | 85 x 85 |
| LED Chip Platform | 1616-11 |
| Body Material | Die-cast aluminium |
| Mounting | Trimless recessed |
| Model Reference | WA01-85-1-N |
How It Is Built
- Light engine platform 1616-11
- Die-cast aluminium housing produced in our own casting workshop
- Trimless recessed installation
- Beam angle fixed per order line from 15°, 24°, 36° and 50°
- Passive cooling, no fan
Where The WA01-85-1-N Is Used
Design-led offices
Boutique retail
Villa interiors
Hotel suites
Who Buys This Model
- Contractors plastering fittings in at first fix
- High-end retail and hospitality fit-outs
- Residential and villa projects
- Designers matching trimless and bordered apertures
Specifying and Installing It
- Cut the ceiling to 85 x 85 mm and check the void clears the 107 x 107 x 103 mm body plus the wiring.
- Confirm the beam angle before the order is placed. 15°, 24°, 36° and 50° are available and the optic is fitted at the factory.
- Aim and check the result from standing height with the display in place, not from the access platform.
- Record the model, beam angle and finish on the as-built schedule so spares match.
How The WA01-85-1-N Compares With Its Neighbours
Both models below are in the same range, so the difference is aperture, power or optic rather than build.
| Compared With | Difference |
|---|---|
| WA01-95-1-N | A 85 x 85 mm opening against 95 x 95 mm on the WA01-95-1-N; 24 W here against 30 W. |
| NO1-75-1-N | A 85 x 85 mm opening against 75 x 75 mm on the NO1-75-1-N; 24 W here against 12 W. |
Related Models In The Double-Headed Style
Neighbouring apertures and power steps from the same range.
Product Ranges
Industries We Serve
WA01-85-1-N Questions
What ceiling cutout does the WA01-85-1-N need?
85 x 85 mm. The body measures 107 x 107 x 103 mm, so allow that depth in the void plus room for the wiring.
Which beam angles can I order on the WA01-85-1-N?
15°, 24°, 36° and 50°. The angle is fixed per order line, so one project can take several angles in this same model.
What light engine does it use?
A 1616-11 platform matched to the die-cast aluminium housing, so the thermal interface is part of the design.
Can the WA01-85-1-N be supplied under our own brand?
Yes. We are the original manufacturer of our own designed products and run ODM and OEM programmes, including carton and label branding.
What do you need from us to quote the WA01-85-1-N?
The beam angle, the finish, the quantity and the destination port. Send it by WhatsApp or email and we will come back with a quotation.
Request A Quotation On The WA01-85-1-N
Tell us the beam angle, the finish and the quantity. Jenny replies on WhatsApp during Guangdong working hours.
