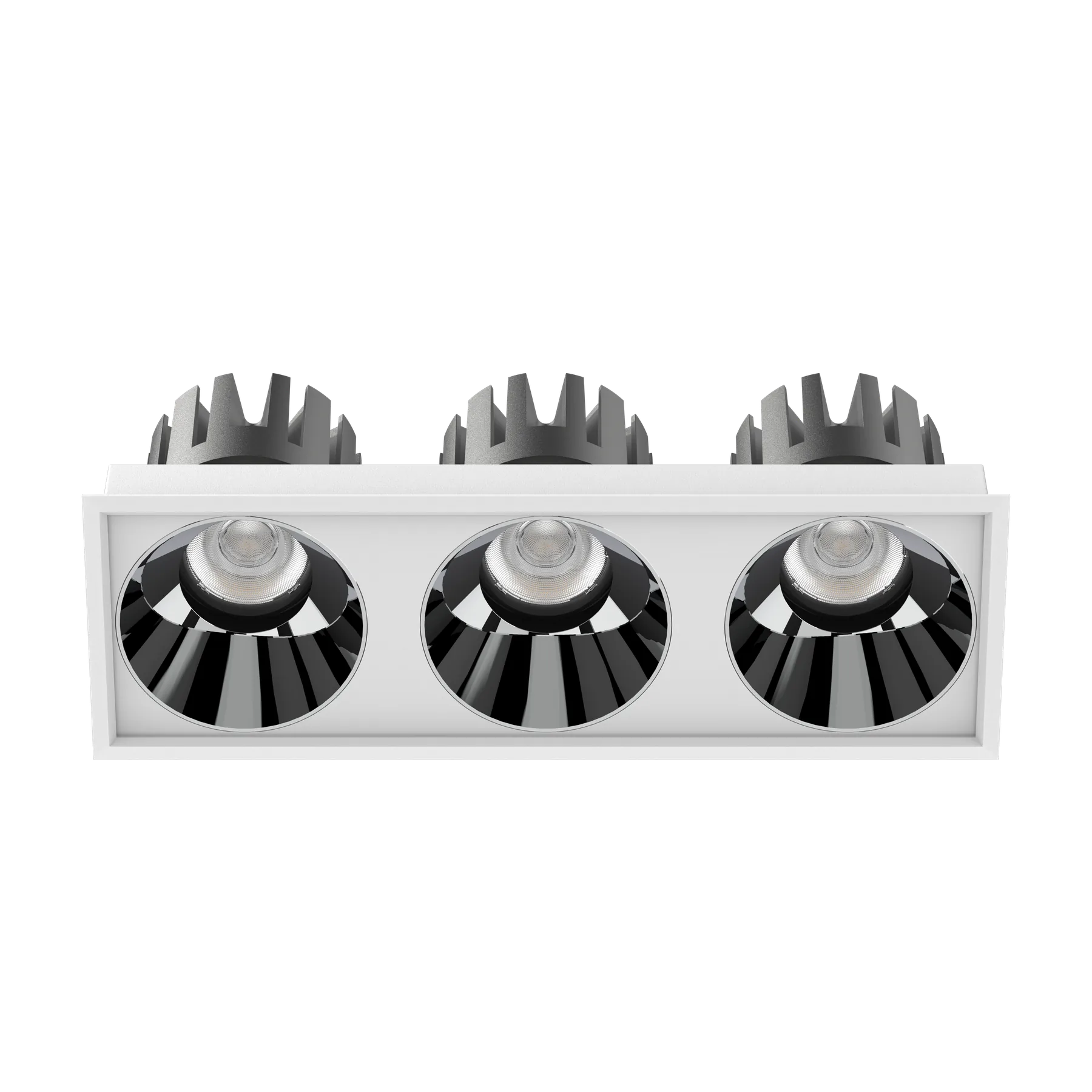

WA01-95-3 Triple-Head LED Grille Bar 24-30 W × 3
Specified at 24-30 W across three heads, the WA01-95-3 is the Triple-Headed Style model for projects that have settled on a 317 x 102 mm aperture. Beam angles of 15°, 24°, 36° and 50° are available, which is what lets one aperture size serve several lighting jobs. Like the rest of the range it uses a die-cast aluminium body for passive cooling, with no fan to fail.
Contact Jenny directly on WhatsApp +86 139 2490 7974 or by email at [email protected].
Why Specifiers Choose The WA01-95-3
- 4 beam options on one body: 15°, 24°, 36° and 50°
- Fixed 317 x 102 mm ceiling cutout shared with other models in the range
- 24-30 W × 3 rating suited to display lighting and taller retail ceilings
- 1616-11 light engine matched to the housing
- Overall size L325 x 109 H120 mm
What It Fixes On Site
- Uneven spacing between individually installed heads
- Merchandise runs that need consistent beam overlap
- Wide wall displays lit unevenly by separate fittings
- Ceilings cut three times where once would do
Published Figures For The WA01-95-3
Every figure below is the manufacturer's published specification for this model. Values we do not publish are not listed rather than estimated.
| Power | 24-30 W × 3 |
|---|---|
| Beam Angle | 15°, 24°, 36° and 50° |
| Dimensions (mm) | L325 x 109 H120 |
| Ceiling Cutout (mm) | 317 x 102 |
| LED Chip Platform | 1616-11 |
| Body Material | Die-cast aluminium |
| Mounting | Recessed |
| Model Reference | WA01-95-3 |
How It Is Built
- Light engine platform 1616-11
- Die-cast aluminium housing produced in our own casting workshop
- Recessed installation
- Beam angle fixed per order line from 15°, 24°, 36° and 50°
- Passive cooling, no fan
Where The WA01-95-3 Is Used
Pharmacy shelving
Exhibition panels
Long wall displays
Counter and bar lighting
Who Buys This Model
- Restaurant counters and bars
- Exhibition and showroom builders
- Shopfitters lighting long wall bays
- Supermarket and pharmacy display runs
Specifying and Installing It
- Cut the ceiling to 317 x 102 mm and check the void clears the L325 x 109 H120 mm body plus the wiring.
- Confirm the beam angle before the order is placed. 15°, 24°, 36° and 50° are available and the optic is fitted at the factory.
- Aim and check the result from standing height with the display in place, not from the access platform.
- Record the model, beam angle and finish on the as-built schedule so spares match.
How The WA01-95-3 Compares With Its Neighbours
Both models below are in the same range, so the difference is aperture, power or optic rather than build.
Related Models In The Triple-Headed Style
Neighbouring apertures and power steps from the same range.
Product Ranges
Industries We Serve
WA01-95-3 Questions
What ceiling cutout does the WA01-95-3 need?
317 x 102 mm. The body measures L325 x 109 H120 mm, so allow that depth in the void plus room for the wiring.
Which beam angles can I order on the WA01-95-3?
15°, 24°, 36° and 50°. The angle is fixed per order line, so one project can take several angles in this same model.
What light engine does it use?
A 1616-11 platform matched to the die-cast aluminium housing, so the thermal interface is part of the design.
Can the WA01-95-3 be supplied under our own brand?
Yes. We are the original manufacturer of our own designed products and run ODM and OEM programmes, including carton and label branding.
What do you need from us to quote the WA01-95-3?
The beam angle, the finish, the quantity and the destination port. Send it by WhatsApp or email and we will come back with a quotation.
