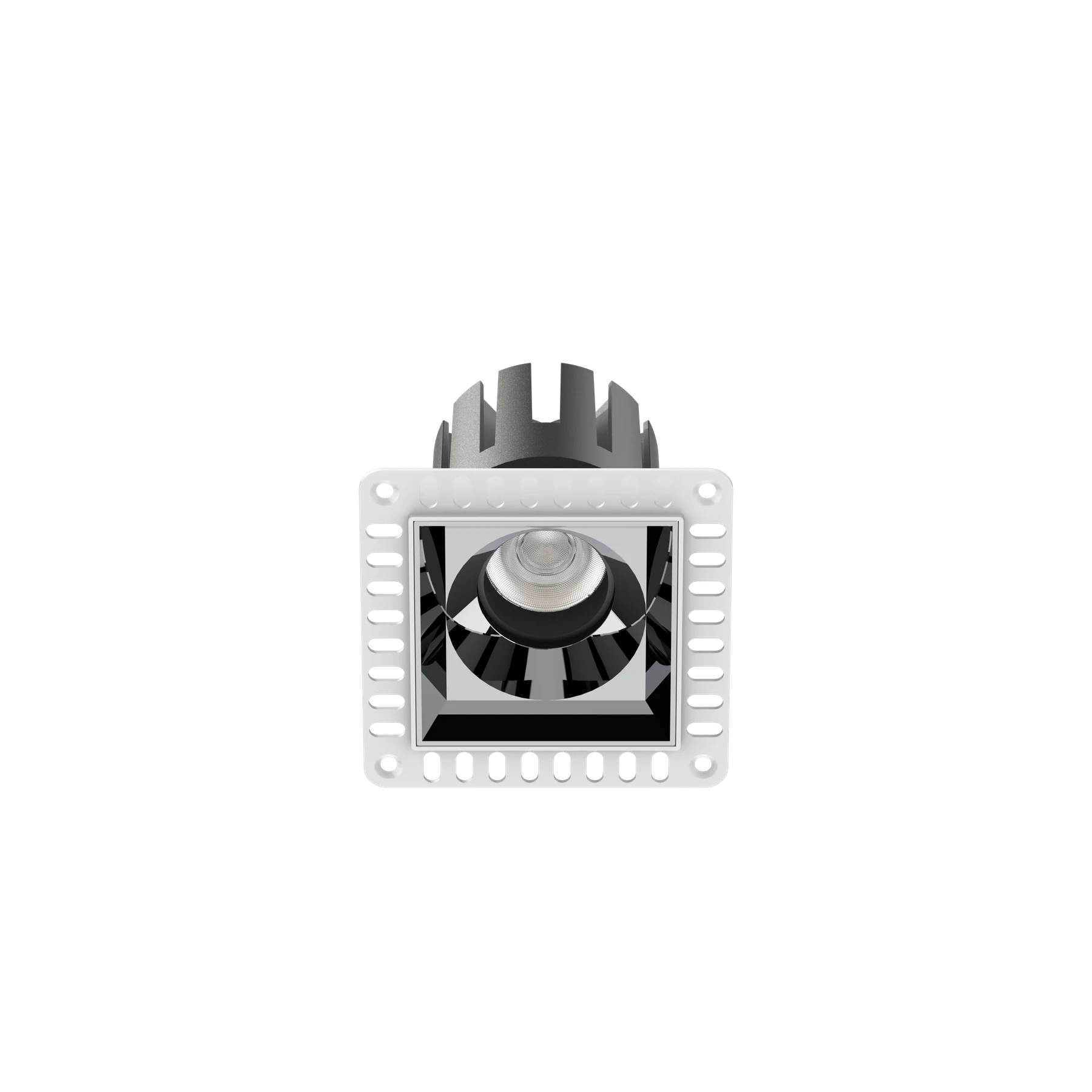

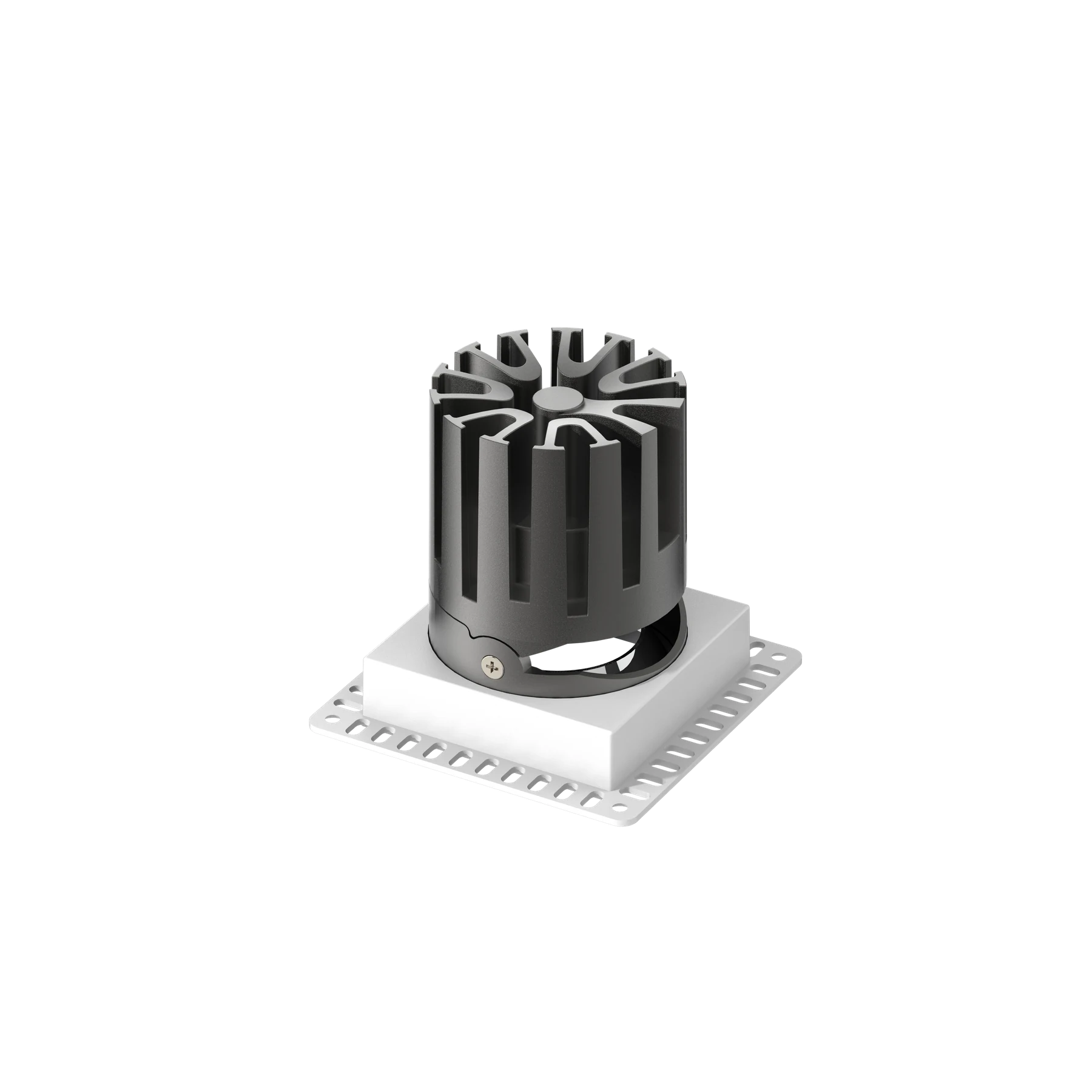

NO1-75-1-N Trimless Square LED Grille Light 12 W
Specified at 12 W, the NO1-75-1-N is the Double-Headed Style model for projects that have settled on a 75 x 75 mm aperture. Beam angles of 15°, 24°, 36° and 50° are available, which is what lets one aperture size serve several lighting jobs. Like the rest of the range it uses a die-cast aluminium body for passive cooling, with no fan to fail.
Contact Jenny directly on WhatsApp +86 139 2490 7974 or by email at [email protected].
Why Specifiers Choose The NO1-75-1-N
- 4 beam options on one body: 15°, 24°, 36° and 50°
- Fixed 75 x 75 mm ceiling cutout shared with other models in the range
- 12 W rating suited to accent lighting on standard commercial ceilings
- 1313-08 light engine matched to the housing
- Overall size 95 x 95 x 92 mm
What It Fixes On Site
- Cutouts that must match existing bordered fittings
- Ceilings with tight service zones above
- Minimal ceilings that cannot take a visible square trim
- Mixed schemes where public areas go trimless
Published Figures For The NO1-75-1-N
Every figure below is the manufacturer's published specification for this model. Values we do not publish are not listed rather than estimated.
| Power | 12 W |
|---|---|
| Beam Angle | 15°, 24°, 36° and 50° |
| Dimensions (mm) | 95 x 95 x 92 |
| Ceiling Cutout (mm) | 75 x 75 |
| LED Chip Platform | 1313-08 |
| Body Material | Die-cast aluminium |
| Mounting | Trimless recessed |
| Model Reference | NO1-75-1-N |
How It Is Built
- Light engine platform 1313-08
- Die-cast aluminium housing produced in our own casting workshop
- Trimless recessed installation
- Beam angle fixed per order line from 15°, 24°, 36° and 50°
- Passive cooling, no fan
Where The NO1-75-1-N Is Used
Hotel suites
Design-led offices
Boutique retail
Villa interiors
Who Buys This Model
- Designers matching trimless and bordered apertures
- Contractors plastering fittings in at first fix
- High-end retail and hospitality fit-outs
- Residential and villa projects
Specifying and Installing It
- Cut the ceiling to 75 x 75 mm and check the void clears the 95 x 95 x 92 mm body plus the wiring.
- Confirm the beam angle before the order is placed. 15°, 24°, 36° and 50° are available and the optic is fitted at the factory.
- Aim and check the result from standing height with the display in place, not from the access platform.
- Record the model, beam angle and finish on the as-built schedule so spares match.
How The NO1-75-1-N Compares With Its Neighbours
Both models below are in the same range, so the difference is aperture, power or optic rather than build.
| Compared With | Difference |
|---|---|
| WA01-65-1-N | A 75 x 75 mm opening against 65 x 65 mm on the WA01-65-1-N; 12 W here against 10 W. |
| WA01-85-1-N | A 75 x 75 mm opening against 85 x 85 mm on the WA01-85-1-N; 12 W here against 24 W. |
Related Models In The Double-Headed Style
Neighbouring apertures and power steps from the same range.
Product Ranges
Industries We Serve
NO1-75-1-N Questions
What ceiling cutout does the NO1-75-1-N need?
75 x 75 mm. The body measures 95 x 95 x 92 mm, so allow that depth in the void plus room for the wiring.
Which beam angles can I order on the NO1-75-1-N?
15°, 24°, 36° and 50°. The angle is fixed per order line, so one project can take several angles in this same model.
What light engine does it use?
A 1313-08 platform matched to the die-cast aluminium housing, so the thermal interface is part of the design.
Can the NO1-75-1-N be supplied under our own brand?
Yes. We are the original manufacturer of our own designed products and run ODM and OEM programmes, including carton and label branding.
What do you need from us to quote the NO1-75-1-N?
The beam angle, the finish, the quantity and the destination port. Send it by WhatsApp or email and we will come back with a quotation.
