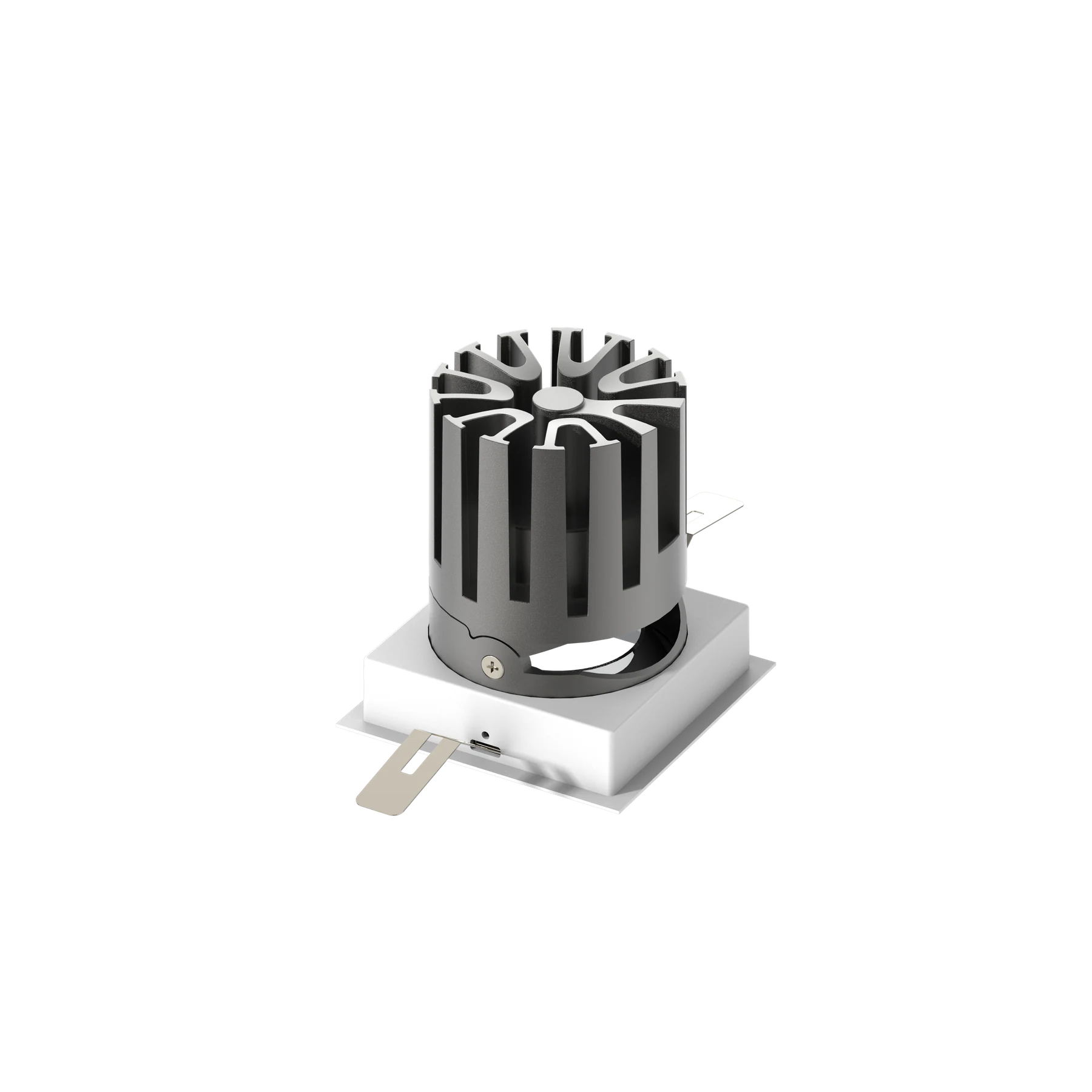

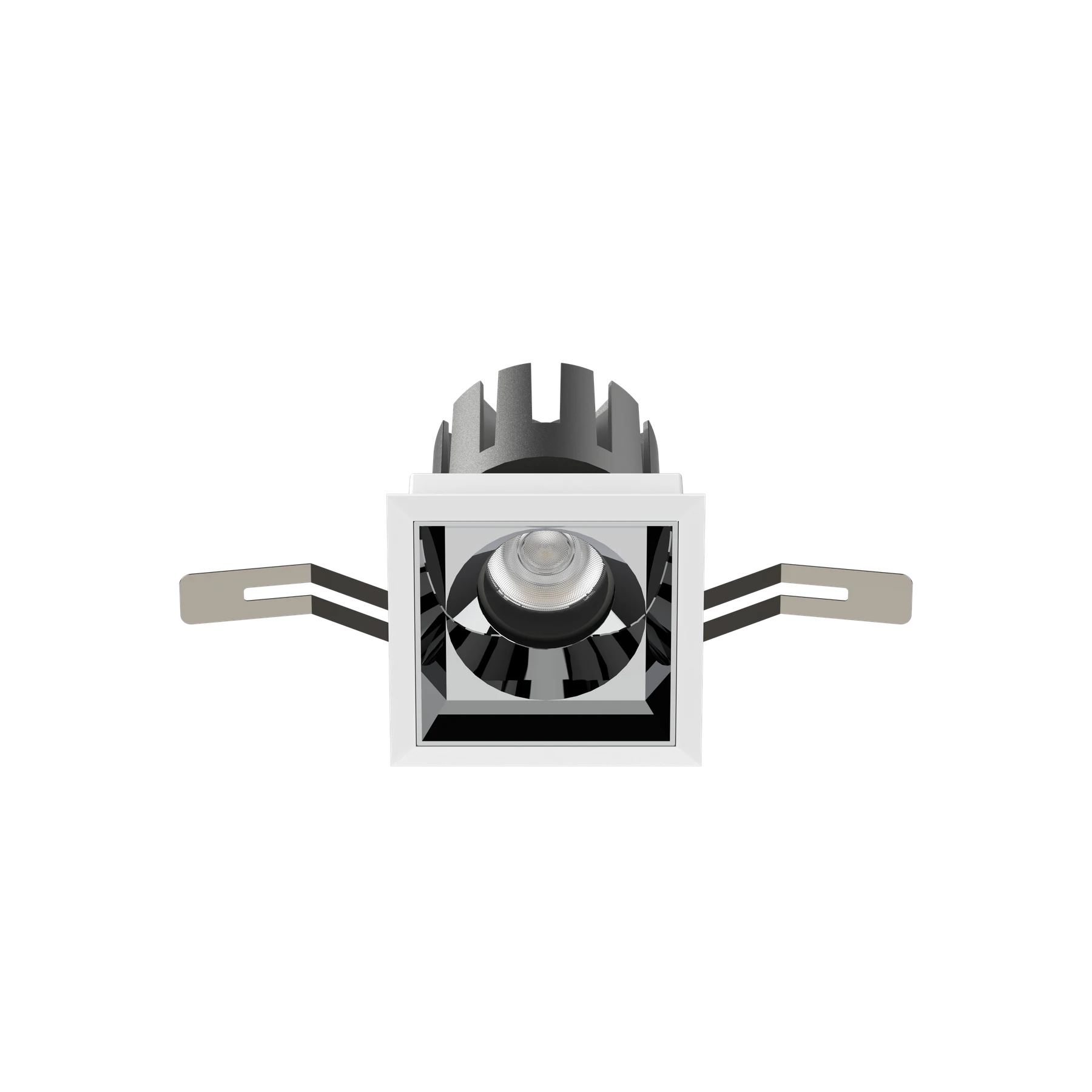

WA01-75-1 Bordered Square LED Grille Light 12 W
Specified at 12 W, the WA01-75-1 is the Square With Border model for projects that have settled on a 75 x 75 mm aperture. Beam angles of 15°, 24°, 36° and 50° are available, which is what lets one aperture size serve several lighting jobs. Like the rest of the range it uses a die-cast aluminium body for passive cooling, with no fan to fail.
Contact Jenny directly on WhatsApp +86 139 2490 7974 or by email at [email protected].
Why Specifiers Choose The WA01-75-1
- 4 beam options on one body: 15°, 24°, 36° and 50°
- Fixed 75 x 75 mm ceiling cutout shared with other models in the range
- 12 W rating suited to accent lighting on standard commercial ceilings
- 1313-08 light engine matched to the housing
- Overall size 81 x 81 x 92 mm
What It Fixes On Site
- Schemes that mix square and round apertures without a plan
- Retail bays needing a tight square beam over a table or plinth
- Round fittings that fight a rectangular ceiling grid
- Site-cut openings that need a trim to finish cleanly
Published Figures For The WA01-75-1
Every figure below is the manufacturer's published specification for this model. Values we do not publish are not listed rather than estimated.
| Power | 12 W |
|---|---|
| Beam Angle | 15°, 24°, 36° and 50° |
| Dimensions (mm) | 81 x 81 x 92 |
| Ceiling Cutout (mm) | 75 x 75 |
| LED Chip Platform | 1313-08 |
| Body Material | Die-cast aluminium |
| Mounting | Recessed |
| Model Reference | WA01-75-1 |
How It Is Built
- Light engine platform 1313-08
- Die-cast aluminium housing produced in our own casting workshop
- Recessed installation
- Beam angle fixed per order line from 15°, 24°, 36° and 50°
- Passive cooling, no fan
Where The WA01-75-1 Is Used
Showroom plinths
Retail bays
Restaurant tables
Office meeting rooms
Who Buys This Model
- Office and showroom projects
- Distributors serving general commercial work
- Contractors working with tiled or gridded ceilings
- Restaurant and café fit-outs
Specifying and Installing It
- Cut the ceiling to 75 x 75 mm and check the void clears the 81 x 81 x 92 mm body plus the wiring.
- Confirm the beam angle before the order is placed. 15°, 24°, 36° and 50° are available and the optic is fitted at the factory.
- Aim and check the result from standing height with the display in place, not from the access platform.
- Record the model, beam angle and finish on the as-built schedule so spares match.
How The WA01-75-1 Compares With Its Neighbours
Both models below are in the same range, so the difference is aperture, power or optic rather than build.
Related Models In The Square With Border
Neighbouring apertures and power steps from the same range.
Product Ranges
Industries We Serve
WA01-75-1 Questions
What ceiling cutout does the WA01-75-1 need?
75 x 75 mm. The body measures 81 x 81 x 92 mm, so allow that depth in the void plus room for the wiring.
Which beam angles can I order on the WA01-75-1?
15°, 24°, 36° and 50°. The angle is fixed per order line, so one project can take several angles in this same model.
What light engine does it use?
A 1313-08 platform matched to the die-cast aluminium housing, so the thermal interface is part of the design.
Can the WA01-75-1 be supplied under our own brand?
Yes. We are the original manufacturer of our own designed products and run ODM and OEM programmes, including carton and label branding.
What do you need from us to quote the WA01-75-1?
The beam angle, the finish, the quantity and the destination port. Send it by WhatsApp or email and we will come back with a quotation.
Request A Quotation On The WA01-75-1
Tell us the beam angle, the finish and the quantity. Jenny replies on WhatsApp during Guangdong working hours.
