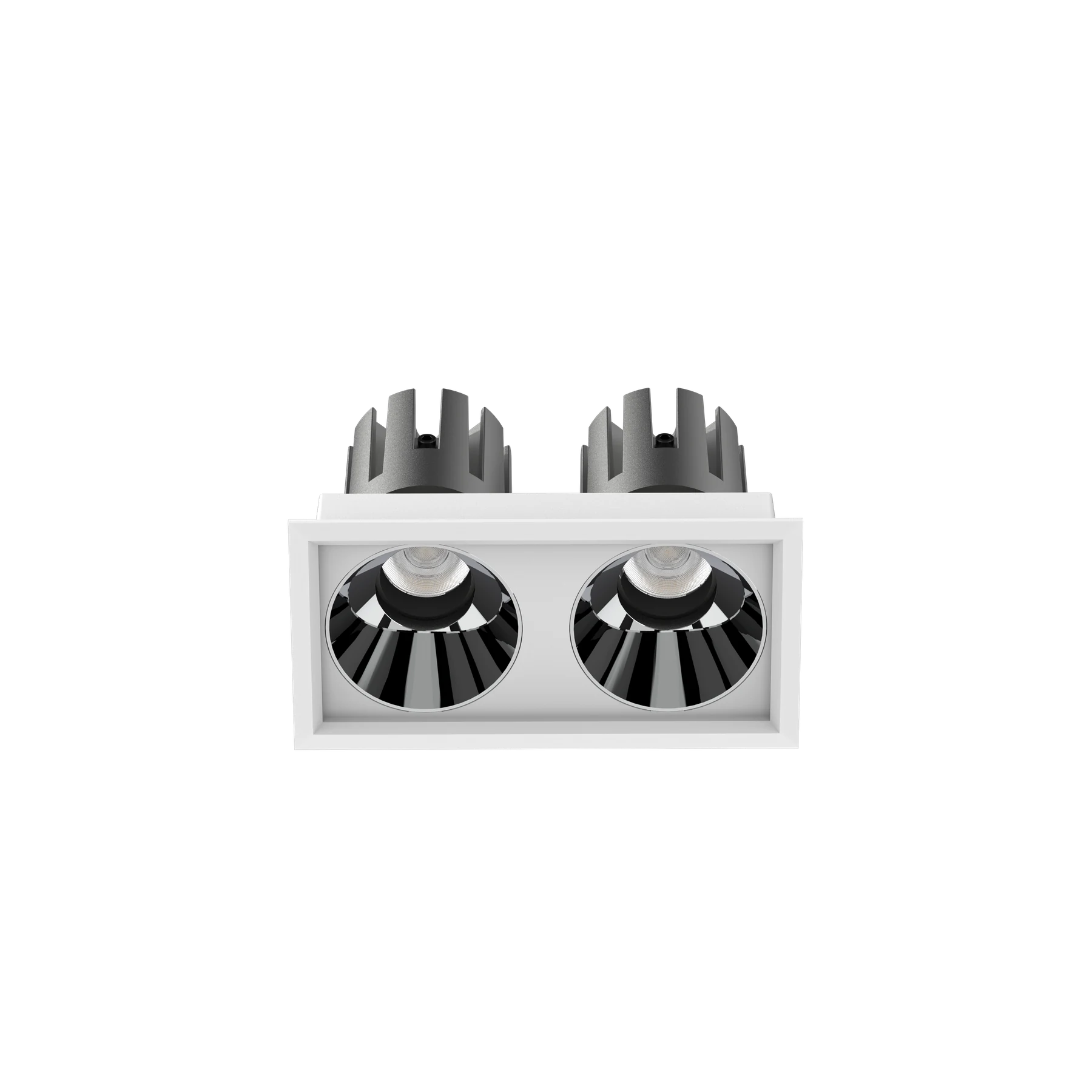

WA01-55-2 Trimless Twin-Head LED Grille Module 5-7 W × 2
The WA01-55-2 is a trimless recessed grille module rated at 5-7 W across two heads. It drops into a 125 x 60 mm opening and is supplied with a choice of 15°, 24°, 36° and 50° optics, so the same ceiling position can be set up for accent light or for general cover. Heat is carried away passively through the die-cast aluminium housing, which is produced in our own casting workshop in Jiangmen.
Contact Jenny directly on WhatsApp +86 139 2490 7974 or by email at [email protected].
Why Specifiers Choose The WA01-55-2
- 4 beam options on one body: 15°, 24°, 36° and 50°
- Fixed 125 x 60 mm ceiling cutout shared with other models in the range
- 5-7 W × 2 rating suited to cabinet, niche and detail lighting
- 1313-08 light engine matched to the housing
- Overall size L131 x 68 H95 mm
What It Fixes On Site
- Two separate openings where the ceiling only allows one
- Wall washing and floor lighting needed from the same point
- Visible trims that spoil a minimal ceiling
- Displays that change position between seasons
Published Figures For The WA01-55-2
Every figure below is the manufacturer's published specification for this model. Values we do not publish are not listed rather than estimated.
| Power | 5-7 W × 2 |
|---|---|
| Beam Angle | 15°, 24°, 36° and 50° |
| Dimensions (mm) | L131 x 68 H95 |
| Ceiling Cutout (mm) | 125 x 60 |
| LED Chip Platform | 1313-08 |
| Body Material | Die-cast aluminium |
| Mounting | Trimless recessed |
| Model Reference | WA01-55-2 |
How It Is Built
- Light engine platform 1313-08
- Die-cast aluminium housing produced in our own casting workshop
- Trimless recessed installation
- Beam angle fixed per order line from 15°, 24°, 36° and 50°
- Passive cooling, no fan
Where The WA01-55-2 Is Used
Wall bay displays
Lobby feature walls
Corridor accents
Brand store perimeters
Who Buys This Model
- Flagship retail and brand stores
- Hotel lobbies and lift lobbies
- Architectural fit-outs specifying trimless detailing
- Shopfitters lighting wall bays
Specifying and Installing It
- Cut the ceiling to 125 x 60 mm and check the void clears the L131 x 68 H95 mm body plus the wiring.
- Confirm the beam angle before the order is placed. 15°, 24°, 36° and 50° are available and the optic is fitted at the factory.
- Aim and check the result from standing height with the display in place, not from the access platform.
- Record the model, beam angle and finish on the as-built schedule so spares match.
How The WA01-55-2 Compares With Its Neighbours
Both models below are in the same range, so the difference is aperture, power or optic rather than build.
Related Models In The Square Without Border
Neighbouring apertures and power steps from the same range.
Product Ranges
Industries We Serve
WA01-55-2 Questions
What ceiling cutout does the WA01-55-2 need?
125 x 60 mm. The body measures L131 x 68 H95 mm, so allow that depth in the void plus room for the wiring.
Which beam angles can I order on the WA01-55-2?
15°, 24°, 36° and 50°. The angle is fixed per order line, so one project can take several angles in this same model.
What light engine does it use?
A 1313-08 platform matched to the die-cast aluminium housing, so the thermal interface is part of the design.
Can the WA01-55-2 be supplied under our own brand?
Yes. We are the original manufacturer of our own designed products and run ODM and OEM programmes, including carton and label branding.
What do you need from us to quote the WA01-55-2?
The beam angle, the finish, the quantity and the destination port. Send it by WhatsApp or email and we will come back with a quotation.
Request A Quotation On The WA01-55-2
Tell us the beam angle, the finish and the quantity. Jenny replies on WhatsApp during Guangdong working hours.
