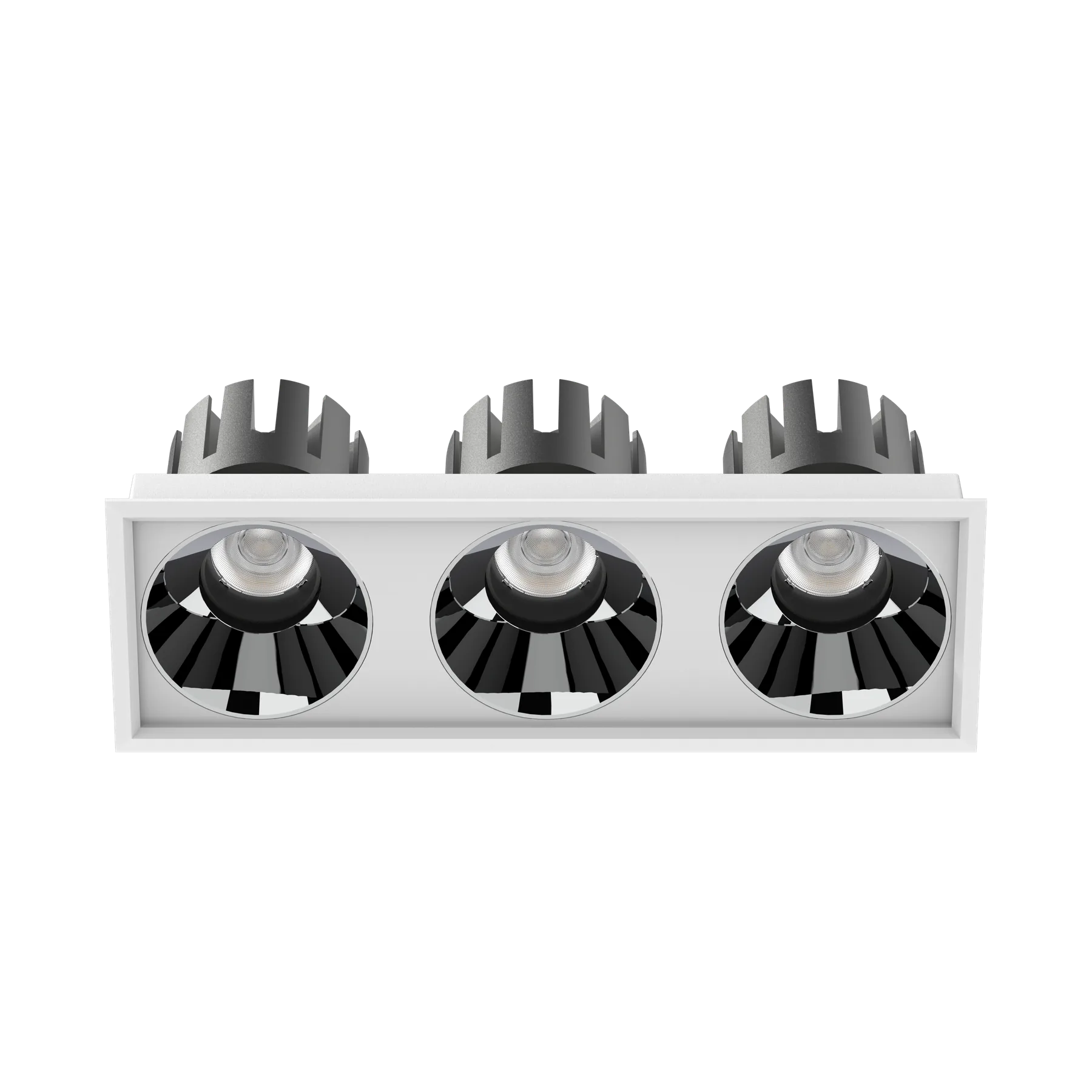

WA01-75-3 Triple-Head LED Grille Bar 7-15 W × 3
WA01-75-3 covers the 7-15 W across three heads step in the Triple-Headed Style. The body measures L253 x 85 H97 mm and seats behind a 241 x 81 mm opening, with 15°, 24°, 36° and 50° beam options selected per order line. The housing is die-cast aluminium from our own workshop, so wall thickness and heat-sink geometry repeat between batches.
Contact Jenny directly on WhatsApp +86 139 2490 7974 or by email at [email protected].
Why Specifiers Choose The WA01-75-3
- 4 beam options on one body: 15°, 24°, 36° and 50°
- Fixed 241 x 81 mm ceiling cutout shared with other models in the range
- 7-15 W × 3 rating suited to accent lighting on standard commercial ceilings
- 1313-08 light engine matched to the housing
- Overall size L253 x 85 H97 mm
What It Fixes On Site
- Ceilings cut three times where once would do
- Uneven spacing between individually installed heads
- Merchandise runs that need consistent beam overlap
- Wide wall displays lit unevenly by separate fittings
Published Figures For The WA01-75-3
Every figure below is the manufacturer's published specification for this model. Values we do not publish are not listed rather than estimated.
| Power | 7-15 W × 3 |
|---|---|
| Beam Angle | 15°, 24°, 36° and 50° |
| Dimensions (mm) | L253 x 85 H97 |
| Ceiling Cutout (mm) | 241 x 81 |
| LED Chip Platform | 1313-08 |
| Body Material | Die-cast aluminium |
| Mounting | Recessed |
| Model Reference | WA01-75-3 |
How It Is Built
- Light engine platform 1313-08
- Die-cast aluminium housing produced in our own casting workshop
- Recessed installation
- Beam angle fixed per order line from 15°, 24°, 36° and 50°
- Passive cooling, no fan
Where The WA01-75-3 Is Used
Counter and bar lighting
Pharmacy shelving
Exhibition panels
Long wall displays
Who Buys This Model
- Supermarket and pharmacy display runs
- Restaurant counters and bars
- Exhibition and showroom builders
- Shopfitters lighting long wall bays
Specifying and Installing It
- Cut the ceiling to 241 x 81 mm and check the void clears the L253 x 85 H97 mm body plus the wiring.
- Confirm the beam angle before the order is placed. 15°, 24°, 36° and 50° are available and the optic is fitted at the factory.
- Aim and check the result from standing height with the display in place, not from the access platform.
- Record the model, beam angle and finish on the as-built schedule so spares match.
How The WA01-75-3 Compares With Its Neighbours
Both models below are in the same range, so the difference is aperture, power or optic rather than build.
Related Models In The Triple-Headed Style
Neighbouring apertures and power steps from the same range.
Product Ranges
Industries We Serve
WA01-75-3 Questions
What ceiling cutout does the WA01-75-3 need?
241 x 81 mm. The body measures L253 x 85 H97 mm, so allow that depth in the void plus room for the wiring.
Which beam angles can I order on the WA01-75-3?
15°, 24°, 36° and 50°. The angle is fixed per order line, so one project can take several angles in this same model.
What light engine does it use?
A 1313-08 platform matched to the die-cast aluminium housing, so the thermal interface is part of the design.
Can the WA01-75-3 be supplied under our own brand?
Yes. We are the original manufacturer of our own designed products and run ODM and OEM programmes, including carton and label branding.
What do you need from us to quote the WA01-75-3?
The beam angle, the finish, the quantity and the destination port. Send it by WhatsApp or email and we will come back with a quotation.
Request A Quotation On The WA01-75-3
Tell us the beam angle, the finish and the quantity. Jenny replies on WhatsApp during Guangdong working hours.
