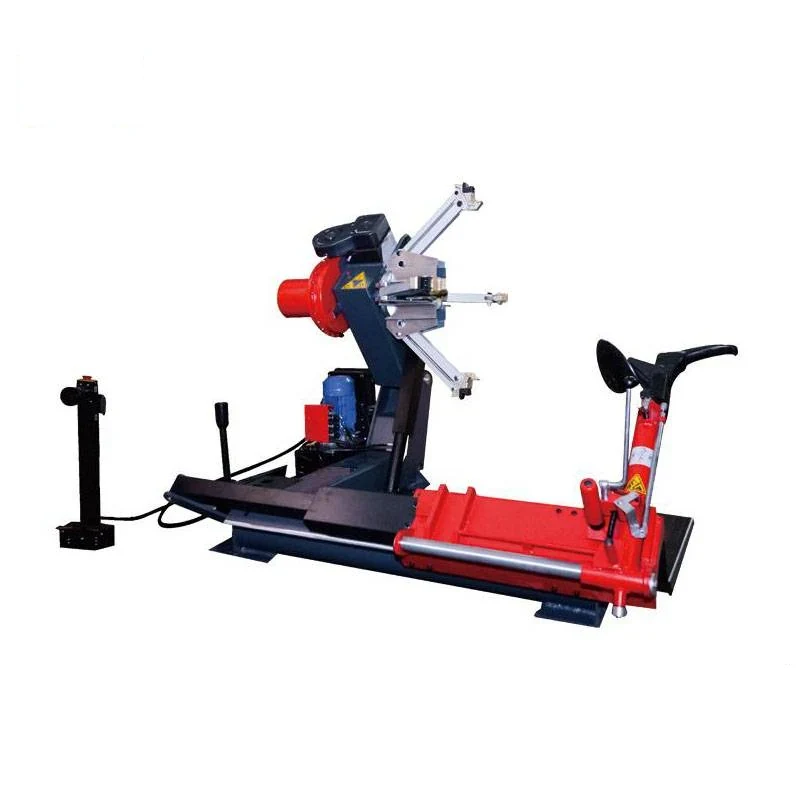

Truck Tyre Changer T598
The T598 is a semi-automatic universal truck tyre changer covering rims from 14 to 42 inches, built for industrial, agricultural and earthmoving wheels as well as road truck wheels. Bead breaker force is 3300 kg, which is the figure that matters on a wheel that has been in service for years and whose bead has set hard ...
What This Machine Does
The T598 is a semi-automatic universal truck tyre changer covering rims from 14 to 42 inches, built for industrial, agricultural and earthmoving wheels as well as road truck wheels. Bead breaker force is 3300 kg, which is the figure that matters on a wheel that has been in service for years and whose bead has set hard against the rim seat. Maximum torque is 5265 N.m, maximum wheel weight 1600 kg, maximum wheel width 1050 mm and maximum tyre diameter 2300 mm. A 2.2 kW hydraulic pump motor and a 2.2 kW gearbox motor run at 380 V three phase 50 Hz with 220 V optional, and the whole machine can be supplied for 220 or 400 V at 50 or 60 Hz in single or three phase. Operation control voltage is 24 V and noise level is 70 dB or less. Machine weight is approximately 758 kg with overall dimensions of approximately 2500 x 2000 mm. An Italian pump is available as an option, along with a universal self-centring chuck covering 14 to 42 inches, alloy rim protection rings and set, a tubeless roller and a wireless remote.
Why Buyers Choose This Machine
- 3300 kg of bead breaker force releases hard-set beads on wheels that have been in service for years
- 14 to 42 inch rim capacity covers truck agricultural and earthmoving wheels on one machine
- 5265 N.m maximum torque turns a 1600 kg loaded wheel through a stiff bead without stalling
- Separate 2.2 kW hydraulic and 2.2 kW gearbox motors so clamping and rotation have their own power
- 24 V operation control voltage keeps mains voltage off the operator controls
- Noise level of 70 dB or less makes it workable in an enclosed bay
- Optional wireless remote lets the operator control the machine from where he can see the bead
Where Truck Tyre Changer T598 Earns Its Place
Problems It Solves
- Agricultural and earthmover beads set hard in service and will not move under hand tools
- Car and light commercial machines stop well short of 42 inch rims and 1600 kg wheels
- Insufficient chuck torque stalls partway through a bead and tears the tyre
- Manhandling heavy tyres by lever is slow and causes rim damage and injuries
- Sending wheels out for tyre work takes the tractor or loader out of the field
- Alloy and painted rims are scratched during mounting when no protection set is fitted
Who It Is For
- Agricultural machinery dealers and farm workshops
- Plant quarry and construction equipment maintenance departments
- Truck and bus tyre service centres
- Tyre dealers handling mixed industrial and road wheel work
- Garage equipment distributors supplying heavy tyre bays
Application Scenarios
- Changing tractor and trailer tyres on large agricultural rims
- Earthmover loader and grader tyre work in plant and quarry workshops
- Truck and bus tyre replacement in a commercial service bay
- Breaking beads on wheels that have been in service without being removed
- Alloy rim work where the optional protection rings prevent cosmetic damage
- Tubeless commercial tyre mounting using the optional tubeless roller
Technical Detail
Technical Features
- Semi-automatic universal truck tyre changer layout
- Hydraulic pump motor 2.2 kW 380 V three phase 50 Hz with 220 V optional
- Gearbox motor 2.2 kW 380 V three phase 50 Hz with 220 V optional
- Bead breaker force 3300 kg
- Maximum torque 5265 N.m
- Operation control voltage 24 V
- Rim capacity 14 to 42 inches
- Optional Italian hydraulic pump
- Optional universal self-centring chuck operating from 14 to 42 inches
Specifications
| Machine type | Semi-automatic universal truck tyre changer |
|---|---|
| Models | T598 |
| Rim diameter | 14 in - 42 in |
| Max wheel weight | 1600 kg |
| Max wheel width | 1050 mm |
| Max tyre diameter | 2300 mm |
| Hydraulic pump motor | 2.2 kW, 380 V 3 ph 50 Hz (220 V optional) |
| Gearbox motor | 2.2 kW, 380 V 3 ph 50 Hz (220 V optional) |
| Bead breaker force | 3300 kg |
| Max torque | 5265 N.m |
| Operation control voltage | 24 V |
| Machine weight | Approx 758 kg |
| Overall dimensions | Approx 2500 x 2000 mm |
| Power | 220 / 400 V, 50/60 Hz, 1 ph or 3 ph optional |
| Noise level | 70 dB or less |
| Operating temperature | 0 C to 40 C |
| Optional accessories | Italian pump, alloy rim protection set and rings, tubeless roller, universal self-centring chuck 14-42 in, wireless remote |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Bead breaking
- Tyre demounting
- Tyre mounting
- Hydraulic rim clamping
Quality Control
- Hydraulic circuit pressure tested and checked for leaks before shipment
- Bead breaker force verified against the 3300 kg rating
- Chuck torque checked under load against the 5265 N.m rating
- 24 V control circuit and all operator controls function tested including the optional remote
- Machine run through a full mount and demount cycle on a sample heavy wheel before packing
Customisation Options
- Motor supply specified at 380 V three phase or 220 V optional for your market
- Machine power configured at 220 or 400 V single or three phase 50 or 60 Hz
- Italian hydraulic pump specified as an option where required
- Universal self-centring chuck alloy rim protection set tubeless roller and wireless remote added to the order
- Branding colour and operating language prepared for distributor supply
How It Compares With the Alternatives
| XAIMC truck tyre changer T998A | The T998A takes larger rims up to 48 inches and wider 1400 mm wheels; the T598 is a semi-automatic machine with more bead breaker force at 3300 kg against 2000 kg |
|---|---|
| XAIMC pneumatic tilt-back post tyre changer TC665R / TC665RA | The TC665 series is a car and light commercial machine; the T598 is hydraulic and rated for 1600 kg industrial agricultural and earthmoving wheels |
| Manual levers and bead breaking by hand | Hand methods on a set agricultural bead are slow and damage rims; the T598 applies 3300 kg in a controlled hydraulic stroke |
| Subcontracting heavy tyre work | A tractor or loader waits while its wheels are away; changing in-house keeps the machine in work |
Running the Machine
Step 1
Connect the supply and confirm both the hydraulic pump and the gearbox motor run correctly
Step 2
Deflate the tyre fully and remove the valve core before touching the bead
Step 3
Clamp the rim in the chuck, using the self-centring chuck where fitted, and check it is secure
Step 4
Fit alloy rim protection rings where the rim finish has to be preserved
Step 5
Break both beads with the hydraulic bead breaker working progressively around the wheel
Step 6
Lubricate the beads and demount the tyre with the mounting tool while the chuck rotates
Step 7
Mount the new tyre with the lower bead in the drop centre, then inflate in a cage to working pressure
Related Applications and Guides
Engine Rebuilding Workshops
Engine rebuilding workshops recondition blocks heads crankshafts and valves to a geometry the engine will hold for a full service life. XAIMC supplies
Automotive Service and Fleet Workshops
Service centres and fleet depots keep vehicles moving. XAIMC supplies the lifting tyre wheel and fluid handling equipment those workshops use, includi
Setting Up an Engine Rebuilding Workshop - Equipment Checklist
An engine rebuilding workshop needs equipment for four separate jobs: cleaning, cylinder block work, cylinder head work and testing. This checklist is
Questions About Truck Tyre Changer T598
What wheel sizes does the T598 handle?
Rim diameter 14 to 42 inches, maximum wheel weight 1600 kg, maximum wheel width 1050 mm and maximum tyre diameter 2300 mm.
How does it compare with the T998A?
The T598 has more bead breaker force at 3300 kg and is semi-automatic; the T998A takes larger rims up to 48 inches and wider wheels up to 1400 mm. Tell us the largest and heaviest wheel you handle and we will confirm which suits.
What power supply is required?
Both motors are 2.2 kW at 380 V three phase 50 Hz, with 220 V optional. The machine can be supplied at 220 or 400 V, 50 or 60 Hz, single or three phase. Confirm your supply at order.
What optional accessories are available?
An Italian pump, an alloy rim protection set and protection rings, a tubeless roller, a universal self-centring chuck operating from 14 to 42 inches, and a wireless remote.
How noisy is the machine?
Noise level is 70 dB or less, and operation control voltage is 24 V.
How heavy is it and how much floor space does it need?
Approximately 758 kg with overall dimensions of approximately 2500 x 2000 mm, plus clear working space for tyres up to 2300 mm in diameter.
What are your packing and payment terms?
The machine is crated for export sea freight on FOB CFR or CIF terms. Payment is 30 percent by T/T on order and 70 percent before shipment, or an irrevocable L/C at sight.
Request a Quote on the Truck Tyre Changer T598
Send us the work you need it to do, the voltage on your site and the port you ship to. We will come back with the model, the tooling and the lead time.
