Cylinder Boring & Surface Grinding Milling Machine TXM170A/TXM200A/TXM250A
The TXM series is the top of a three-step family. The T series bores. The TX series is the T series with PLC control and a milling head added, so it bores and mills. The TXM series is the TX series with grinding added, so it bores, mills and grinds. That is the whole buying decision in one line, and it is why this mach...
What This Machine Does

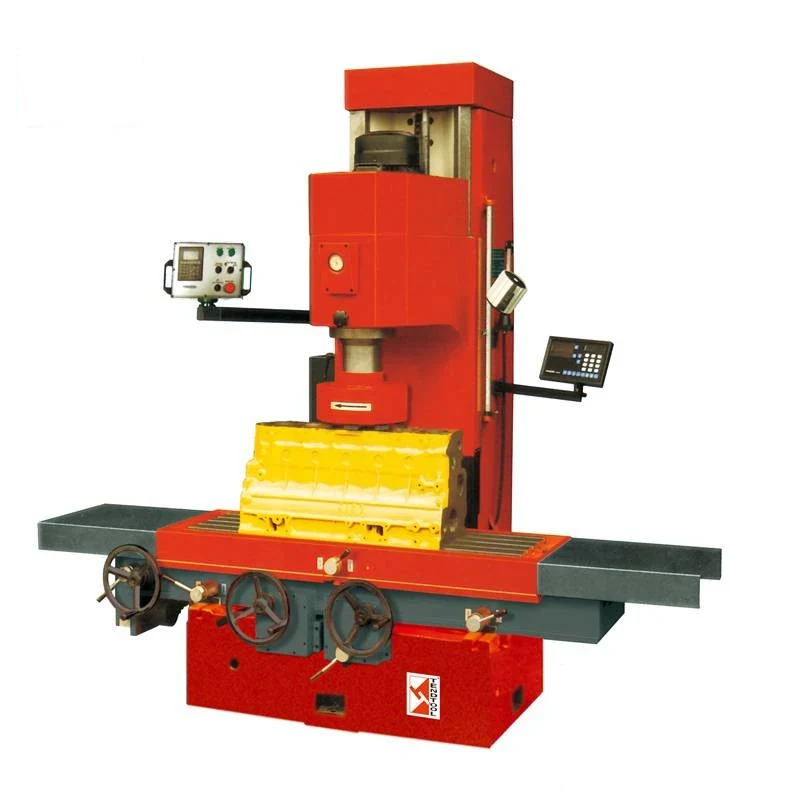

The TXM series is the top of a three-step family. The T series bores. The TX series is the T series with PLC control and a milling head added, so it bores and mills. The TXM series is the TX series with grinding added, so it bores, mills and grinds. That is the whole buying decision in one line, and it is why this machine is specified where a shop wants a bored cylinder, a milled surface and a ground finish without moving the workpiece between machines. It is used for boring automobile engine cylinders and the cylinder sleeves of diesel engines and compressors, and for boring other high precision holes and milling or grinding the surfaces of other workpieces. Spindle rotation and feed are stepless and freely set, and the spindle returns automatically. The table moves longitudinally and across and carries a digital readout. A complete set of boring drilling and reaming accessories is included and exchanges easily, along with a spindle fast centring device, a tool measuring device and a boring depth control device.
Why Buyers Choose This Machine
- Boring milling and grinding on one machine, so a cylinder is bored surfaced and finished in one setup
- Stepless spindle speed and feed means the operator sets what the cut needs rather than picking the nearest step
- Automatic spindle return removes a manual step at the end of every bore
- Spindle fast centring device shortens the setup on each cylinder
- Boring depth control device holds a repeatable depth across a batch
- Tool measuring device lets the operator preset the tool instead of cutting and measuring
- Complete boring drilling and reaming accessory set that exchanges easily between operations
Where Cylinder Boring & Surface Grinding Milling Machi Earns Its Place
Problems It Solves
- Moving a cylinder between a borer a mill and a grinder loses the setup reference each time
- Stepped spindle speeds force a compromise between bore diameter and material
- Boring depth drifts across a batch when there is no depth control device
- Finding the bore centre by hand on every part is slow and operator-dependent
- Presetting tools away from the machine is impossible without a tool measuring device
Who It Is For
- Engine rebuild shops that want boring milling and grinding under one machine
- Compressor and diesel engine repair shops working on cylinder sleeves
- Precision machine shops taking in high accuracy hole boring work
- Distributors equipping engine reconditioning workshops in export markets
Application Scenarios
- Boring automobile engine cylinders in a rebuild shop
- Machining cylinder sleeves for diesel engines and compressors
- Grinding a surface to finish after milling on the same setup
- Boring high precision holes in workpieces other than engine parts
- Batch cylinder work where boring depth must repeat part after part
Technical Detail
Technical Features
- Stepless spindle turning and feeding
- Freely set spindle rotating speed and feed with automatic spindle return
- Longitudinal and cross movement of the table
- Complete set of boring drilling and reaming accessories with easy exchange
- Spindle fast centring device
- Tool measuring device
- Boring depth control device
- Table with digital readout
- TXM series is the TX series with grinding added
Specifications
| Machine type | Vertical cylinder boring, milling and surface grinding machine |
|---|---|
| Models | TXM170A / TXM200A / TXM250A |
| Series structure | T series boring; TX series boring and milling (T series plus PLC and milling head); TXM series boring milling and grinding |
| Milling head on TX series | Diameter 320 mm |
| Spindle turning and feed | Stepless, freely set, automatic return |
| Table movement | Longitudinal and cross with digital readout |
| Accessories | Complete boring drilling and reaming set, easy exchange |
| Devices fitted | Spindle fast centring, tool measuring, boring depth control |
| Applications | Automobile engine cylinders, diesel engine and compressor cylinder sleeves, high precision hole boring, surface milling and grinding |
Figures above are taken from the product information we hold. Send us your application and we will confirm the exact specification for the model quoted.
How It Is Built and What Can Be Changed
Operations Performed
- Boring
- Milling
- Surface grinding
- Drilling
- Reaming
- Turning of the spindle under stepless control
Quality Control
- Bore diameter and cylindricity checked on a test cylinder before shipment
- Stepless spindle speed and feed verified through their full adjustment
- Boring depth control device checked for repeatability over consecutive cuts
- Table digital readout calibrated against machine movement
- Machine run in through boring milling and grinding cycles in our assembly workshop
Customisation Options
- Model selected from TXM170A TXM200A or TXM250A against your cylinder size
- T TX or TXM specification chosen by whether you need boring only, boring and milling, or boring milling and grinding
- Boring drilling and reaming accessory set specified for your hole diameter range
- Supply voltage frequency and operating language set to your market
How It Compares With the Alternatives
| XAIMC T series boring machines | The T series bores only; the TXM series adds the PLC and milling head of the TX series plus grinding, so surfacing and finishing stay on the same machine |
|---|---|
| XAIMC TX series boring and milling machines | The TX series bores and mills with the 320 mm milling head; the TXM series adds grinding on top of that |
| Separate borer mill and surface grinder | Three machines mean three clamping operations and three references; the TXM series keeps the cylinder in one setup through all three operations |
Running the Machine
Step 1
Clamp the cylinder or sleeve on the table and set the longitudinal and cross position from the digital readout
Step 2
Use the spindle fast centring device to find the bore centre
Step 3
Preset the boring tool on the tool measuring device
Step 4
Set the boring depth on the depth control device
Step 5
Set stepless spindle speed and feed for the diameter and material and bore the hole, letting the spindle return automatically
Step 6
Change to the milling head to face the surface
Step 7
Change to grinding to bring the surface to final finish and check before releasing the part
