Drainage And Water Management
Channel systems, gullies and chambers where the steel top has to suit an opening that was cast rather than machined.
Where It Goes Wrong
- Panels ordered to a nominal opening that do not fit the opening as built
- Covers rocking in the frame and banging under every wheel
- Rust starting at every panel joint along an outdoor run
- Grating routed around a walking line because no heel-safe option was specified
- Channels blocked by grit packed into a mesh that was too tight
What These Buyers Ask For
- Panels made from measured dimensions, not from the drawing that was issued
- Hold-downs and clips where vehicles brake and turn
- Hot-dip galvanizing applied after cutting and banding
- Heel guard pitch where a run crosses a pedestrian route
- Junction, corner and gully panels made with the run
The Products That Apply Here
Ditch Steel Grating 32x5 Carbon Steel
Hot-dip galvanized ditch grating on 32x5 bearing bar with a 6 mm round cross bar, for yard and roadway channels crossed by vehicles.
See the specification
Concrete Cover Grating 65x5 Heavy Duty
Heavy cover panel on 65x5 bearing bar with a 6 mm round cross bar, hot-dip galvanized, for chambers crossed by forklifts and light vehicles.
See the specification
Concrete Cover Grating 30x2.5 Hook Type
Light-duty hook cover panel on 30x2.5 bearing bar with 8x2 cross bar, hot-dip galvanized, for chambers crossed by pedestrians and hand trolleys.
See the specification
Heel Guard Grating 30x2.5 Paving Slot Run
Narrow-slot heel guard panels on 30x2.5 bearing bar with 8x2 cross bar, hot-dip galvanized, set flush into stone or concrete paving.
See the specification
Concrete Cover Grating 100x5 Vehicle Duty Panel
100x5 bearing bar with 30x5 flat cross bar, built and banded as a stacked panel set for repeated openings along one trench run.
See the specificationTypical Scenarios
- Yard and access road drainage runs
- Car park and ramp channels
- Kerbside gullies and sumps in municipal works
- Building perimeter drainage crossing footpaths
How We Supply
- Panels drawn from the channel as measured on site
- Runs galvanized as one batch so panels interchange between bays
- Panels marked to their bay when a layout is supplied
- Frames, end plates and hold-downs fabricated with the run

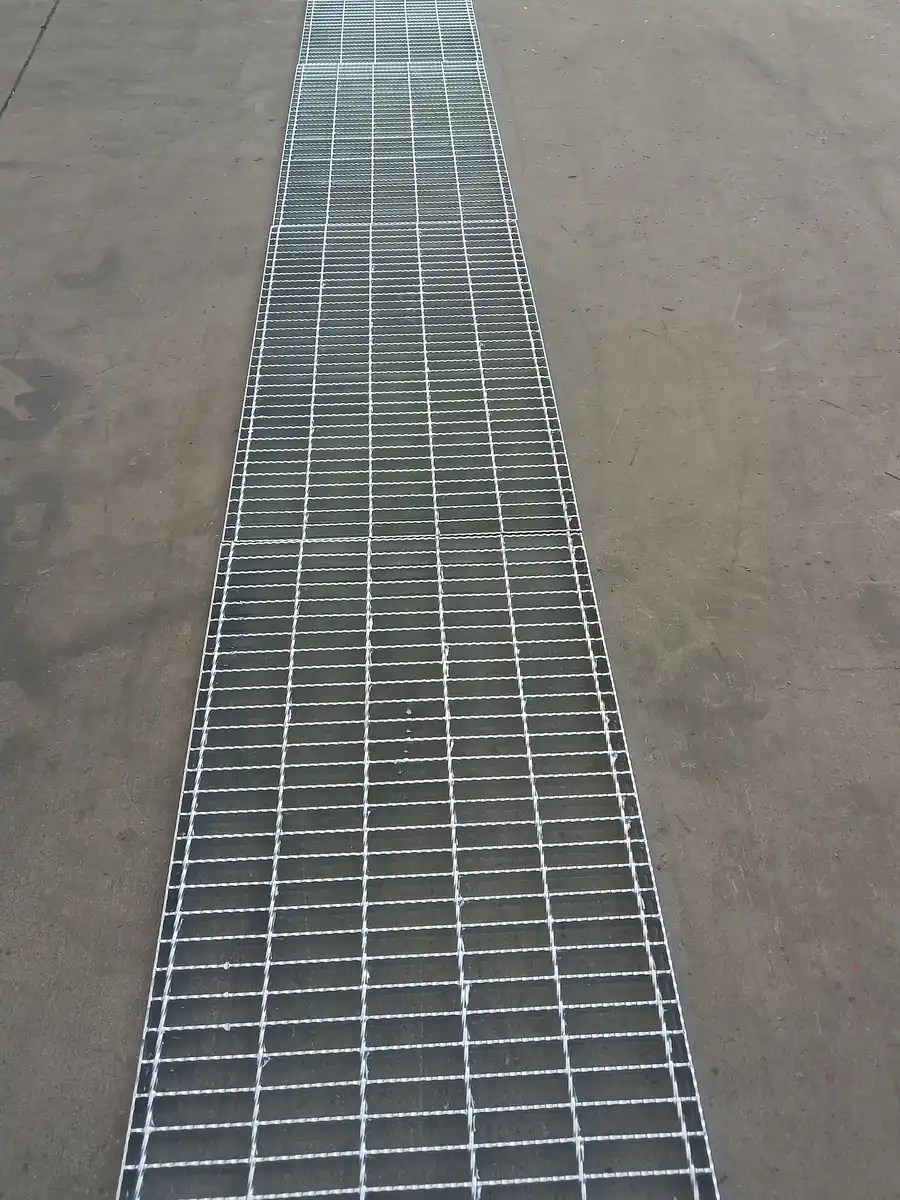

Photographs From This Kind Of Site
Guides For This Kind Of Buyer
Drainage And Water Management Questions
Can you work from photographs of an existing channel?
What load class can you certify?
Do you supply gully and junction panels?
How long are lead times?
Talk Through A Project
Send the openings, the traffic crossing them and the environment. A shortlist with bar sections comes back by email.
