Heel Guard Grating
Narrow-slot grating for places where people walk in heels, wheels or walking aids.
Every Heel Guard Grating We Publish
Heel guard grating is ordinary drainage grating with the clear opening closed down until a heel tip, a cane ferrule or a small castor cannot drop into it. That single change is what lets a drainage run cross a shopping centre entrance, a hotel forecourt or a station concourse instead of being routed around it. ShengJingYe produces heel guard panels in carbon steel with a hot-dip galvanized coat for exterior paving, and in stainless steel with acid passivation where the run is inside, washed down, or in view.
Heel Guard Grating 30x2.5 Paving Slot Run
Narrow-slot heel guard panels on 30x2.5 bearing bar with 8x2 cross bar, hot-dip galvanized, set flush into stone or concrete paving.
See the specification

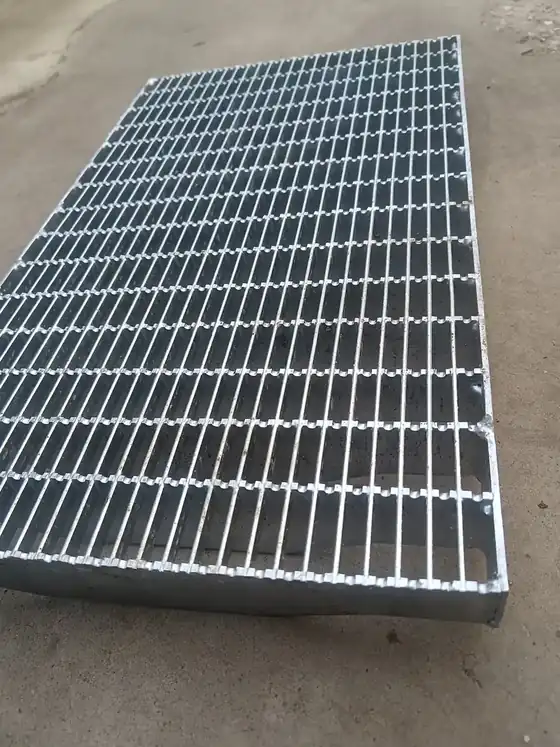

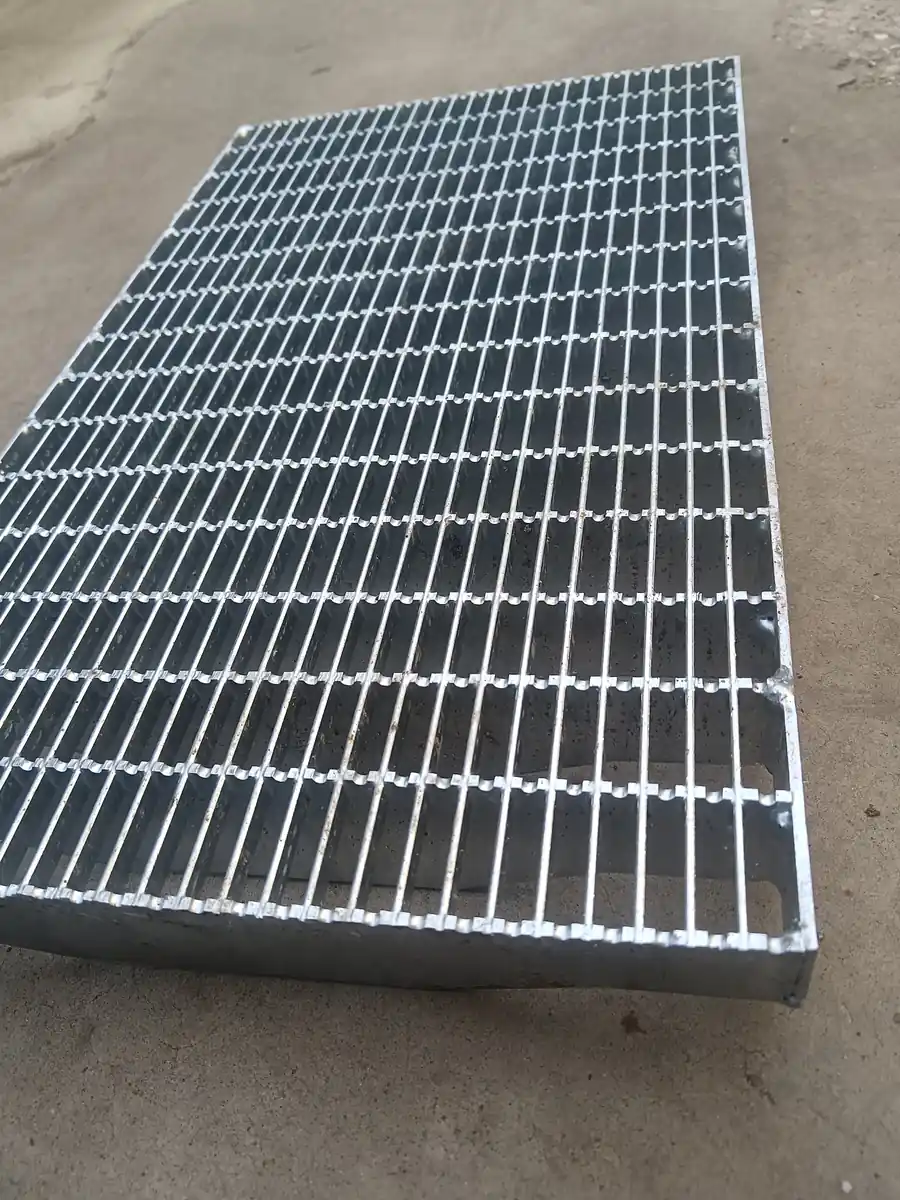

Heel Guard Grating 30x2.5 Framed Panel
Heel guard panel on 30x2.5 bearing bar with 8x2 cross bar, supplied fully framed and banded as a single drop-in unit, hot-dip galvanized.
See the specification

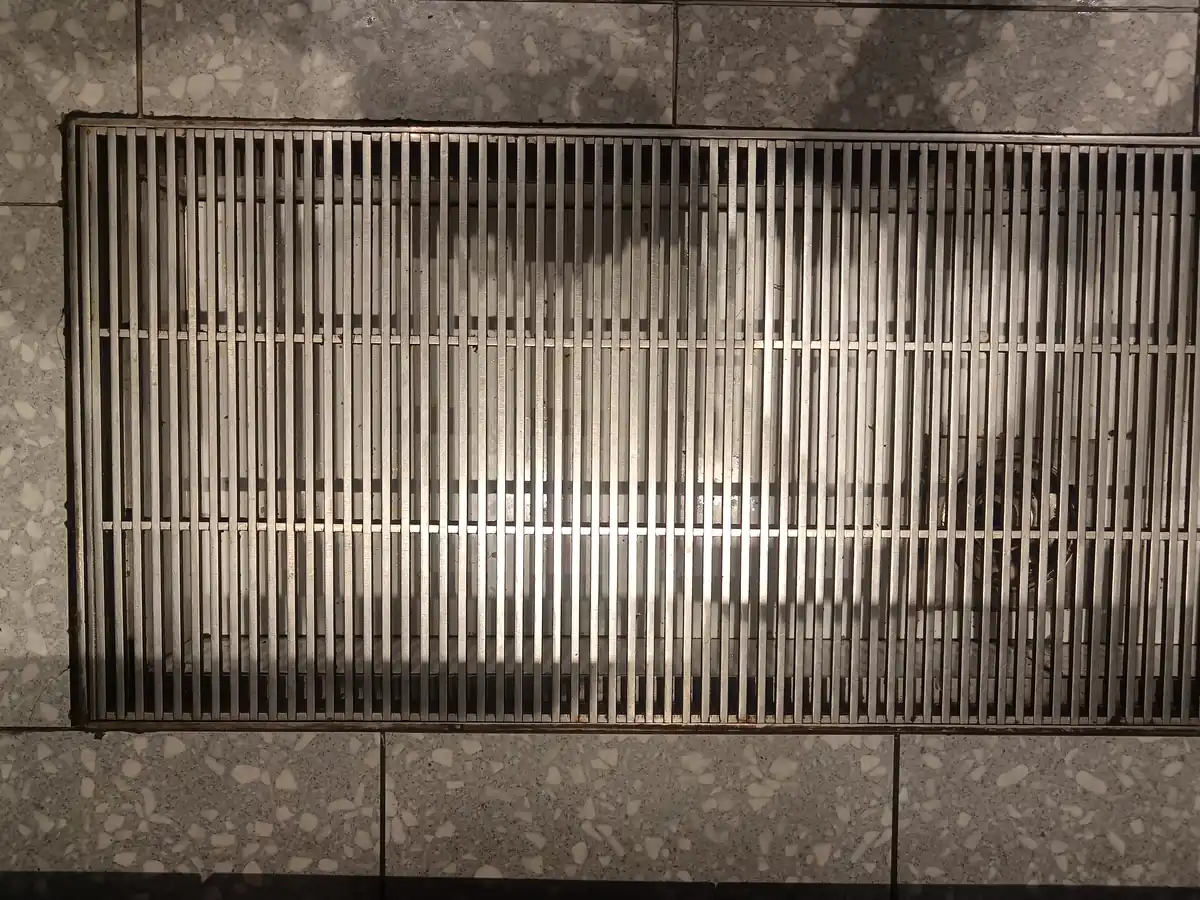

Heel Guard Grating 25x6 Stainless Steel
Stainless steel heel guard panel on 25x6 bearing bar with 6x6 cross bar, acid passivated, for washdown floors and visible interior runs.
See the specification

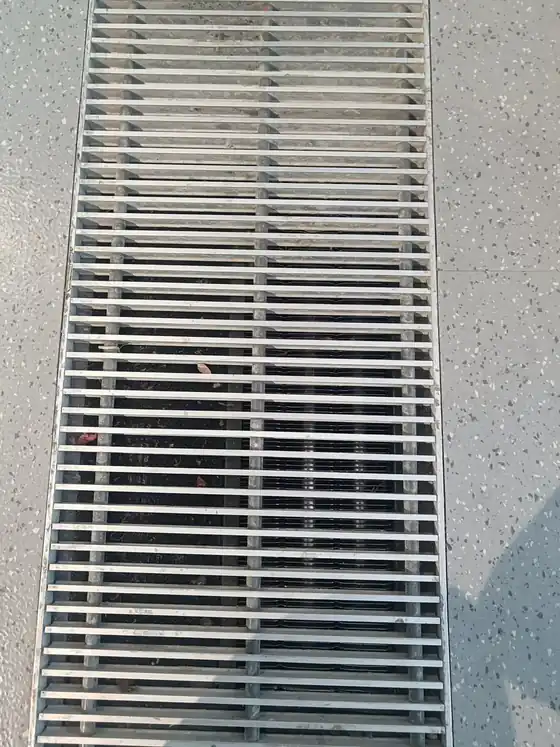

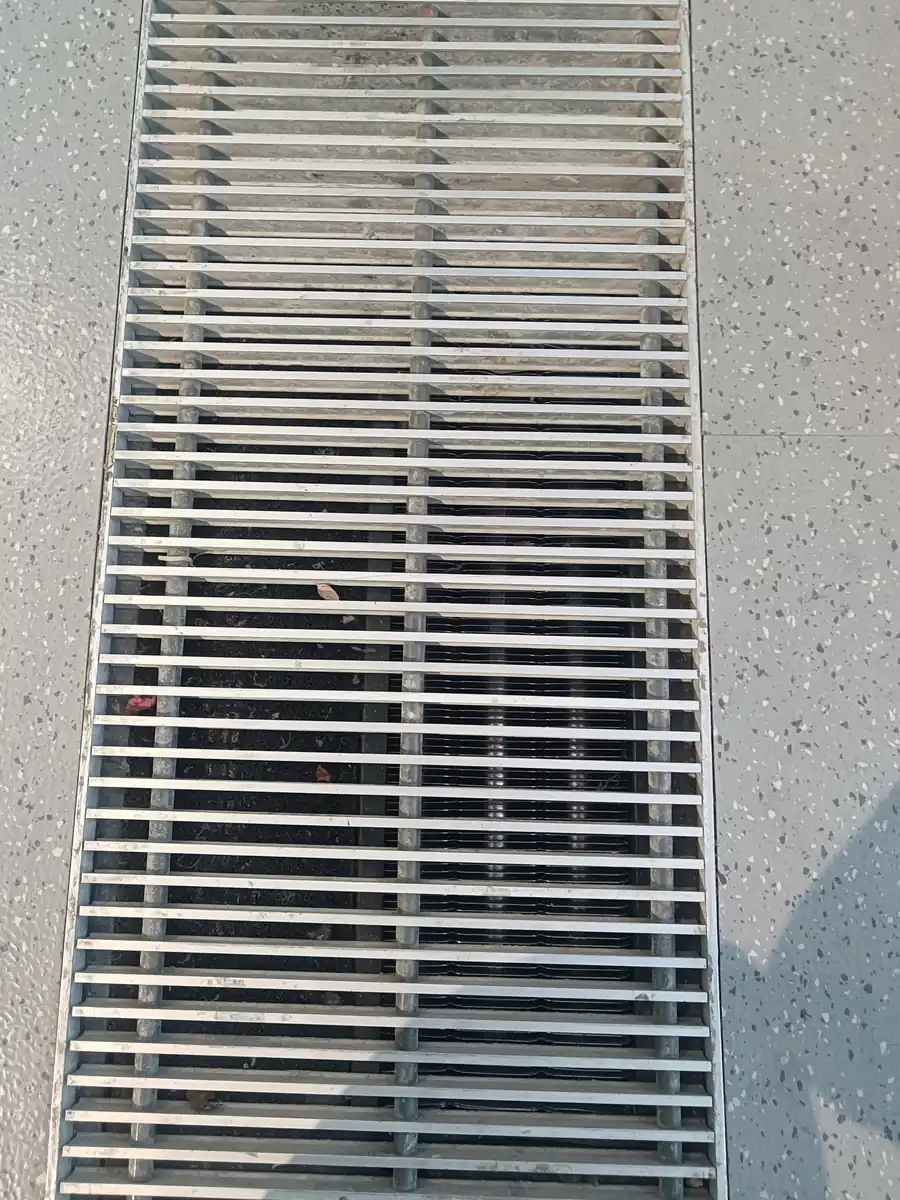

Heel Guard Grating 55x5 Stainless Steel
Heavy stainless heel guard panel on 55x5 bearing bar with an 8 mm round cross bar, acid passivated, where a heel-safe surface also has to take vehicles.
See the specificationProblems This Family Solves
- Standard drainage grating that a stiletto heel, a cane tip or a castor drops into
- Accessibility complaints about a channel that is already installed and paid for
- Grating that looks industrial in an entrance that is not industrial
- Slot runs that rattle under foot traffic because the panel does not sit tight in the frame
- Stainless runs that stain and pit after a few months of washdown because the surface was never passivated
Who It Is For
- Drainage channel manufacturers who need a pedestrian-rated top for their channel
- Main contractors fitting out entrances, concourses and forecourts
- Landscape and hard-paving contractors crossing a walking line with a drainage run
- Food, beverage and pharmaceutical plants that wash their floors down
How This Family Actually Looks
Photographs taken by the factory of products in this family, lit and in production. Nothing here is a rendering of something that does not exist.
Why Buyers Choose This Range
- Clear opening closed down without losing the drainage area the run was sized for
- Carbon steel hot-dip galvanized, or stainless steel acid passivated, from the same plant
- Panels cut and framed to the channel, not trimmed on site
- Bearing bar from 25x6 up to 55x5 depending on the load the top has to carry
- Small batches accepted, which matters when a project needs eleven panels and not a container
Typical Application Scenarios
- Entrance thresholds at shopping centres, hotels and office lobbies
- Station concourses, airport kerbsides and pedestrian plazas
- Swimming pool surrounds and spa wet areas in stainless steel
- Food plant washdown aisles where the floor drains along the walking line
Where This Family Has Been Photographed

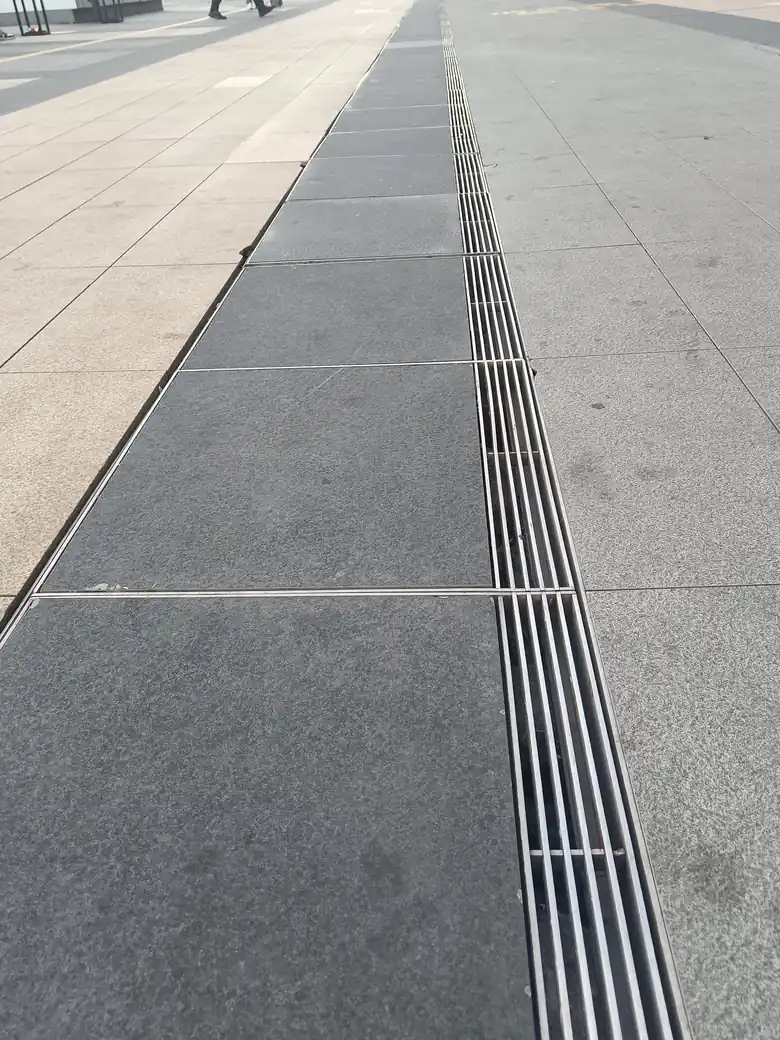

A Heel Guard Run Set Into Stone Paving
A drainage run that had to cross the walking route into a building without catching heels, cane tips or castors, and without interrupting the paving pattern.
Read what was specified
Stainless Channel Covers In A Finished Floor
An interior floor channel where the covers are lifted for cleaning, the floor is washed down, and the slab left very little depth for the grating.
Read what was specified
A Yard Trench Run Covered In Galvanized Grating
A long channel crossing a route that vehicles use, where a continuous run of covers has to sit flush with the concrete and still be liftable for clearing grit out of the channel.
Read what was specifiedWho Orders These
Heel Guard Grating Questions
What clear opening counts as heel guard?
Carbon steel or stainless steel for an entrance?
Can you make heel guard panels for a channel we already have?
Do the panels come with the frame?
Is there a minimum order?
Get The Heel Guard Grating Specifications
Tell us which products you are shortlisting and the specifications come back by email, with packing and a schedule for your quantity.
