Stanchion And Handrail
Ball joint stanchion posts and handrail tube, the edge protection that goes around the grating.
Every Stanchion And Handrail We Publish
A ball joint stanchion is a post with a drilled ball welded at handrail height: the rail passes through the ball, which lets a run follow a change in level or direction without a fabricated corner at every post. It is the standard edge protection on the platforms and walkways that grating decks. ShengJingYe produces the posts, the balls and the rail as one hot-dip galvanized system, so the handrail and the grating come from the same plant and arrive together.
Ball Joint Stanchion With Handrail
Hot-dip galvanized ball joint stanchion system: 48 x 3.25 mm post, 76 x 3 mm drilled ball and 42.3 x 3.25 mm handrail tube, with a 6 mm base plate.
See the specification

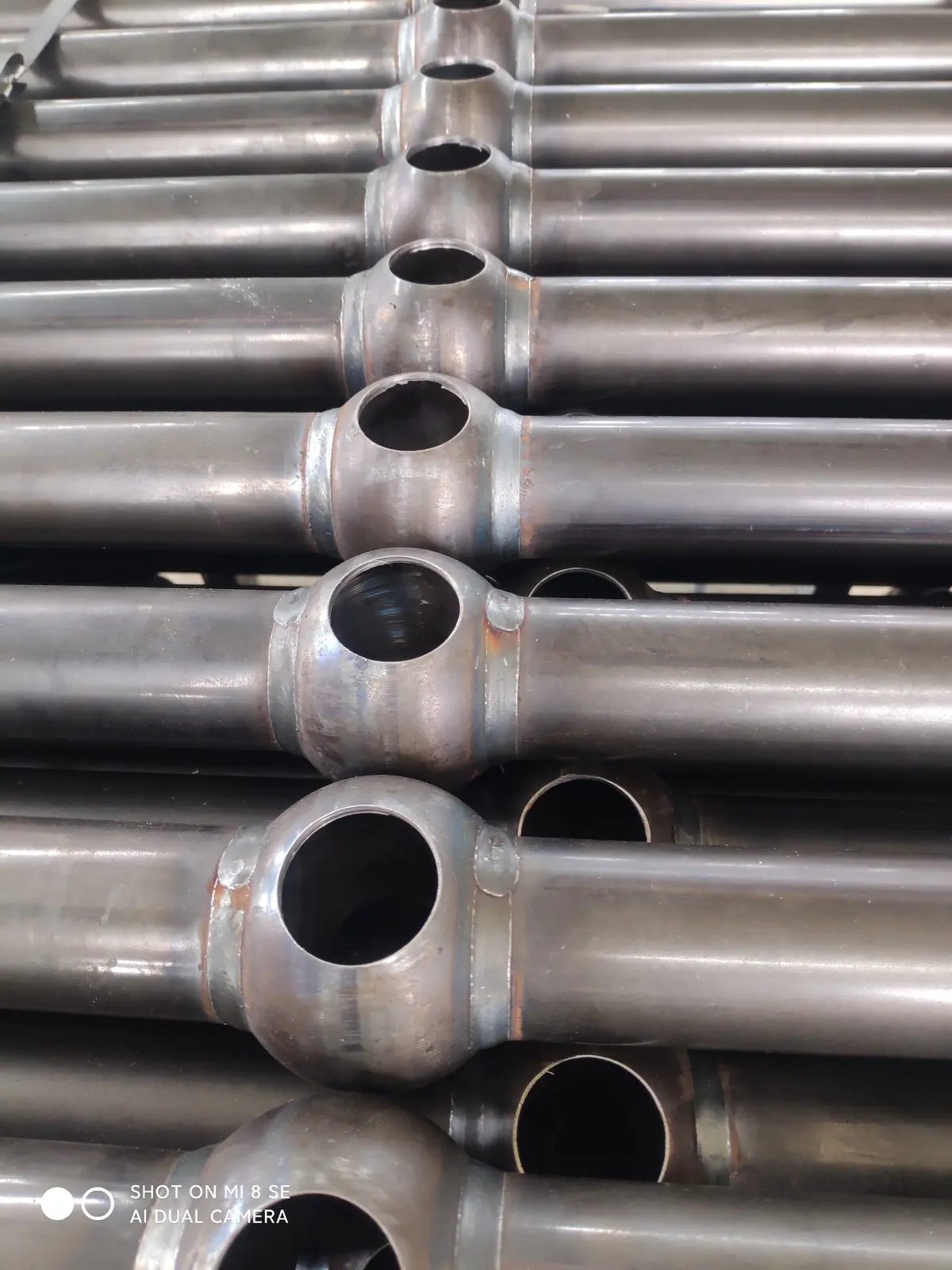

Ball Joint Stanchion Post
The stanchion post on its own: 48 x 3.25 mm tube with a 76 x 3 mm drilled ball and a 6 mm base plate, hot-dip galvanized, supplied without rail.
See the specificationProblems This Family Solves
- Handrail fabricated on site, post by post, at site labour rates
- Rail runs that do not line up where a walkway steps or turns
- Painted handrail that needs repainting after two winters outdoors
- Platform grating and its edge protection ordered from two suppliers and arriving apart
- Base plates drilled to the wrong pattern for the steelwork underneath
Who It Is For
- Steel fabricators decking and railing access platforms
- Process plant and utilities contractors
- Contractors working to a handrail specification on an industrial site
- Anyone already buying grating who needs the edge protection with it

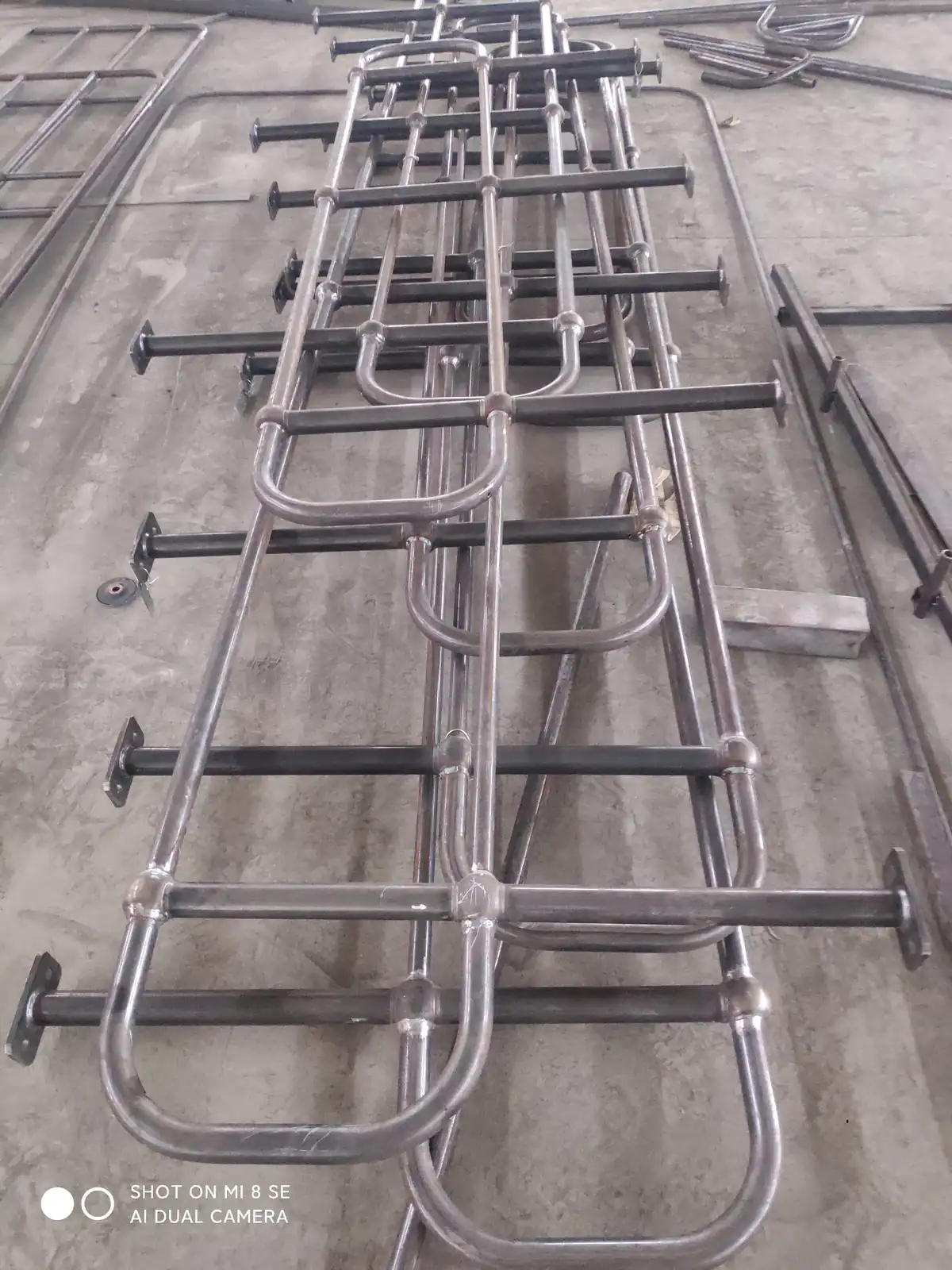

How This Family Actually Looks
Photographs taken by the factory of products in this family, lit and in production. Nothing here is a rendering of something that does not exist.
Why Buyers Choose This Range
- Round tube post at 48 x 3.25 mm with a 76 x 3 mm drilled ball
- Handrail tube at 42.3 x 3.25 mm passing through the ball joint
- Base plate thickness 6 mm, drilled to your steelwork pattern
- Hot-dip galvanized, the same finish as the grating it protects
- Supplied with the grating order so a platform arrives complete
Typical Application Scenarios
- Edge protection on access platforms and mezzanines
- Walkway runs that change level or direction
- Stair handrail and landing guarding
- Tank top, roof plant and pipe rack access
Where This Family Has Been Photographed
Who Orders These
Guides Covering This Family
Stanchion And Handrail Questions
What are the standard sizes?
Can I order posts without the rail?
How are the posts fixed down?
Which standard do these meet?
Are they supplied galvanized?
Get The Stanchion And Handrail Specifications
Tell us which products you are shortlisting and the specifications come back by email, with packing and a schedule for your quantity.
