Concrete Cover Grating 30x2.5 Hook Type

Name: Concrete Cover Grating 30x2.5 Hook Type
Brand: ShengJingYe

Light-duty hook cover panel on 30x2.5 bearing bar with 8x2 cross bar, hot-dip galvanized, for chambers crossed by pedestrians and hand trolleys.

Bearing bar: 30 x 2.5 mmCross bar: 8 x 2 mmMaterial: Carbon Steel

Request A Quote Request A Sample

Concrete Cover Grating 30x2.5 Hook Type produced by ShengJingYe

Product Overview

This is the lightest of the concrete cover panels: a 30x2.5 bearing bar with an 8x2 flat cross bar, framed and fitted with hooks so the panel drops into a cast kerb and stays there. It suits chambers and channels that are crossed on foot or by hand trolley rather than by vehicles, which is most of the drainage inside a yard boundary and almost all of it inside a building. Because the hooks, the banding and the mesh are all galvanized together after fabrication, the parts that normally fail first on a cover, the welded hook and the cut edge, are protected with the rest of it.

Key Benefits

Light enough to lift by hand for cleaning the chamber underneath
Hooks and banding galvanized with the panel, not welded on after coating
Drops into a cast kerb without site trimming
Priced for the load it actually carries rather than to a heavy default

At A Glance

Family: Concrete Cover Grating
Category: Concrete Cover Grating
Material: Carbon Steel
Bearing bar: 30 x 2.5 mm
Cross bar: 8 x 2 mm
Surface treatment: Hot-dip Galvanizing

Product Images

What It Looks Like

Photographs of this product taken by the factory, lit and in production. Nothing here is a rendering of a product that does not exist yet.

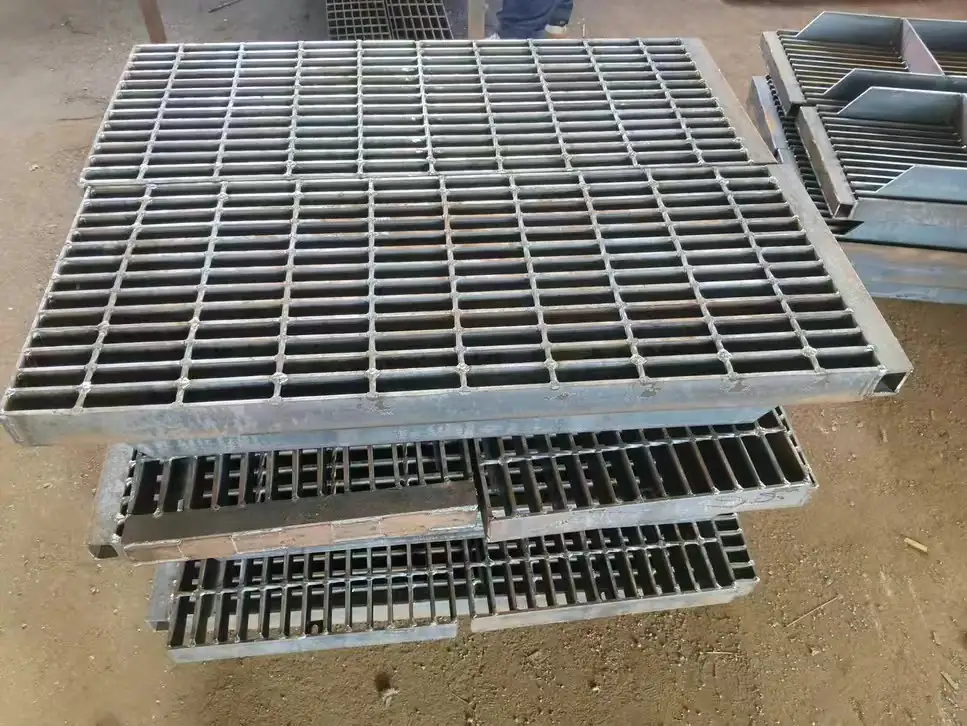

Concrete Cover Grating 30x2.5 Hook Type, photographed at the ShengJingYe plant in Yantai — Panels of this type stacked at the plant before despatch

Who It Is For

Civil contractors covering chambers and sumps
Facility maintenance teams replacing broken covers
Precast chamber manufacturers needing a steel top
Landscape contractors working around drainage runs

Problems It Solves

Covers too heavy for one person to lift for routine cleaning
Hooks that rust off because they were welded on after galvanizing
Panels ordered to a nominal opening that do not fit as cast
Covers that rattle because nothing locates them in the frame

Application Scenarios

Drainage chambers inside yards and walkways
Cable and service pits in plant rooms
Building perimeter drainage crossing footpaths
Landscaped areas where covers are lifted regularly for cleaning

Technical Features

Bearing bar 30 x 2.5 mm carbon steel
Cross bar 8 x 2 mm flat
Welded hooks for location in a cast kerb or frame
Hot-dip galvanized after fabrication
Panel size taken from the opening as built

Specification

Published Specification

Every row below is reproduced from the manufacturer's published specification for this range. Rows shown in italics are figures the specification does not publish; those are confirmed in writing rather than estimated here.

Material	Carbon Steel
Bearing bar	30 x 2.5 mm
Cross bar	8 x 2 mm
Surface treatment	Hot-dip Galvanizing
Structure	Concrete Cover Grating
Panel size	Made to your drawing
Place of production	Yantai, Shandong Province, China
Brand	ShengJingYe
Minimum order quantity	Small batch accepted
Load class	TBC, confirmed in writing against your loading
Lead time	Confirmed in writing per order, not published

Use Guide

Measure the opening as cast, not as drawn; concrete moves
Allow clearance all round so the panel drops in without forcing
Lift with the handles provided rather than with a bar through the mesh
Clear the chamber before refitting so the panel seats flat
Replace a damaged panel rather than flame-cutting it to fit

Quality Control

Panel offered up against drawing dimensions before banding
Hook position and projection checked so the panel seats flat
Squareness and bar pitch checked across the panel
Coating inspected on hooks and cut edges as well as faces

Materials

Carbon steel bearing bar and cross bar
Zinc coating applied by hot-dip galvanizing

Manufacturing Process

Drawing and 3D model
Cutting and stamping
Pressure welding or press locking
Framing and fabrication
Surface treatment
Inspection and packing

Certification Standards

Production follows TBC, the source specification publishes no certification marks. Certificates are sent per product on request rather than posted publicly, because the documents a shipment needs depend on the destination market.

Customisation Options

Hook length and position to your kerb detail
Lifting handles and recessed lifting eyes
Hinged or bolt-down arrangements
Cut-outs for pipe and cable entries

Comparison

How It Compares With The Alternatives

A technical comparison against other ways of solving the same problem. Nothing here is a performance claim against a named competitor product.

Against a stock panel cut to fit on site	A stock panel trimmed on site loses its banding, its bar pitch at the edge and its coating at every cut. This one is drawn to the opening and coated after it is fabricated.
Against buying the panel and its frame separately	Panel, banding, hooks, frame and handrail are fabricated and coated in the same plant and the same batch, which is what makes them fit each other.
Against another family in this range	See the Concrete Cover Grating page for what this family does that the others do not, and the related products below for the nearest alternatives.
