VQ Series Single and Double Vane Pumps
VQ series intra vane pumps in 20VQ to 45VQ single and 2520VQ to 4535VQ double frames, machined as drop in replacements with matched cartridge kits.
Product Overview
The VQ series is the higher pressure development of the V frame. The intra vane arrangement puts a smaller vane inside the main vane so the tip loading stays under control as pressure rises, which lets the pump work harder without shortening cartridge life. We machine complete VQ pumps and cartridges in single frames from 20VQ to 45VQ and double frames from 2520VQ to 4535VQ, on the original mounting and shaft patterns.

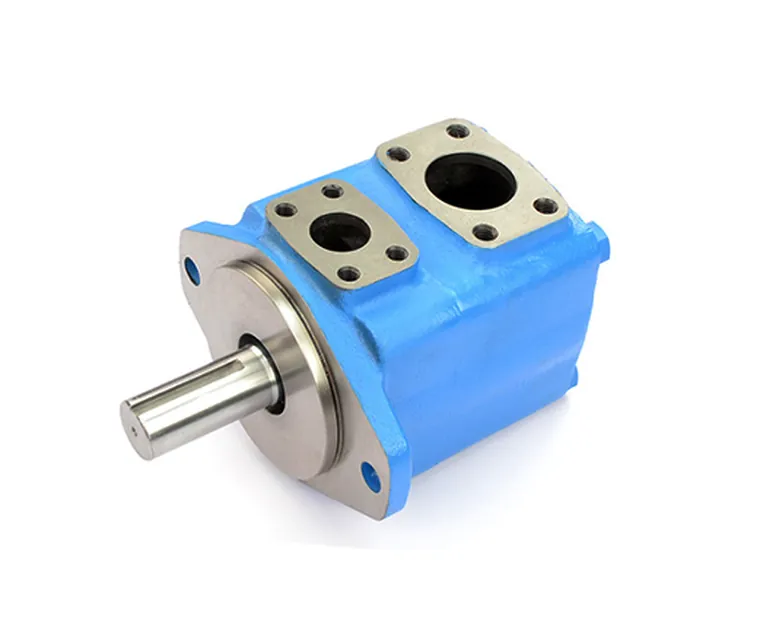

| Single pumps | 20VQ 25VQ 30VQ 35VQ 45VQ |
|---|---|

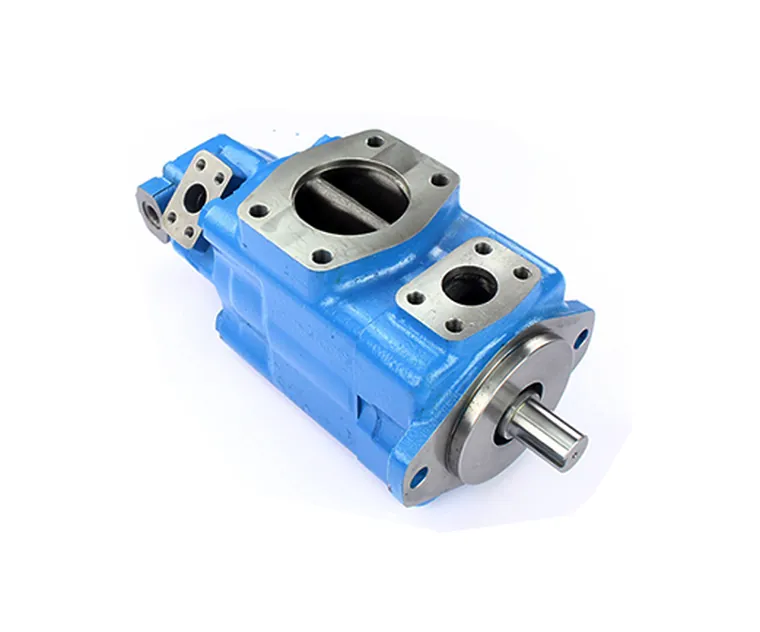

| Double pumps | 2520VQ 3520VQ 3525VQ 4520VQ 4525VQ 4535VQ |
Key Benefits
- Intra vane construction holds tip loading down at higher working pressure
- Same mounting and shaft pattern as the frame already on the machine
- Matched cartridge returns a worn pump to full flow without a new housing
- Common route for shops upgrading a tired V frame installation
Application Scenarios
- Industrial power units running at the upper end of the vane pump pressure range
- Die casting and moulding machines with long duty cycles
- Steel mill auxiliary circuits where pumps run continuously
- Test rigs and hydraulic presses that hold pressure for long periods
Who It Is For
- Repair shops that rebuild the same frames week after week
- Distributors supplying moulding and die casting plants
- Maintenance engineers replacing a pump that keeps failing early
- OEM builders sourcing a second supply line for a mature product
Problems It Solves
- A standard vane cartridge is not lasting because the circuit runs near the pressure limit
- Flow falls off when the oil is hot and the machine slows down
- The original cartridge kit has a long lead time and the machine is down now
- Mixed brand parts inside one cartridge wear unevenly and fail again
Technical Features
- Intra vane design with a pressure balanced vane pair
- Hardened and profile ground cam ring
- Rotor slots ground after heat treatment so the vanes move freely under load
- Cartridge assembled and matched as a set before packing
- Single and double frames driven from one shaft on double units
Specifications
Performance figures depend on the exact variant, so we confirm them against your model code rather than publishing a number that may not apply to your pump.
| Pump type | Balanced intra vane pump, fixed displacement |
|---|---|
| Configuration | Single and double, common shaft on double units |
| Cartridge | Replaceable matched intra vane cartridge kit |
| Rotation | Left or right hand, stated in the model code |
| Shaft end | Keyed or splined to the original pattern |
| Mounting | Flange mount to the original bolt pattern |
| Performance data | Confirmed against the full model code on your pump before quotation |
Materials
| Cylinder blocks | Case hardening steel with a sintered bronze running face, bonded and machined after sintering |
|---|---|
| Pistons and shoes | Case hardening steel with a bronze shoe face, swaged and hydrostatically balanced |
| Valve plates | Bearing steel or bronze faced steel depending on the frame, lapped to a mirror finish |
| Drive shafts | Alloy steel, carburised and hardened on the spline and bearing seats, ground on centres |
| Vanes and rotors | High speed tool steel and case hardening steel, hardened and ground on all working faces |
| Cam rings | Bearing quality alloy steel, through hardened then profile ground |
| Seals | Nitrile as standard, fluorocarbon or polyurethane on request for hot or fire resistant fluid duty |
Manufacturing Process
- Turning and millingBlanks are turned and milled from certified bar and forging stock on CNC machines.
- Heat treatmentCarburising, quenching, tempering or nitriding to the route the original part uses.
- GrindingBores, spline seats and running faces are ground after heat treatment so distortion is removed.
- Lapping and superfinishingValve plates, shoe faces and block faces are lapped so the pair seals under pressure.
- InspectionDimensions, hardness and surface finish are recorded against the drawing on a sampling plan.
- Assembly and testComplete pumps are built, run in and tested for efficiency, leakage and noise before packing.
Quality Control
- Incoming material certificates are checked against the grade called for on the drawing.
- Hardness is measured after heat treatment on every batch and recorded on the batch card.
- Critical bores and running faces are gauged against the drawing tolerance, not against a sample part.
- Mating parts are matched as a set so the block, shoes and valve plate run in together.
- Rebuilt pumps are bench tested for volumetric efficiency, external leakage and sound level.
- Parts are cleaned, oiled and vacuum sealed so they arrive without surface rust.
Certifications and Documentation
Supplied on request with an order. We do not claim approvals we cannot evidence.
| Material certificate | Mill certificate for the steel grade used in the batch |
|---|---|
| Hardness report | Surface and core hardness readings after heat treatment |
| Dimensional report | Measured values for the critical features named on the drawing |
| Test bench report | Flow, efficiency, leakage and sound readings for a rebuilt pump |
| Packing list and photographs | Carton contents and photographs of the packed goods before shipment |
Customization Options
- Shaft and splineKeyed, straight or splined shaft ends built to your sample or drawing.
- Port and mountingFlange, thread and mounting pattern matched to the pump already on the machine.
- Seal materialNitrile, fluorocarbon or polyurethane for hot oil, fire resistant fluid or low temperature duty.
- Rotation and displacementLeft or right hand rotation and the displacement code your circuit was set up for.
- Marking and packingNeutral packing, your own carton artwork and your own part number laser marked on the part.
Comparison With Other Products
| Point | VQ Series | V Series | SQP Series |
|---|---|---|---|
| Vane design | Intra vane, pressure balanced tip | Single vane | Single vane |
| Suited to | Continuous higher pressure duty | General duty | Compact industrial power units |
| Frames we build | 20VQ to 45VQ and 2520VQ to 4535VQ | 20V to 45V and 2520V to 4535V | SQP1 to SQP4 and SQP21 to SQP43 |
| Cartridge interchange | Not interchangeable with V frames | Not interchangeable with VQ frames | Own cartridge family |
Use Guide
- Confirm the full model code including the displacement and rotation digits.
- Replace the shaft seal whenever the cartridge is changed.
- Fit the cartridge with the arrow following the direction of drive rotation.
- Fill the case with clean oil and turn the shaft by hand before starting.
- Run at low pressure for ten minutes, then step the relief valve up to the working setting.
Product Photographs
Related Products
V Series Vane Pumps
V series single and double vane pumps in 20V 25V 35V 45V and 2520V to 4535V frames, built as drop in replacements with matched cartridge kits and a tw
View Series and Sizes
T6 and T7 Series Vane Pumps
T6 and T7 series vane pumps for truck mounted and mobile hydraulics, in T6C T6D T6E T6CC T6DC T6DD T6EC T6ED T6EE and T7B frames with matched cartridg
View Series and Sizes
SQP Series Vane Pumps
SQP series vane pumps in SQP1 to SQP4 single frames and SQP21 to SQP43 double frames for compact industrial power units and machine tools.
View Series and Sizes
Related Industry Applications
Construction Machinery
See the ApplicationMining and Quarry
See the ApplicationMarine and Offshore
See the Application
Related Project Cases
Excavator Travel Motor Rebuild Programme in Turkey
Read the CaseStocking Cartridge Kit Programme for a German Distributor
Read the CaseMarine Winch Pump Refit for a Canadian Repair Yard
Read the Case
Related Articles
Frequently Asked Questions
Can a VQ cartridge go into a V housing?
No. The cam ring profile and rotor differ, so the two families are not interchangeable. Order the cartridge that matches the housing you have.
Why does the VQ frame last longer at high pressure?
The intra vane arrangement balances the pressure acting on the vane tip, so the tip does not dig into the cam ring as the working pressure rises.
Do you build the double frames as a matched pair?
Yes. Both cartridges are assembled and matched to the shaft before the pump leaves the bench.
How fast can you ship a 45VQ cartridge?
Common frames ship from stock the same day. Tell us the code on WhatsApp and we will confirm stock before you order.
Can you mark the parts with our own number?
Yes. We laser mark your part number and pack in neutral or your own cartons.
Send Us the Model Code and We Will Quote
Tell us the model code stamped on the pump, the quantity and your delivery port. A quotation with lead time usually comes back within one working day.
