V Series Single and Double Vane Pumps
V series single and double vane pumps in 20V 25V 35V 45V and 2520V to 4535V frames, built as drop in replacements with matched cartridge kits and a twelve month warranty.
Product Overview
The V series is the balanced vane pump most often found on presses, injection moulding machines and mobile power packs built from the nineteen seventies onward. We build the complete pump and every wear part inside it, in single frames from 20V to 45V and double frames from 2520V through 4535V. Because the housing, mounting flange and shaft end follow the original pattern, the pump bolts onto the existing bracket and couples to the existing drive without any change to the circuit.
| Single pumps | 20V 25V 35V 45V |
|---|---|
| Double pumps | 2520V 3520V 3525V 4520V 4525V 4535V |
Key Benefits
- Bolts onto the existing bracket and coupling with no change to piping or drive
- Cartridge is supplied as a matched set so flow returns to the original figure
- Single and double frames share parts, which cuts the number of items a shop has to stock
- Supplied from stock in the common frames, so a machine does not wait on a casting
Application Scenarios
- Hydraulic presses and press brakes where a steady flow at constant speed matters more than variable displacement
- Injection moulding machines running long shifts on a fixed pressure and flow setting
- Mobile power packs and truck mounted equipment driven from a power take off
- Machine tool hydraulics feeding clamping, indexing and tool change circuits
Who It Is For
- Hydraulic repair shops rebuilding customer pumps against a deadline
- Distributors carrying a shelf of common frames for local industry
- Machine builders who need a second source for a pump already designed into a product
- Plant maintenance teams keeping older presses and moulding machines running
Problems It Solves
- The original pump has gone off the price list and the machine still has years of life in it
- Flow has dropped and cycle time has stretched because the cartridge is worn
- A quoted lead time of several months on the original part would stop production
- Cheap unmatched cartridges wear out again within months and cost more than they save
Technical Features
- Balanced cartridge design with the load carried on opposite sides of the rotor
- Hardened and ground cam ring, rotor and vanes running as a matched set
- Shaft supported on a bearing sized for side load from a belt or gear drive
- Interchangeable cartridge so a rebuild replaces the wearing parts and keeps the housing
- Double pumps share one shaft and drive two independent circuits from one drive
Specifications
Performance figures depend on the exact variant, so we confirm them against your model code rather than publishing a number that may not apply to your pump.
| Pump type | Balanced vane pump, fixed displacement |
|---|---|
| Configuration | Single and double, common shaft on double units |
| Cartridge | Replaceable matched cartridge kit |
| Rotation | Left or right hand, stated in the model code |
| Shaft end | Keyed or splined to the original pattern |
| Mounting | Flange mount to the original bolt pattern |
| Performance data | Confirmed against the full model code on your pump before quotation |
Materials
| Cylinder blocks | Case hardening steel with a sintered bronze running face, bonded and machined after sintering |
|---|---|
| Pistons and shoes | Case hardening steel with a bronze shoe face, swaged and hydrostatically balanced |
| Valve plates | Bearing steel or bronze faced steel depending on the frame, lapped to a mirror finish |
| Drive shafts | Alloy steel, carburised and hardened on the spline and bearing seats, ground on centres |
| Vanes and rotors | High speed tool steel and case hardening steel, hardened and ground on all working faces |
| Cam rings | Bearing quality alloy steel, through hardened then profile ground |
| Seals | Nitrile as standard, fluorocarbon or polyurethane on request for hot or fire resistant fluid duty |
Manufacturing Process
- Turning and millingBlanks are turned and milled from certified bar and forging stock on CNC machines.
- Heat treatmentCarburising, quenching, tempering or nitriding to the route the original part uses.
- GrindingBores, spline seats and running faces are ground after heat treatment so distortion is removed.
- Lapping and superfinishingValve plates, shoe faces and block faces are lapped so the pair seals under pressure.
- InspectionDimensions, hardness and surface finish are recorded against the drawing on a sampling plan.
- Assembly and testComplete pumps are built, run in and tested for efficiency, leakage and noise before packing.
Quality Control
- Incoming material certificates are checked against the grade called for on the drawing.
- Hardness is measured after heat treatment on every batch and recorded on the batch card.
- Critical bores and running faces are gauged against the drawing tolerance, not against a sample part.
- Mating parts are matched as a set so the block, shoes and valve plate run in together.
- Rebuilt pumps are bench tested for volumetric efficiency, external leakage and sound level.
- Parts are cleaned, oiled and vacuum sealed so they arrive without surface rust.
Certifications and Documentation
Supplied on request with an order. We do not claim approvals we cannot evidence.
| Material certificate | Mill certificate for the steel grade used in the batch |
|---|---|
| Hardness report | Surface and core hardness readings after heat treatment |
| Dimensional report | Measured values for the critical features named on the drawing |
| Test bench report | Flow, efficiency, leakage and sound readings for a rebuilt pump |
| Packing list and photographs | Carton contents and photographs of the packed goods before shipment |
Customization Options
- Shaft and splineKeyed, straight or splined shaft ends built to your sample or drawing.
- Port and mountingFlange, thread and mounting pattern matched to the pump already on the machine.
- Seal materialNitrile, fluorocarbon or polyurethane for hot oil, fire resistant fluid or low temperature duty.
- Rotation and displacementLeft or right hand rotation and the displacement code your circuit was set up for.
- Marking and packingNeutral packing, your own carton artwork and your own part number laser marked on the part.
Comparison With Other Products
| Point | V Series | VQ Series | T6 Series |
|---|---|---|---|
| Typical use | General industrial and mobile duty | Higher pressure industrial duty | Mobile and truck mounted duty |
| Cartridge | Matched cartridge kit | Matched cartridge kit with intra vane design | Matched cartridge kit |
| Frames we build | 20V to 45V and 2520V to 4535V | 20VQ to 45VQ and 2520VQ to 4535VQ | T6C T6D T6E and T7B |
| Best fit | Replacing an older V frame like for like | Upgrading a worn V frame installation | Truck and mobile equipment |
Use Guide
- Read the full model code from the nameplate or the machined pad on the housing.
- Flush the reservoir and change the return and pressure filters before fitting.
- Check shaft alignment and coupling gap against the drive so no side load is carried by the shaft.
- Fill the pump case with clean oil and turn the shaft by hand before starting.
- Start at low pressure, bleed the circuit, then raise pressure in steps and check for leaks.

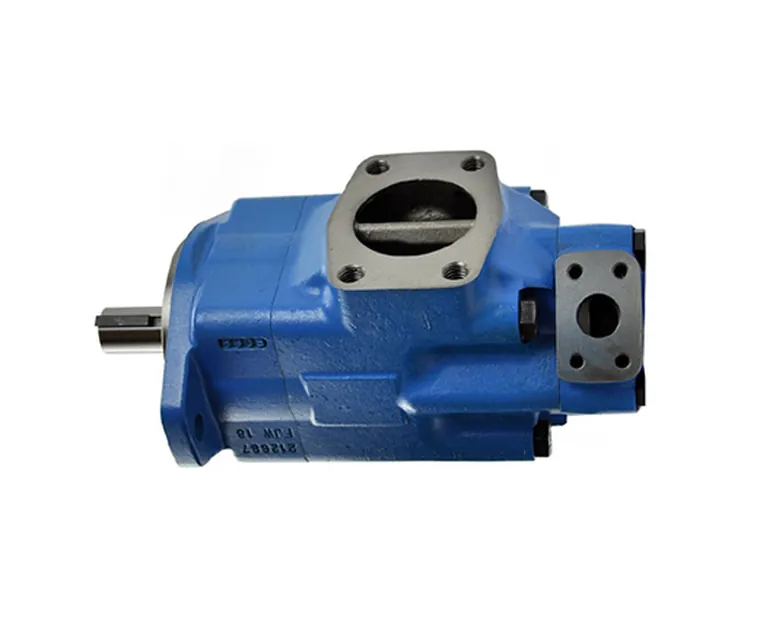

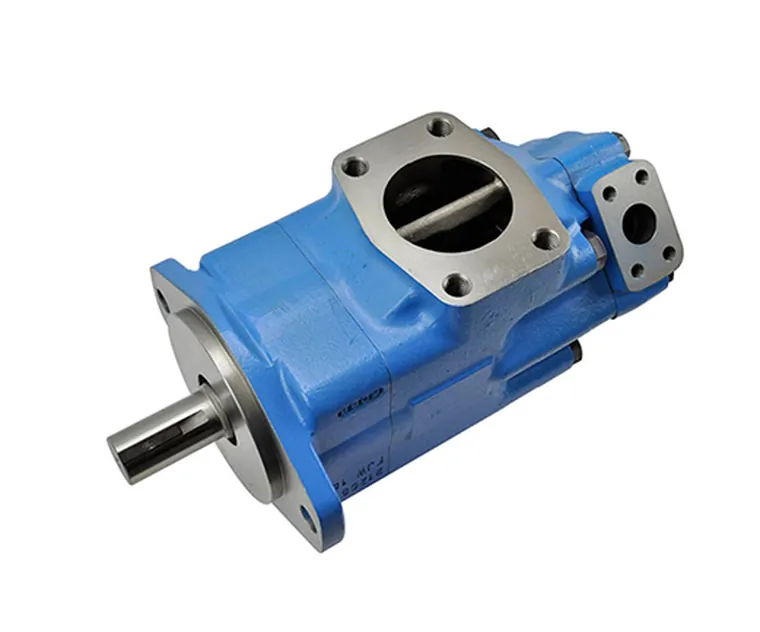

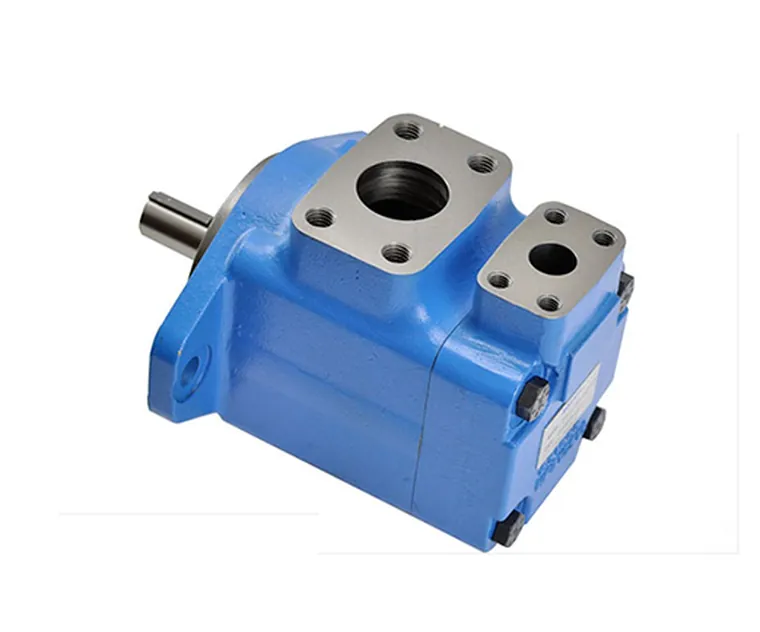

Product Photographs
Related Products
VQ Series Vane Pumps
VQ series intra vane pumps in 20VQ to 45VQ single and 2520VQ to 4535VQ double frames, machined as drop in replacements with matched cartridge kits.
View Series and Sizes
T6 and T7 Series Vane Pumps
T6 and T7 series vane pumps for truck mounted and mobile hydraulics, in T6C T6D T6E T6CC T6DC T6DD T6EC T6ED T6EE and T7B frames with matched cartridg
View Series and Sizes
SQP Series Vane Pumps
SQP series vane pumps in SQP1 to SQP4 single frames and SQP21 to SQP43 double frames for compact industrial power units and machine tools.
View Series and Sizes
Related Industry Applications
Construction Machinery
See the ApplicationMining and Quarry
See the ApplicationMarine and Offshore
See the Application
Related Project Cases
Excavator Travel Motor Rebuild Programme in Turkey
Read the CaseStocking Cartridge Kit Programme for a German Distributor
Read the CaseMarine Winch Pump Refit for a Canadian Repair Yard
Read the Case
Related Articles
Frequently Asked Questions
Can I fit a V series cartridge kit without removing the pump from the machine?
On most installations yes. The cover comes off and the cartridge lifts out once the pump is drained. We still recommend flushing the reservoir and changing filters at the same time, because the debris that killed the first cartridge is still in the oil.
Do you supply the complete pump or only the parts?
Both. You can order a complete single or double pump, a matched cartridge kit, or an individual shaft, seal, cover or body part.
Which frame sizes do you keep on the shelf?
The 20V, 25V, 35V and 45V single frames and the common double combinations are normally in stock. Rarer combinations are built to order.
Is the shaft the same as the original?
The shaft end is made to the original pattern, keyed or splined, so it fits the existing coupling. Send a photograph if you are not sure which end you have.
What warranty comes with the pump?
Twelve months, the same term the original part carries.
Send Us the Model Code and We Will Quote
Tell us the model code stamped on the pump, the quantity and your delivery port. A quotation with lead time usually comes back within one working day.
