Non Woven Mulch Machine
W Folding And Cutting Agricultural Mulch Up To 3.2 M Wide
What This Machine Does

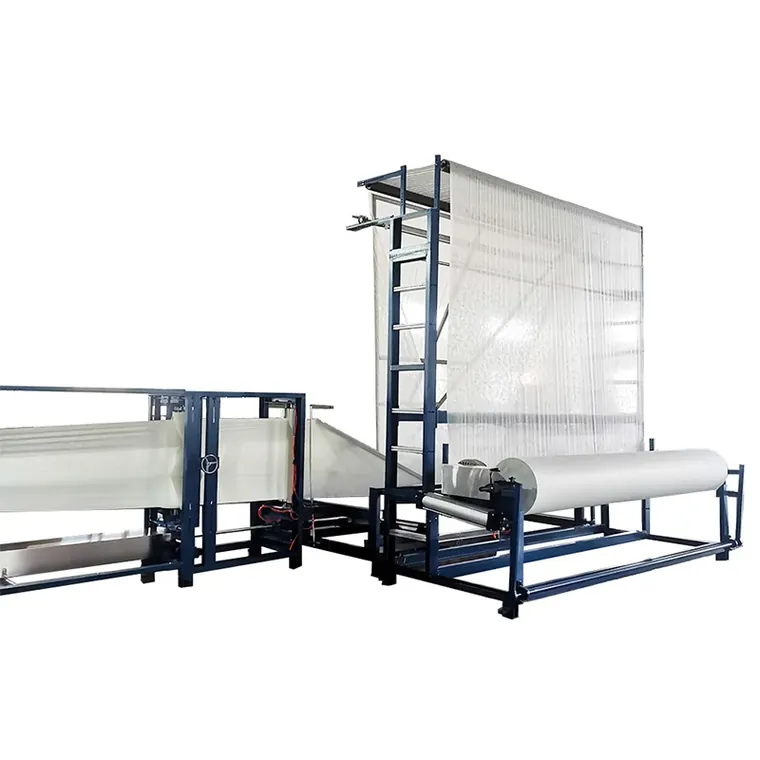

The AQ-G(3200) Non Woven Mulch Machine folds and cuts agricultural mulch fabric up to 3.2 m wide and 17 to 80 gsm, taking rolls up to 1000 mm diameter on 76 mm cores. The web is folded in half, W folded through four folding devices, cut to the length needed and folded again on horizontal rollers to a final folded size of 20 x 28 cm. A microcomputer controls number counting so packs leave the line at the quantity you set.
- PP spunbond mulch fabric
- Agricultural cover non woven
Why Buyers Choose This Model
A 3.2 m field width folds down to a 20 x 28 cm pack a worker can carry along the row
Handles 17 to 80 gsm, covering light seasonal covers through to heavy weed barrier
Four folding devices produce a consistent W fold that unrolls without tangling in the field
Microcomputer counting sets pack quantity without manual checking
Factories Running This Machine
- Agricultural non woven producers
- Landscape fabric converters
- Horticultural supply manufacturers
- Exporters packing wide fabric for retail distribution
What It Removes From Your Line
- Wide agricultural fabric that is impossible to handle unfolded in the field
- Machines limited to one fabric weight
- Folded packs that tangle when the farmer unrolls them
- Counting done by hand at the end of a fast line
Where This Machine Is Used
- Weed control mulch for orchards and vineyards
- Crop cover fabric for open field vegetables
- Nursery and greenhouse ground cover
- Landscape fabric packing for retail
How The Machine Is Built
- Maximum material width 3.2 m
- Fabric density range 17 to 80 gsm
- Maximum raw material roll diameter 1000 mm on a 76 mm core

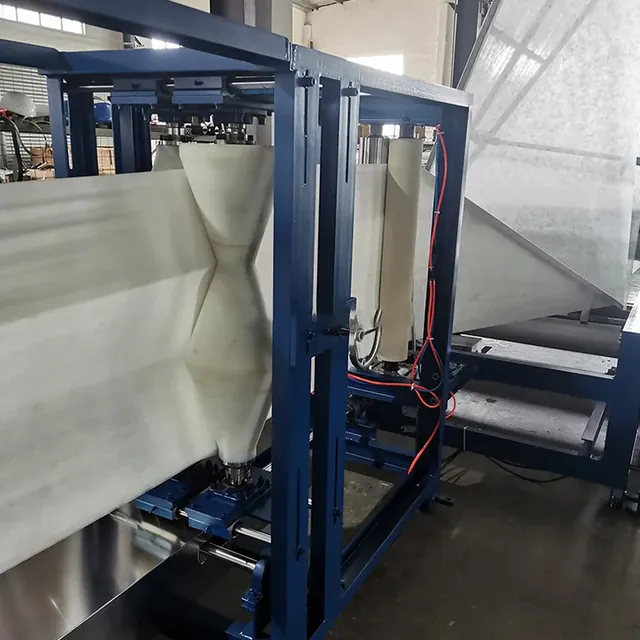

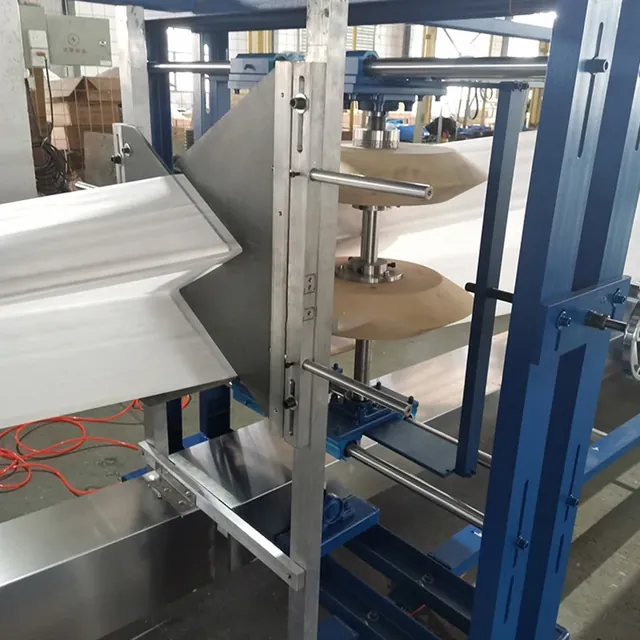

- Half fold then W fold through 4 folding devices
- Cutting to length and a final fold on horizontal rollers to 20 x 28 cm
- Microcomputer number counting, machine size about 18.00 x 3.50 x 2.5 m, 10 kW at 380 V
| Machine Model | AQ-G(3200) |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about25-35days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Unwinding
Half folding
W folding
Cutting to length
Final folding
Counting
What We Check Before Shipment
- Final folded size measured against 20 x 28 cm
- Cut length repeatability checked through the run
- Fold quality verified at the top of the gsm range
- Counter accuracy confirmed before shipment
What We Build To Your Specification
- Final folded size to your pack specification
- Cut length range set to your product
- Machine width built to your fabric
- Voltage and frequency configured for your plant
Machine And Product Detail

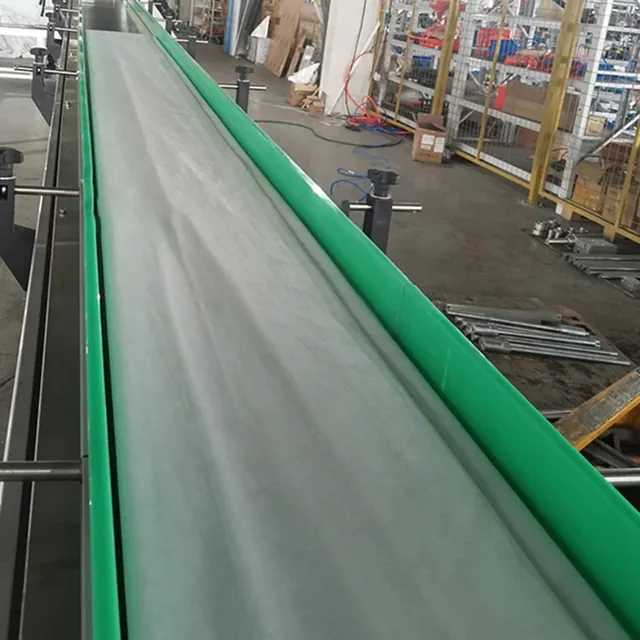

Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Non woven folding and rewinding machine AQ-R(3200)
The rewinding model returns a folded roll. The mulch machine cuts to length and folds down to a finished 20 x 28 cm pack.
Compared With Bed sheet folding machines
Bed sheet lines run lighter, narrower fabric. The mulch line is built for 3.2 m agricultural web and a heavy duty fold.
Setting The Machine For A Production Run
Load the roll, checking width and the 1000 mm diameter limit
Set the W folding devices for the fabric weight
Set the cutting length and final fold size
Set the count on the microcomputer and start production
Industries Using This Machine
Further Reading
GSM Core Size And Roll Diameter What Your Machine Needs To Know
The four material figures every machine quotation depends on, and what happens when the material you actually ...
Installation Power And Shipping Checklist For Imported Converting Machines
What to confirm before a machine leaves China: voltage, compressed air, floor space, core size, documentation ...
Other Machines In This Family
Non Woven Slitting And Rewinding Machine
Slit And Rewind Jumbo Non Woven Rolls Into Retail Size Without Telescoping
Model AQ-R(1800)
Medical Bed Cover Folding Machine
Ultrasonic Bonding And Three-Way Folding For Disposable Medical Bed Covers
Model AQ-B(2400)
Non Woven Bib Making Machine
Laminating Embossing And Folding Disposable Bibs On One Frame
Model AQ-190
Non Woven Spa Bed Sheets Rewinding Machine
Perforated Spa Bed Sheet Rolls With Hygienic Embossing And Air Knife Slitting
Model AQ-GF(1800)Non Woven Mulch Machine FAQ
What fabric weight can this machine fold?
The folding machine converts material with a density of 17 to 80 gsm, at widths up to 3.2 m.
What is the final folded size?
The folded product is folded again on horizontal rollers to a final folded size of 20 x 28 cm.
How much floor space is needed?
The machine is about 18.00 x 3.50 x 2.5 m. We send a layout drawing before shipment so the line can be planned.
How is the pack count controlled?
A microcomputer controls number counting and you set the quantity required.
Get A Quotation For The AQ-G(3200)
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Non Woven Mulch Machine specification, price and delivery.
