Non Woven Slitting And Rewinding Machine
Slit And Rewind Jumbo Non Woven Rolls Into Retail Size Without Telescoping
What This Machine Does

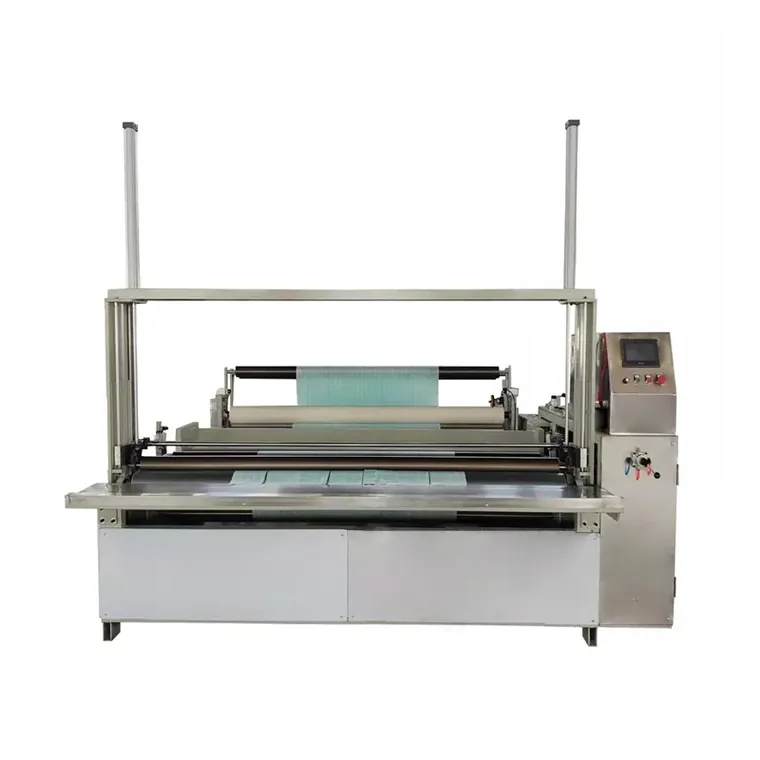

The AQ-R(1800) Non Woven Slitting And Rewinding Machine converts jumbo non woven rolls into narrow, tightly wound retail rolls in a single pass. It combines a fabric guide device, two adjustable tension controllers and a pressure-compaction rewinding head so every finished roll leaves the line with square edges and even winding. Perforation pitch is adjustable from 10 cm to 50 cm through a gear-type continuously variable transmission, so one machine serves both perforated and non-perforated products.
- Stainless steel main parts
- Anti-rust painted steel frame
Why Buyers Choose This Model
Two independent tension controllers hold web tension steady, so slit rolls do not telescope or dish during transport
Pressure-compaction rewinding produces dense, tidy rolls that take less space in the carton and cut freight cost per roll
Spiral perforation with continuously variable pitch lets you change sheet length without swapping gears
Frequency-conversion speed control makes the line easy to match to the downstream packing station
Factories Running This Machine
- Non woven converters who buy jumbo rolls and sell retail-size rolls
- Hygiene and household wipe brands running their own converting line
- Contract manufacturers serving salon, spa and cleaning brands
- Factories adding a first converting step before folding or packaging
What It Removes From Your Line
- Uneven manual rewinding that produces loose, soft rolls customers reject
- Roll edges that move out of line when tension is controlled on one side only
- Gear changes needed every time the perforation length changes
- Rust and contamination on rolls handled by painted carbon steel parts
Where This Machine Is Used
- Converting spunlace jumbo rolls into kitchen and household wipe rolls
- Producing perforated non woven towel rolls for salons and beauty studios
- Slitting medical grade non woven into narrow rolls for downstream converting
- Preparing narrow master rolls that feed folding and packaging machines
How The Machine Is Built
- Effective raw material width up to 350 mm with maximum roll diameter of 1000 mm
- Finished roll diameter up to 300 mm
- Perforation distance adjustable from 10 cm to 50 cm with gear-type continuously variable transmission
- Infrared dual counting and raw material conveyor belt
- Main contact parts in stainless steel, frame finished with anti-rust spray paint
- Frequency conversion speed control with standardised electrical wiring
| Machine Model | AQ-R(1800) |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 35 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Unwinding
Tension control
Slitting
Spiral perforating
Compaction rewinding
Counting
What We Check Before Shipment
- Winding uniformity checked roll by roll during factory run-off
- Tension controllers set and recorded against your raw material before shipment
- Perforation tear force tested on your own fabric sample when supplied
- Electrical wiring inspected against the standard wiring list before crating
What We Build To Your Specification
- Machine built to your effective width and finished roll diameter
- Perforation or non-perforation configuration
- Voltage and frequency set to your local supply
- Operation and technical manual supplied in English
Machine And Product Detail

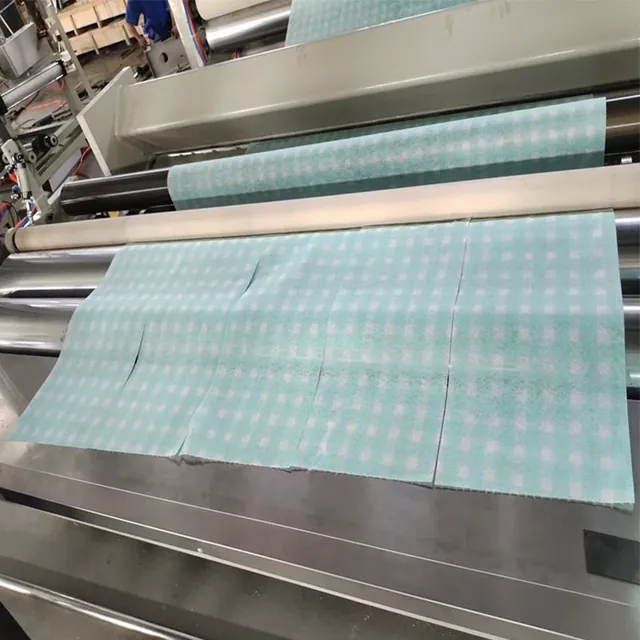

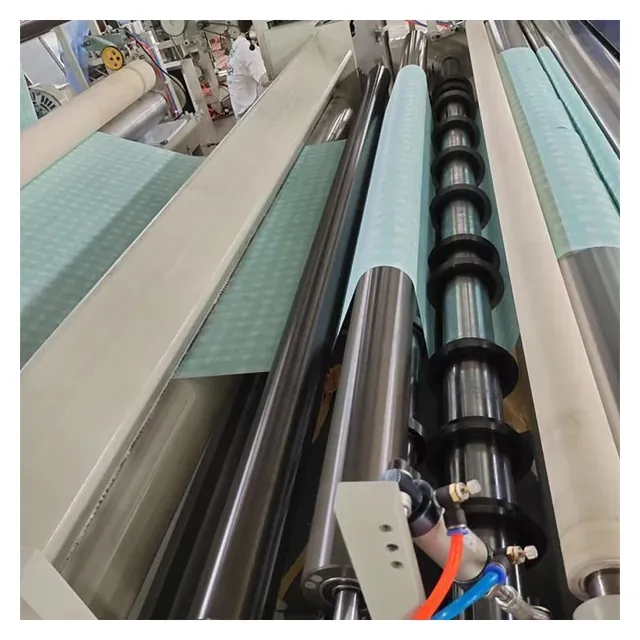

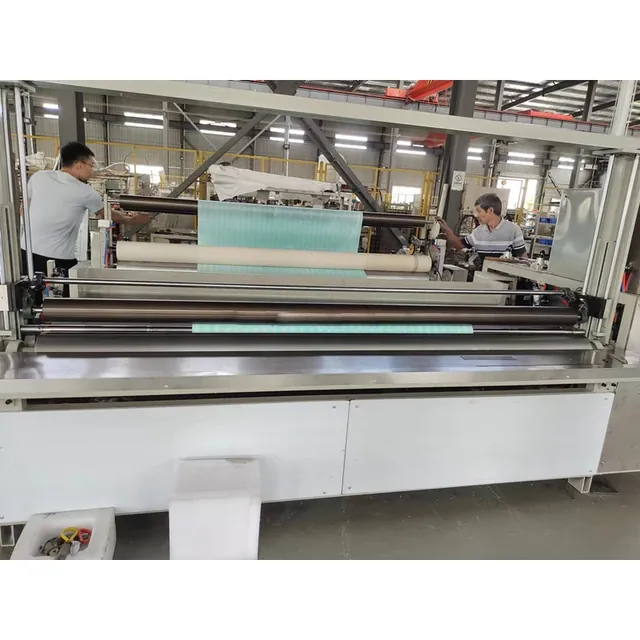

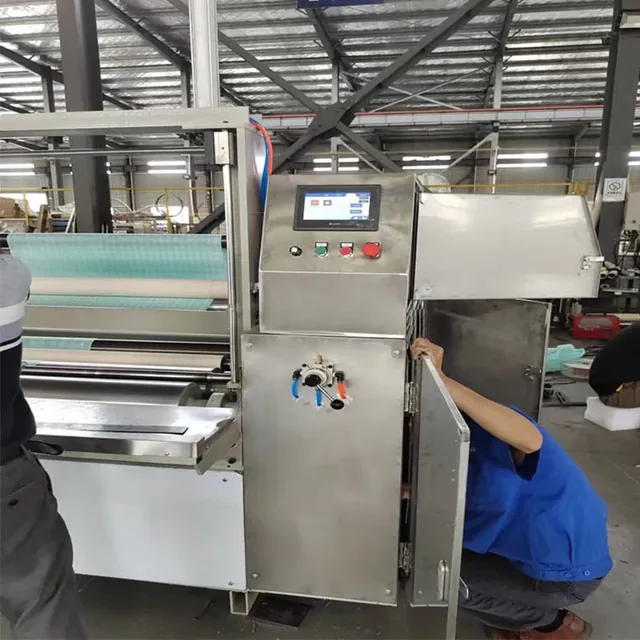

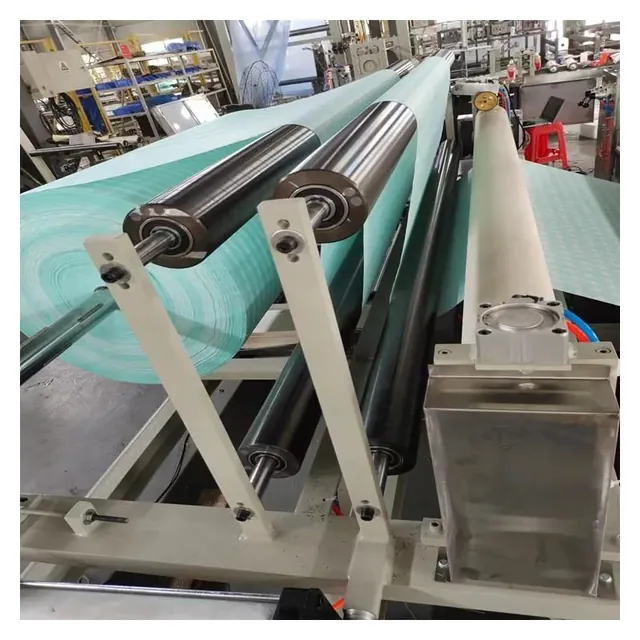

Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Manual rewinding stands
Manual stands rely on the operator to judge tension, so roll density varies between shifts. This machine holds tension through two controllers and a compaction head, so every roll is the same.
Compared With Non woven folding machines
A folding machine outputs stacked sheets. This machine outputs rolls, which is what wipe, towel and salon roll products need.
Setting The Machine For A Production Run
Load the jumbo roll on the unwind shaft and thread the web through the fabric guide device
Set both tension controllers to the value recorded for your fabric weight
Set perforation pitch on the continuously variable transmission, then run one test roll
Check finished roll diameter and edge alignment before starting the production run
Other Machines In This Family
Non Woven Fabrics Slitting And Rewinding Machine
Adjustable Width Slitting With Automatic Tension Controlled Rewinding
Model AQ-FR
Non Woven Fabric Inspection Machine
Unwind Inspect Count And Rewind Non Woven At Up To 120 M Per Minute
Model AQ-I(1600)
Woven Fabrics Slitting And Rewinding Machine
PP Woven And Non Woven Slitting With Four Selectable Tension Modes
Model AQ-R (1200-3500)
Non Woven Soft Towel Rewinding Machine
Soft Towel Rolls Rewound With Controlled Tension And Clean Perforation
Model AQ-FRNon Woven Slitting And Rewinding Machine FAQ
What is the maximum raw material width this machine takes?
The effective raw material width is up to 350 mm and the maximum jumbo roll diameter is 1000 mm. Wider configurations are built to order.
Can the machine make rolls without perforation?
Yes. The machine produces both perforated and non-perforated rolls, and the perforation unit can be switched out of the run.
How long does delivery take?
Delivery is about 35 days after order confirmation. Machines built to a non-standard width may need longer, and we confirm the date in writing before production.
What warranty comes with the machine?
The warranty period is one year. Wear parts such as blades and belts are not covered, and we keep them in stock for fast dispatch.
Get A Quotation For The AQ-R(1800)
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Non Woven Slitting And Rewinding Machine specification, price and delivery.
