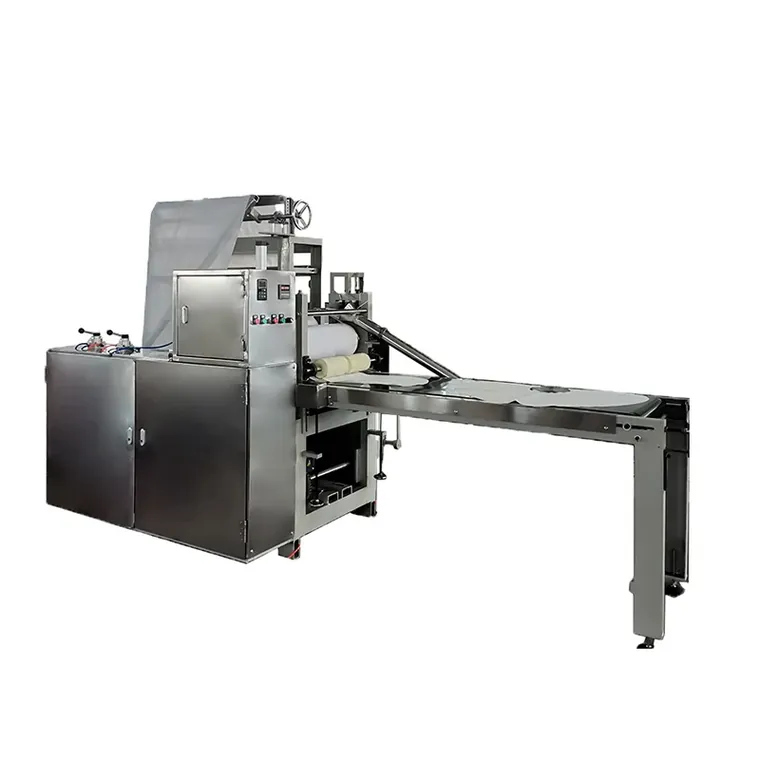

Non Woven Bib Making Machine
Laminating Embossing And Folding Disposable Bibs On One Frame
What This Machine Does
The AQ-190 Non Woven Bib Making Machine laminates, embosses, folds and finishes disposable bibs on a single frame at up to 24 pieces per minute. Frequency conversion drives the main line while the raw material unwind runs on infinitely variable speed control, and the embossing station uses heat-assisted shaping so the pattern stays crisp on soft tissue and non woven laminates. An automatic rectifier keeps the web aligned without an operator standing at the unwind.
- Tissue paper
- Non woven fabric
- PE film laminate
Why Buyers Choose This Model
One machine replaces a laminating station, an embossing station and a folding station, so floor space and handling drop
Rolling tension control adapts the line to raw paper and non woven of different tension, which cuts waste at roll change
Heat-assisted embossing produces a clear, defined pattern that holds after folding
Automatic rectification keeps edges aligned so finished bibs stack squarely for packing
Factories Running This Machine
- Medical disposable converters adding a bib line
- Private label suppliers to dental and care home buyers
- Paper and non woven converters looking for a second product line
- Factories replacing semi-automatic bib assembly
What It Removes From Your Line
- Multi-station bib production that needs handling between each step
- Embossing that flattens out when the bib is folded
- Web drift that shows as crooked edges in the finished stack
- Tension settings that have to be re-learned for every new raw paper supplier
Where This Machine Is Used
- Disposable adult bibs for hospitals and nursing homes
- Dental and clinic bibs with tissue and film lamination
- Baby bib production for retail and private label
- Catering and airline disposable bib production
How The Machine Is Built
- Output up to 24 pcs/min
- Maximum material width 1600 mm
- Main drive with frequency conversion control, unwind with infinitely variable speed control
- Embossing system with heat-assisted shaping
- Automatic web rectifier
- Total power 4.5 kW at 380 V, machine weight about 500 kg
| Machine Model | AQ-190 |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 25-35 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Unwinding
Lamination
Embossing
Folding
Cutting
Stacking
What We Check Before Shipment
- Embossing depth checked on your raw material sample
- Lamination bond tested before the machine ships
- Output rate verified over a continuous run at your material weight
- Rectifier tracking confirmed at full line speed
What We Build To Your Specification
- Bib size and fold pattern to your specification
- Embossing roller engraved with your pattern
- Neck tie or hook-and-loop closure configuration on request
- Voltage set to your local supply
Machine And Product Detail

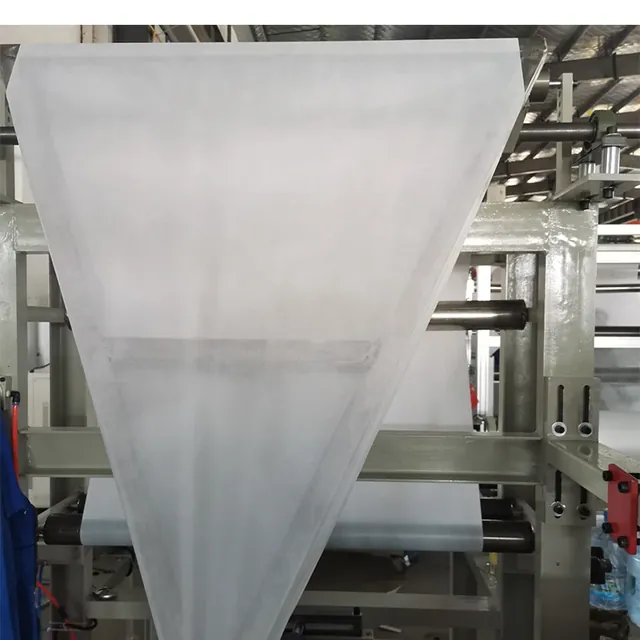

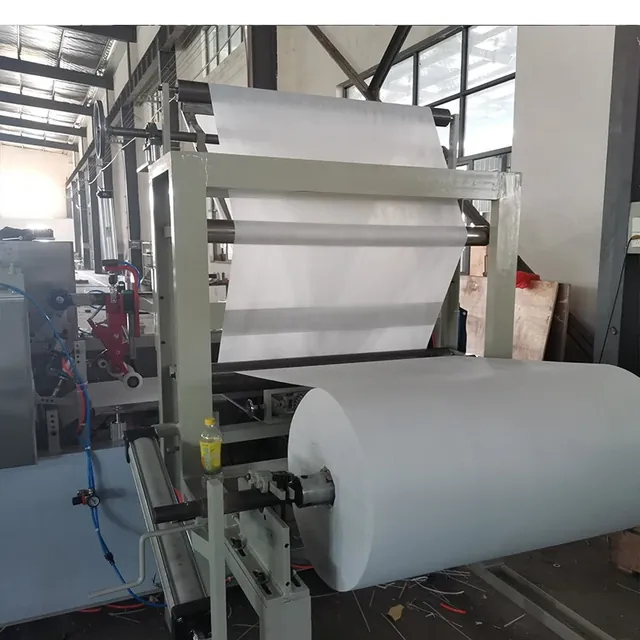

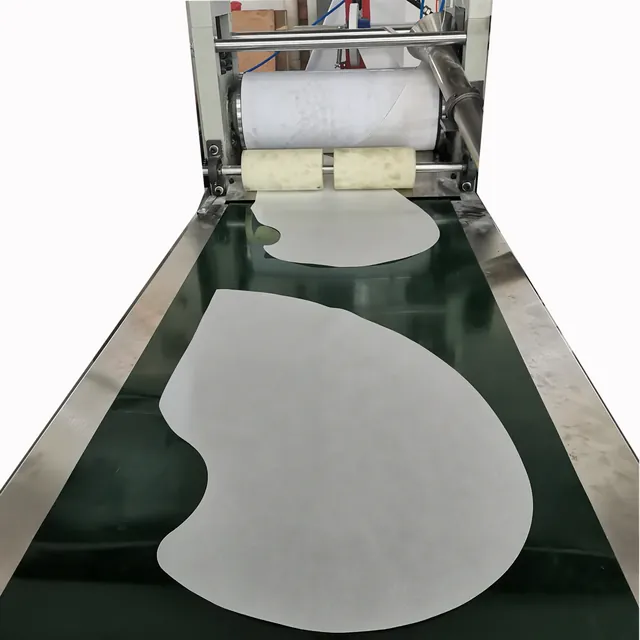

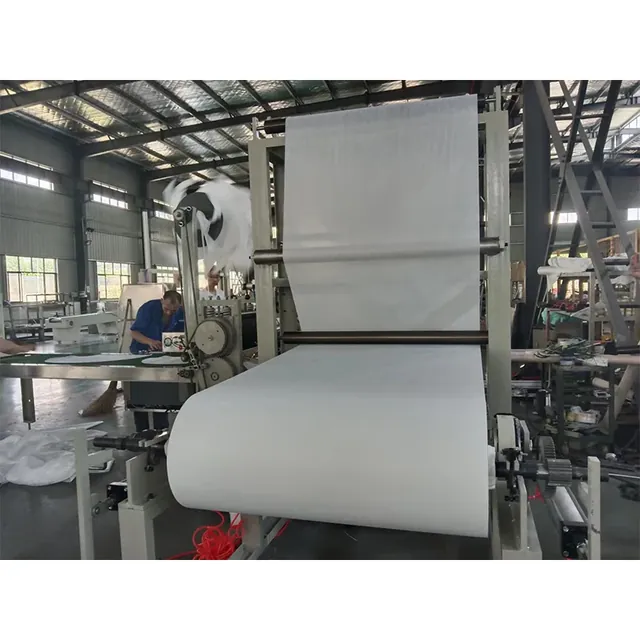

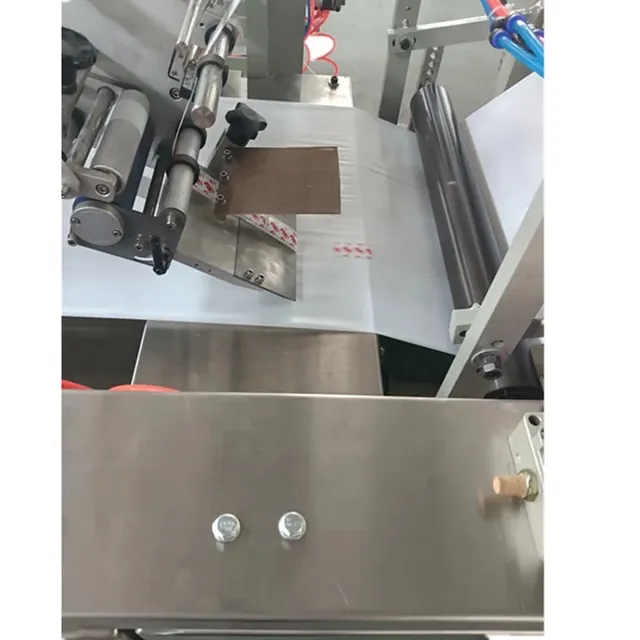

Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Separate laminator plus folder
Two machines mean two operators and an intermediate roll stock. The AQ-190 runs lamination to folded bib in one pass.
Compared With Non woven apron machine
The apron machine builds larger garments with tie bands. The bib machine is optimised for small, high-count disposable bibs.
Setting The Machine For A Production Run
Mount the tissue and non woven rolls and set unwind speed on the variable control
Set rolling tension to match the raw paper being used
Warm the embossing station before the first production roll
Check embossing clarity and folded size on the first stack, then run production
Other Machines In This Family
Non Woven Apron Machine
Servo Printing Neck Hole Cutting And Three-Stage Folding For Disposable Aprons
Model AQ-500
Non woven Apron Machine
Standard Build Apron Line With Counting Stacker
Model AQ-500
Non Woven Slitting And Rewinding Machine
Slit And Rewind Jumbo Non Woven Rolls Into Retail Size Without Telescoping
Model AQ-R(1800)
Medical Bed Cover Folding Machine
Ultrasonic Bonding And Three-Way Folding For Disposable Medical Bed Covers
Model AQ-B(2400)Non Woven Bib Making Machine FAQ
What output can the bib machine reach?
The AQ-190 reaches up to 24 pieces per minute with a maximum material width of 1600 mm. Actual output depends on bib size and material weight.
Can it run both tissue paper and non woven?
Yes. Rolling tension is adjustable so the line can be set for raw paper or non woven of different tension without mechanical changes.
Is the embossing pattern customisable?
Yes. The embossing roller can be engraved with your own pattern. Send the artwork with your enquiry and we quote the roller separately.
What is the installed power?
Total power is 4.5 kW at 380 V and the machine weighs about 500 kg, so no special foundation is needed.
Get A Quotation For The AQ-190
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Non Woven Bib Making Machine specification, price and delivery.
