Medical Bed Cover Folding Machine
Ultrasonic Bonding And Three-Way Folding For Disposable Medical Bed Covers
What This Machine Does
The AQ-B(2400) Medical Bed Cover Folding Machine forms, bonds and folds disposable medical bed covers in one continuous pass. Fourteen sets of high-power ultrasonic screen-following moulds bond the cover without glue or thread, while a magnetic powder tension controller and synchronous conveying device hold the sheet dimensionally accurate through every fold. A servo-controlled slider-type lateral fork knife folds the cover laterally up to three times.
- Stainless steel contact parts
- Ultrasonic moulds
- Servo drives
Why Buyers Choose This Model
Ultrasonic bonding removes needles and thread from the line, so there is no needle contamination risk in a medical product
Magnetic powder tension control keeps folded size within tolerance across the whole roll, not just the first metres
The multi-function special-shaped folder changes folding patterns quickly, so one machine covers several SKUs
Automated feeding, folding and stacking reduces the labour needed on a bed cover line
Factories Running This Machine
- Medical disposables manufacturers supplying hospitals
- Converters moving from sewn covers to ultrasonic bonded covers
- Exporters producing disposable bedding for hotel groups
- Factories that need several cover sizes on one line
What It Removes From Your Line
- Sewn seams that add labour cost and create needle holes in a sterile product
- Folded sizes that drift as the jumbo roll diameter decreases
- Line changeovers that take hours when the fold pattern changes
- Manual folding teams that cannot keep up with packing
Where This Machine Is Used
- Disposable bed covers and quilt covers for hospitals and clinics
- Single-use bed sets for day surgery and dialysis centres
- Hotel and travel disposable bedding production
- Private-label medical consumable manufacturing
How The Machine Is Built
- Effective width 2400 mm, raw material roll diameter up to 1000 mm
- 14 sets of high-power ultrasonic screen-following moulds
- One set of servo-controlled edge punching moulds for quilt cover edge banding
- Magnetic powder tension controller with synchronous conveying device
- Servo-controlled slider-type lateral fork knife, up to three lateral folds
- Total power 8 kW at 380 V / 50 Hz, machine footprint about 6500 x 2700 x 5500 mm
| Machine Model | AQ-B(2400) |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 25-35 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Unwinding
Tension control
Ultrasonic bonding
Edge punching
Longitudinal folding
Lateral folding
Stacking
What We Check Before Shipment
- Ultrasonic weld strength checked on your fabric before the machine ships
- Folded dimensions measured across a full roll run, not a short sample
- Servo positioning repeatability verified during factory run-off
- Electrical cabinet tested at your voltage before crating
What We Build To Your Specification
- Effective width and folded size built to your product specification
- Number of ultrasonic mould sets adjusted to the bonding pattern you need
- Edge banding pattern for quilt cover style products
- Voltage, frequency and plug type set to your local supply

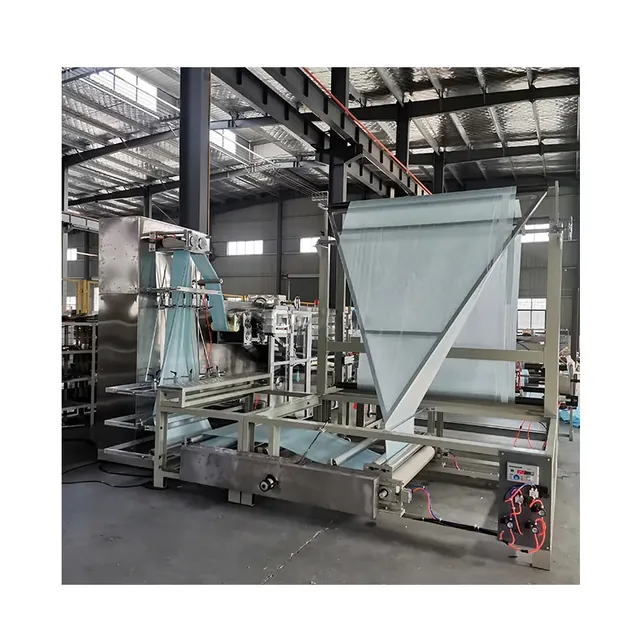

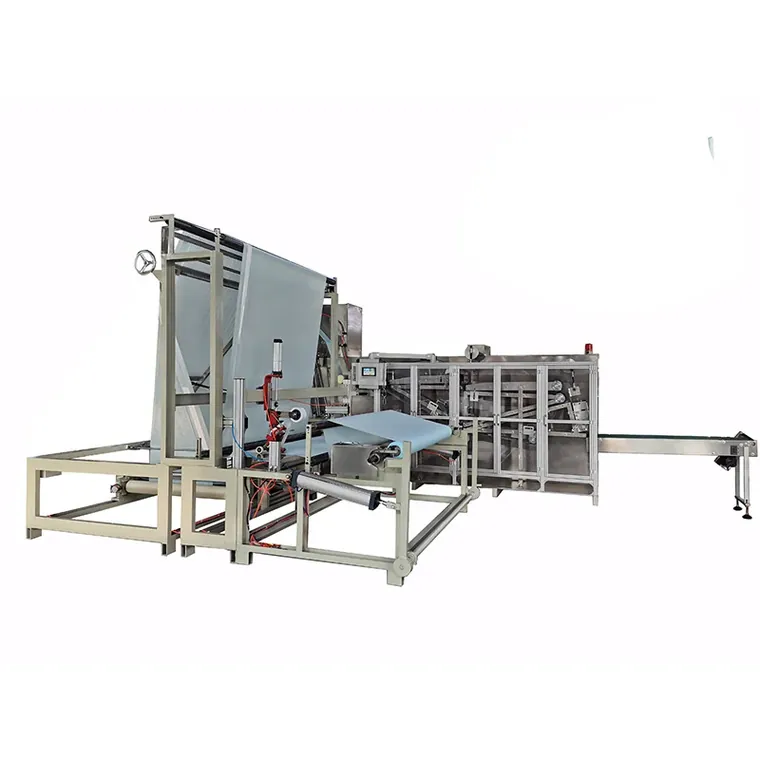

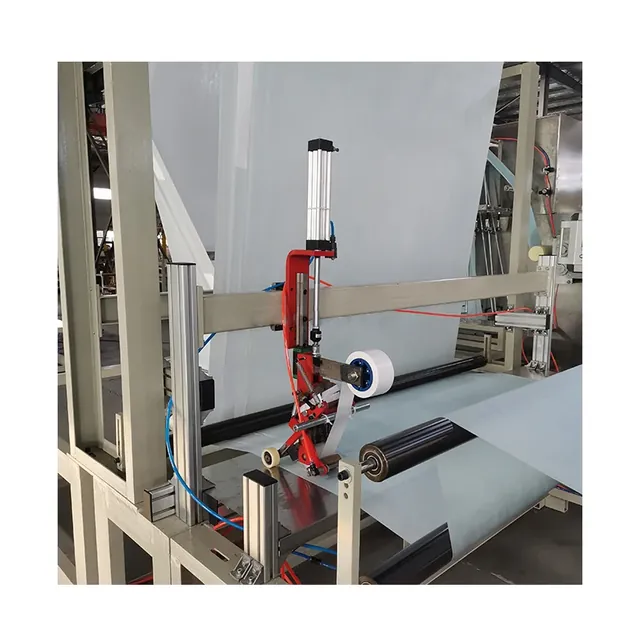

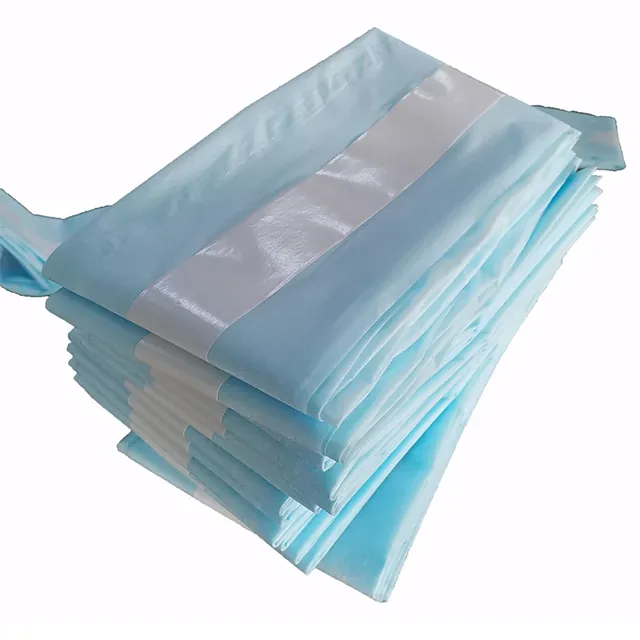

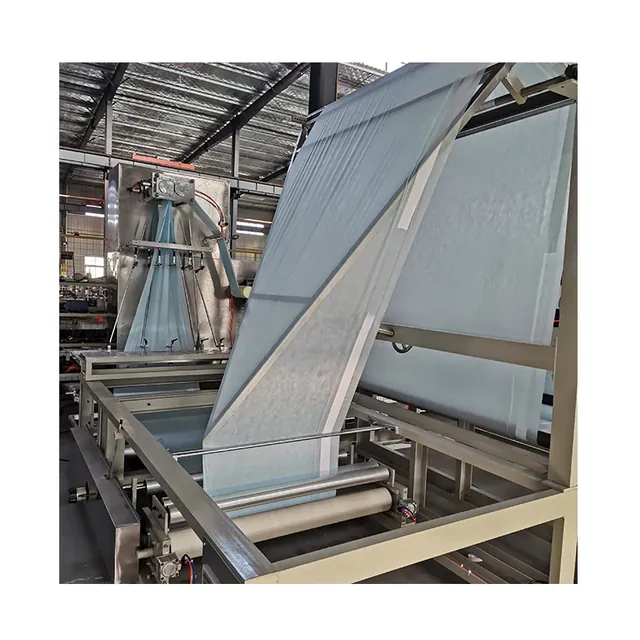

Machine And Product Detail
Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Sewing lines for bed covers
Sewing needs operators, thread stock and needle inspection. Ultrasonic bonding removes all three and holds a consistent seam at machine speed.
Compared With Non woven bed sheet folding machine
The bed sheet machine handles flat sheets. This model adds ultrasonic forming and edge banding, which quilt-style covers need.
Setting The Machine For A Production Run
Load the jumbo roll and set the magnetic powder tension controller for the fabric weight
Select the folding pattern on the multi-function special-shaped folder
Set the lateral fork knife for one, two or three folds
Run a short test batch and measure folded length and width before full production
Customised Non Woven Bed Cover Production With Indian Collaborators
The finished cover required a quilt cover style banded edge and a folded size that had to stay accurate across a full jumbo roll, on a machine that could also convert between folding methods as their customer mix changed.
Read The Case Study
Industries Using This Machine
Other Machines In This Family
Non Woven Spa Bed Sheets Rewinding Machine
Perforated Spa Bed Sheet Rolls With Hygienic Embossing And Air Knife Slitting
Model AQ-GF(1800)
Non Woven Bath Towel Folding Machine
Folding And Cutting Disposable Bath Towels From 20 To 80 GSM Non Woven
Model AQ-G(1500)
Medical Use Bed Sheets Machine
Disposable Hospital Bed Sheet Production On A 1200 mm Line
Model AQ-G(1200)
Non Woven Bath Towel Making Machine
Complete Disposable Bath Towel And Bed Sheet Making Line
Model AQ-G(1500)Medical Bed Cover Folding Machine FAQ
How many ultrasonic mould sets does the machine carry?
The machine is equipped with 14 sets of high-power ultrasonic screen-following moulds, plus one set of servo-controlled edge punching moulds for quilt cover style edge banding.
What is the maximum working width?
The AQ-B model works at 2400 mm effective width and takes raw material rolls up to 1000 mm diameter.
What power supply does it need?
Total power is 8 kW at 380 V / 50 Hz as standard. We rewire the cabinet for other supplies before shipment when you confirm your voltage.
How many folds can it make?
The servo-controlled slider-type lateral fork knife folds the cover laterally up to three times, and the special-shaped folder handles the longitudinal folds.
Get A Quotation For The AQ-B(2400)
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Medical Bed Cover Folding Machine specification, price and delivery.
