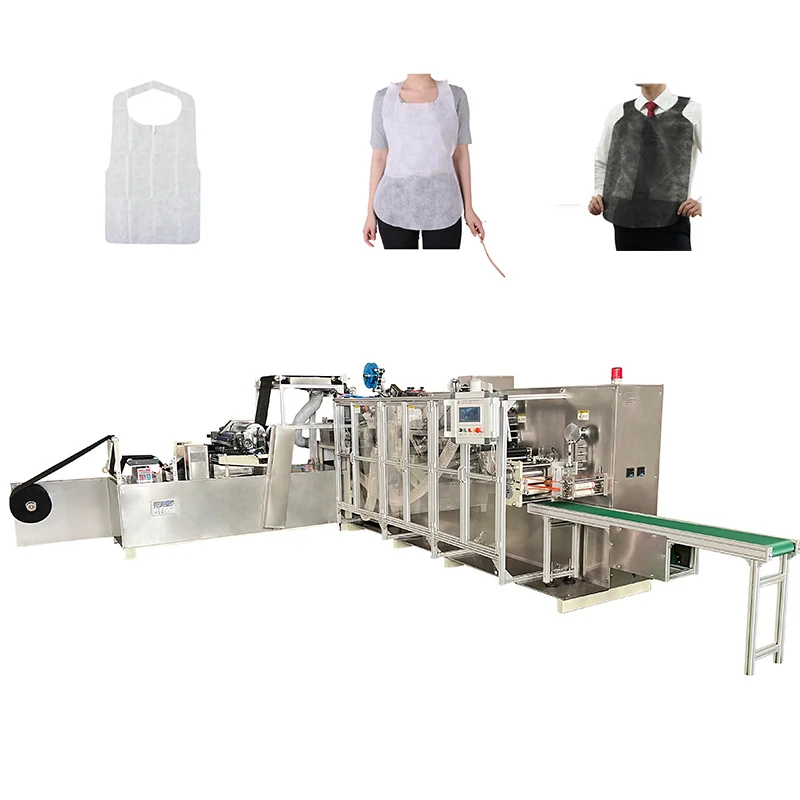

Non Woven Apron Machine
Servo Printing Neck Hole Cutting And Three-Stage Folding For Disposable Aprons
What This Machine Does
The AQ-500 Non Woven Apron Machine prints, folds, cuts and stacks disposable aprons from a 500 mm unwind. An automatic edge position correction device holds the web straight, a servo printing system controls one-colour print quality, and a triangle board device folds the printed fabric in half across the width. Neck hole cutting, corner cutting and the cut-off mould sit on the roller, and a servo-driven length folding system folds three times to the size the customer asks for, with folded size tolerance of ±5 mm.
- PP spunbond non woven
- PE laminated non woven
Why Buyers Choose This Model
±5 mm folded size tolerance means aprons fit the pack and the dispenser every time
Servo printing puts your logo on the apron in line rather than on pre-printed film you have to buy in
EPC automatic correction keeps folding precise even when the roll is not perfectly wound
Counting stacker delivers a fixed pack quantity straight to the packing bench
Factories Running This Machine
- Disposable PPE manufacturers
- Food industry consumable suppliers
- Private label producers needing printed aprons
- Converters adding a garment product to a non woven line
What It Removes From Your Line
- Buying pre-printed film instead of printing in line
- Folded aprons that vary in size and jam the dispenser
- Neck hole cutting as a separate manual operation
- Pack counts checked by hand at the packing bench
Where This Machine Is Used
- Disposable aprons for food processing and catering
- Medical and dental aprons for clinics
- Printed promotional aprons for retail chains
- Cleaning and janitorial disposable protection
How The Machine Is Built
- Machine effective width on the unwinding part 500 mm
- Automatic correction device (EPC) on the unwinding part
- Servo printing system, one-colour printing
- Triangle board folding device for half fold across the fabric width
- Neck hole cutting, corner cutting and cut-off mould on the roller
- Servo-driven length folding system with three folds, folded size tolerance ±5 mm, stacking system with counting
| Machine Model | AQ-500 |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 25-35 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Unwinding with EPC correction
Servo printing
Half folding
Neck and corner cutting
Three-stage length folding
Counting and stacking
What We Check Before Shipment
- Folded size measured against the ±5 mm tolerance on production samples
- Print registration checked through a continuous run
- Neck hole position verified against your apron drawing
- Counting accuracy confirmed against a manual count
What We Build To Your Specification
- Apron size and folded dimensions to your specification
- Print plate made for your one-colour artwork
- Neck hole and corner cutting moulds to your pattern
- Voltage and frequency set to your plant

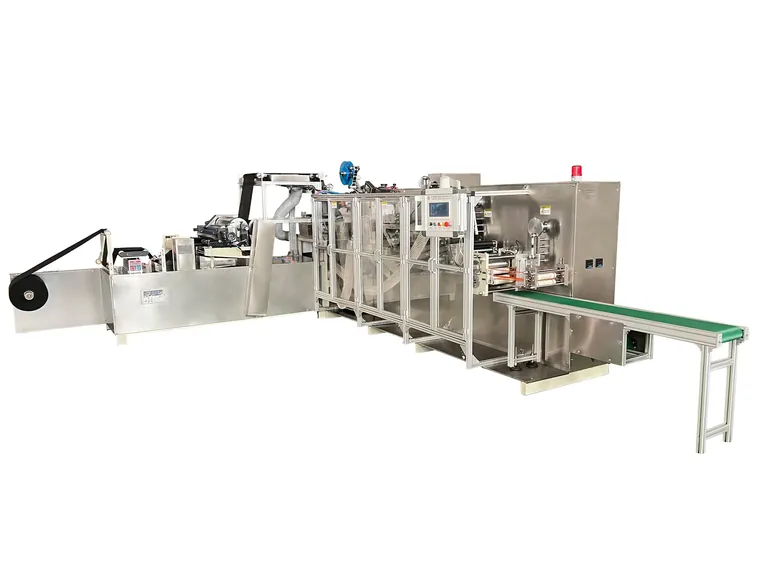

Machine And Product Detail
Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Non woven bib making machine
The bib machine laminates and embosses small bibs. The apron machine prints, cuts a neck hole and folds a full garment.
Compared With Plain folding machines
A folder cannot print or cut a neck hole. Both operations happen in line here, so the apron leaves the machine finished.
Setting The Machine For A Production Run
Load the 500 mm roll and enable the EPC correction device
Mount the print plate and set the servo printing registration
Set the triangle board and the three length folding stages for the apron size
Run a test stack, measure folded size against ±5 mm, then produce
Other Machines In This Family
Non Woven Bib Making Machine
Laminating Embossing And Folding Disposable Bibs On One Frame
Model AQ-190
Non woven Apron Machine
Standard Build Apron Line With Counting Stacker
Model AQ-500
Non Woven Slitting And Rewinding Machine
Slit And Rewind Jumbo Non Woven Rolls Into Retail Size Without Telescoping
Model AQ-R(1800)
Medical Bed Cover Folding Machine
Ultrasonic Bonding And Three-Way Folding For Disposable Medical Bed Covers
Model AQ-B(2400)Non Woven Apron Machine FAQ
How accurate is the folded apron size?
The difference in folded fabric size is ±5 mm, held by the servo-driven length folding system.
Can the machine print our logo?
Yes. A servo printing system prints one colour in line. Send artwork with the enquiry and we quote the print plate.
Does it cut the neck hole?
Yes. Neck hole cutting, corner cutting and the cut-off mould are all mounted on the roller, so the apron is finished in one pass.
What is the unwind width?
Machine effective width on the unwinding part is 500 mm, with automatic EPC correction to keep folding precise.
Get A Quotation For The AQ-500
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Non Woven Apron Machine specification, price and delivery.
