Non woven Apron Machine
Standard Build Apron Line With Counting Stacker
What This Machine Does
This standard build of the AQ-500 Non Woven Apron Machine covers producers who need the full apron process, printing, half folding, neck hole cutting and three-stage length folding, without additional options. Effective width on the unwinding part is 500 mm with EPC automatic correction, the servo printing system controls one-colour print quality, and the servo-driven length folding system holds folded fabric size within ±5 mm. The stacking system counts the output so packs leave the line at a fixed quantity.
- PP spunbond non woven
- PE laminated non woven
Why Buyers Choose This Model
Complete apron process on one machine, from printed web to counted stack
±5 mm folded size tolerance keeps packing and dispensing consistent
EPC correction protects folding precision when roll winding is imperfect
Manual adjustment of the triangle board makes small format changes quick
Factories Running This Machine
- Disposable protective clothing manufacturers
- Food safety consumable suppliers
- Private label apron producers
- Converters adding a garment product line
What It Removes From Your Line
- Aprons assembled across several machines with handling between each
- Print bought in at a minimum order quantity you cannot use
- Folded sizes that vary and jam the dispenser
- Pack counts checked manually at the bench
Where This Machine Is Used
- Catering and food processing aprons
- Clinic and dental aprons
- Salon and grooming aprons
- Industrial cleaning protection
How The Machine Is Built
- Machine effective width on the unwinding part 500 mm
- Automatic correction device (EPC) on the unwinding part
- Servo printing system for one-colour printing
- Triangle board folding device with easy manual adjustment
- Neck hole cutting, corner cutting and cut-off mould on the roller
- Servo-driven three-stage length folding at ±5 mm, stacking system with counting
| Machine Model | AQ-500 |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 25-35 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Unwinding with EPC
Servo printing
Half folding
Neck and corner cutting
Three-stage folding
Counting and stacking
What We Check Before Shipment
- Folded size verified against the ±5 mm tolerance
- Print position checked over a production run
- Neck hole position measured against your drawing
- Stack count confirmed against a manual count
What We Build To Your Specification
- Apron and folded size to your specification
- Print plate produced for your artwork
- Neck hole and corner moulds to your pattern
- Voltage and frequency set to your plant
Machine And Product Detail

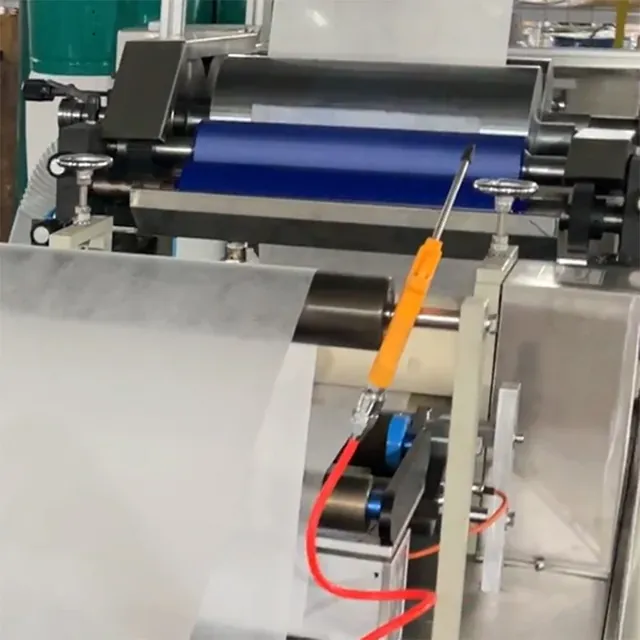

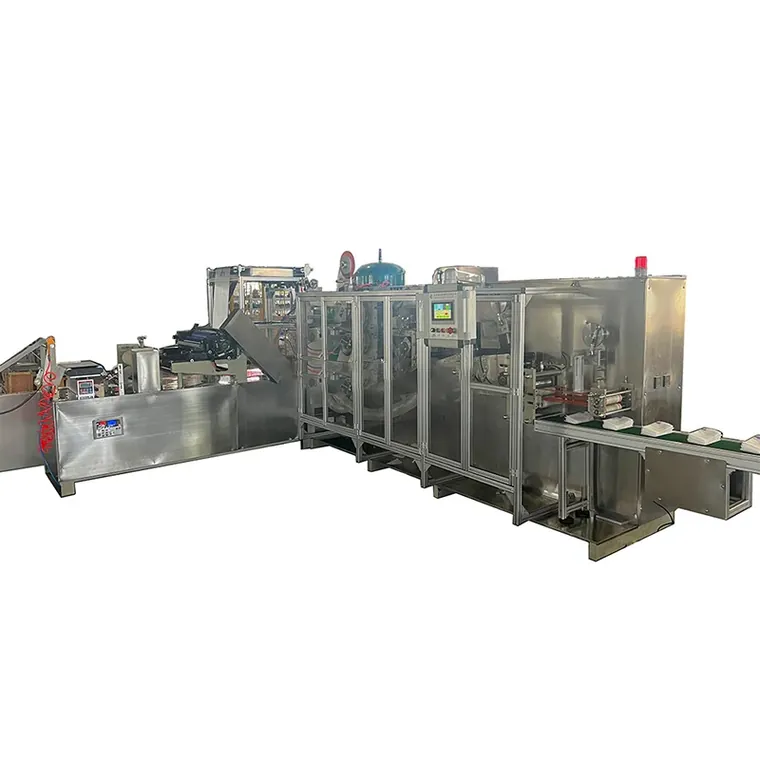

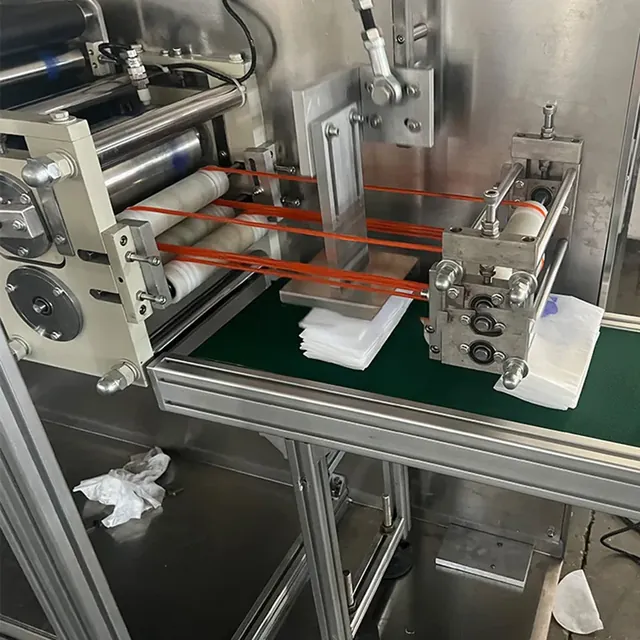

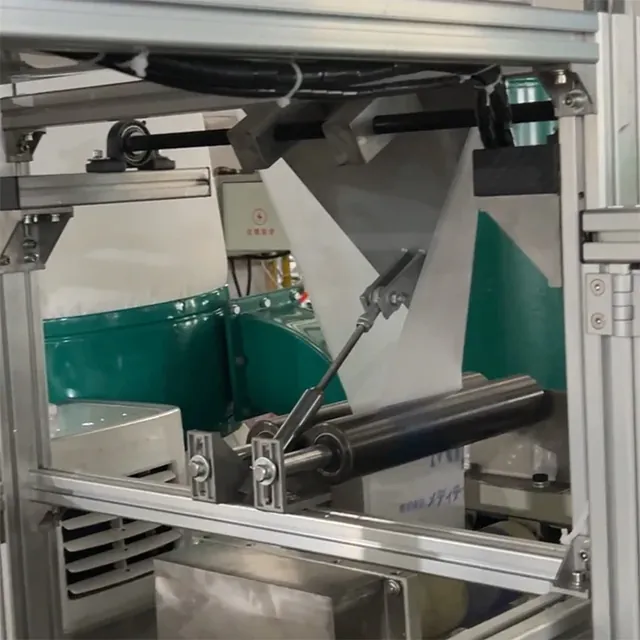

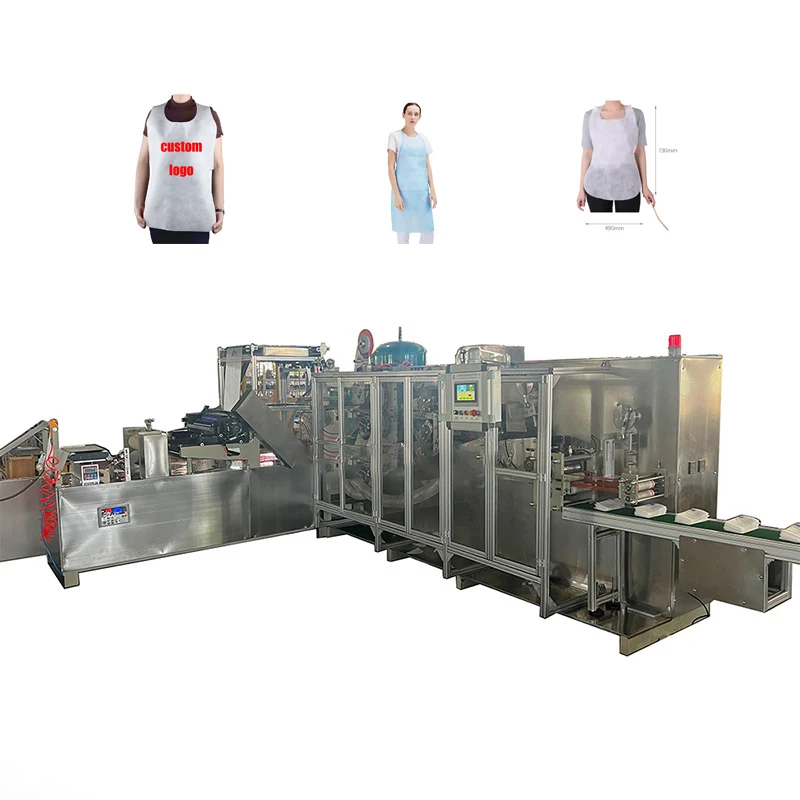

Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Non woven apron machine AQ-500 servo printing build
Same platform. Tell us whether you need printing on every run and we quote the configuration that matches.
Compared With Non woven bib making machine
The bib machine laminates and embosses small bibs at high count. The apron machine handles larger garments with a neck hole.
Setting The Machine For A Production Run
Load the 500 mm roll and enable EPC correction
Set the servo print registration if printing is used
Adjust the triangle board and the three folding stages
Run a test stack, verify folded size and count, then produce
Other Machines In This Family
Non Woven Bib Making Machine
Laminating Embossing And Folding Disposable Bibs On One Frame
Model AQ-190
Non Woven Apron Machine
Servo Printing Neck Hole Cutting And Three-Stage Folding For Disposable Aprons
Model AQ-500
Non Woven Slitting And Rewinding Machine
Slit And Rewind Jumbo Non Woven Rolls Into Retail Size Without Telescoping
Model AQ-R(1800)
Medical Bed Cover Folding Machine
Ultrasonic Bonding And Three-Way Folding For Disposable Medical Bed Covers
Model AQ-B(2400)Non woven Apron Machine FAQ
What is the folded size tolerance?
The difference of the folded fabrics is ±5 mm, controlled by the servo-driven length folding system.
How many folds does the machine make?
The fabric is folded in half across the width on the triangle board, then folded three times in length to the size the customer needs.
Is the stacker counted?
Yes. The stacking system includes a number counting function, so packs leave the line at a fixed quantity.
What is the lead time?
About 25 to 35 days after order confirmation.
Get A Quotation For The AQ-500
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Non woven Apron Machine specification, price and delivery.
