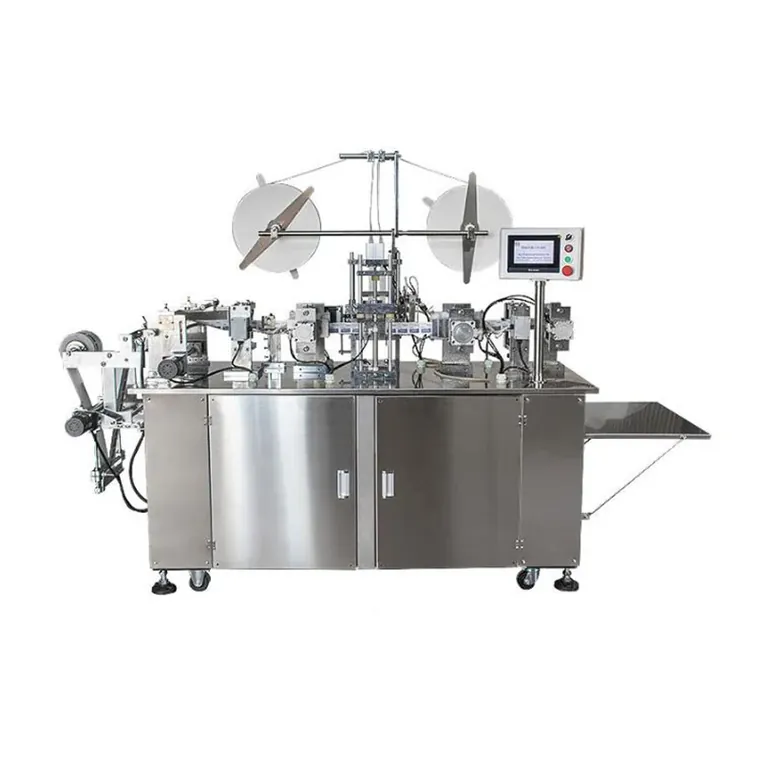

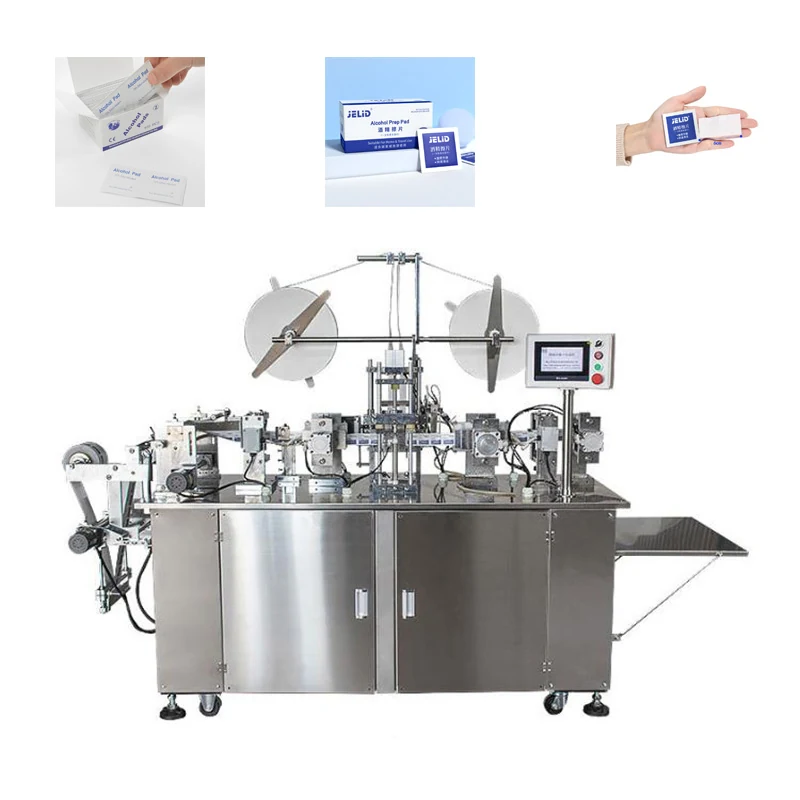

Alcohol Pads Making Machine
Individually Sachet Packed Alcohol Pads With Touch Screen Liquid Dosing
What This Machine Does
The AQ-280 Alcohol Pads Making Machine folds, saturates and seals individually packed alcohol pads under full touch-screen PLC control, with the liquid level set digitally for precise injection. It runs OPP/PE or PET/PE packaging film up to 400 mm diameter and 100 to 200 mm wide, producing sachets of 30 to 100 mm length and 30 to 65 mm width around a pad of 30 to 80 mm by 25 to 50 mm. All parts in contact with fabric and liquid formulation are 304 stainless steel.
- Spunlace non woven pad
- OPP/PE and PET/PE film
- Alcohol formulation supplied by the customer
Why Buyers Choose This Model
Digital liquid level setting keeps alcohol content consistent sachet after sachet
304 stainless steel wetted parts resist alcohol and meet medical hygiene expectations
Individual sachets keep each pad sterile until the moment of use
Touch-screen PLC control shortens changeover between pad and sachet sizes
Factories Running This Machine
- Medical disposable manufacturers
- Pharmacy private label suppliers
- Hospitality amenity producers
- Contract manufacturers packing single-use sachets
What It Removes From Your Line
- Alcohol dose that varies between sachets and fails specification
- Corrosion of carbon steel parts exposed to alcohol
- Slow manual sachet filling and sealing
- Sachet size changes that require mechanical rework
Where This Machine Is Used
- Medical alcohol prep pads for injection sites
- Sanitising wipes for clinics and pharmacies
- Hotel and airline single sachet wipes
- Lens and screen cleaning sachet production
How The Machine Is Built
- Full touch-screen PLC program control with digital liquid level setting
- Packaging material OPP/PE or PET/PE, roll diameter up to 400 mm, 100-200 mm wide
- Pad size in the pouch 30-80 mm length by 25-50 mm width, customisable
- Packaging dimension 30-100 mm length by 30-65 mm width
- All fabric and liquid contact parts in 304 stainless steel
- Power 2.5 kW at 220 V / 50 Hz, compressed air about 0.8 MPa
| Machine Model | AQ-280 |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | 20 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Pad folding
Liquid injection
Film forming
Sealing
Cutting
Counting
What We Check Before Shipment
- Liquid volume per sachet weighed against the digital setting
- Seal integrity tested on finished sachets
- Stainless steel wetted path inspected before shipment
- Pneumatic circuit tested at 0.8 MPa
What We Build To Your Specification
- Pad and sachet sizes to your specification
- Film type configured for OPP/PE or PET/PE
- Dosing range set for your formulation
- Voltage and frequency set to your plant
Machine And Product Detail

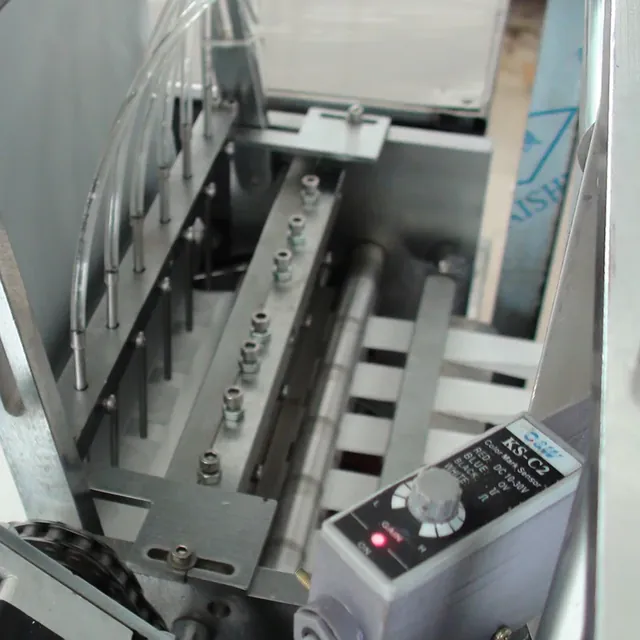

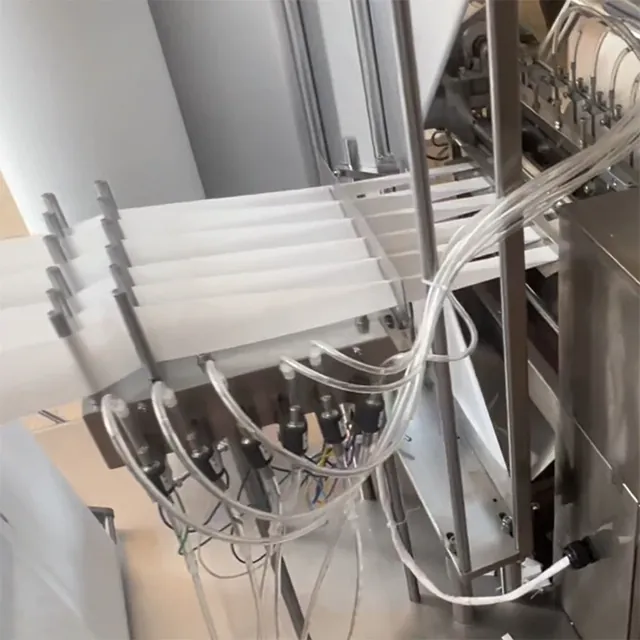

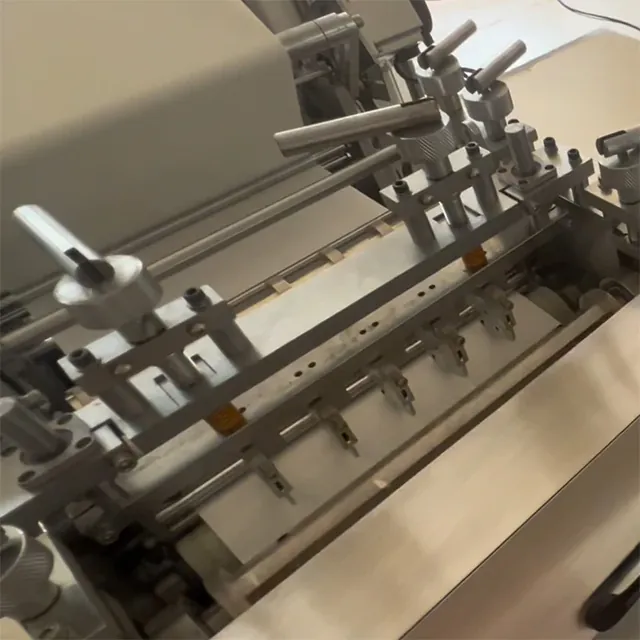

Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Wet wipes making machine AQ-6F
The AQ-6F produces multi-sheet stacks for canisters and flow packs. The AQ-280 produces one pad per sealed sachet.
Compared With Single wet wipe machine
Both make single sachets. The AQ-280 is set up specifically around alcohol formulations and 304 stainless wetted parts.
Setting The Machine For A Production Run
Load the film roll within the 400 mm diameter and 100-200 mm width limits
Set the liquid level digitally on the touch screen
Run a test batch and weigh sachets to confirm dose
Check seal integrity, then start production
Industries Using This Machine
Further Reading
Wet Wipe Line Lotion Dosing And Fold Types Explained
N, C and double Z folds, six-web tension control and how lotion dose is actually verified on a wet wipe line....
Installation Power And Shipping Checklist For Imported Converting Machines
What to confirm before a machine leaves China: voltage, compressed air, floor space, core size, documentation ...
Other Machines In This Family
Wet Wipes Making Machine
Six Feeding Systems Wetting Folding Cutting And Counting In One Line
Model AQ-6F
Single Wet Wipe Machine
Single Sachet Wet Wipe Production For Restaurants And Travel Packs
Model AQ-100
Non Woven Slitting And Rewinding Machine
Slit And Rewind Jumbo Non Woven Rolls Into Retail Size Without Telescoping
Model AQ-R(1800)
Medical Bed Cover Folding Machine
Ultrasonic Bonding And Three-Way Folding For Disposable Medical Bed Covers
Model AQ-B(2400)Alcohol Pads Making Machine FAQ
How is the alcohol dose controlled?
The touch screen sets the liquid level digitally, giving precise injection of the set volume into each sachet.
What packaging film does it use?
OPP/PE or PET/PE film, up to 400 mm roll diameter and 100 to 200 mm wide.
What sachet sizes are possible?
Packaging dimension 30-100 mm length by 30-65 mm width, with pad size in the pouch 30-80 mm by 25-50 mm. Both can be customised.
What material are the wetted parts?
All parts in contact with fabric and liquid formulation are manufactured in 304 stainless steel.
Get A Quotation For The AQ-280
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Alcohol Pads Making Machine specification, price and delivery.
