Wet Wipes Making Machine
Six Feeding Systems Wetting Folding Cutting And Counting In One Line
What This Machine Does

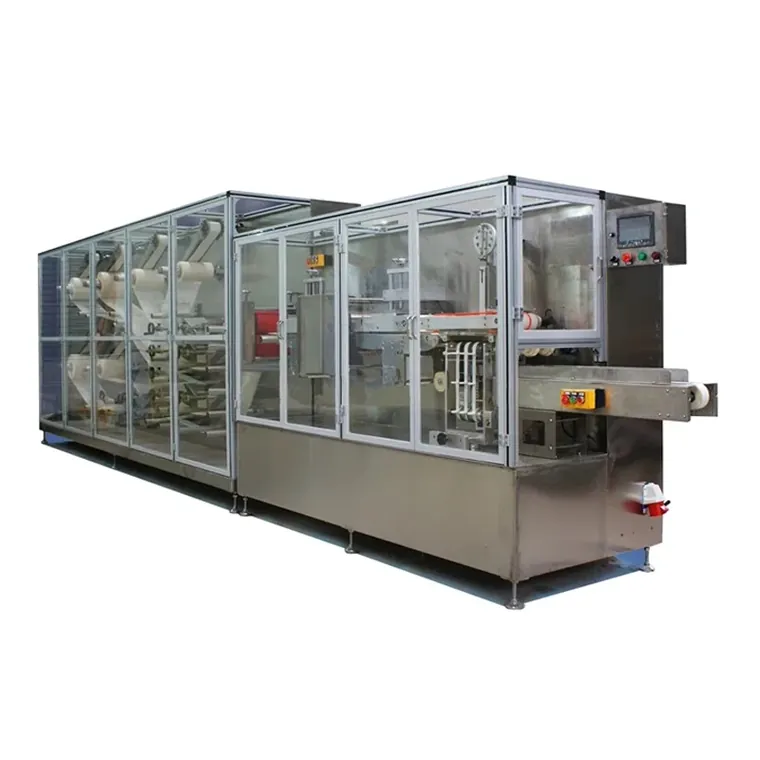

The AQ-6F Wet Wipes Making Machine integrates a wetting machine, a folding machine and a cutting machine in one line. Raw material feeding, folding, wetting, cutting, stacking and counting to finished output all run automatically under a PLC control system with touch screen and servo control. Six feeding systems each have their own tension controller, which is what holds folding size precision across a multi-web wipe, and the multifunctional folding system produces N, C or double Z folds.
- Spunlace non woven
- Viscose polyester blends
- Lotion supplied by the customer
Why Buyers Choose This Model

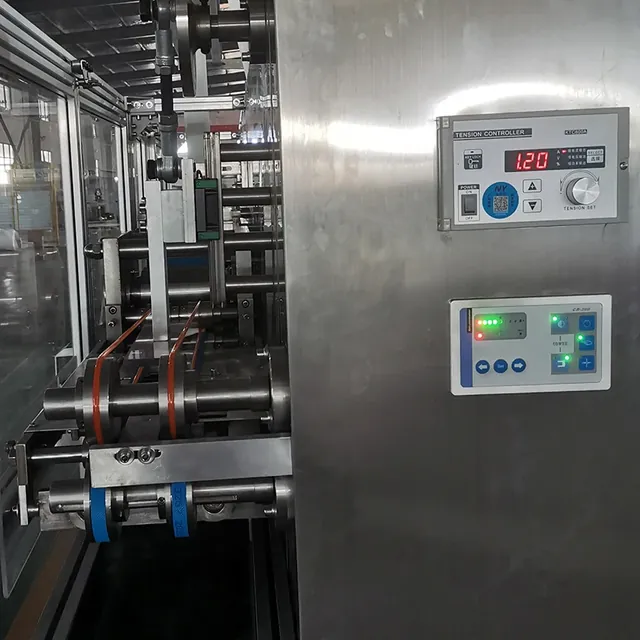

Six independent tension controllers keep folded size precise when six webs run together
PLC with touch screen and servo control means recipes are recalled rather than re-set by hand
N, C and double Z folding covers flow-wrap packs, lid packs and canister formats
One line replaces a separate wetting station, folder and cutter, saving floor space and handling
Factories Running This Machine
- Wet wipe manufacturers and private label producers
- Hygiene brands bringing converting in house
- Contract manufacturers serving supermarket labels
- Converters upgrading from separate wetting and folding machines
What It Removes From Your Line
- Folded size drift when several webs feed one wipe stack
- Manual lotion dosing that leaves packs wet or dry
- Separate machines that need intermediate handling of wet material
- Long changeovers between fold formats
Where This Machine Is Used
- Baby wipes production for retail brands
- Household and disinfectant wipe manufacturing
- Cosmetic and makeup remover wipe production
- Industrial and automotive wipe converting
How The Machine Is Built
- Integrated wetting, folding and cutting in one line
- 6 feeding systems with 6 tension controllers
- Multifunctional folding system for N, C or double Z folds
- PLC control with touch screen plus servo control system
- Advanced variable frequency control with safe wiring
- Power supply 380 V / 50 Hz, 4.5 kW, weight about 3500 kg, compressed air supplied by the customer
| Machine Model | AQ-6F |
|---|---|
| Warranty Period | 1 year |
| Delivery Time | about 35 days |
| Customization | Yes (as your requests) |
| HS Code | 8451500000 |
Production Sequence On This Line
Raw material feeding
Folding
Wetting
Cutting
Stacking
Counting
Output
What We Check Before Shipment
- Folded size checked with all six feeding systems running
- Lotion add-on weight measured against your target
- Stack count verified against the PLC preset
- Electrical and pneumatic circuits tested before shipment
What We Build To Your Specification
- Number of feeding and folding devices customised to your wipe structure
- Fold type set to N, C or double Z
- Wipe size and stack count to your pack format
- Voltage and frequency configured for your plant
Machine And Product Detail

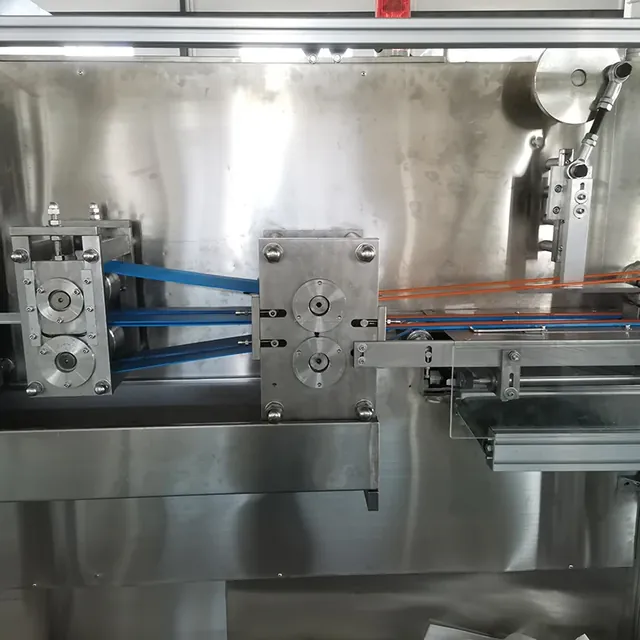

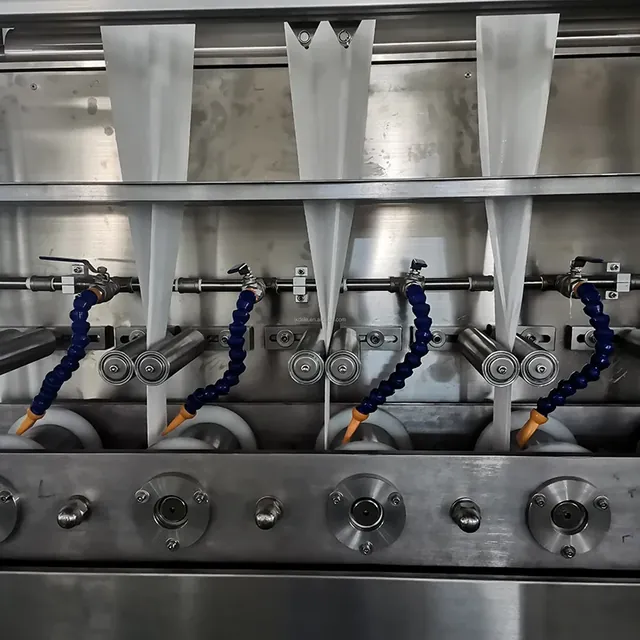

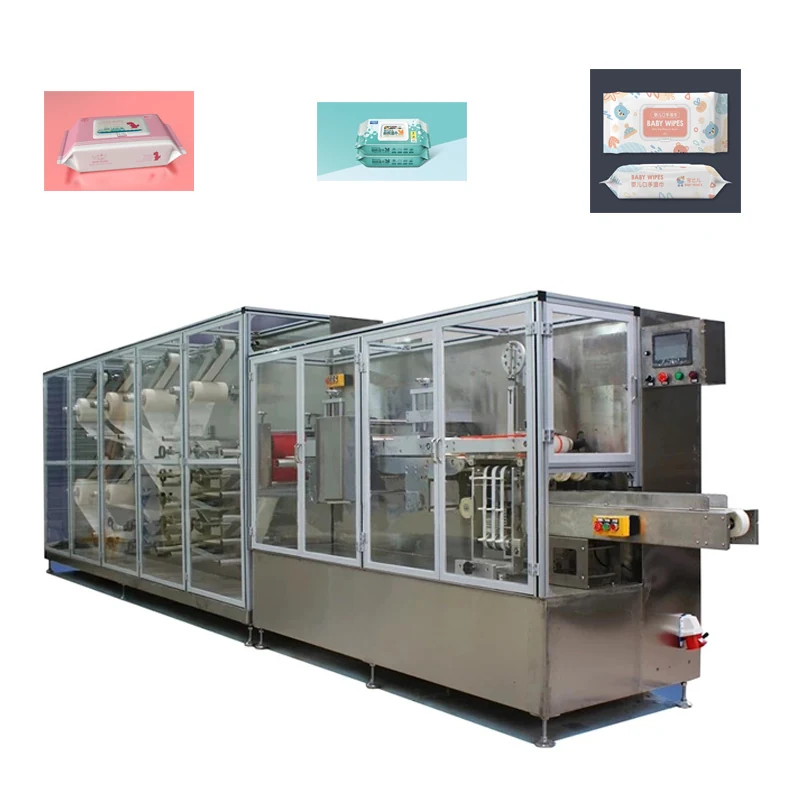

Photographs taken in our own factory and of output produced on this machine family.
How This Model Compares
Compared With Single wet wipe machine
The single wipe machine produces individually packed wipes. The AQ-6F produces multi-sheet stacks for canister and flow-wrap packs.
Compared With Dry folding machines
A dry folder has no wetting section or liquid-safe construction. This line doses lotion in process.
Setting The Machine For A Production Run
Load all feeding positions and set each tension controller
Select the fold type on the touch screen and load the recipe
Set lotion dose and run a test stack, weighing add-on per wipe
Confirm stack count, then run production
Industries Using This Machine
Other Machines In This Family
Alcohol Pads Making Machine
Individually Sachet Packed Alcohol Pads With Touch Screen Liquid Dosing
Model AQ-280
Single Wet Wipe Machine
Single Sachet Wet Wipe Production For Restaurants And Travel Packs
Model AQ-100
Non Woven Slitting And Rewinding Machine
Slit And Rewind Jumbo Non Woven Rolls Into Retail Size Without Telescoping
Model AQ-R(1800)
Medical Bed Cover Folding Machine
Ultrasonic Bonding And Three-Way Folding For Disposable Medical Bed Covers
Model AQ-B(2400)Wet Wipes Making Machine FAQ
How many webs can the machine combine?
There are six feeding systems, each with its own tension controller. The number of feeding and folding devices can be customised to your requirement.
Which fold types are available?
The multifunctional folding system produces N folds, C folds or double Z folds.
What is the power requirement?
380 V / 50 Hz at 4.5 kW. Compressed air is supplied by the customer, and the machine weighs about 3500 kg.
Is the control system automatic?
Yes. A PLC with touch screen plus servo control runs feeding, folding, wetting, cutting, stacking and counting automatically.
Get A Quotation For The AQ-6F
Tell us your finished product size, fabric weight, output target and voltage, and we confirm the Wet Wipes Making Machine specification, price and delivery.
