Encrypting Pin Pad

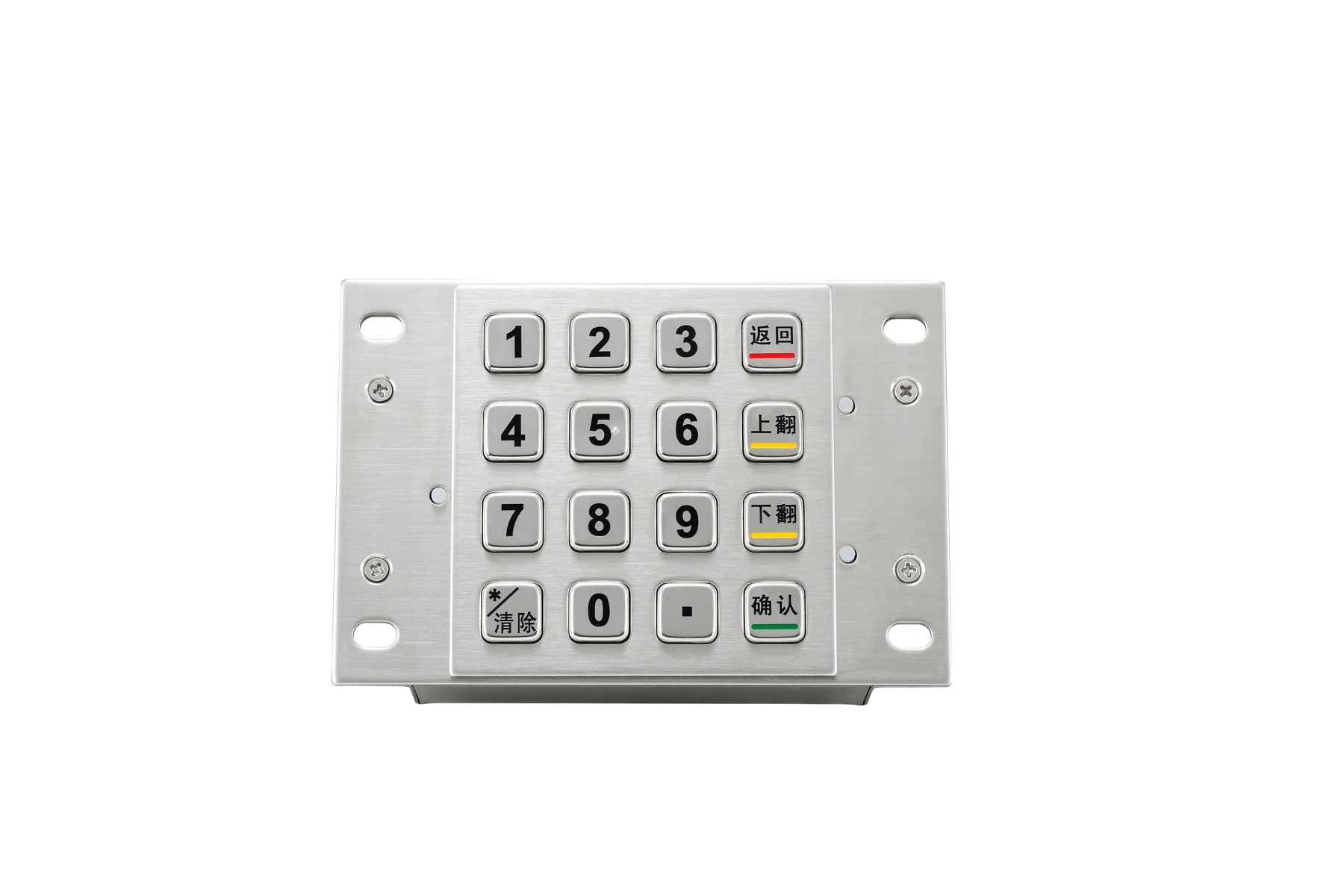

KY3088D Encrypting Pin Pad With Raised or Flat Key Option
KY3088D is an encrypting pin pad that can be built with either 1.5mm raised keys or 0.45mm flat keys on the same 87.5*91.5mm face and 140*95mm body, so accessibility and tamper resistance can be traded off per project.
Product Overview
KY3088D is an encrypting pin pad that can be built with either 1.5mm raised keys or 0.45mm flat keys on the same 87.5*91.5mm face and 140*95mm body, so accessibility and tamper resistance can be traded off per project. Hardware encryption handles PIN encryption, MAC calculation and data encryption and decryption. It targets self-service payment, fuel, vending and ATM equipment.
- One part number covers 1.5mm raised keys or 0.45mm flat keys
- Accessibility and anti-tamper needs can be met without a new panel design
- Hardware encryption chip keeps PIN data off the host application
- Encryption supports MAC, DES(3EDS) and SM4 for different regions
- 2*4 Function keys (FDK) for screen-side selection
- USB, PS/2 or RS232 at DC5V±5% with under 100mA
Application Scenarios
- Self-service payment solutions in retail and transport
- Self-service petrol filling stations on the forecourt
- Vending machines taking card payments
- Automatic Teller Machine PIN entry positions
Who It Is For
- Fuel dispenser and forecourt terminal manufacturers
- Vending machine OEMs adding card payment
- Self-service payment terminal integrators
- ATM builders standardising on a 140*95mm cut-out
Problems It Solves
- Choosing between tactile raised keys and tamper-resistant flat keys at design stage
- Redesigning a fascia when the key style changes
- PIN processing handled in terminal software
- Regional algorithm requirements varying across a rollout
- Serial-only controllers in older dispenser electronics
Technical Features
- Stainless steel buttons in a water and vandal proof compact layout
- Key Trip 1.5mm (raised keys) or 0.45mm (flat keys)
- Hardware Encryption model with a security chip, non-encryption model supported
- Password length 4~12 Bit with key length 8/16/24 bit
- Operation force 2-3N with durability ≥2 Million
- Operating temperature -20 ℃~55℃, storage temperature -30℃~85℃
Specifications
| Front Panel | 87.5*91.5mm |
|---|---|
| Overall | 140*95mm |
| Power supply | DC5V±5% |
| Working current | <100mA |
| Interface | USB, PS/2 or RS232 |
| Key Trip | 1.5mm (raised keys) 0.45mm (flat keys) |
| Operation force | 2-3N |
| Durability | ≥2 Million |
| Password Length | 4~12 Bit |
| Key Length | 8/16/24 bit |
| Function Keys | 2*4 (FDK) |
| Compatible systems | Window 7, Window XP, Window 10, Linux, Ubuntu, Android |
Materials
- Stainless steel key buttons in raised or flat form
- Metal pin pad panel and mounting body
Manufacturing Process
- Forming of the 140*95mm body and 87.5*91.5mm key face
- CNC machining of key apertures for the chosen key style
- Laser or etched key marking
- Security chip and matrix assembly
- Encryption function and interface verification
Quality Control
- Key trip verified to 1.5mm or 0.45mm according to the build
- Operation force sampling at 2-3N
- Hardware encryption function test
- Durability sampling to ≥2 Million operations
- Cross-platform interface check on Windows, Linux and Android
Customisation Options
- Raised 1.5mm or flat 0.45mm key style
- Encryption or non-encryption model
- Key layout and legends
- Algorithm set from MAC, DES(3EDS) and SM4
- Interface choice of USB, PS/2 or RS232
How It Compares
| KY3088B metal pinpad | Same 87.5*91.5mm face and 140*95mm body, but KY3088D also offers a 1.5mm raised key build. |
|---|---|
| KY3080 encrypting pin pad | KY3088D keeps the 140*95mm mounting body, while KY3080 is flush at 88*77 mm front and overall. |
| Fixed flat-key pin pads | The key style is selectable at order rather than fixed by the panel design. |
Use Guide
- Decide raised or flat keys at order stage as the key trip differs
- Cut the face to 87.5*91.5mm and allow the 140*95mm body
- Confirm the algorithms and password length with your acquirer requirements
- Supply DC5V±5% with under 100mA available
- Operate within -20 ℃~55℃ and store within -30℃~85℃
Questions About This Model
Can we choose the key style?
Yes. Key Trip is 1.5mm for raised keys or 0.45mm for flat keys.
What are the dimensions?
Front panel 87.5*91.5mm with an overall body of 140*95mm.
What encryption is performed?
PIN Encryption, MAC Calculation and Data Encryption and Decryption using a hardware security chip.
Which algorithms are supported?
MAC, DES(3EDS) and SM4.
Which operating systems are listed?
Window 7, Window XP, Window 10, Linux, Ubuntu and Android.
Is a plain keypad version available?
Yes, a non-encryption model is supported.
Request A Quote On KY3088D
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
