Encrypting Pin Pad

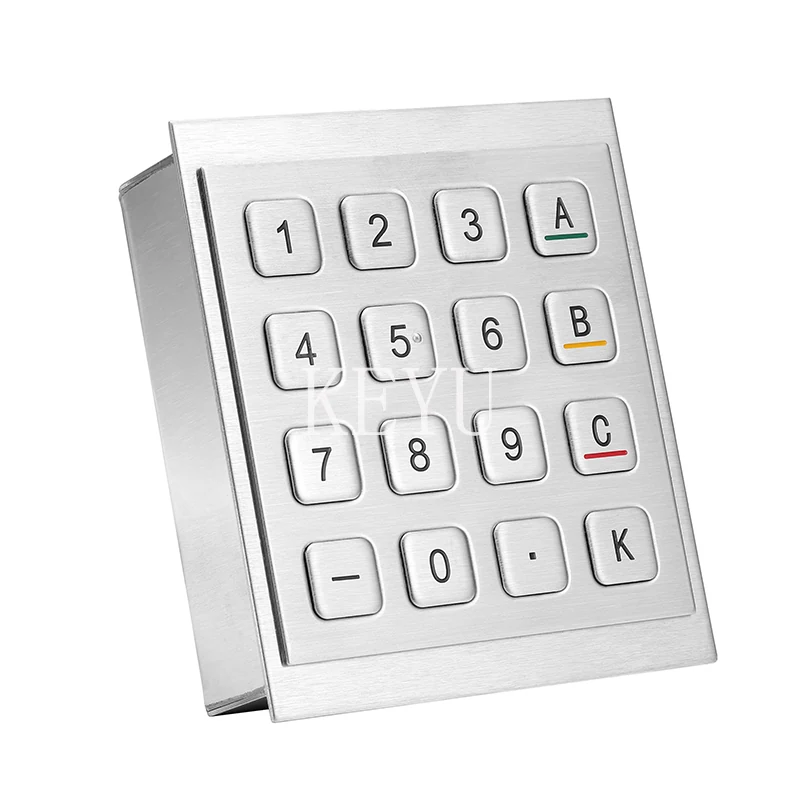

KY3088C 16 Keys Encrypting Metal Keypad

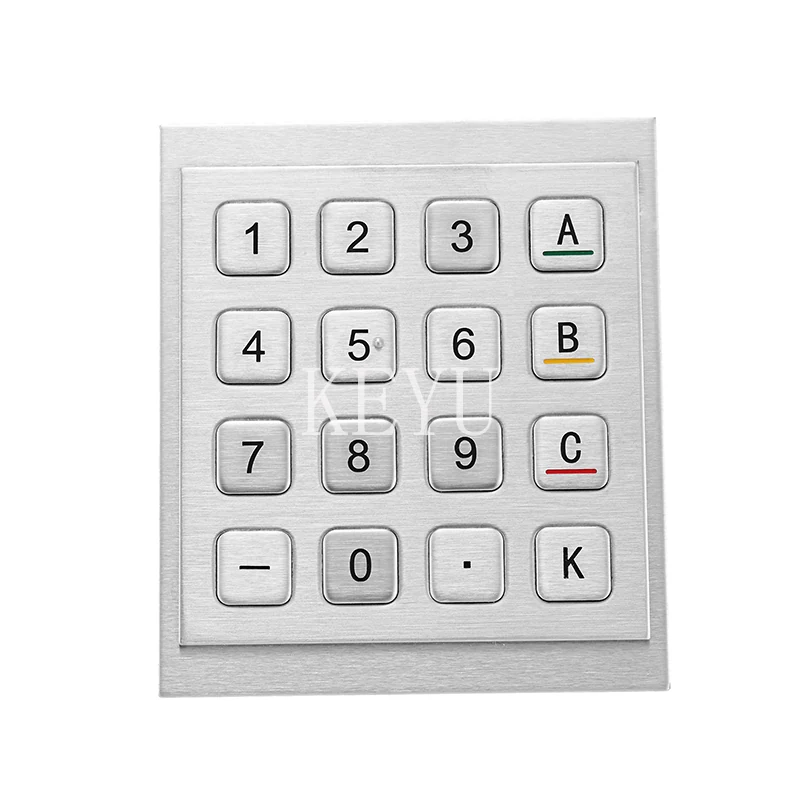

KY3088C is a 16 Keys encrypting metal keypad on an anti riot SUS304 brushed stainless steel panel for access entry kiosks and ATMs.
Product Overview
KY3088C is a 16 Keys encrypting metal keypad on an anti riot SUS304 brushed stainless steel panel for access entry kiosks and ATMs. Button silk screen etching content is customized so operators see the exact legends their application needs. It is chosen by terminal builders who want secure code entry on a panel that resists attack and corrosion.
- Encrypting 16 Keys pad for PIN and access code entry
- SUS304 brushed stainless steel panel and buttons resist riot damage and corrosion
- Etched button silk screen content customized per order
- Interface support for USB PS/2 and RS232 across terminal generations
- Light 2N+/-0.1N contact force reduces operator fatigue at busy entrances
- Rear mounting or front mounting fits either fascia design
Application Scenarios
- Access entry points in buildings and car parks
- ATM secure code entry
- Kiosk terminals accepting PIN input
- Unattended payment machines
- Staff entry doors with code panels
- Industrial sites requiring coded access
Who It Is For
- ATM and payment terminal manufacturers
- Access control system integrators
- Kiosk OEMs adding secure entry
- Security equipment installers
Problems It Solves
- Code entry on plastic pads leaves visible wear patterns and fails fast
- Attack on entry keypads at unattended doors
- Legends do not match the local application on stock keypads
- Mixed USB PS/2 and RS232 hosts in an installed base
Technical Features
- Key size 14*14*2.0mm with 0.45mm key trip
- Key strength 2N+/-0.1N contact force
- Power supply 5V plus or minus 5 percent and working current under 150mA
- Durability above 2 million operations
- Operation temperature -10 to 50 degrees C and storage -30 to 85 degrees C
- Rear mounting or front mounting
Specifications
| Keys | 16 KEYs |
|---|---|
| Power supply | 5V±5% |
| Working current | <150mA |
| Durability | >2 million |
| Product interface | USB / PS/2 / RS232 |
| Key size | 14*14*2.0mm |
| Key Trip | 0.45mm |
| Key strength | 2N+/-0.1N（Contact force） |
| Mounting Way | Rear mounting or Front mounting |
| Operation Temperature | -10℃~50℃ |
| Storage Temperature | -30℃~85℃ |
Materials
- SUS304 brushed stainless steel panel
- SUS304 brushed stainless steel buttons
Manufacturing Process
- SUS304 panel forming and brushing
- CNC punching of the 14*14*2.0mm key apertures
- Button silk screen etching to the customer artwork
- Encrypting board assembly
- Sealing and back panel fixing
- USB PS/2 or RS232 interface test
Quality Control
- Key contact force verified at 2N+/-0.1N
- Travel confirmed at 0.45mm
- Encryption function test before shipment
- Etch content check against the approved artwork
- Life sampling above 2 million operations
Customisation Options
- Button silk screen etching content to order
- USB PS/2 or RS232 interface build
- Rear or front mounting configuration
- Key field layout within the 16 KEYs arrangement
- Cable length for the host enclosure
How It Compares
| KY2145A | A compact 16 KEYs encrypting pad rather than the 145*100 mm PIN pad with 2*4 function keys |
|---|---|
| Non encrypting metal keypads | Code entry is handled by the encrypting pad rather than the host application |
| Plastic access keypads | An anti riot SUS304 face withstands attack at unattended entrances |
Use Guide
- Choose rear or front mounting for the door or fascia
- Select USB PS/2 or RS232 to match the controller
- Supply 5V plus or minus 5 percent
- Operate between -10 and 50 degrees C
- Send legend artwork before production for etching
Questions About This Model
How many keys does KY3088C have?
16 KEYs.
What material is the panel?
SUS304 brushed stainless steel that is anti riot and anti corrosion.
Which interfaces are supported?
USB PS/2 and RS232.
What is the key contact force?
2N+/-0.1N.
Can the key legends be customized?
Yes the button silk screen etching content can be customized.
What is the key size?
14*14*2.0mm with a 0.45mm key trip.
Request A Quote On KY3088C
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
