KY3088A PCI Metal Keypad With Wide 100*91.5 mm Key Face

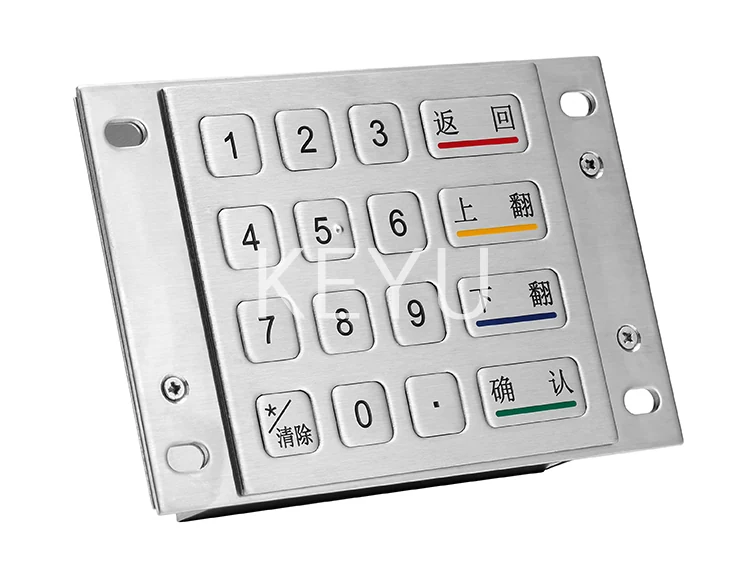

KY3088A is a PCI metal keypad with a wider 100*91.5 mm key face than the other 3088 series panels, fitted into the same 140*95 mm body.
Product Overview

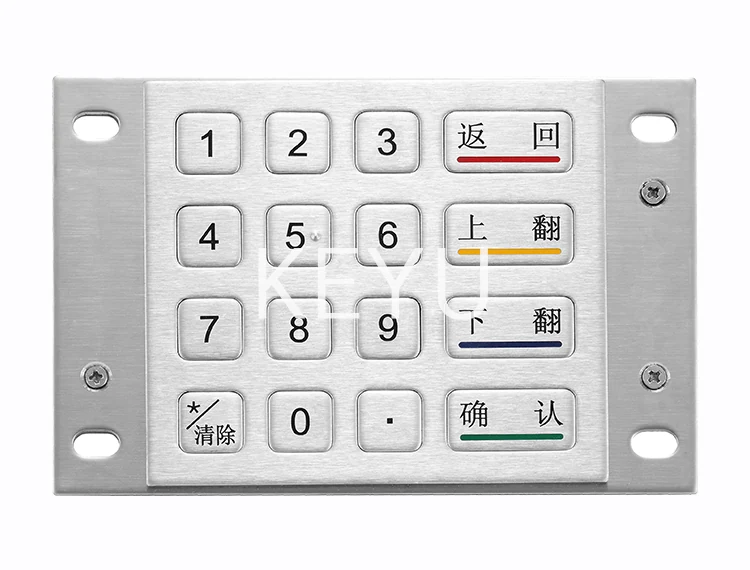

KY3088A is a PCI metal keypad with a wider 100*91.5 mm key face than the other 3088 series panels, fitted into the same 140*95 mm body. The extra width gives more space between keys for users wearing gloves or with limited dexterity. Hardware encryption covers PIN encryption, MAC calculation and data encryption and decryption, with a non-encryption model available.
- 100*91.5 mm key face gives wider key spacing than the 87.5 mm wide panels
- Drops into the same 140*95 mm body envelope as other 3088 series modules
- Hardware encryption chip performs PIN, MAC and data encryption on board
- Encryption supports MAC, DES(3EDS) and SM4
- Flat 0.45mm keys with 2~3N operation force stand up to public use
- USB, PS/2 or RS232 with under 100mA working current
Application Scenarios
- Automatic Teller Machine PIN entry with wider key spacing
- Ticket Vending Machine payment sections
- Kiosk card payment positions
- Parking Solution pay stations
Who It Is For
- ATM manufacturers prioritising key accessibility
- Payment kiosk and ticket machine OEMs
- Parking terminal suppliers
- Integrators standardising on a 140*95 mm cut-out
Problems It Solves
- Tight key spacing causing mis-entry by gloved or older users
- Redesigning the fascia when a wider key face is needed
- PIN data handled outside dedicated encryption hardware
- Algorithm requirements differing by region
- Embedded hosts offering only RS232
Technical Features
- Stainless steel buttons with a water and vandal proof compact layout
- Hardware Encryption model with a security chip
- Support for 2*4 Function keys (FDK)
- Password length 4-12 Bit, key length 8/16/24 bit
- Key trip 0.45mm, operation force 2~3N, durability ≥2 Million
- Operation temperature -20℃~55℃, storage temperature -30℃~85℃
Specifications
| Front Panel | 100*91.5 mm |
|---|---|
| Overall | 140*95 mm |
| Power Supply | DC5V±5% |
| Working Current | <100mA |
| Interface | USB, PS/2 or RS232 |
| Key Trip | 0.45mm |
| Operation Force | 2~3N |
| Durability | ≥2 Million |
| Password Length | 4-12 Bit |
| Key Length | 8/16/24 bit |
| Function Keys | 2*4 (FDK) |
| Compatible Systems | Window XP, Window 7, Window 10, Linux, Ubuntu, Android |
Materials
- Stainless steel key buttons
- Metal keypad body and flange
Manufacturing Process
- Forming of the 140*95 mm metal body
- CNC machining of the wider 100*91.5 mm key field
- Laser or etched marking of numeric and function keys
- Security chip and matrix assembly
- Encryption function and interface test
Quality Control
- Key spacing and aperture dimensional check on the 100*91.5 mm face
- Hardware encryption function verification
- Force sampling at 2~3N and trip check at 0.45mm
- Durability sampling to ≥2 Million operations
- Interface test on the ordered connection type
Customisation Options
- Encryption or non-encryption model
- Key layout customized for free within the wider face
- Algorithm set from MAC, DES(3EDS) and SM4
- FDK legend arrangement
- Interface and harness configuration
How It Compares
| KY3088B metal pinpad | Same 140*95 mm body, but KY3088A widens the key face to 100*91.5 mm from 87.5*91.5 mm. |
|---|---|
| KY3688A metal EPP | KY3688A is the 145*100 mm EPP listed with PCI 1.3 certification; KY3088A is the 3088 series metal keypad. |
| Compact 60 mm pin pads | The wider face suits users who need more space between keys rather than the smallest possible module. |
Use Guide
- Size the aperture for the 100*91.5 mm key face within the 140*95 mm body
- Check that the wider face still clears your fascia fixings
- Confirm the algorithm and password length requirements before build
- Provide DC5V±5% and at least the under 100mA working current
- Operate within -20℃~55℃ and store within -30℃~85℃
Questions About This Model
How is this different from KY3088B?
The body is the same 140*95 mm, but the key face is wider at 100*91.5 mm instead of 87.5*91.5 mm.
What encryption is performed on the module?
PIN Encryption, MAC Calculation and Data Encryption and Decryption in hardware.
Which algorithms are supported?
MAC, DES(3EDS) and SM4.
What is the key travel?
0.45mm with an operation force of 2~3N.
Are function keys included?
It supports 2*4 Function keys (FDK).
Which interfaces are offered?
USB, PS/2 or RS232 at DC5V±5% with under 100mA working current.
Request A Quote On KY3088A
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
