Encrypting Pin Pad

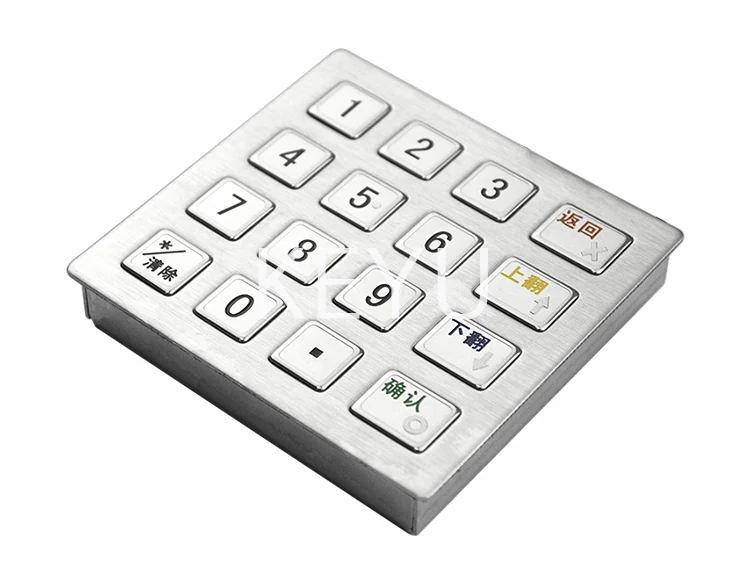

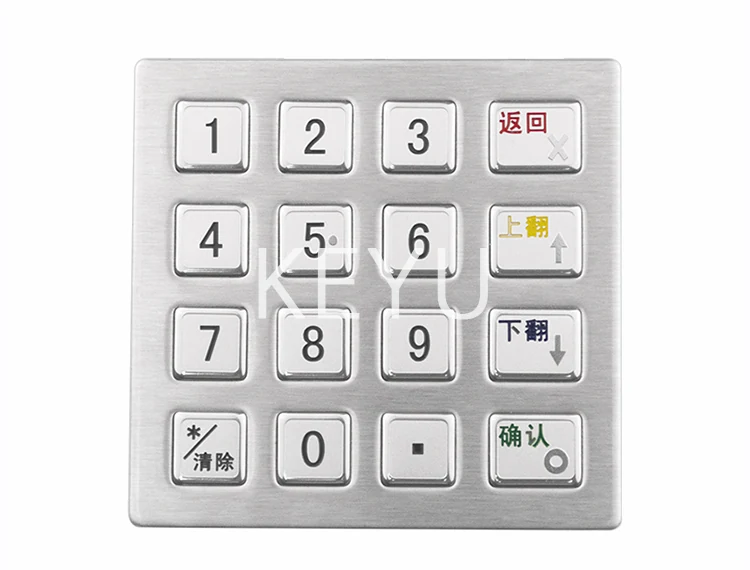

KY3080 Flush Encrypting Pin Pad With Raised Keys
KY3080 is an encrypting pin pad whose front panel and overall size are both 88*77 mm, so it seats into a plain rectangular cut-out with no rear flange allowance.
Product Overview
KY3080 is an encrypting pin pad whose front panel and overall size are both 88*77 mm, so it seats into a plain rectangular cut-out with no rear flange allowance. A 1.5mm key trip gives raised keys a firm press, which helps users who cannot feel a flat key. Hardware encryption covers PIN encryption, MAC calculation and data encryption and decryption.
- Front panel and overall size both 88*77 mm for a simple flush cut-out
- 1.5mm key trip gives a felt press rather than a flat surface
- Hardware encryption chip performs PIN, MAC and data operations
- Password length 4~12 Bit with key length 8/16/24 bit
- 2*4 Function keys (FDK) supported for menu selection
- USB, PS/2 or RS232 at DC5V±5% and under 100mA
Application Scenarios
- Ticket Vending Machine PIN entry
- Kiosk payment positions
- Parking Solution pay stations
- Self service payment machines in retail
Who It Is For
- Self service payment machine manufacturers
- Ticket machine and kiosk OEMs
- Parking terminal suppliers
- Integrators needing tactile keys for accessibility
Problems It Solves
- Flat keys that give no tactile confirmation to users who rely on feel
- Cut-outs complicated by a pin pad with an oversize rear body
- PIN handling in terminal software instead of hardware
- Regional differences in encryption algorithm requirements
- Hosts that only expose a serial port
Technical Features
- Stainless steel buttons in a compact water and vandal proof layout
- Hardware Encryption model with a security chip and non-encryption option
- Encryption supports MAC, DES(3EDS) and SM4
- Key trip 1.5mm with operation force 2~3N
- Durability ≥2 Million operations
- Operation temperature -20℃~55℃ and storage temperature -30℃~85℃
Specifications
| Front Panel | 88*77 mm |
|---|---|
| Overall | 88*77 mm |
| Power Supply | DC5V±5% |
| Working Current | <100mA |
| Interface | USB, PS/2 or RS232 |
| Key Trip | 1.5mm |
| Operation Force | 2~3N |
| Durability | ≥2 Million |
| Password Length | 4~12 Bit |
| Key Length | 8/16/24 bit |
| Function Keys | 2*4 (FDK) |
| Compatible Systems | Window XP, Window 7, Window 10, Linux, Ubuntu, Android |
Materials
- Stainless steel raised key buttons
- Metal pin pad panel with sealed key field
Manufacturing Process
- Precision forming of the flush 88*77 mm panel
- CNC machining of raised key apertures
- Laser or etched key marking
- Security chip and matrix board assembly
- Encryption function and interface verification
Quality Control
- Flush fit and flatness inspection of the 88*77 mm panel
- Key trip measurement at 1.5mm
- Operation force sampling at 2~3N
- Hardware encryption function test
- Durability sampling to ≥2 Million operations
Customisation Options
- Encryption or non-encryption model
- Compact key layout customized for free
- Algorithm set from MAC, DES(3EDS) and SM4
- FDK legends and positions
- Interface choice of USB, PS/2 or RS232
How It Compares
| KY3060B encrypting pin pad | KY3080 is larger at 88*77 mm and uses a 1.5mm raised key trip instead of the 0.45mm flat key. |
|---|---|
| KY3088X encrypting pin pad | Both use a 1.5 mm class key trip, but KY3080 is flush front to back at 88*77 mm while KY3088X has a 95*117 mm body. |
| Touch screen PIN entry | Raised physical keys with a 1.5mm trip give tactile confirmation that an on-screen pad cannot. |
Use Guide
- Cut a plain 88*77 mm opening as the front and overall sizes match
- Allow rear clearance for the interface cable
- Confirm the encryption model and algorithms before build
- Provide DC5V±5% with under 100mA available
- Operate within -20℃~55℃ and store within -30℃~85℃
Questions About This Model
Why are the front and overall dimensions identical?
Both are 88*77 mm, so the pin pad fits a plain rectangular cut-out with no rear flange.
Are the keys raised?
The key trip is 1.5mm with an operation force of 2~3N, giving a felt press.
What encryption is included?
PIN Encryption, MAC Calculation and Data Encryption and Decryption with MAC, DES(3EDS) and SM4 support.
What key and password lengths apply?
Password length 4~12 Bit and key length 8/16/24 bit.
Which interfaces are available?
USB, PS/2 or RS232 at DC5V±5%.
Where is it typically installed?
Ticket Vending Machines, kiosks, parking solutions and self service payment machines.
Request A Quote On KY3080
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
