KY3060B Compact 60*60 mm Encrypting Pin Pad
KY3060B is a 60*60 mm encrypting pin pad in a 64*64 mm body, for terminals where the payment bay leaves almost no room.
Product Overview

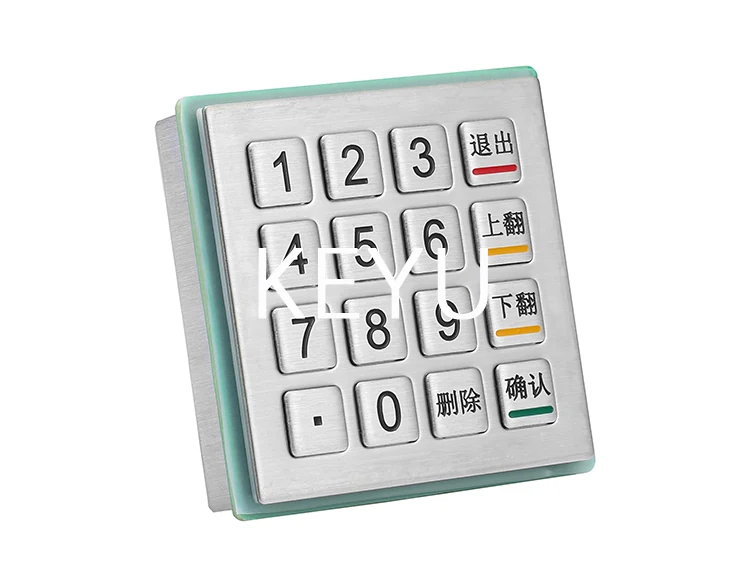

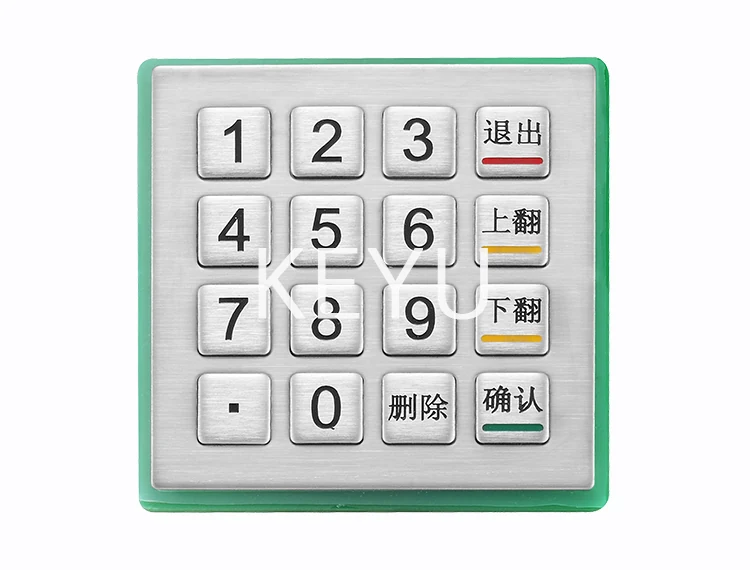

KY3060B is a 60*60 mm encrypting pin pad in a 64*64 mm body, for terminals where the payment bay leaves almost no room. Despite the size it still runs PIN encryption, MAC calculation and data encryption and decryption on a hardware security chip and supports 2*4 Function keys (FDK). It is used in ticket vending machines, kiosks, parking solutions and ATM equipment.
- 60*60 mm front panel in a 64*64 mm body for very tight payment bays
- Only 4 mm of body margin around the face, simplifying panel layout
- Full hardware encryption in the smallest module of the range
- Password length 4~12 Bit with key length 8/16/24 bit
- Flat 0.45mm keys at 2~3N for tamper resistance and easy cleaning
- USB, PS/2 or RS232 at DC5V±5% with under 100mA draw
Application Scenarios
- Ticket Vending Machine bays with minimal free space
- Kiosk terminals where the screen dominates the fascia
- Parking Solution columns with a narrow payment window
- ATM equipment needing a small PIN entry module
Who It Is For
- Designers of compact self-service fascias
- Parking column manufacturers
- Ticket machine OEMs
- ATM module integrators
Problems It Solves
- Pin pads too large for a narrow payment bay
- Losing encryption capability when downsizing the keypad
- Host controllers with only a serial interface
- Raised keys catching dirt in outdoor columns
- Mixed operating system estates needing one supported module
Technical Features
- Stainless steel buttons in a compact water and vandal proof layout
- Hardware Encryption model with a security chip and non-encryption option
- Encryption support for MAC, DES(3EDS) and SM4
- Support for 2*4 Function keys (FDK)
- Key trip 0.45mm, operation force 2~3N, durability ≥2 Million
- Compatible with Window XP, Window 7, Window 10, Linux, Ubuntu and Android
Specifications
| Front Panel | 60*60 mm |
|---|---|
| Overall | 64*64 mm |
| Power Supply | DC5V±5% |
| Working Current | <100mA |
| Interface | USB, PS/2 or RS232 |
| Key Trip | 0.45mm |
| Operation Force | 2~3N |
| Durability | ≥2 Million |
| Password Length | 4~12 Bit |
| Key Length | 8/16/24 bit |
| Operation Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~85℃ |
Materials
- Stainless steel key buttons
- Compact metal pin pad housing
Manufacturing Process
- Precision blanking of the 64*64 mm housing
- CNC machining of the 60*60 mm key field
- Laser or etched marking of the numeric keys
- Security chip and compact matrix assembly
- Encryption verification and interface test
Quality Control
- Dimensional check of the tight 60*60 mm and 64*64 mm envelopes
- Hardware encryption function test
- Key trip and operation force sampling
- Durability sampling to ≥2 Million operations
- Temperature soak within -20℃~55℃
Customisation Options
- Encryption or non-encryption model
- Compact layout customized for free
- Algorithm set from MAC, DES(3EDS) and SM4
- Interface choice of USB, PS/2 or RS232
- Fixing points to suit a narrow bay
How It Compares
| KY3080 encrypting pin pad | KY3060B is smaller at 60*60 mm with a 0.45mm flat key, where KY3080 is 88*77 mm with a 1.5mm raised key trip. |
|---|---|
| KY2160A metal encrypting pin pad | KY3060B suits bays too small for the 160*102.5 mm plate while keeping hardware encryption. |
| Plain numeric keypad of similar size | PIN encryption, MAC calculation and data encryption run on board rather than in the terminal application. |
Use Guide
- Cut a 60*60 mm aperture and allow for the 64*64 mm body
- Check cable exit clearance behind the small housing
- Confirm password lengths of 4~12 Bit suit your scheme
- Supply DC5V±5% with under 100mA available
- Keep operation within -20℃~55℃ and storage within -30℃~85℃
Questions About This Model
How small is the module?
Front panel 60*60 mm with an overall body of 64*64 mm.
Does the small size limit encryption?
No. It runs PIN Encryption, MAC Calculation and Data Encryption and Decryption in hardware with MAC, DES(3EDS) and SM4 support.
Are function keys supported?
Yes, 2*4 Function keys (FDK).
What is the key action?
Key trip 0.45mm with an operation force of 2~3N.
Which interfaces are available?
USB, PS/2 or RS232.
Which operating systems are listed?
Window XP, Window 7, Window 10, Linux, Ubuntu and Android.
Request A Quote On KY3060B
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
