Encrypting Pin Pad

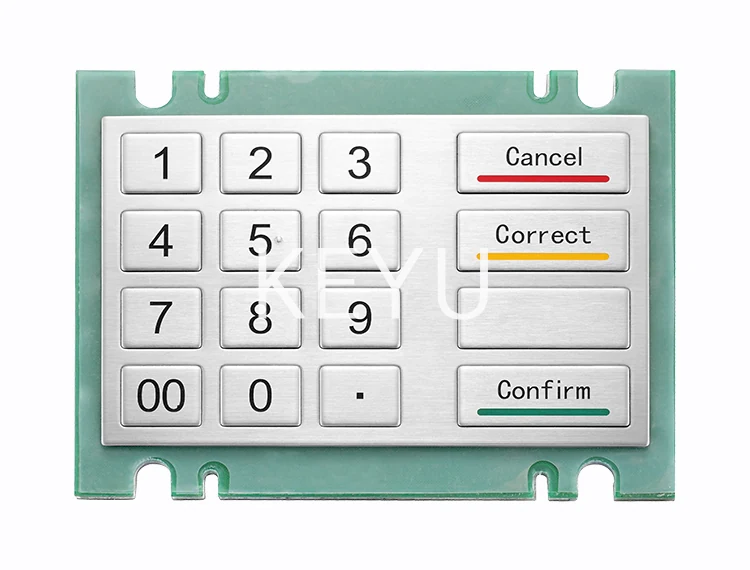

KY2160A Metal Encrypting Pin Pad 160*102.5 mm
KY2160A is the largest encrypting pin pad in this group, with a 160*102.5 mm front panel and a 176*132.5 mm overall body.
Product Overview
KY2160A is the largest encrypting pin pad in this group, with a 160*102.5 mm front panel and a 176*132.5 mm overall body. The extra width lets the numeric field and both function key columns sit within one plate, which suits ticket machines and parking terminals with a wide payment bay. It carries hardware PIN encryption, MAC calculation and data encryption and decryption.
- 160*102.5 mm front panel covers a wide payment bay with one plate
- Hardware encryption keeps PIN, MAC and data operations on the module

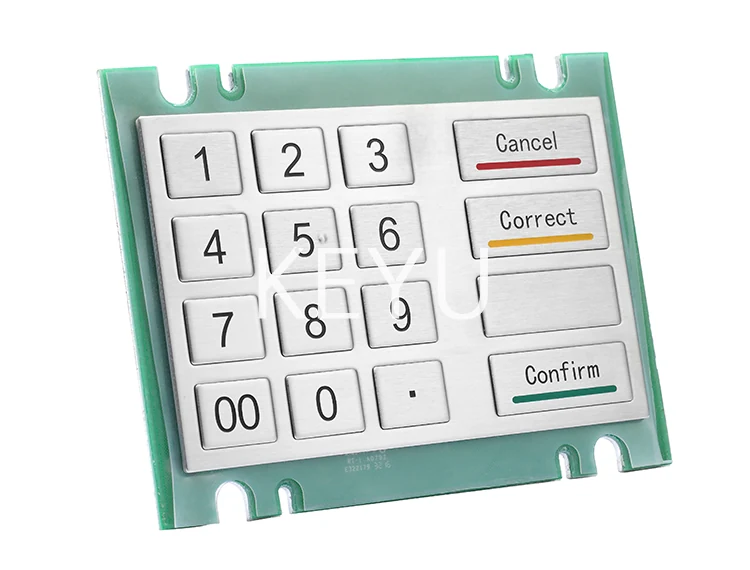

- 2*4 Function keys (FDK) fit alongside the numeric field without a second part
- Flat 0.45mm keys at 2~3N resist tampering and clean easily
- MAC, DES(3EDS) and SM4 support for different regional requirements
- Durability ≥2 Million operations on stainless steel buttons
Application Scenarios
- Ticket Vending Machine payment bays
- Kiosk terminals with a wide fascia opening
- Parking Solution pay stations
- Semi-outdoor terminals operating from -20℃ to 55℃
Who It Is For
- Ticket machine manufacturers with a wide payment module
- Parking terminal suppliers
- Kiosk OEMs replacing several separate input parts with one plate
- Integrators needing SM4 and DES in one device
Problems It Solves
- Numeric keypad and function keys arriving as separate parts to align in the fascia
- Large fascia openings that a small pin pad cannot fill neatly
- PIN processing performed in host software
- Public terminals where raised keys get pried at
- Hosts limited to a serial port
Technical Features
- Stainless steel buttons in a water and vandal proof layout
- Hardware Encryption model with a security chip, non-encryption model available
- Password length 4~12 Bit with key length 8/16/24 bit
- Key trip 0.45mm and operation force 2~3N
- USB, PS/2 or RS232 at DC5V±5% with under 100mA
- Operation temperature -20℃~55℃ and storage temperature -30℃~85℃
Specifications
| Front Panel | 160*102.5 mm |
|---|---|
| Overall | 176*132.5 mm |
| Power Supply | DC5V±5% |
| Working Current | <100mA |
| Interface | USB, PS/2 or RS232 |
| Key Trip | 0.45mm |
| Operation Force | 2~3N |
| Durability | ≥2 Million |
| Password Length | 4~12 Bit |
| Key Length | 8/16/24 bit |
| Function Keys | 2*4 (FDK) |
| Compatible Systems | Window XP, Window 7, Window 10, Linux, Ubuntu, Android |
Materials
- Stainless steel key buttons
- Large-format metal pin pad panel
Manufacturing Process
- Sheet-metal forming of the 176*132.5 mm body
- CNC machining of the 160*102.5 mm key field and FDK columns
- Laser or etched key marking
- Security chip and keypad matrix assembly
- Encryption and interface verification
Quality Control
- Flatness inspection across the large 160*102.5 mm face
- Hardware encryption and MAC calculation test
- Key trip and force sampling at 0.45mm and 2~3N
- Durability sampling to ≥2 Million operations
- Interface enumeration on the ordered connection
Customisation Options
- Encryption or non-encryption model
- Layout customized for free across the wide panel
- Algorithm set from MAC, DES(3EDS) and SM4
- FDK column position and legends
- Interface choice of USB, PS/2 or RS232
How It Compares
| KY3088A PCI metal keypad | KY2160A gives a much larger 160*102.5 mm face against the 100*91.5 mm of KY3088A. |
|---|---|
| KY3060B encrypting pin pad | KY2160A is a full-width plate where KY3060B is a 60*60 mm module for very tight bays. |
| Separate keypad plus side keys | The numeric field and 2*4 FDK sit on one plate, removing an alignment step in assembly. |
Use Guide
- Size the fascia opening to the 160*102.5 mm front panel and clear the 176*132.5 mm body
- Check panel support behind the wide plate to avoid flexing under key pressure
- Agree the algorithm and password length before production
- Provide DC5V±5% at under 100mA
- Operate within -20℃~55℃ and 20%~85% relative humidity
Questions About This Model
How large is the panel?
The front panel is 160*102.5 mm with an overall body of 176*132.5 mm.
Does it include function keys?
Yes, it supports 2*4 Function keys (FDK).
What encryption does it perform?
PIN Encryption, MAC Calculation and Data Encryption and Decryption in hardware.
Which algorithms are supported?
MAC, DES(3EDS) and SM4.
What is the key action?
Key trip 0.45mm with an operation force of 2~3N and durability ≥2 Million.
Can it be ordered without encryption?
Yes, a non-encryption model is supported.
Request A Quote On KY2160A
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
