KY2060B Thin Panel Metal Membrane Keypad

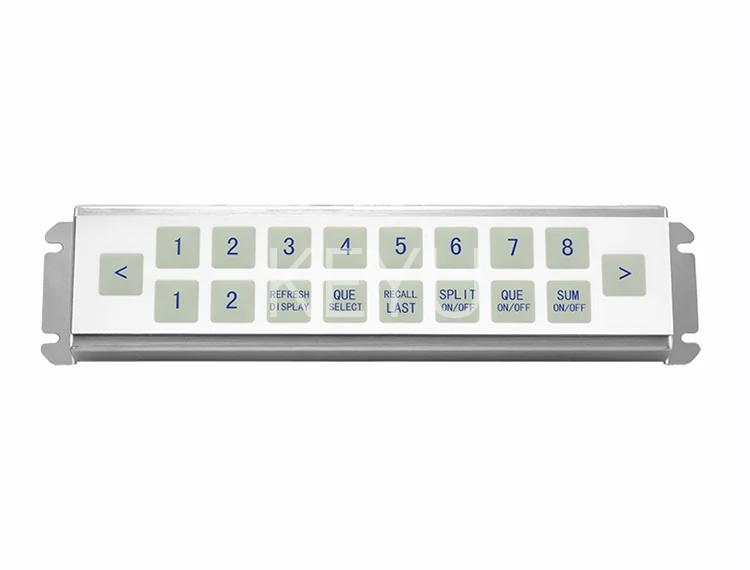

KY2060B is a strip format membrane keypad with a 240*60 mm front panel on a 266*60 mm body, sized for the narrow band above a ticket slot or card reader.
Product Overview

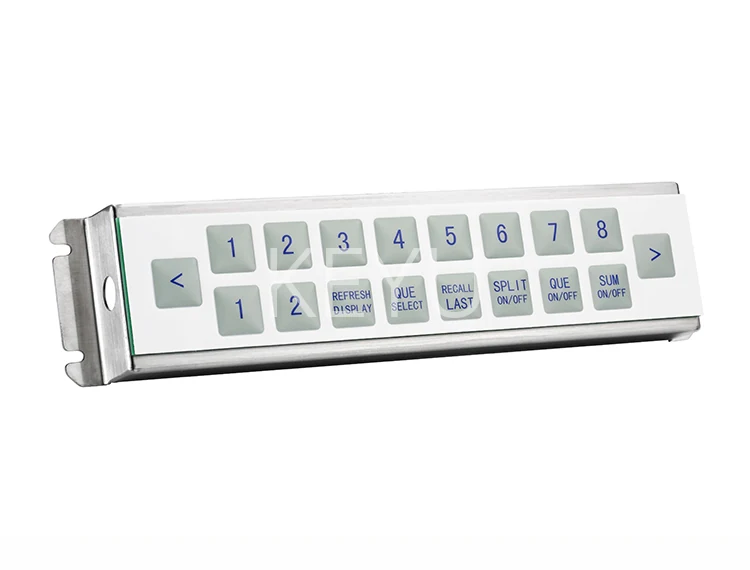

KY2060B is a strip format membrane keypad with a 240*60 mm front panel on a 266*60 mm body, sized for the narrow band above a ticket slot or card reader. The very thin metal panel resists dirt, dust and liquid and can be cleaned with soapy water or disinfectant. It suits ticketing, parking and food service equipment where the fascia offers height for one row of keys only.
- Strip layout fits the 240*60 mm band on a ticket or parking fascia
- Very thin metal panel keeps the assembly depth low behind the door
- Cleanable with soapy water, disinfectant or other cleaning agents
- Defined 220g±20g operation force gives consistent tactile response
- Five output options including TTL and RS485 for embedded controllers
- IP65 sealing against dirt, dust and liquid
Application Scenarios
- Ticket vending machines with a narrow key band
- Parking entry and exit columns
- Kiosk fascias where a card reader takes the central area
- Medical equipment needing disinfectant cleaning
- Prison and secure facility terminals
- Food service ordering stations
Who It Is For
- Parking and access equipment manufacturers
- Ticketing terminal integrators
- Medical and food service equipment builders
- Industrial facility panel designers
Problems It Solves
- Standard keypads are too tall for the available fascia band
- Cleaning agents attack printed plastic overlays
- Embedded controllers need TTL or RS485 rather than USB
- Inconsistent key force causes double entries at busy sites
Technical Features
- Very thin metal panel construction resistant to dirt, dust and liquid
- Operation force of 220g±20g
- USB, PS/2, RS232, TTL and RS485 interfaces available
- Power supply DC5V±5% with working current below 150mA
- Durability of 2 Million actuations
- Operating temperature of -20℃~55℃
- Rear mounting or front mounting
Specifications
| Front Panel | 240*60 mm |
|---|---|
| Overall Dimension | 266*60 mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Operation Force | 220g±20g |
| Durability | ≥ 2Million |
| Interface | USB, PS/2, RS232, TTL, RS485 |
| Packing Dimension | 160*160*60mm |
| Operating Temperature | -20℃~55℃ |
| Approvals | ROHS, IP65, FCC, CE |
Materials
- Thin metal front panel
- Sealed membrane switch layer
Manufacturing Process
- Sheet metal forming of the thin 266*60 mm panel
- Key graphic application to the panel face
- Membrane layer lamination and edge sealing
- Interface board fitting for the selected output
- Force calibration to 220g±20g
- Cleaning and packing
Quality Control
- Operation force measured against the 220g±20g window
- Liquid and cleaning agent exposure check
- Actuation sampling to the 2 Million rating
- Signal verification on the ordered interface
Approvals And Test Documentation
- ROHS
- IP65
- FCC
- CE
Customisation Options
- Key graphics and language set on the strip panel
- Interface built as USB, PS/2, RS232, TTL or RS485
- Cable exit direction to match the cabinet
- Front or rear mounting studs
How It Compares
| Stainless button keypad | The flat membrane face has no key gaps for grit to lodge in during cleaning |
|---|---|
| Plastic overlay membrane pad | The metal panel keeps its shape after repeated disinfectant wiping |
| Square numeric keypad | The 240*60 mm strip fits fascia bands where a square block will not |
Use Guide
- Plan the cutout for the 240*60 mm panel within the 266*60 mm body
- Choose TTL or RS485 where the host is an embedded board rather than a PC
- Clean with soapy water or disinfectant and avoid abrasive pads
- Keep the working environment within -20℃~55℃
Questions About This Model
Can it be disinfected?
Yes. The panel can be cleaned with soapy water, disinfectant or other cleaning agents.
What key force should operators expect?
Operation force is 220g±20g.
Does it support embedded serial buses?
TTL and RS485 are available alongside USB, PS/2 and RS232.
How thick is the assembly?
The source data lists a very thin metal panel design but no thickness figure, so we confirm depth per project.
What is the durability rating?
2 Million actuations.
