KY-UT385 Medical Membrane Keyboard With Touchpad
KY-UT385 is a thin panel membrane keyboard with an integrated touchpad for clinical and pharmaceutical workstations.
Product Overview

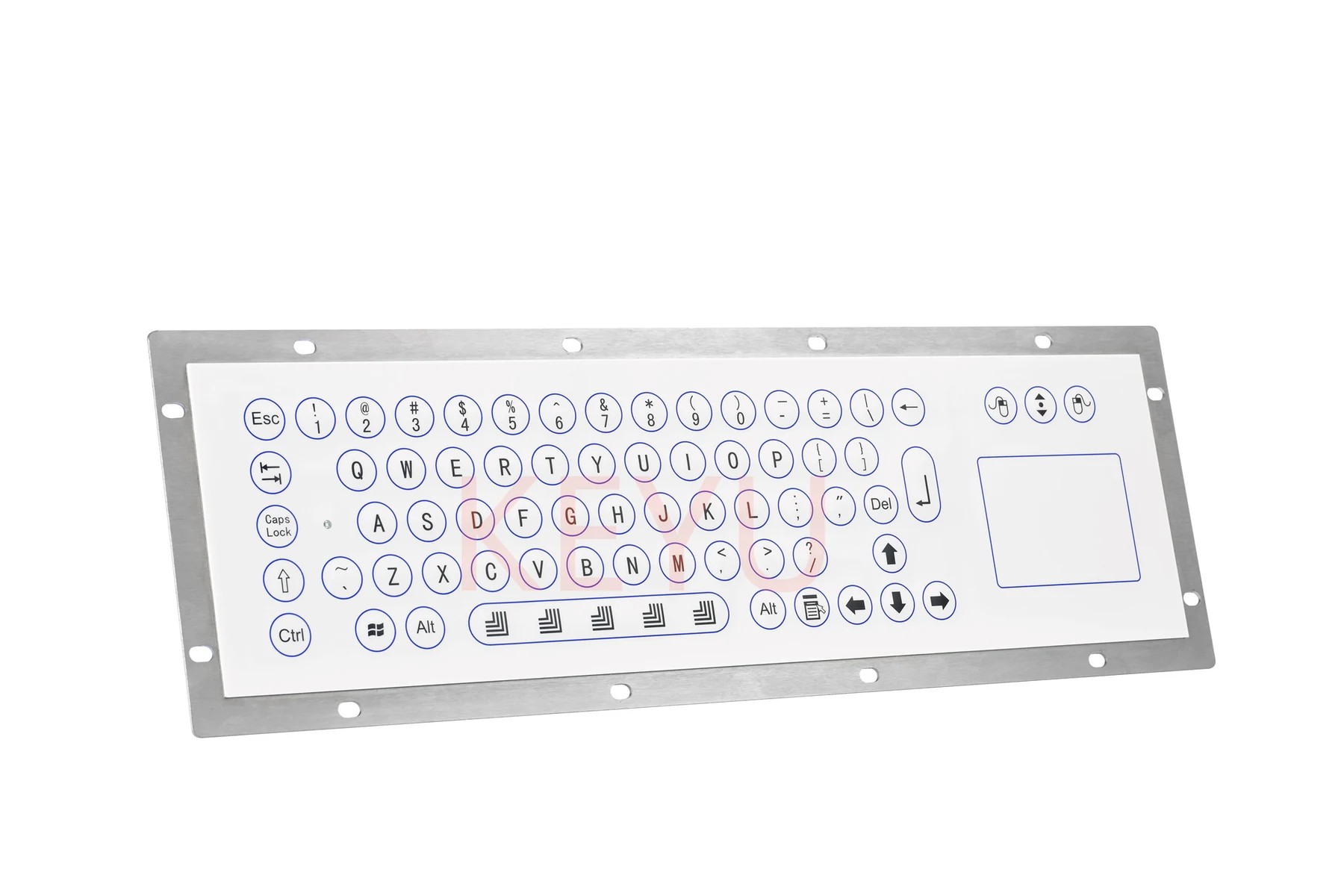

KY-UT385 is a thin panel membrane keyboard with an integrated touchpad for clinical and pharmaceutical workstations. The flat sealed surface resists dirt dust and liquid and can be wiped down with soapy water disinfectant or other cleaning agents between users. It is aimed at medical device builders and industrial control OEMs who need one cleanable input surface instead of a keyboard plus a separate mouse.
- Flat membrane surface can be cleaned with soapy water disinfectant or other cleaning agents
- Very thin metal panel design fits shallow cart and trolley enclosures
- IP65 approval keeps spills and cleaning fluid out of the electronics
- Integrated touchpad removes the separate mouse from the hygiene routine
- Five interface options USB PS/2 RS232 TTL and RS485 for varied medical hosts
- Rear mounting or front mounting suits both new panels and retrofits
Application Scenarios
- Bedside and ward medical equipment consoles
- Pharmaceutical production line terminals
- Laboratory instrument control panels
- Industrial control equipment in wipe down areas
- Kiosk solutions in clinics and waiting rooms
- Food service and prison terminals needing anti corrosion input
Who It Is For
- Medical device manufacturers
- Pharmaceutical plant equipment builders
- Laboratory instrument OEMs
- Industrial control panel integrators
Problems It Solves
- Standard keyboards trap fluid and cannot be disinfected between patients
- Separate mice add an extra contaminated surface to clean
- Deep keyboard bodies do not fit thin medical cart panels
- Corrosive cleaning agents attack ordinary keyboard finishes
Technical Features
- Membrane switch keyboard with 385*110 mm front panel and 409*134 mm overall size
- Operation force 220g plus or minus 20g across the membrane field
- Durability of at least 2Million operations
- Working current under 150mA on a DC5V plus or minus 5 percent supply
- Operating temperature -20 to 55 degrees C at 20% to 85% relative humidity
- Packing dimension 160*160*60mm for shipping and spares stock
Specifications
| Front Panel | 385*110 mm |
|---|---|
| Overall | 409*134 mm |
| Power Supply | DC5V±5% |
| Working Current | <150mA |
| Interface | USB, PS/2, RS232, TTL, RS485 |
| Operation Force | 220g±20g |
| Durability | ≥ 2Million |
| Packing Dim | 160*160*60mm |
| Mounting Way | Rear mounting or Front mounting |
| Operating Temperature | -20℃~55℃ |
| Approvals | ROHS, IP65, FCC, CE |
Materials
- Thin metal panel
- Membrane switch layer
Manufacturing Process
- Thin panel forming to the 385*110 mm face
- Membrane circuit printing and lamination
- Graphic overlay printing for key legends
- Perimeter sealing for the IP65 rating
- Touchpad fitting and calibration
- Interface board assembly for the ordered protocol
Quality Control
- Membrane actuation force checked at 220g plus or minus 20g
- Cycle sampling against the 2Million durability figure
- Liquid ingress test on the finished front face
- Cleaning agent exposure check on the overlay
- Touchpad tracking test before packing
Approvals And Test Documentation
- ROHS
- IP65
- FCC
- CE
Customisation Options
- Interface built as USB PS/2 RS232 TTL or RS485
- Overlay legend and language layout to order
- Rear or front mounting configuration
- Colour and branding of the printed overlay
- Cable exit position for the host enclosure
How It Compares
| Standard office keyboard | A sealed flat membrane face can be disinfected while a keyed office board cannot |
|---|---|
| Keyboard plus separate mouse | The built in touchpad removes one loose contaminated item from the workstation |
| Thick industrial keyboards | The very thin metal panel fits shallow medical cart cutouts |
Use Guide
- Cut the panel opening to suit the 385*110 mm front panel
- Allow 409*134 mm overall clearance behind the fascia
- Clean with soapy water disinfectant or other cleaning agents rather than abrasives
- Confirm the interface option before ordering as five are available
- Operate within -20 to 55 degrees C
Questions About This Model
Can KY-UT385 be disinfected?
Yes it can be cleaned with soapy water disinfectant or other cleaning agents.
What interfaces are available?
USB PS/2 RS232 TTL and RS485.
What is the mounted size?
The front panel is 385*110 mm and the overall size is 409*134 mm.
Is it rated against liquid ingress?
It carries IP65 among its approvals along with ROHS FCC and CE.
How is it mounted?
Rear mounting or front mounting.
Which systems does it work with?
Window XP Window 7 Window 8 Linux Ubuntu and Android.
Request A Quote On KY-UT385
Tell us quantity, interface and mounting method. Drawings and panel cutouts are welcome by WhatsApp or email.
